FC BeeCore Naze32 SPRacing F3 DSM
Opis
Kontroler Lotu BeeCore na bazie Naze32 SPracing F3 EVO zintegrowany z odbiornikiem DSM2/DSMX oraz regulatorami obrotów mikro silników szczotkowych z Betaflight OSD
Możliwość wgrania softu Betaflight

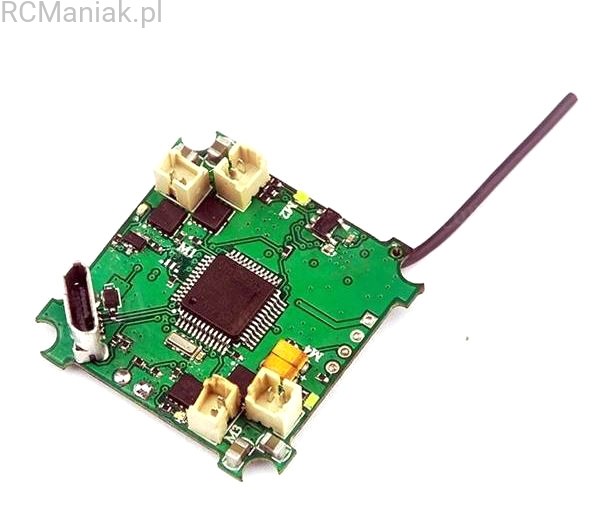

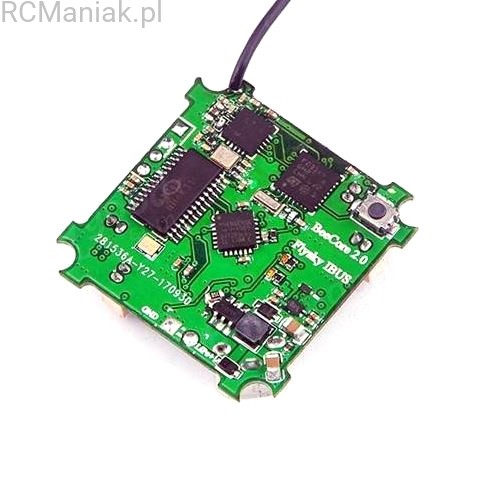

Eachine Beecore V2.0 Brushed Flight Control Board is a new upgraded version which integrated Betaflight OSD and MPU6000 at SPI bus. The new version also integrated 2.4G receiver DSMX. It's the best flight controller for indoor brushed quadcopter (BeeDuctrix / Tiny Whoop / Inductrix setups/Eachine E010 E010C E010S ect.).
Specifications:
CPU: STM32F303CCT6
Six-Axis: MPU6000
ESC: All FETs are rated at 10A maximum
Work voltage: 3.5V-4.35V / 1S Lipo battery input
Firmware Version: BETAFLIGHTF 3.2.0
Firmware Target: Omnibus
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Size: 26mm x 26mm (Fully compatible with the Inductrix quad and Eachine E010/E010S frame and mounting pattern.)
Weight: 3.2g
Receiver option: Spektrum DSM2/DSMX protocol
Features:
1.The world's first F3_EVO controller compatible for Frsky/Flysky/DSM2 (Optional).
2.BETAFLIGHTF ready, born for acro flight controller for the BeeDuctrix / Tiny Whoop / Inductrix quad!
3.Full Cleanflight/Betaflight compatibility on a STM32 F303 F3_EVO 3x1 style processor.
4.Fully programmable through Cleanflight / Betalfight using the onboard USB port! Tune all the parameters, PID's, and rates to your perfect settings!
5.High discharge battery connector wire for more power and performance.
6.Can fly your Inductrix style quad in full rate mode (or even air mode!), fully execute flips/ rolls, and shoot the smallest of gaps with precision! Tuned to give you that locked in feeling you get with standard race quads.
Compatible:
Spektrum DSM2/DSMX Receiver Support Spectrum/JR(DSM2/DSMX protocol) DEVO10/DEVO 7E(with deviation firmware).

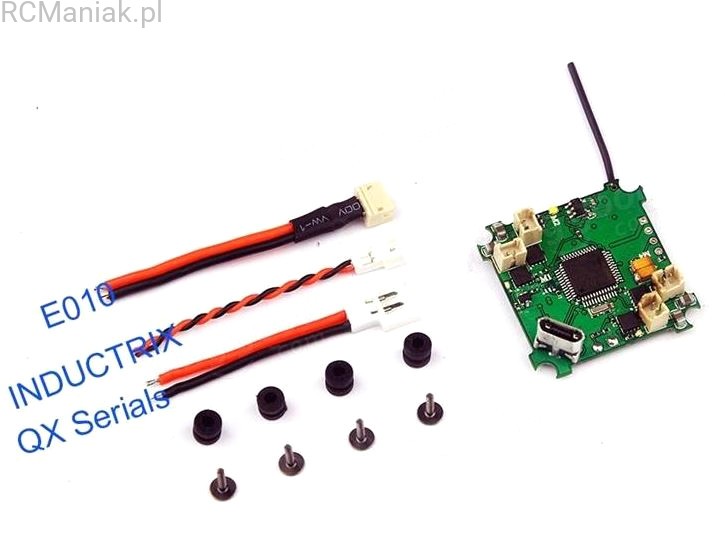

Package Included:
1 x Beecore V2.0 Flight Control Board
3 x Power Cable (For Inductrix x1, For E010x1, For QX Serials x1)
4 x Rubber Shock Absorber
4 x Screws
