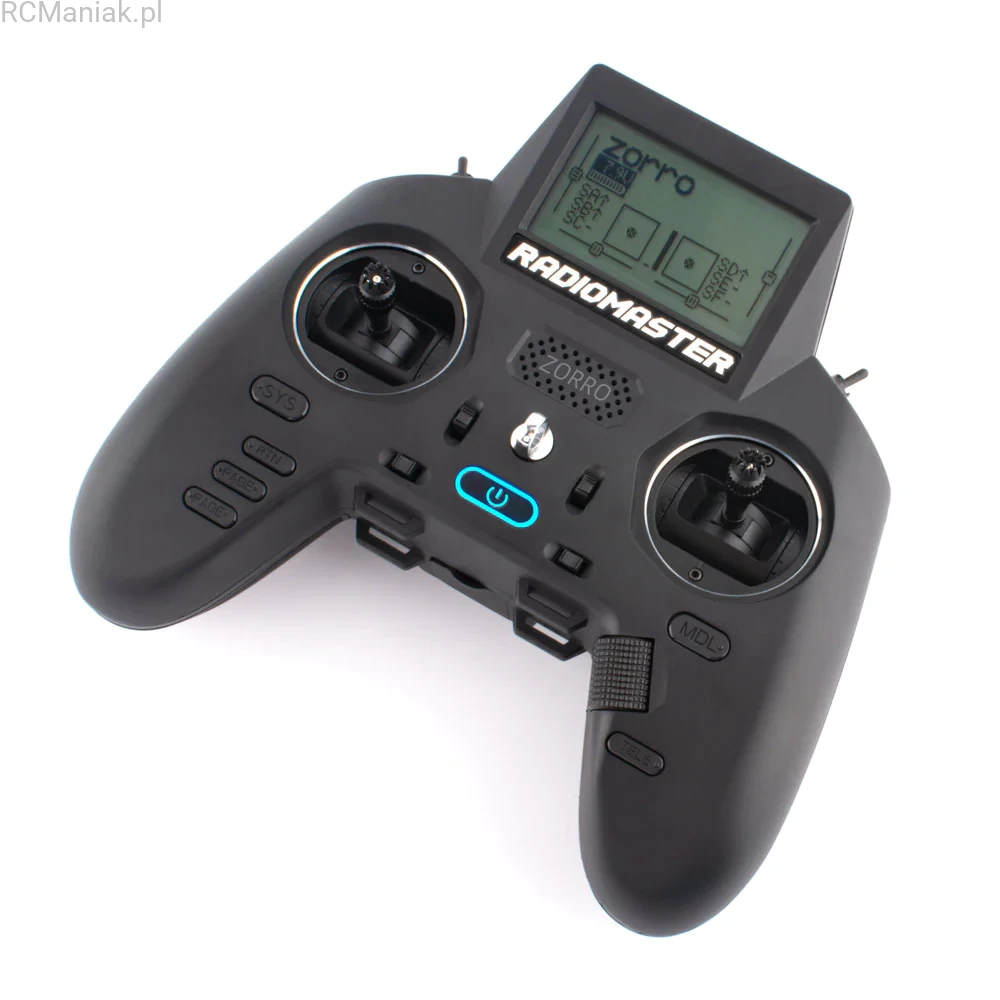

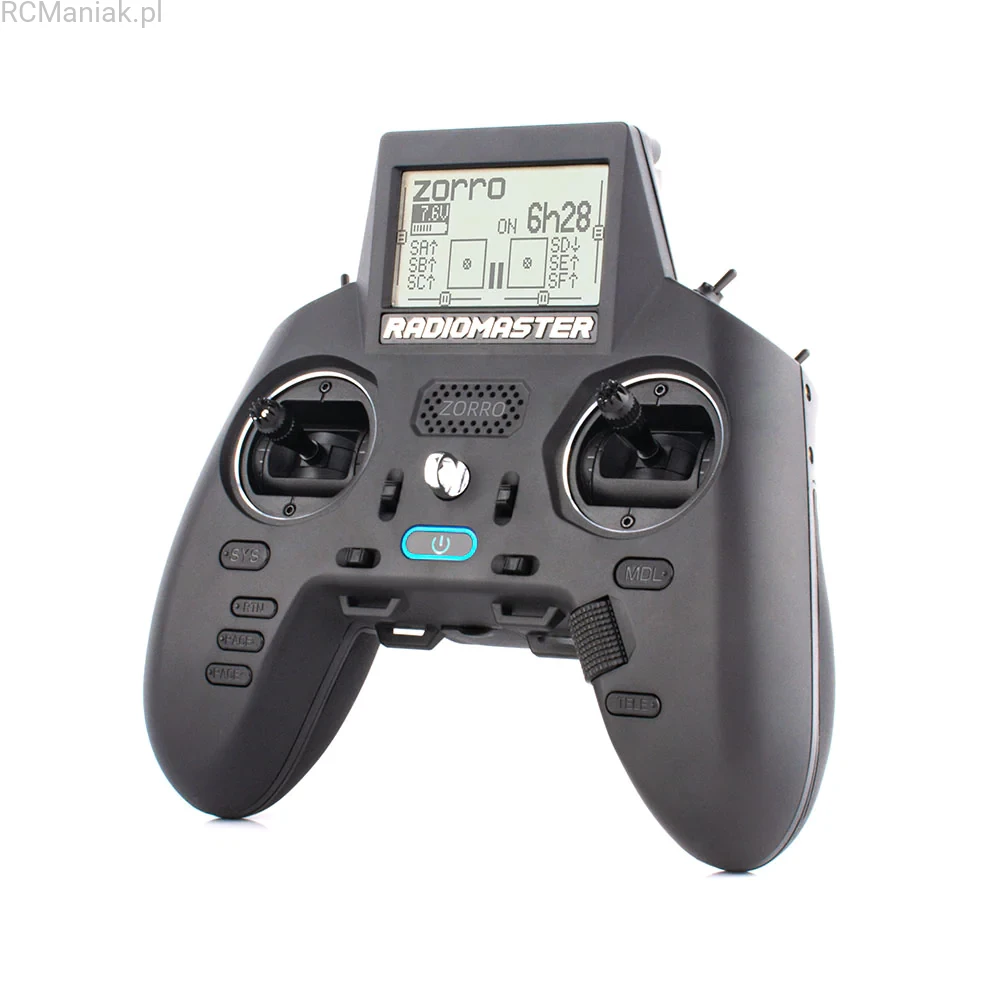

Aparatura RadioMaster Zorro ExpressLRS ELRS Radio Controller (M2)

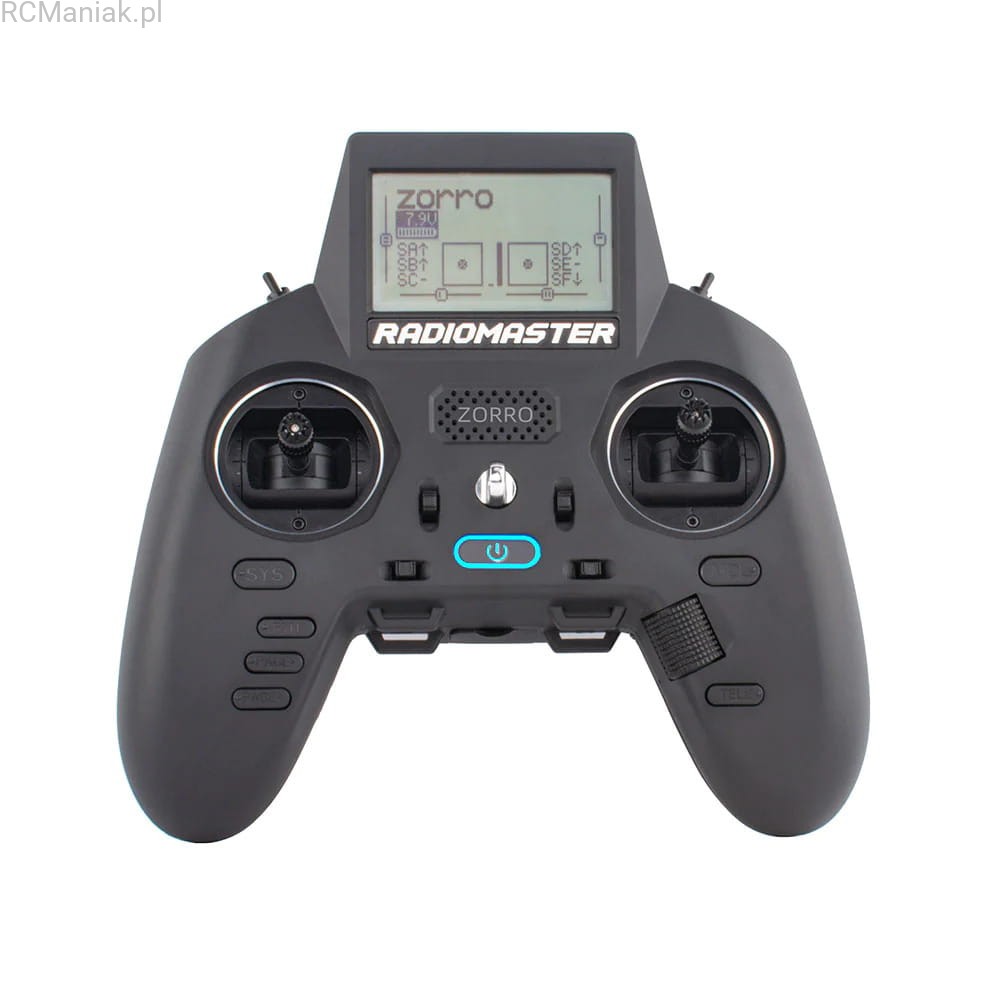

Radiomaster Zorro Radio Controller 1.jpg

Dostępność: dostępny

Wysyłka w: 24 godziny

Cena: 639,00 zł

Cena regularna:

639.00

Najniższa cena z 30 dni przed obniżką:

ilość szt.

towar niedostępny

dodaj do przechowalni

Producent:

Kod produktu: HP01570016LBT

Opis

Aparatura RadioMaster Zorro ExpressLRS EU-LBT Mode 2

Mała aparatura 2.4GHz z protokołem ExpressLRS i gimbalami na czujnikach Halla

Zawartość: Aparatura, przewód USB, folia na ekran, rzepy.

Możliwa zmiana na Mode 1 bez rozbierania aparatury.

UWAGA: Nieprawidłowe włożenie akumulatorków Li-ion może spowodować uszkodzenie aparatury.

Radio dla zaawansowanych użytkowników, do obsługi wymagana jest znajomość obsługi oprogramowania OpenTX oraz programowania odbiorników ELRS

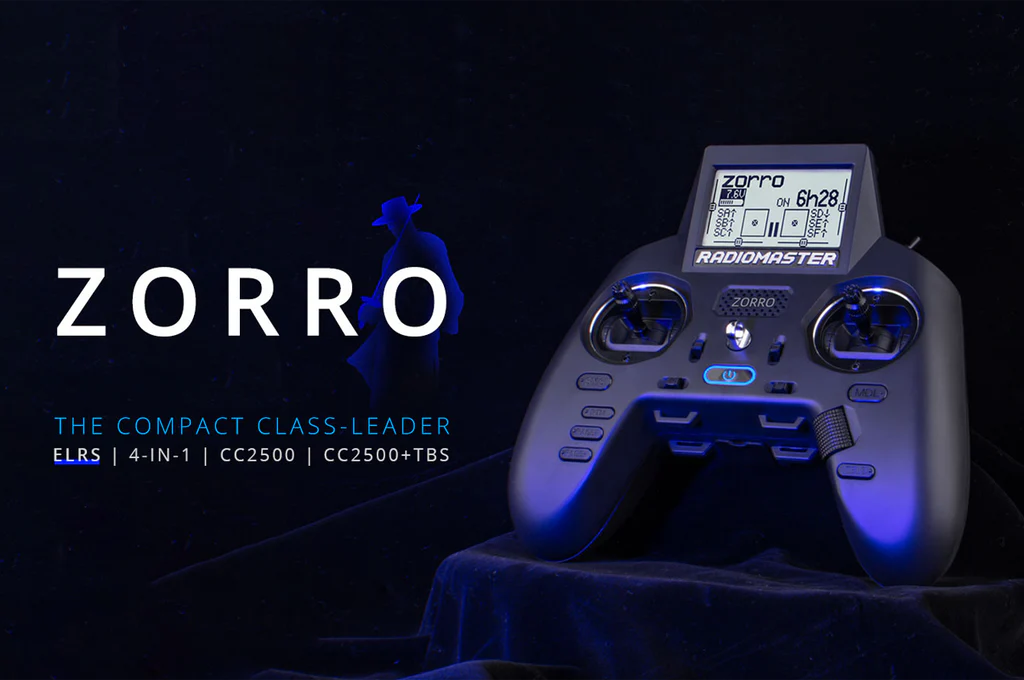

RadioMaster Zorro Radio - The Compact Class-Leader.

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Specification

Physical Dimensions	170159108mm
Weight	350 grams
Operating Frequency	2.400GHz-2.480GHz
Antenna Gain	Folding 2db
Operational Current	[email protected]
Operational Voltage	6.6-8.4v DC
Control Distance	> 2km @ 20dbm	> 2km @ 20dbm	Receiver and Power Output dependant	> 2km @ 20dbm
Operating system	OpenTX / EdgeTX Compatible
Control channels	Maximum 16 (Rx dependent)
Display	128*64 Monochrome LCD
Battery	2 x 18350 (Not included)
Charging	Built in USB-C Charging
Gimbal	Hall-effect
Module Bay	Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade Method	Via USB or SD card

Click to check the RadioMaster Radio Comparison Chart.

FCC Version and EU LBT Version are Available

Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.

Standard FCC Version

CC2500 (FCC) Version supports all CC2500 protocols
4in1 (FCC) Version supports all MPM protocols
ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Support OPENTX & EDGETX

Switchable in Mode 1 and Mode 2

Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

Adjustable Hall Gimbals

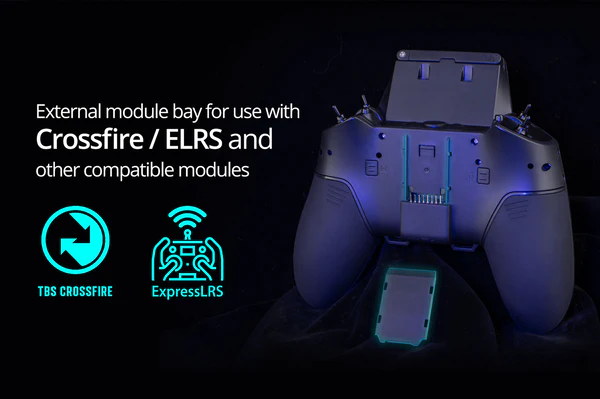

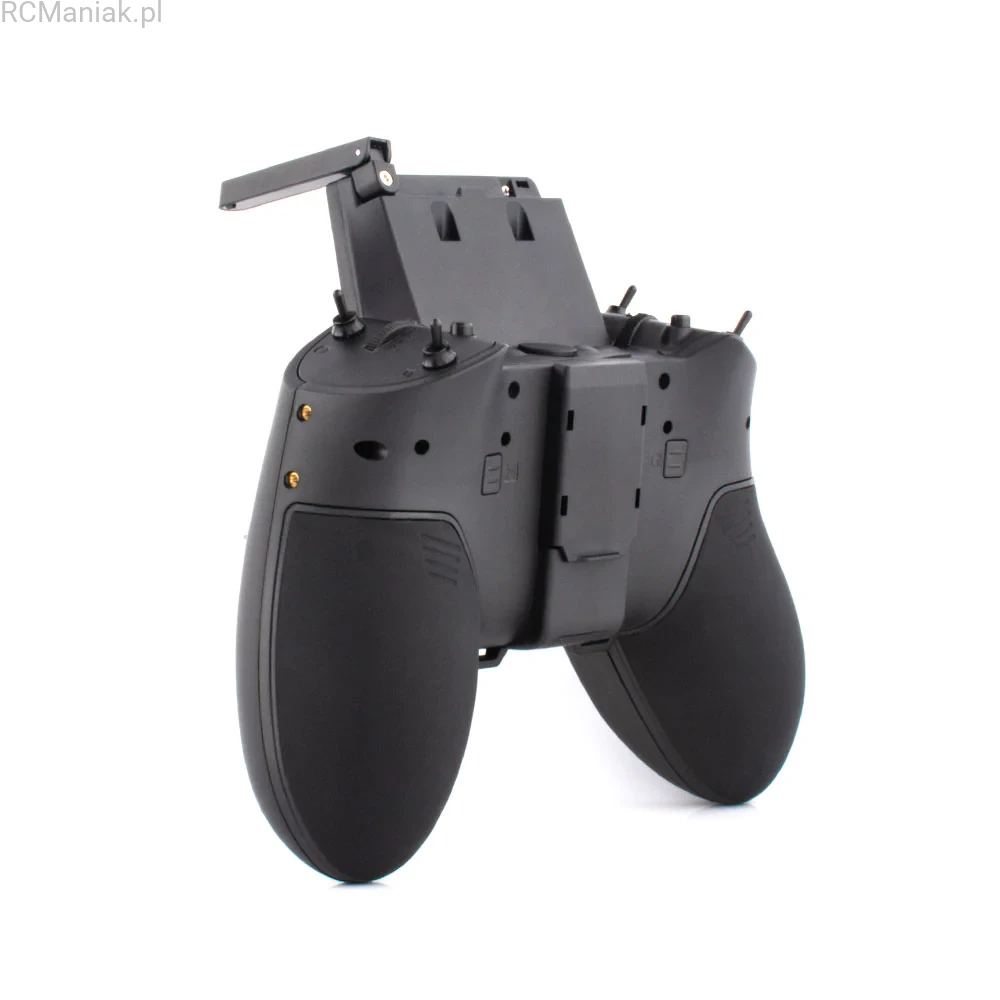

External Module Bay

Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

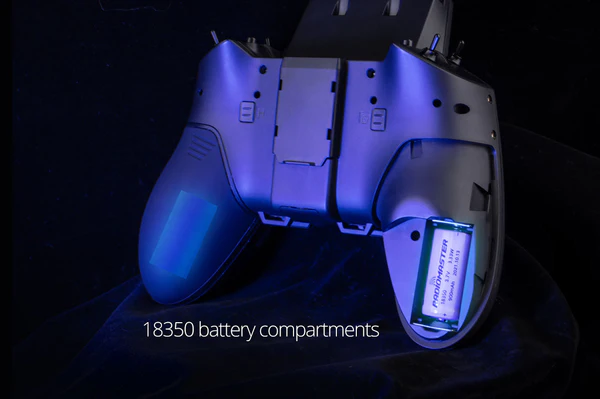

18350 Battery Compartments

Battery Charging

Supports USB-C Directing Charging

Supports External 2S Battery Power Supply

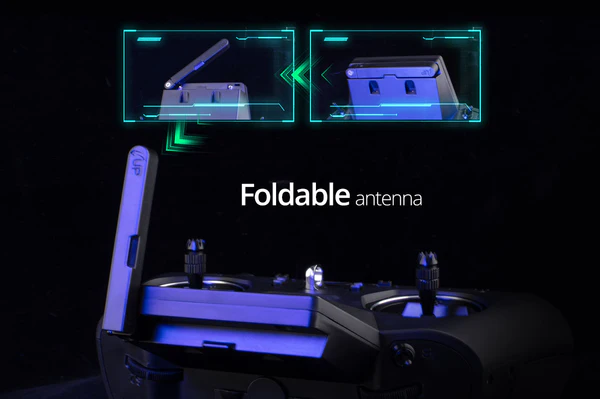

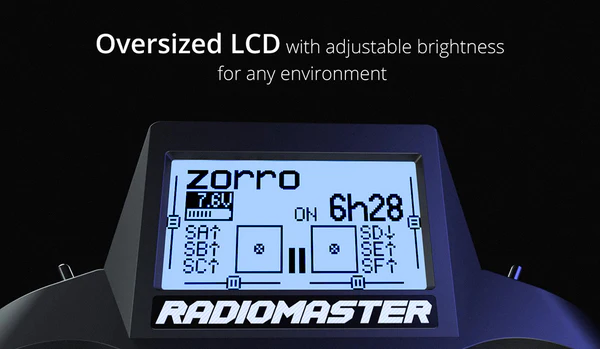

Oversized LCD & Foldable Antenna

DIY Attachment Points

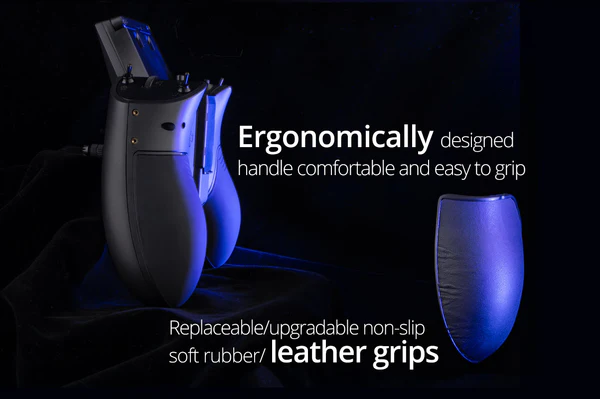

Ergonomically Designed

ZORRO User Manual 1.0
