MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 30.5*30.5mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
Output 9V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware: BlitzF745
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-25 (Bluejay)

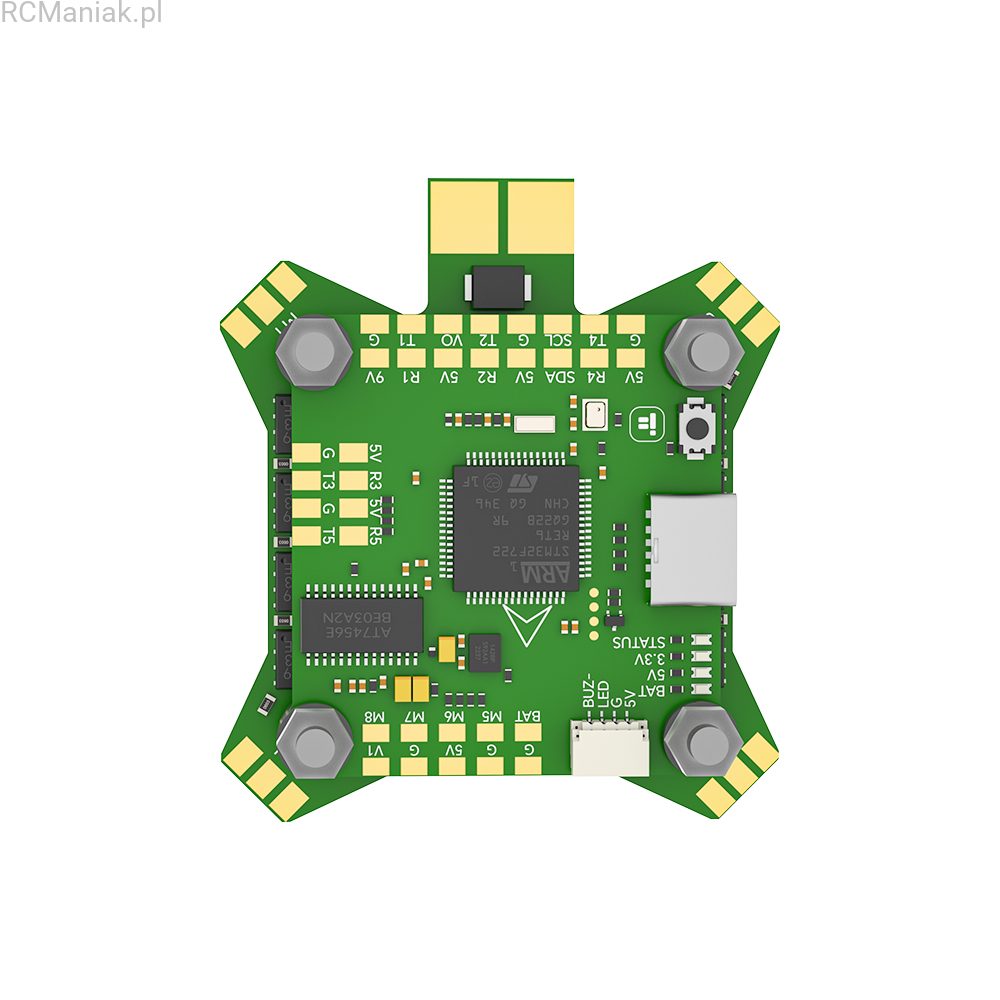

1 x BLITZ F745 Flight Controller

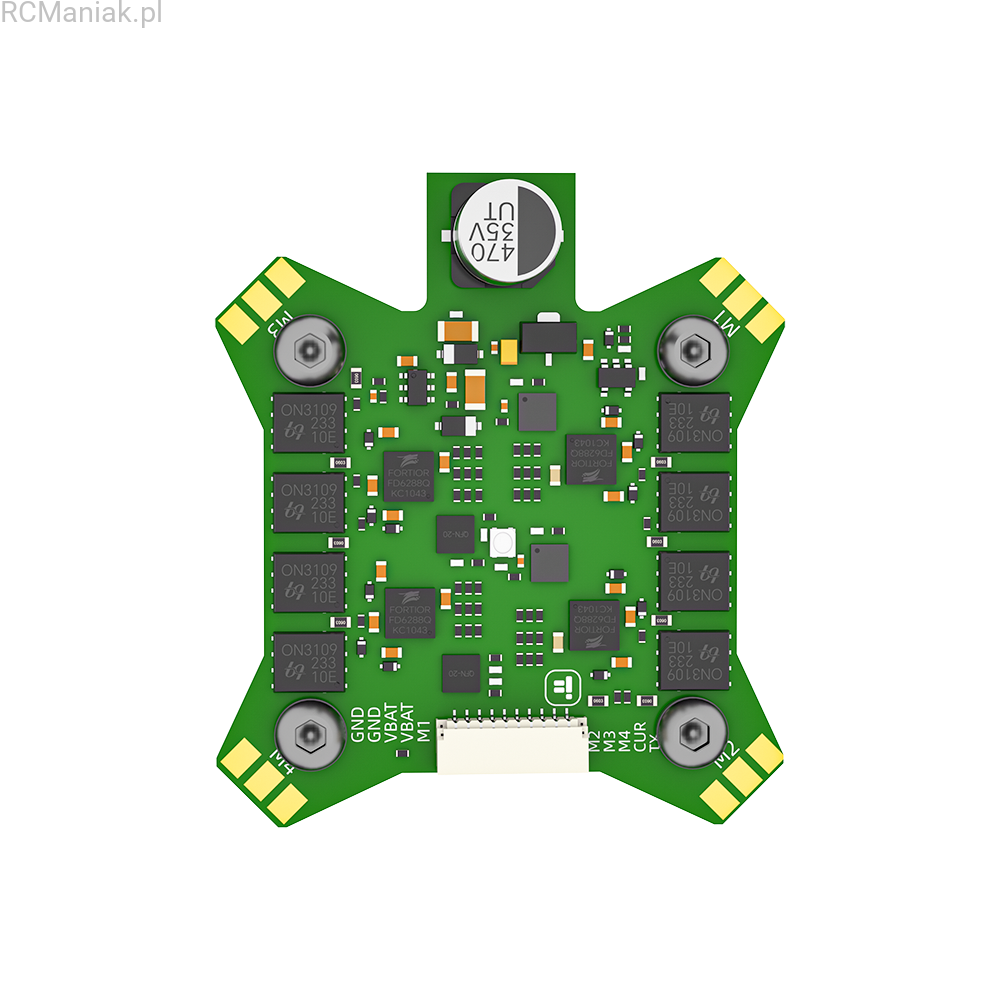

1 x BLITZ E55S 4-IN-1 45A 2-6S ESC
1 x Screw Bag
