FrSky Odbiornik Archer R4
Liczba kanałów : 4CH PWM, 16CH/24CH SBUS
Wymiary: 30x17mm
Waga: 3.8g
Napięcie zasilania: 3.5~10V
Pobór prądu: <60mA@5V
Kompatybilność : Radia z protokołem FrSky Access
Overview

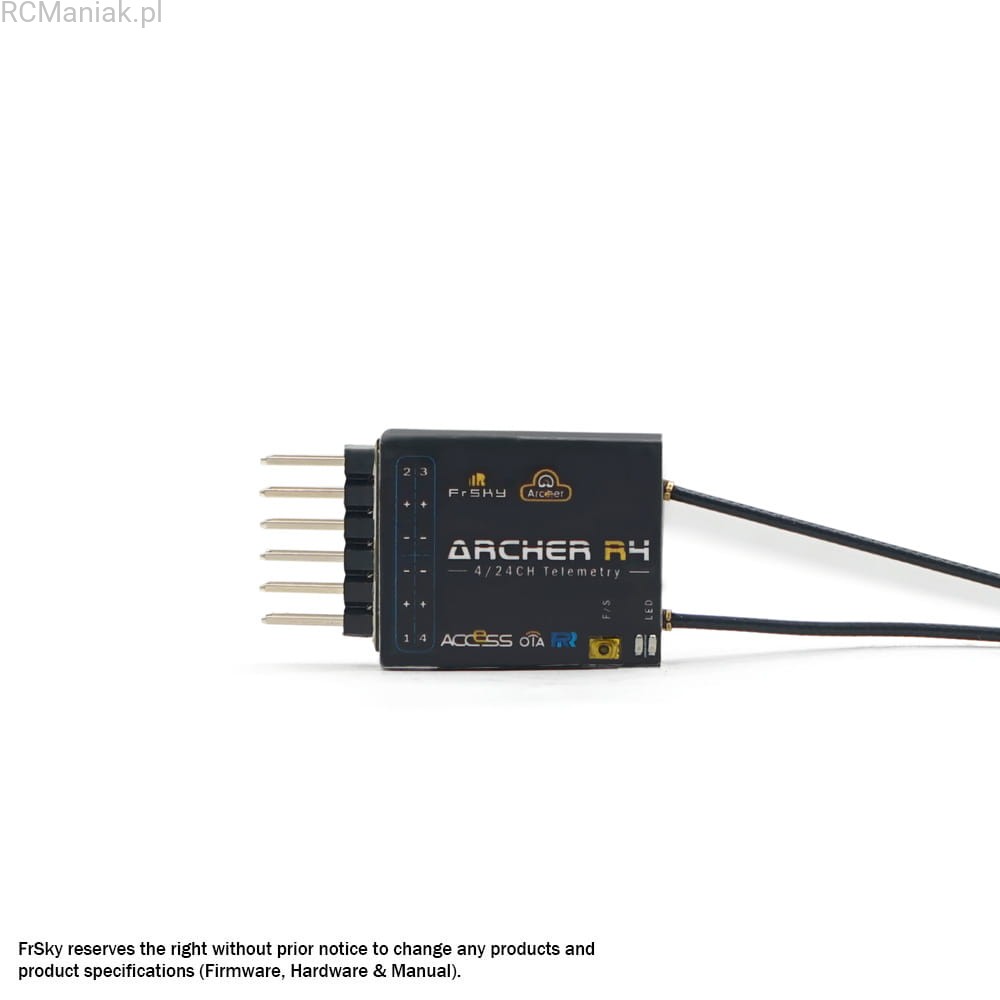

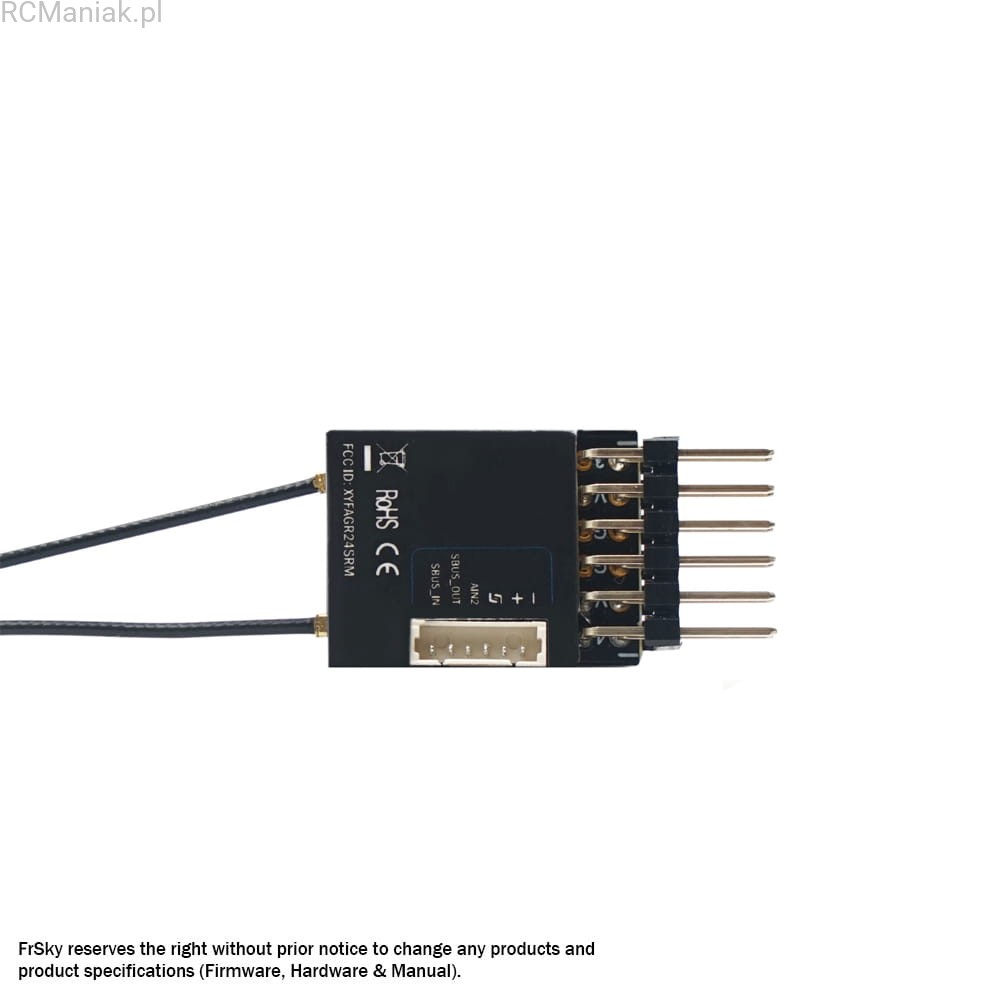

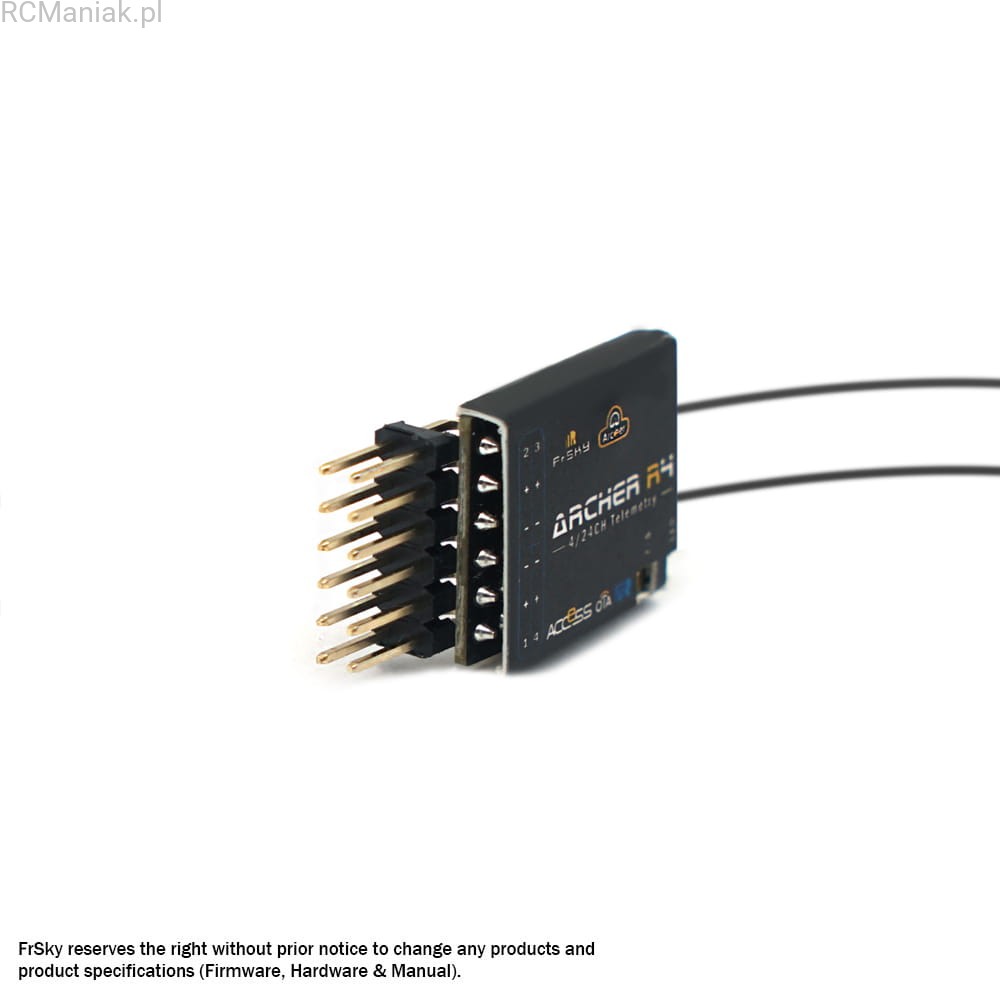

The Archer R4 has 4 high-precision PWM channel outputs bundled in a compact light-weight design. It supports full-range signal strength with dual detachable antennas to assure optimal antenna reception and maximum range. In addition to all this, the R4 can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with a SBUS port. The best available signal will be used to ensure superior connectivity.
All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware upgrades, increased range, and telemetry performance, the R4 now supports more functions like configurable telemetry power, S.Port/F.Port switching and FLR output. Additional valuable features are under development to unlock the true potential of the ACCESS protocol.
Features
ACCESS protocol with Over The Air (OTA)
Tiny and lightweight
Supports signal redundancy (SBUS In)
Full control range with telemetry
S.Port / F.Port
External battery / device voltage detection
Specification
Dimension: 30*17*6.2mm(L*W*H)
Weight: 3.8g
16/24 Configurable SBUS Channels
4 High-precision PWM Channels
Operating Voltage Range: 3.5 -10V
Operating Current: <60mA@5V
Control Range: Full range* with telemetry
(*Full Range: >2km, range may vary based on local conditions.)
Voltage Measurement Range via AIN2 (External device): 0-3.3V
Compatibility: All FrSky ACCESS transmitters
