HGLRC SPECTER F411 10A 1-2S ELRS VTX 400mW AIO FC

Kontroler lotu AIO 5in1 HGLRC SPECTER F411 4x10A 1-2S ELRS VTX 400mW

Dla zaawansowanych elektroników składających drony. Wymagana znajomość języka angielskiego, lutowania obwodów elektronicznych, czytania schematów, programowania układów jednoprocesorowych i konfigurowania dronów. Nieprawidłowe podłączenie, lub przekroczenie dozwolonych parametrów grozi uszkodzeniem lub nawet pożarem i nie jest objęte gwarancją.

MCU: STM32F411
MPU: ICM42688
OSD : Wbudowane OSD Betaflight
Regulator 4x10A
Zasilanie: Lipo 1s-2s
BEC 5V 1.5A
BlackBox: Brak
Odbiornik SPI ExpressLRS 2.4GHz 50-500Hz (Nie obsługuje D (D250,D500) F (F500 F1000))
VTX 25..400mW 5.8GHz
Otwory montażowe:25.5x25.5mm
Wymiary: 32x32mm
Waga: 4.9g
Kod producenta:
FC Target firmware: HGLRCF411SX1280 V2
ESC Target firmware: Z-H-30 (Bluejay)

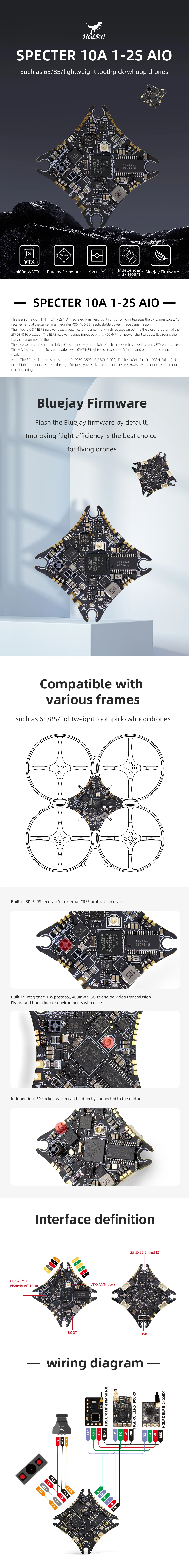

HGLRC SPECTER 10A 1-2S ELRS AIO VTX 400mW F411 Flight Control 10A BL_S 5 in 1 FC

Summary：

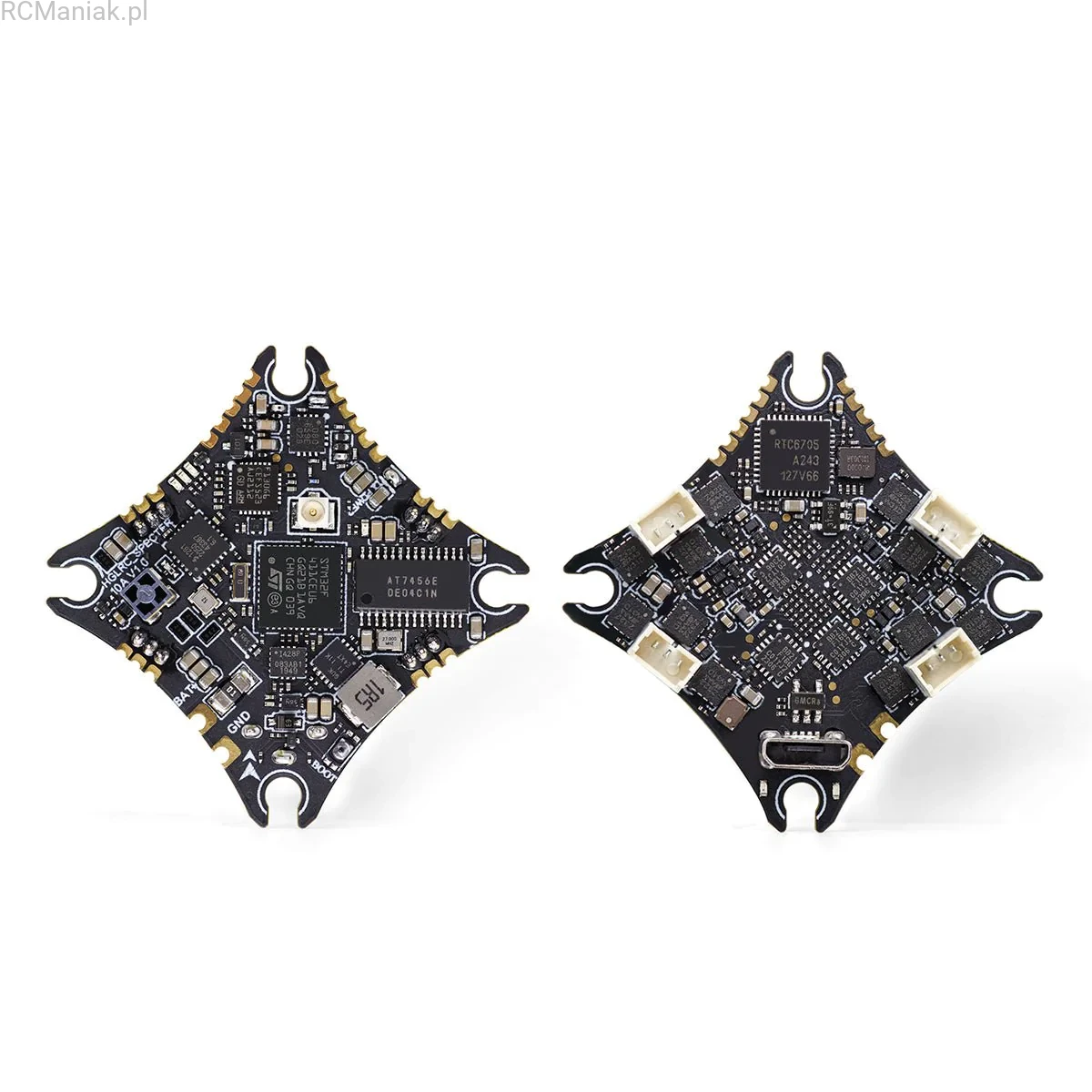

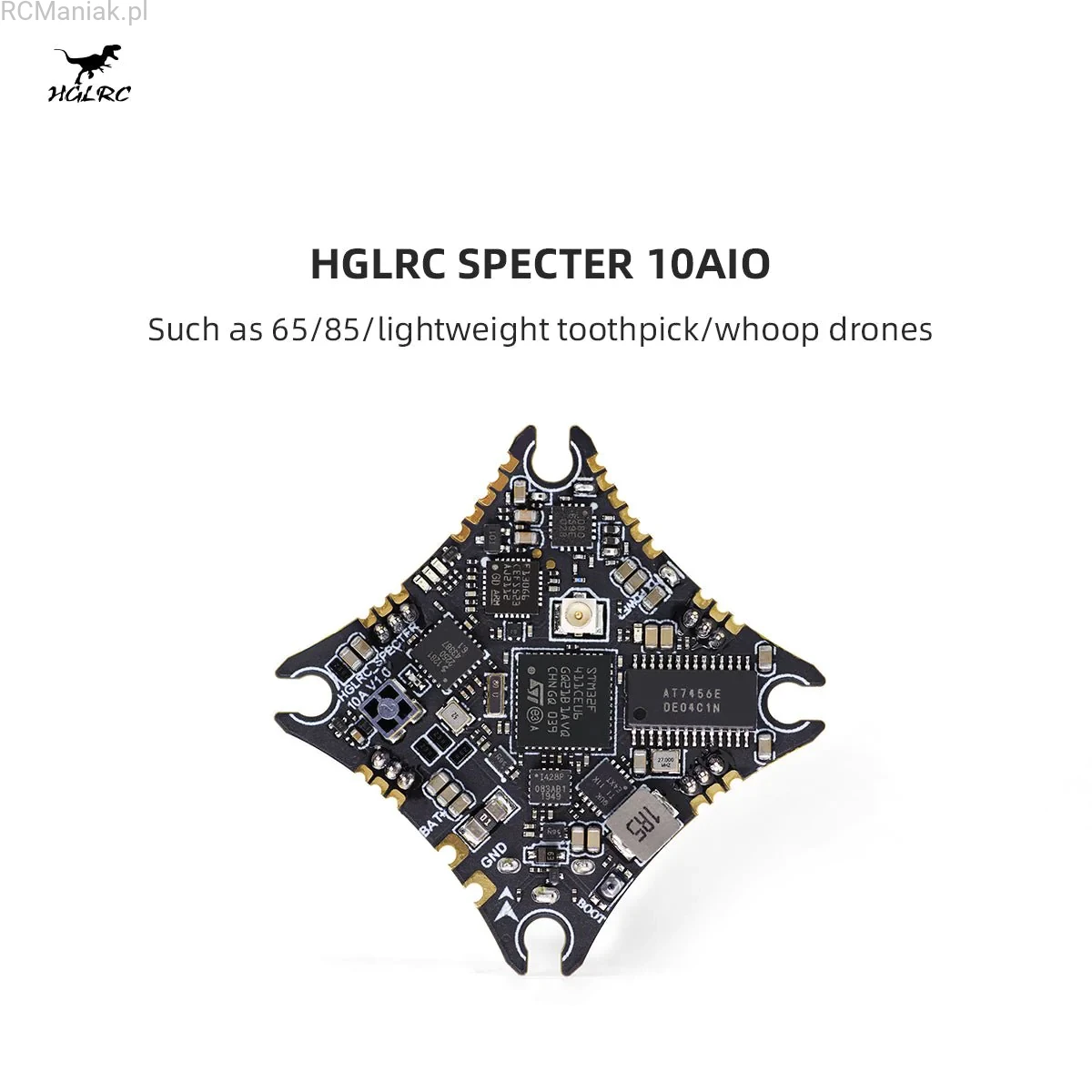

This is an ultra-light F411 10A 1-2S AIO integrated brushless flight controller, integrated SPI ExpressLRS 2.4G receiver, and integrated 400mW 5.8GHz adjustable power video transmission at the same time
The SIP ELRS receiver uses patch ceramic antennas to solve the short-distance problem of the ancient SIP D8/D16 protocol. The ELRS receiver superimposes 400mW high-power video transmission to easily fly around the harsh indoor environment.The built-in receiver has the characteristics of high sensitivity, high refresh rate and low delay, and is loved by many FPV enthusiasts. This AIO flight controller is fully compatible with 65/75/85mm/lightweight toothpick drone/whoop series and other frames on the market


Features：
* Built-in SPI ELRS receiver/or external CRSF protocol receiver
* Built-in integrated TBS 400mW 5.8GHz analog video transmission
* Independent 3P socket, which can be directly connected to the motor
* By default, the Bluejay firmware is flashed to improve the flight efficiency, which is the best choice for the drone
* Compatible with all 65mm-85mm hoop/toothpick frames
* Maximum support for input voltage of 1-2s


Specification:
Product name: SPECTER 10A 1-2S AIO
MCU: STM32F411
GYRO：ICM42688
BEC: 5V1.5A
OSD: support
LED: support
Buzzer: support
UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF protocol receiver/ VTX HD
Built-in receiver: SPI ExpressLRS 2.4G
Built-in receiver frequency: 2.4GHZ
Built-in image transmission: 25-REC-100-400mW (adjustable)
Built-in image transmission frequency: 48CH-5.8ghz
Continuous current: 10A
Peak current: 13A (10s)
ESC protocol: Dshot600, Oneshot, Multishot
Flight control firmware: HGLRCF411SX1280 V2
ESC firmware: Z-H-30 (Bluejay)
Input voltage: 1-2S 3.7V-7.4V (Lipo)
Size: 32x32mm
Mounting hole: 25.5X25.5mm.M2
Weight: 4.9g
