Summary

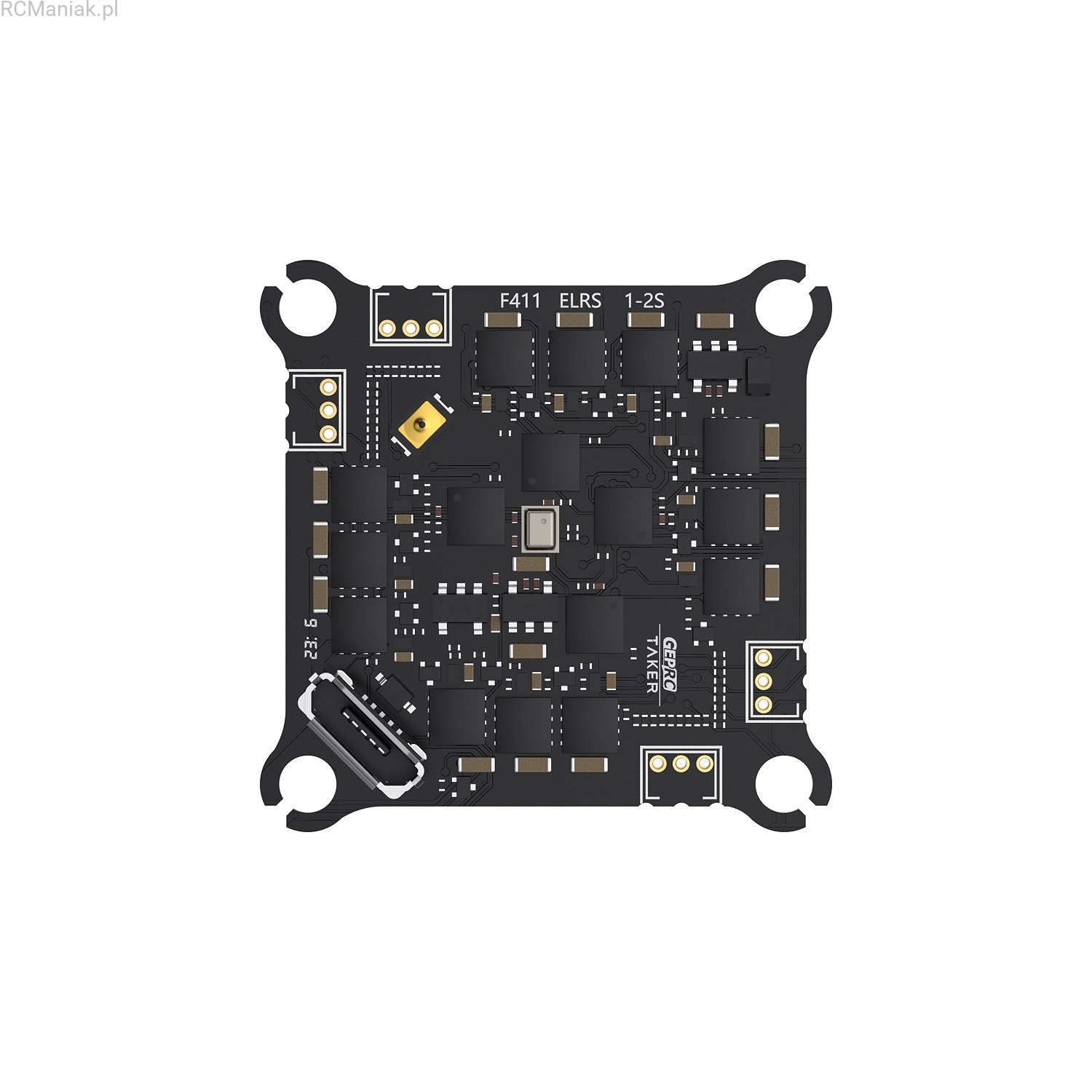

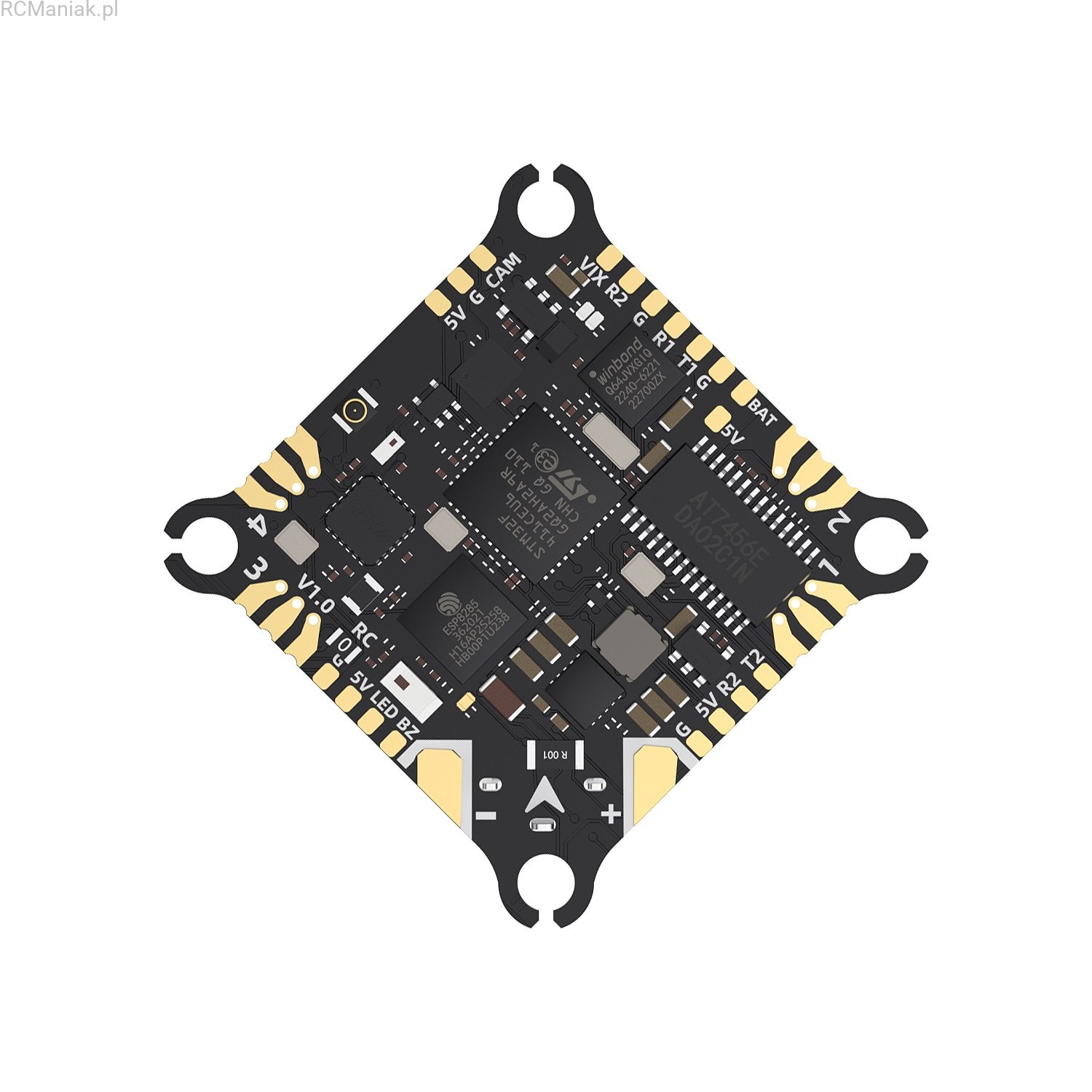

TAKER F411-12A-E 1~2S AIO is a lightweight and highly integrated flight control system, weighing only 4.2g. It is suitable for 1.2-2-inch Whoop models or 3-inch toothpick models.
The 12A ESC overcurrent capability has sufficient redundancy on a small model, and the integrated ELRS2.4G 3.0 receiver makes the installation more space-saving and complete. The F411 main control is equipped with a BMI270 gyroscope, making the flight feel silky and stable.
Feature
- Highly integrated and lightweight flight system
- Supports 1-2S power supply and has higher battery compatibility
- STM32F411 main control and BMI270 gyroscope solution, the flight feels silky and stable
- The motor wiring is reserved for welding or SH1
- Integrated ELRS2
Specifications
- Model: TAKER F411-12A-E 1~2S AIO
- MCU: STM32F411
- IMU: ICM 42688-P
- Firmware Target: TAKERF411
- OSD: Betaflight OSD w/ AT7456Ev
- UART: T1 R1 / T2 R2
- SBUS: R2
- Receiver: ELRS2.4G 3.0
- Buzzer: Support
- LED: Support
- USB: Micro USB
- ESC MCU: EFM8BB21F16G
- Continuous Current: 12A
- Burst Current: 13A
- Input Voltage: LiPo/LiHv 1S-2S
- Support Protocol: Dshot300/600,Oneshot,Multishot
- Blackbox: 8MB
- Galvanometer: Support
- Firmware Target: C-X-30
- Size: 30.5mm*30.5mm
- Fixing hole size：25.5mm*25.5mm（M2）
- Weight: 4.2g
Includes
1 x TAKER F411-12A-E 1~2S AIO
1 x Cable Set
