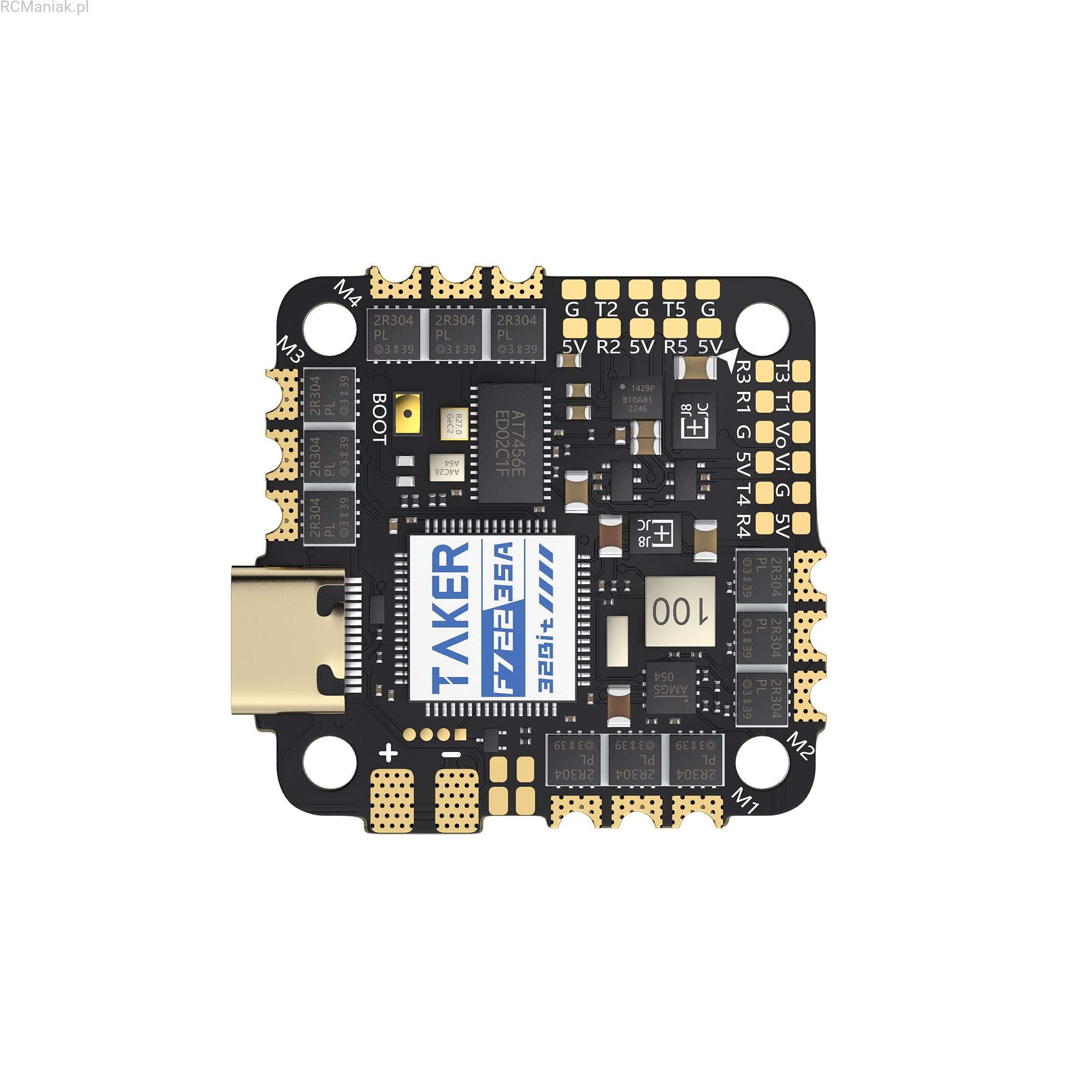

Kontroler i regulator GEPRC TAKER F722 35A 32Bit AIO
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Dla zaawansowanych elektroników składających drony. Wymagana znajomość języka angielskiego, lutowania obwodów elektronicznych, czytania schematów, programowania układów jednoprocesorowych i konfigurowania dronów. Nieprawidłowe podłączenie, lub przekroczenie dozwolonych parametrów grozi uszkodzeniem lub nawet pożarem i nie jest objęte gwarancją.
Summary
The TAKER F722 35A 32Bit AIO features the STM32F722 MCU paired with the ICM42688-P (SPI) gyro, delivering powerful performance and fast processing.
It offers 5 full UART ports to support various external devices. A dedicated 6-pin port on the bottom allows direct plug-in for HD VTXs, reducing soldering and simplifying installation.
The 32-bit ESC firmware provides smooth control. Supports 2–6S batteries input, 35A continuous current, and 45A burst (10s). It also supports OSD tuning, buzzer, LED, and more, all in a lightweight 9.3g package.
Feature
- Smooth throttle response with 32-bit ESC firmware.
- Built-in barometer, compatible with INAV firmware.
- Equipped with 42688-P gyro for stable and reliable performance.
- Supports 2–6S battery input, 35A continuous current, 45A burst (10s).
- Direct plug-in support for HD VTXs, no soldering, and easy installation.
- Powered by STM32F722 MCU for faster processing.
- Integrated 16MB Blackbox for flight data logging.
- Supports OSD tuning, buzzer, LED, and more.
- Features 5 full UART ports for connecting various external devices.
Specifications
- Model: TAKER F722 35A 32Bit AIO
- MCU: STM32F722
- IMU: ICM 42688-P (SPI）
- Firmware Target: GEPRC_F722_AIO
- Blackbox: 16Mb on-board flash memory
- OSD: Betaflight OSD w/ AT7456E chip
- Uart: R1-T1 / R2-T2 / R3-T3 / R4-T4 / R5-T5
- Buzzer: YES
- LED: YES
- USB: Type-C USB
- BEC Output: 5V@1A
- ESC: 32Bit 35A
- Continuous Current: 35A
- Burst Current: 45A(10A)
- Input Voltage: 2~6S (LIPO)
- ESC Protocol: Dshot600, Oneshot, Multishot
- Dimension: 35mm * 33.5mm
- Mounting Hole Size: 25.5 mm * 25.5mm φM3 damping to M2 screw
- Weight: 9.3g
Includes
1× TAKER F722 35A AIO FC
1× XT30-18AWG wire-7cm
1× 35V 220μF capacitor
1× SH1.0-6Pin cable
8× M2×6.5mm FC dampening balls (black)
