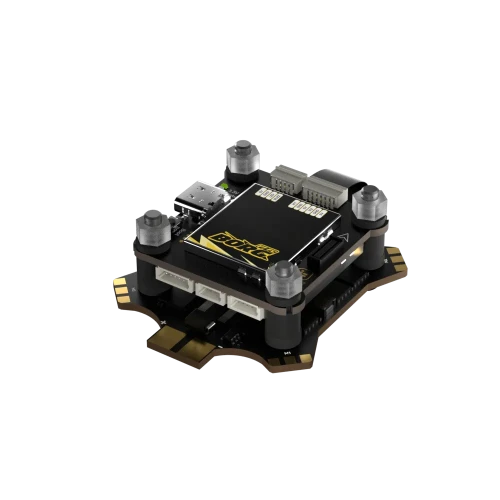

Kontroler iFlight Borg F7 i regulator 60A 4-IN-1 (Stack)

Dla zaawansowanych elektroników składających drony. Wymagana znajomość języka angielskiego, lutowania obwodów elektronicznych, czytania schematów, programowania układów jednoprocesorowych i konfigurowania dronów. Nieprawidłowe podłączenie, lub przekroczenie dozwolonych parametrów grozi uszkodzeniem lub nawet pożarem i nie jest objęte gwarancją.

Description

PN 202010019998

PN OLD B019044

Borg Series – Power Meets Precision!

The Borg F7 Flight Controller is expertly engineered for 5–10 inch FPV drones, delivering exceptional stability and uncompromising performance. Elevate your flying experience with the advanced technology and reliable design of the Borg Series.

The new ESCs feature an integrated anti-spark circuit and a TVS transient voltage suppressor, providing double protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, these ESCs eliminate the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology.

FC Features

• Supports 4S to 6S battery inputs, offering versatility for various setups.
• Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
• FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
• Supports dual camera input and allows switching via the remote controller.

FC Specifications

• Input voltage: 4-6S; Support LIHV battery
• MCU: STM32F722RET6
• Gyro: ICM42688
• Barometer: SPA06-003
• OSD Chip: AT7456E (LGA)
• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4
• I2C serial: Support
• VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
• LED controller: Yes
• Beeper pad: Yes
• Betaflight Firmware target: IFLIGHT_BLITZ_F722
• Mount pattern: 30.5*30.5φ4
• Dimensions: 37.5*37.5mm±1
• Weight: 14g±1
• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

FC Wiring Suggestion

• UART 1 for VTX HD / Analog
• UART 2 for Receiver
• UART 3 for GPS or other sensors that require a serial port
• UART 4 for GPS
• UART 5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemet

ESC Specifications

• Product Name: Borg 60 ESC
• Input Voltage: 4-6S(DC 14-26.1V); Support LIHV battery
• Max. Continuous Current: 60A
• Max. Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32bit ESC)
• Target: IFLIGHT_BLITZ_G3 32.9
• Current Sensor: Yes(1/200)
• BEC: No
• Telemetry: Supported
• Bidirectional DSHOT: Supported
• Dimensions: 52*45.5mm±1
• Mounting Holes: 30.5*30.5φ4
• Weight: 15.5g±1
• Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc.

Packing List

• 1 x Borg F7 Flight Controller
• 1 x Borg 60 ESC
• 1 x Cable set

FC Mode Command

VTX_ON_OFF Mode Command

• • resource PINIO 1 C0
  • set pinio_config = 1,1,1,1
  • set pinio_box = 40,41,255,255
  • set box_user_1_name = VTX_ON_OFF
  • aux 0 40 8 900 2100 0 0
  • save

Camera ON&OFF Command

• • resource PINIO 2 C14
  • set pinio_config = 1,1,1,1
  • set pinio_box = 40,41,255,255
  • set box_user_2_name = CAM_SW
  • aux 1 41 9 900 2100 0 0
  • save

Note

    iFlight product is for fun purposes only and does not support autonomous flight.
