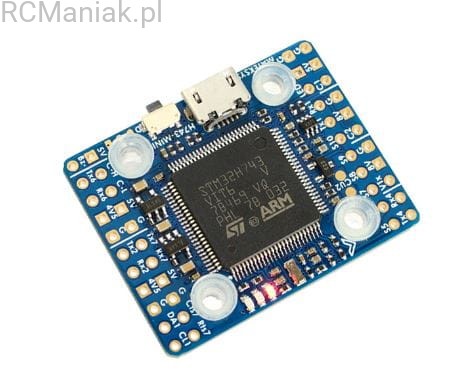

MATEK H743-MINI V3 Flight Controller
Opis
Version V3
What is new on the H743-mini V3
- ICM42688-P+ICM42605 instead of MPU6000+ICM42605
- PWM 10 & 11 instead of PWM9 & 10(V1/V1.5)
- Other functions, layout and components are same as previous board version.
- H743-mini V3 has betaflight_4.3.0 preloaded for QC
ArduPilot
- H743-mini-V3 with ICM42688-P is supported by ArduPilot 4.2 or higher,
- ICM42688-P is defined as first IMU (IMU0) , ICM42605 is the 2nd (IMU1).
- with ArduPilot 4.2, set INS_ENABLE_MASK to 7 or default 127.
- It is recommended to use STM32CubeProgrammer to erase MCU and upload firmware. check this blog http://www.mateksys.com/?p=6905
INAV
- H743-mini-V3 is not supported by INAV4.1 downloaded from configurator. pls download inav_4.1.0_MATEKH743_42688 from our website.
- Starting with INAV5.0, V1/V1.5/V3 will share the same firmware.
BetaFlight
- IMU ICM42688-p is supported by BetaFlight 4.3 or higher.
- icm42688-p is the first IMU(default), ICM42605 is the second IMU.
- Target MATEKH743 in BetaFlight 4.2.x list doesn’t support ICM426XX series, You need to flash it with BF4.3_RC or latest
Description

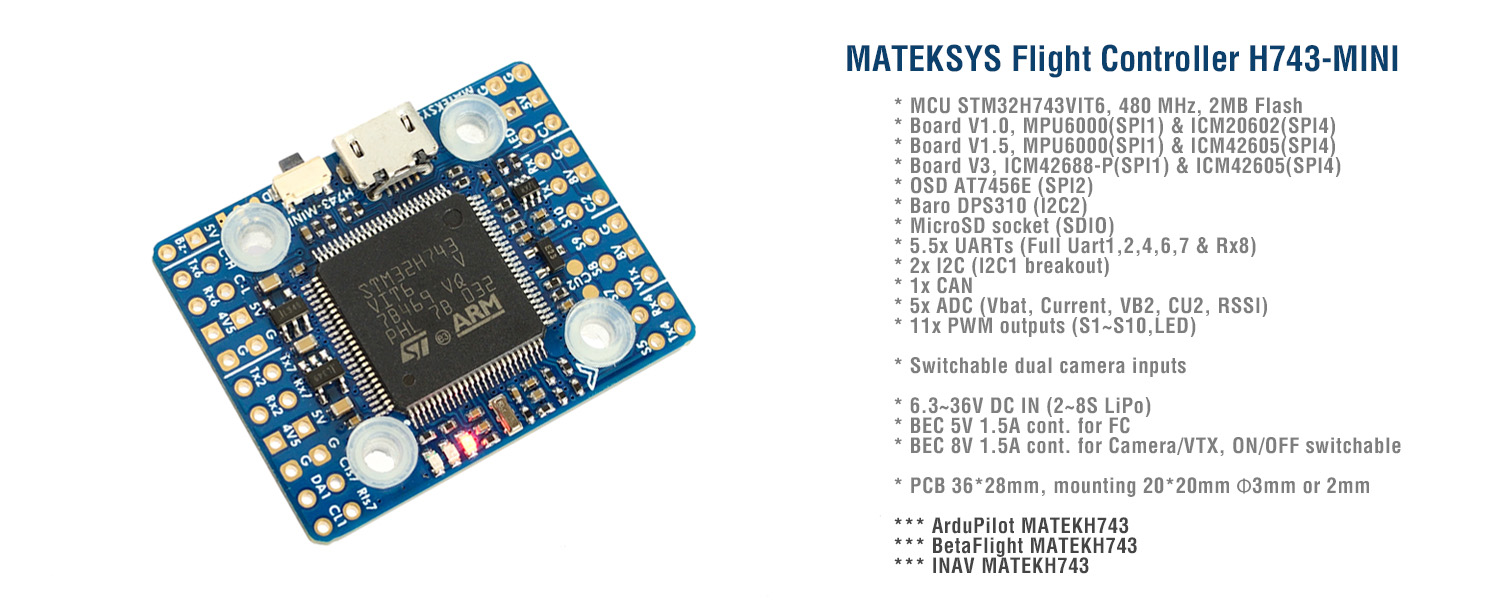

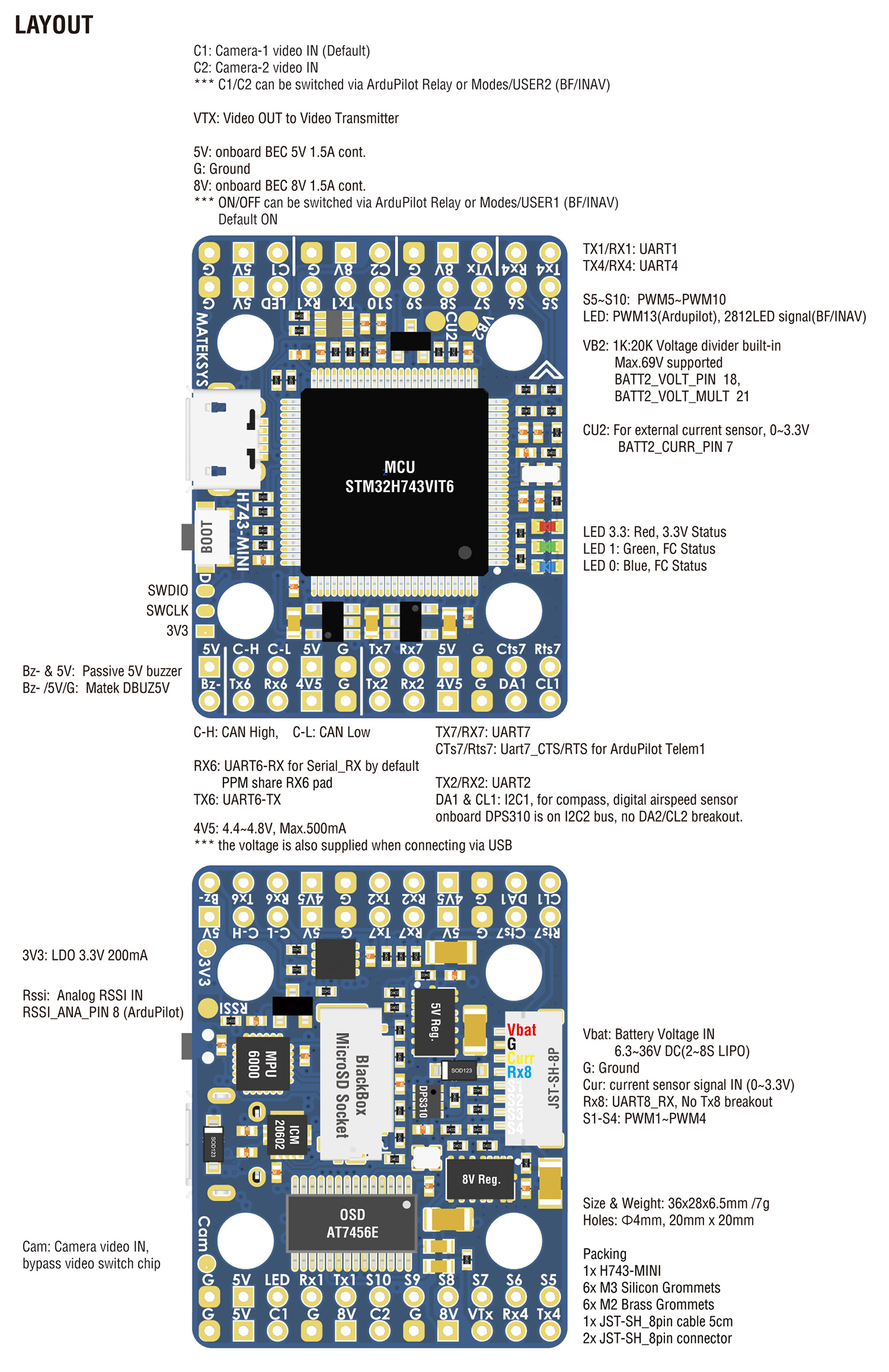

FC Specifications
- MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
- Board V1.0 IMU: MPU6000 (SPI1) & ICM20602 (SPI4)
- Board V1.5 IMU: MPU6000 (SPI1) & ICM42605 (SPI4)
- Board V3 IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)
- Baro: Infineon DPS310 (I2C2)
- OSD: AT7456E (SPI2)
- Blackbox: MicroSD card socket (SDIO)
- 5.5x Uarts (1,2,4,6,7, Rx8)
- 11x PWM outputs
- 2x I2C (I2C1/DA1 CL1 pads, no I2C2 breakout)
- 1x CAN (C-H, C-L pads)
- 5x ADC (VBAT, Current, RSSI, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- Dual Camera Inputs switch
- 8V power ON/OFF switch
Power
- Vbat Input: 6.3~36V (2~8S LiPo)
- BEC: 5V 1.5A cont. (Max.2A)
- BEC: 8V 1.5A cont. (Max.2A), 8V outputs stable when Vbat>=10V, 8V outputs 80% of Vbat when Vbat< 10V
- LDO 3.3V: 200mA
- VB2 pad supports Max. 69V (voltage divider 1K:20K)
- Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
FC Firmware
- ArduPilot(ChiBiOS): MATEKH743
- BetaFlight: MATEKH743
- INAV: MATEKH743
Physical

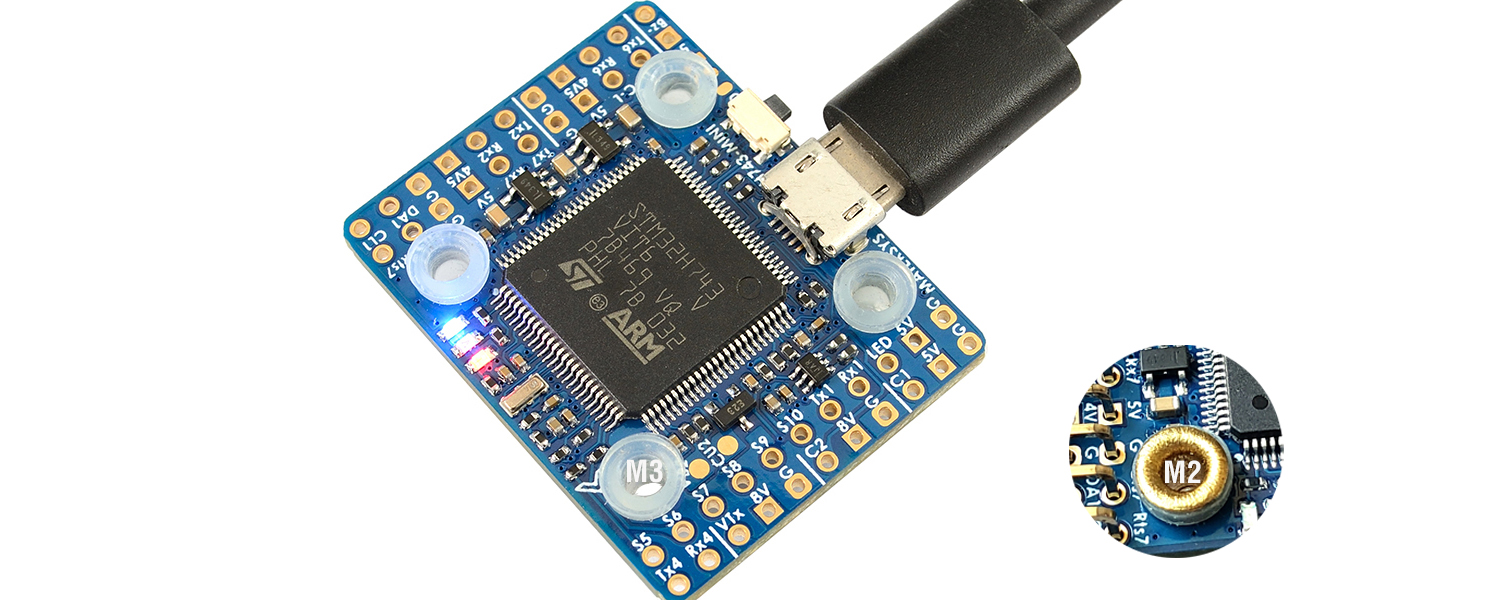

- Mounting
- 20 x 20mm/Φ3mm with Silicon Grommets
- 20 x 20mm/Φ2mm with Silicon & Brass Grommets

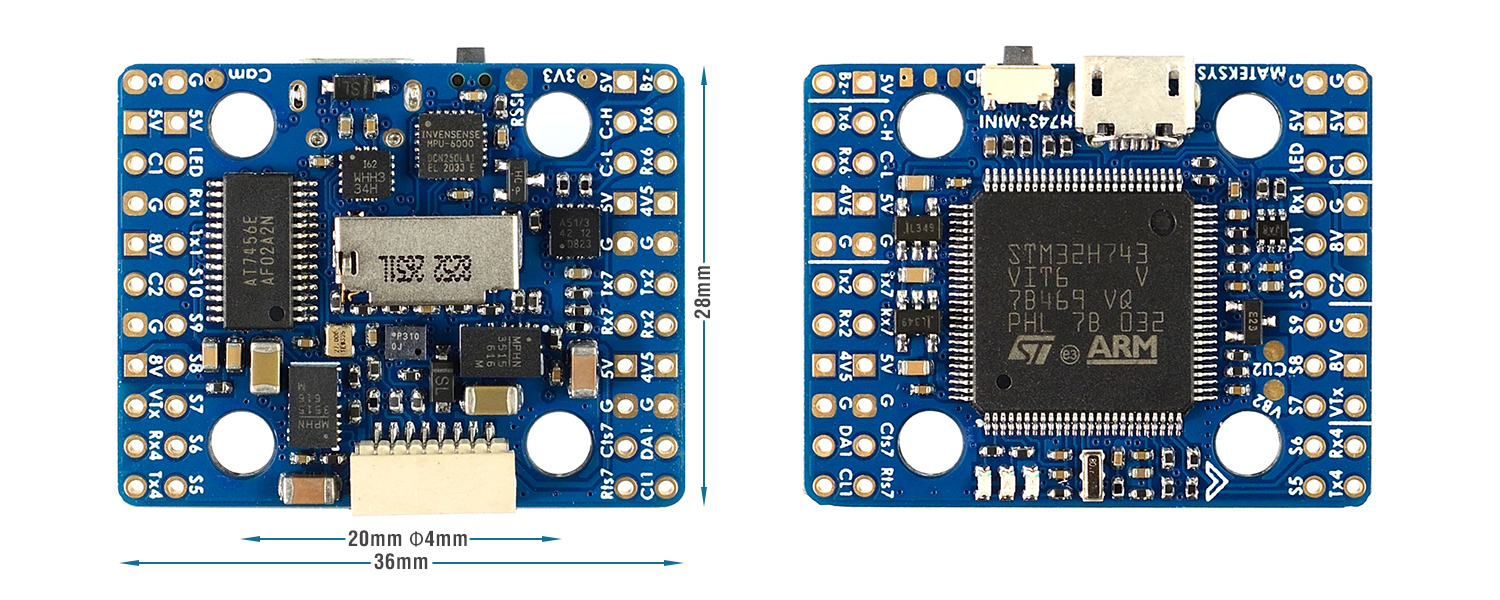

- Dimensions: 36 x 28 x 6.5mm
- Weight: 7g
Including
- 1x H743-MINI
- 6x Silicon grommets M4 to M3
- 6x Brass grommets M3 to M2
- 1x JST-SH1.0_8pin cable, 5cm
- 2x JST-SH1.0_8pin connectors

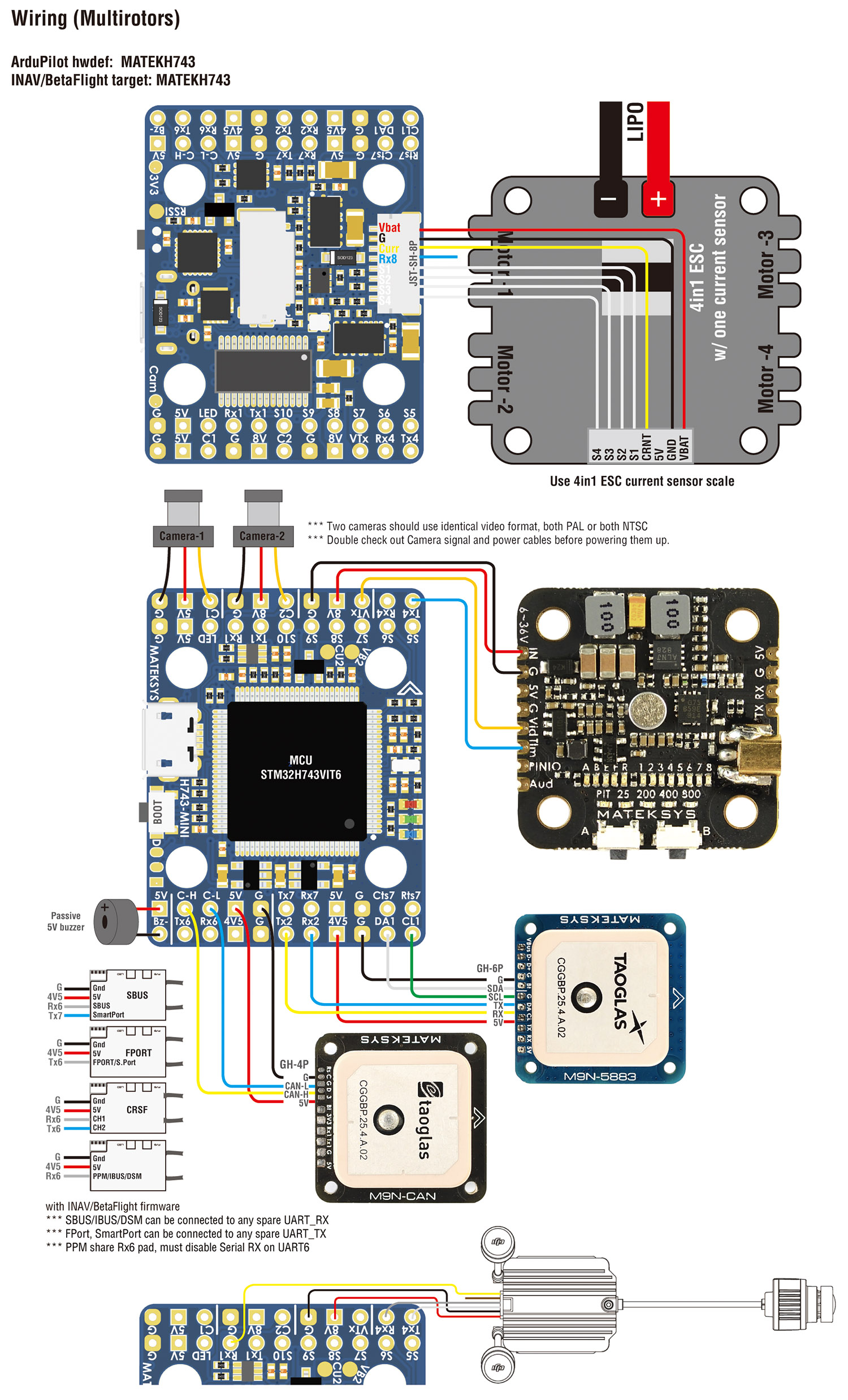

Ardupilot Mapping
| PWM PWM1~PWM13 are Dshot and PWM capable. However, mixing Dshot and normal PWM operation for outputs is restricted into groups, ie. enabling Dshot for an output in a group requires that ALL outputs in that group be configured and used as Dshot, rather than PWM outputs. If servo and motor are mixed in same group, make sure this group run lowest PWM frequency according to the servo specification. ie. Servo supports Max. 50Hz, ESC must run at 50Hz in this group. |
S1 | PB0 | 5 V tolerant I/O | PWM1 GPIO50 | TIM8_CH2N | Group1 |
| S2 | PB1 | 3.3 V tolerant I/O | PWM2 GPIO51 | TIM8_CH3N | ||
| S3 | PA0 | 5 V tolerant I/O | PWM3 GPIO52 | TIM5_CH1 | Group2 | |
| S4 | PA1 | 5 V tolerant I/O | PWM4 GPIO53 | TIM5_CH2 | ||
| S5 | PA2 | 5 V tolerant I/O | PWM5 GPIO54 | TIM5_CH3 | ||
| S6 | PA3 | 5 V tolerant I/O | PWM6 GPIO55 | TIM5_CH4 | ||
| S7 | PD12 | 5 V tolerant I/O | PWM7 GPIO56 | TIM4_CH1 | Gourp3 | |
| S8 | PD13 | 5 V tolerant I/O | PWM8 GPIO57 | TIM4_CH2 | ||
| S9 (V1,V1.5) | PD14 | 5 V tolerant I/O | PWM9 GPIO58 | TIM4_CH3 | ||
| S10 (V1,V1.5) | PD15 | 5 V tolerant I/O | PWM10 GPIO59 | TIM4_CH4 | ||
| S11 (V3) | PE5 | 5 V tolerant I/O | PWM11 GPIO60 | TIM15_CH1 | Gourp4 | |
| S12 (V3) | PE6 | 5 V tolerant I/O | PWM12 GPIO61 | TIM15_CH1 | ||
| LED | PA8 | 5 V tolerant I/O | PWM13 GPIO62 | TIM1_CH1 | Group5 | |
| SERVO13_FUNCTION 120, NTF_LED_TYPES neopixel | ||||||
| ADC | No pad 1K:10K divider builtin |
PC0 | 0~36V | on board battery voltage | BATT_VOLT_PIN BATT_VOLT_MULT |
10 11.0 |
| No pad | PC1 | 0~3.3V | on board current sensor | BATT_CURR_PIN BATT_AMP_PERVLT |
11 40 |
|
| VB2 Pad 1K:20K divider builtin |
PA4 | 0~69V | Vbat2 ADC | BATT2_VOLT_PIN BATT2_VOLT_MULT |
18 21.0 |
|
| CU2 Pad | PA7 | 0~3.3V | Cur2 ADC | BATT2_CURR_PIN BATT2_AMP_PERVLT |
7 / |
|
| RSSI Pad | PC5 | 0~3.3V | RSSI ADC Analog RSSI |
RSSI_ANA_PIN RSSI_TYPE |
8 1 |
|
| I2C | I2C1
CL1/DA1 |
PB6/PB7 | 5 V tolerant I/O | Digital Airspeed I2C | ARSPD_BUS | 1 |
| MS4525 DLVR-L10D |
ARSPD_TYPE | 1 9 |
||||
| Compass | COMPASS_AUTODEC | 1 | ||||
| I2C2
No CL2/DA2 breakout |
PB10/PB11 | 5 V tolerant I/O | on board Baro DPS310 | |||
| CAN | CAN1 | PD0/PD1 | 5 V tolerant I/O | F103/F303 CAN Node | CAN_D1_PROTOCOL CAN_P1_DRIVER |
1 1 |
| CAN GPS | GPS_TYPE | 9 | ||||
| CAN Compass | COMPASS_TYPEMASK | 0 | ||||
| CAN Airspeed sensor | ARSPD_TYPE | 8 | ||||
| UART | USB | PA11/PA12 | 5 V tolerant I/O | USB | console | SERIAL0 |
| RX7 TX7 RTS7 CTS7 | PE7/8/9/10 | 3.3 V tolerant I/O | UART7 | telem1 | SERIAL1 | |
| TX1 RX1 | PA9/PA10 | 5 V tolerant I/O | USART1 | telem2 | SERIAL2 | |
| TX2 RX2 | PD5/PD6 | 5 V tolerant I/O | USART2 | GPS1 | SERIAL3 | |
| No TX3 RX3 breakout | / | / | / | / | / | |
| RX8 | PE0 | 5 V tolerant I/O | UART8 | USER | SERIAL5 | |
| TX4 RX4 | PB9/PB8 | 5 V tolerant I/O | UART4 | USER | SERIAL6 | |
| TX6 RX6 | PC6/PC7 | 5 V tolerant I/O | USART6 | RC input/Receiver | SERIAL7 | |
| RX6 | SBUS/IBUS/DSM | |||||
| RX6 | PPM | |||||
RC INPUT
The Rx6 pin, which by default is mapped to a timer input, can be used for all ArduPilot supported receiver protocols, except CRSF which requires a true UART connection. However, bi-directional protocols which include telemetry, such as SRXL2 and FPort, when connected in this manner, will only provide RC without telemetry.
To allow CRSF and embedded telemetry available in Fport, CRSF, and SRXL2 receivers, the Rx6 pin can also be configured to be used as true UART RX pin for use with bi-directional systems by setting the BRD_ALT_CONFIG to “1” so it becomes the SERIAL7 port’s RX input pin.
With this option, SERIAL7_PROTOCOL must be set to “23”, and:
- PPM is not supported.
- SBUS/DSM/SRXL connects to the Rx6 pin, but SBUS requires that the SERIAL7_OPTIONS be set to “3”.
- FPort requires connection to Tx6 and SERIAL7_OPTIONS be set to “7”. If Telemetry doesn’t work, try set SERIAL7_OPTIONS = 135.
- CRSF also requires a Tx6 connection, in addition to Rx6, and automatically provides telemetry. Set SERIAL7_OPTIONS to “0”.
- SRXL2 requires a connection to Tx6 and automatically provides telemetry. Set SERIAL7_OPTIONS to “4”.
Any UART can be used for RC system connections in ArduPilot also, and is compatible with all protocols except PPM. See Radio Control Systems for details.
ArduPilot Relay(PINIO)
- Camera-1 and 8V On by default
- Make sure 2 cameras are set with identical video format, both PAL or both NTSC.
# GPIOs
- PD10 PINIO1 OUTPUT GPIO(81) //8V power ON/OFF switch
- PD11 PINIO2 OUTPUT GPIO(82) //Camera switch
# RCx_OPTION: RC input option
- 28 Relay On/Off
- 34 Relay2 On/Off
- 35 Relay3 On/Off
- 36 Relay4 On/Off
e.g.
- RELAY_PIN 81 //8V switch GPIO
- RC7_OPTION 28 //Relay On/Off, Use CH7 of Transmitter to switch Vsw
- RELAY_PIN2 82 //Camera switch GPIO
- RC8_OPTION 34 //Relay2 On/Off, Use CH8 of Transmitter to switch camera
or
- RELAY_PIN3 81 //8V switch GPIO
- RC9_OPTION 35 //Relay3 On/Off, Use CH9 of Transmitter to switch Vsw
- RELAY_PIN4 82 //Camera switch GPIO
- RC10_OPTION 36 //Relay4 On/Off, Use CH10 of Transmitter to switch camera
The configured feature will be triggered when the auxiliary switch’s pwm value becomes higher than 1800. It will be deactivated when the value falls below 1200.
Check the pwm value sent from the transmitter when the switch is high and low using the Mission Planner’s Initial Setup >> Mandatory Hardware >> Radio Calibration screen. If it does not climb higher than 1800 or lower than 1200, it is best to adjust the servo end points in the transmitter.
BF Mapping
| BetaFlight/INAV multi-rotor | |||||
| PWM | S1 | PB0 | 5 V tolerant I/O | TIM3_CH3 | Motor |
| S2 | PB1 | 3.3 V tolerant I/O | TIM3_CH4 | ||
| S3 | PA0 | 5 V tolerant I/O | TIM5_CH1 | ||
| S4 | PA1 | 5 V tolerant I/O | TIM5_CH2 | ||
| S5 | PA2 | 5 V tolerant I/O | TIM5_CH3 | ||
| S6 | PA3 | 5 V tolerant I/O | TIM5_CH4 | ||
| S7 | PD12 | 5 V tolerant I/O | TIM4_CH1 | ||
| S8 | PD13 | 5 V tolerant I/O | TIM4_CH2 | ||
| S9 (V1, V1.5) | PD14 | 5 V tolerant I/O | TIM4_CH3 | ||
| S10 (V1, V1.5) | PD15 | 5 V tolerant I/O | TIM4_CH4 | ||
| S11 (V3) | PE5 | 5 V tolerant I/O | TIM15_CH1 | Servo | |
| S12 (V3) | PE6 | 5 V tolerant I/O | TIM15_CH2 | ||
| LED | PA8 | 5 V tolerant I/O | TIM1_CH1 | 2812LED | |
| RX4 | PB8 | 5 V tolerant I/O | TIM16_CH1 | ||
| TX4 | PB9 | 5 V tolerant I/O | TIM17_CH1 |
| ADC | Vbat ADC, No pad 1K:10K divider builtin |
PC0 | 0~36V | on board battery voltage | BF 110, INAV 1100 |
| Current ADC, No pad | PC1 | 0~3.3V | on board current sensor | scale external | |
| VB2 Pad 1K:10K divider builtin |
PA4 | 0~69V | Vbat2 ADC | BF 210, INAV 2100 | |
| CU2 Pad | PA7 | 0~3.3V | Current2 ADC | scale external | |
| RSSI Pad | PC5 | 0~3.3V | RSSI ADC | Analog RSSI | |
| I2C | I2C1 CL1/DA1 |
PB6/PB7 | 5 V tolerant I/O | Digital Airspeed I2C | MS4525 |
| Compass | |||||
| I2C2 CL2/DA2 |
PB10/PB11 | 5 V tolerant I/O | on board Barometer | DPS310 | |
| UART | USB | PA11/PA12 | 5 V tolerant I/O | USB | |
| RX7 TX7 RTS7 CTS7 | PE7/8/9/10 | 3.3 V tolerant I/O | UART7 | USER | |
| TX1 RX1 | PA9/PA10 | 5 V tolerant I/O | USART1 | USER | |
| TX2 RX2 | PD5/PD6 | 5 V tolerant I/O | USART2 | USER | |
| TX3 RX3 | / | / | / | / | |
| RX8 | PE0 | 5 V tolerant I/O | UART8_RX | USER | |
| TX4 RX4 | PB9/PB8 | 5 V tolerant I/O | UART4 | USER | |
| TX6 RX6 | PC6/PC7 | 5 V tolerant I/O | UART6_RX | PPM & Serial RX | |
| UART6_TX |
FPORT |
TIPS
| H743-mini | ArduPilot | INAV | BetaFlight | |||
| V1 | ICM20602(1st) MPU6000(2nd) |
ArduPilot 4.0 stable or newer |
MPU6000 (0) ICM20602 (1) |
INAV 3.0 or newer |
MPU6000 (0) ICM20602 (1) |
BF 4.2 or newer |
| V1.5 | ICM42605(1st) MPU6000(2nd) |
ArduPilot 4.1 stable or newer |
MPU6000 (0) ICM42605 (2) |
INAV 4.0 or newer |
MPU6000 (0) ICM42605 (1) |
BF 4.2 or newer |
| V3 | ICM42688P(1st) ICM42605(2nd) |
ArduPilot 4.2 latest or newer |
ICM42688P (0) ICM42605 (2) |
INAV 5.0 or newer |
ICM42688P (0) ICM42605 (1) |
BF 4.3 or newer |
- ArduPilot Firmware
- H743 is supported by INAV3.0.1 or higher.
- H743-MINI has betaflight firmware preloaded for QC
- BetaFlight: Target MATEKH743 is supported since 4.3, pls download BetaFlight firmware 4.2.x from our website.
- If you flash ArduPilot firmware via BetaFlight configurator. there is a known issue that flash process will freeze at 50% if “full chip erase” is selected. It is highly recommended to use STM32CubeProgrammer to erase MCU and upload firmware http://www.mateksys.com/?p=6905
- INAV: SD card and MSC mode for H743 is supported by INAV 4.0 or newer.
Known issue
- Motor 7 will not spin with BetaFlight 4.2.x and OCTO X8 mixer if RPM filter is enabled. Pls set dshot_bidir = OFF, or use latest BetaFlight 4.3.0
