Matek ELRS CRSF-PWM-V10 PWM Converter

Dostępność: brak towaru

Cena: 60,00 zł

Cena regularna:

60.00

Najniższa cena z 30 dni przed obniżką:

ilość szt.

towar niedostępny

dodaj do przechowalni

Producent:

Kod produktu: MTCRSFPWMV10

Link do strony producenta gdzie znajduje się opis konfiguracji i firmware:

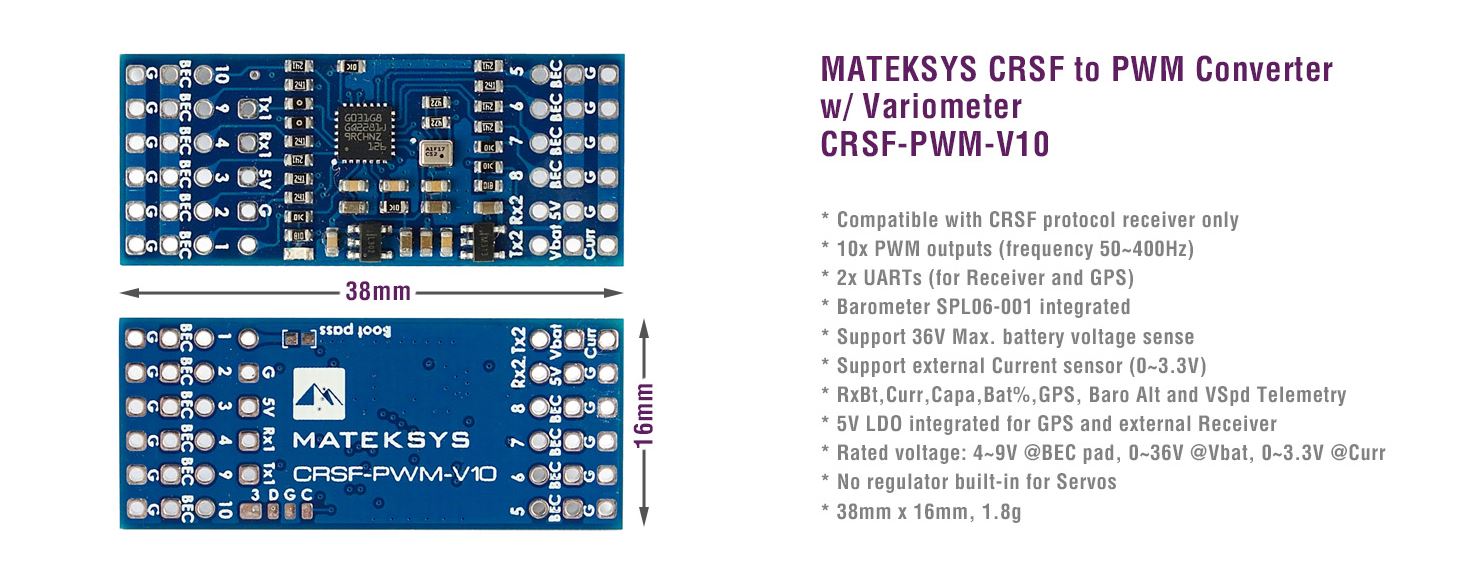

Compatible with CRSF protocol receiver only
Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
10x PWM outputs
PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
2x UARTs (for Receiver and GPS)
Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats, Vspd, Baro Alt (Start with EdgeTX 2.7.1/OpenTX 2.3.15 and ExpressLRS 2.5)
36V Max. battery voltage sense (1K:10K voltage divider built-in)
Compatible with external Current sensor (0~3.3V)
Vbat and Current sensor scale configurable
Failsafe value configurable
Firmware upgradeable
5V LDO (300mA) integrated for GPS and external Receiver.
Rated voltage: 4~9V @BEC pad, 0~36V @Vbat, 0~3.3V @Curr
No regulator built-in for servos, Servos must be powered via BEC pad by external 5-9V source.

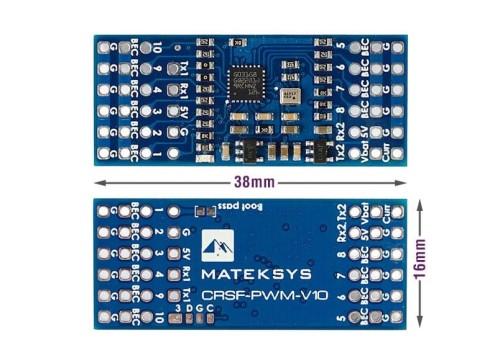

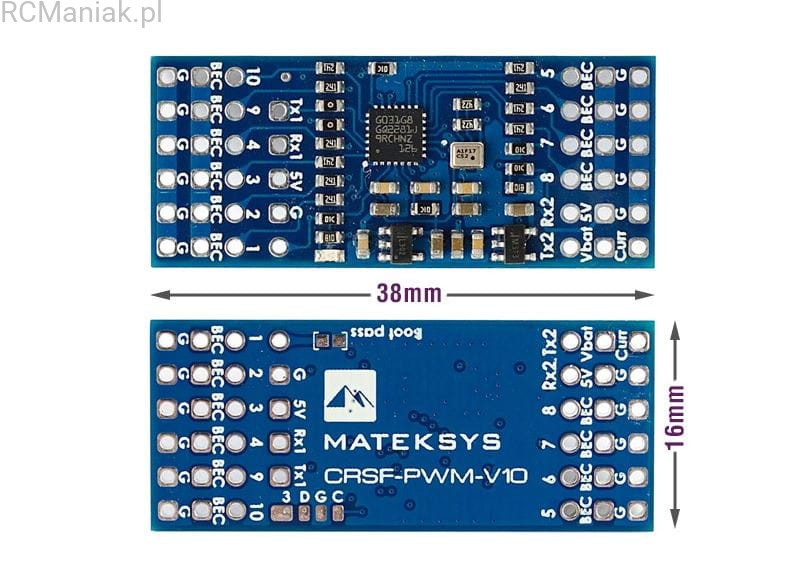

38mm x 16mm, 1.8g

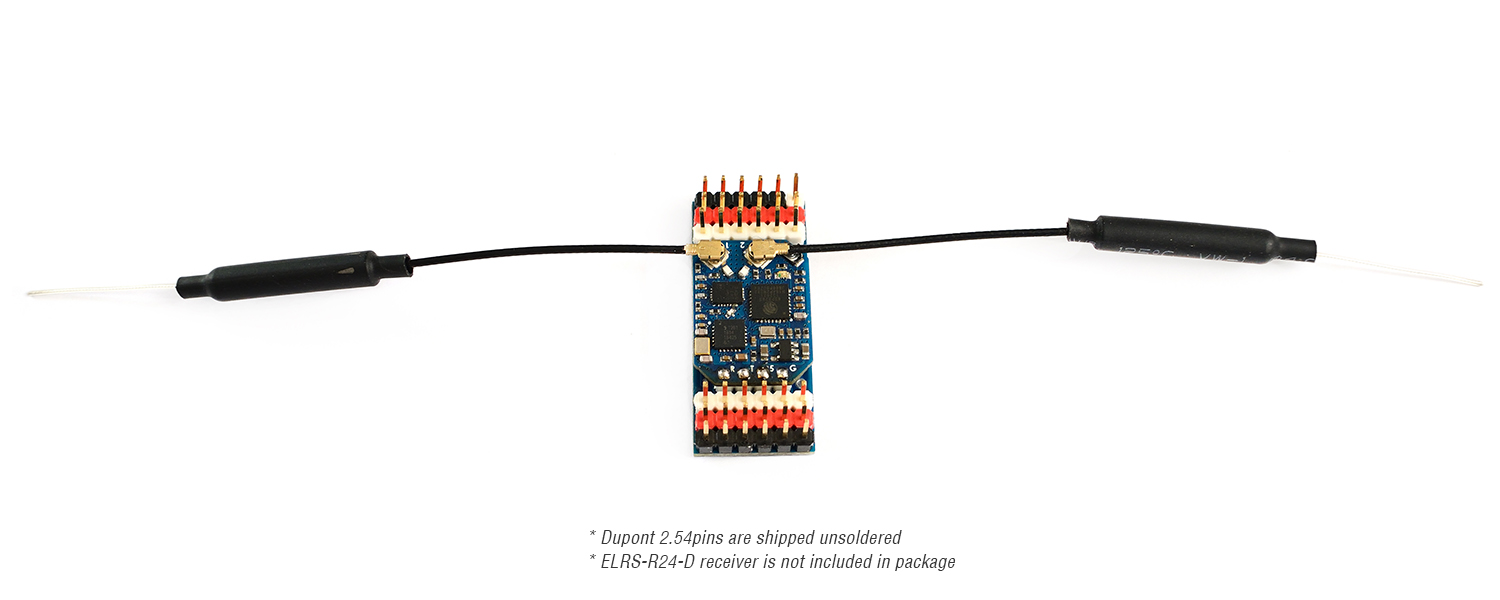

Packing: 1x CRSF-PWM-V10, Dupont 2.54 pins
