Moduł GPS GEPRC GEP-M1025

Ze względu na obecny brak dostępności barometru DPS310 może być on zastąpiony barometrem DPS368

Summary

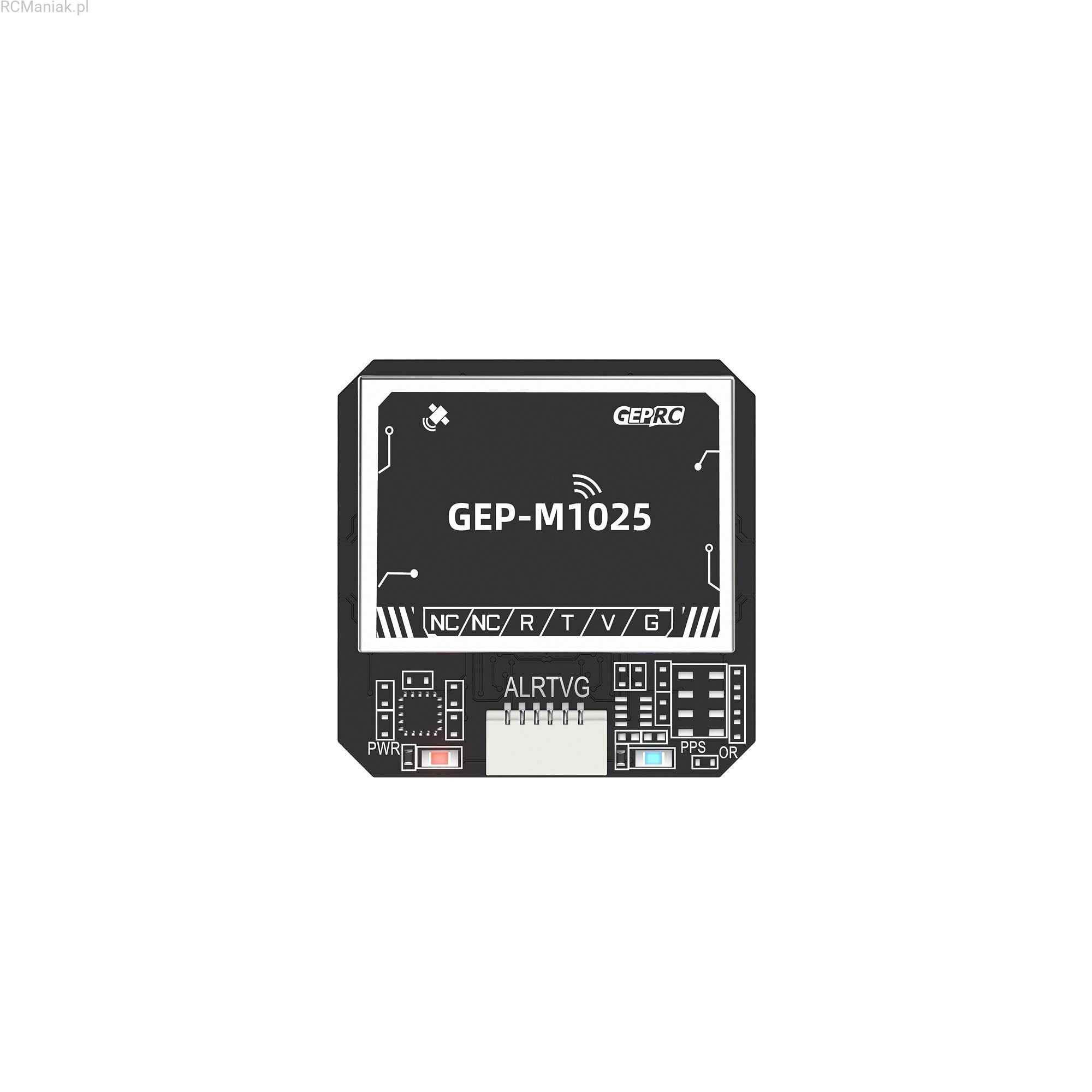

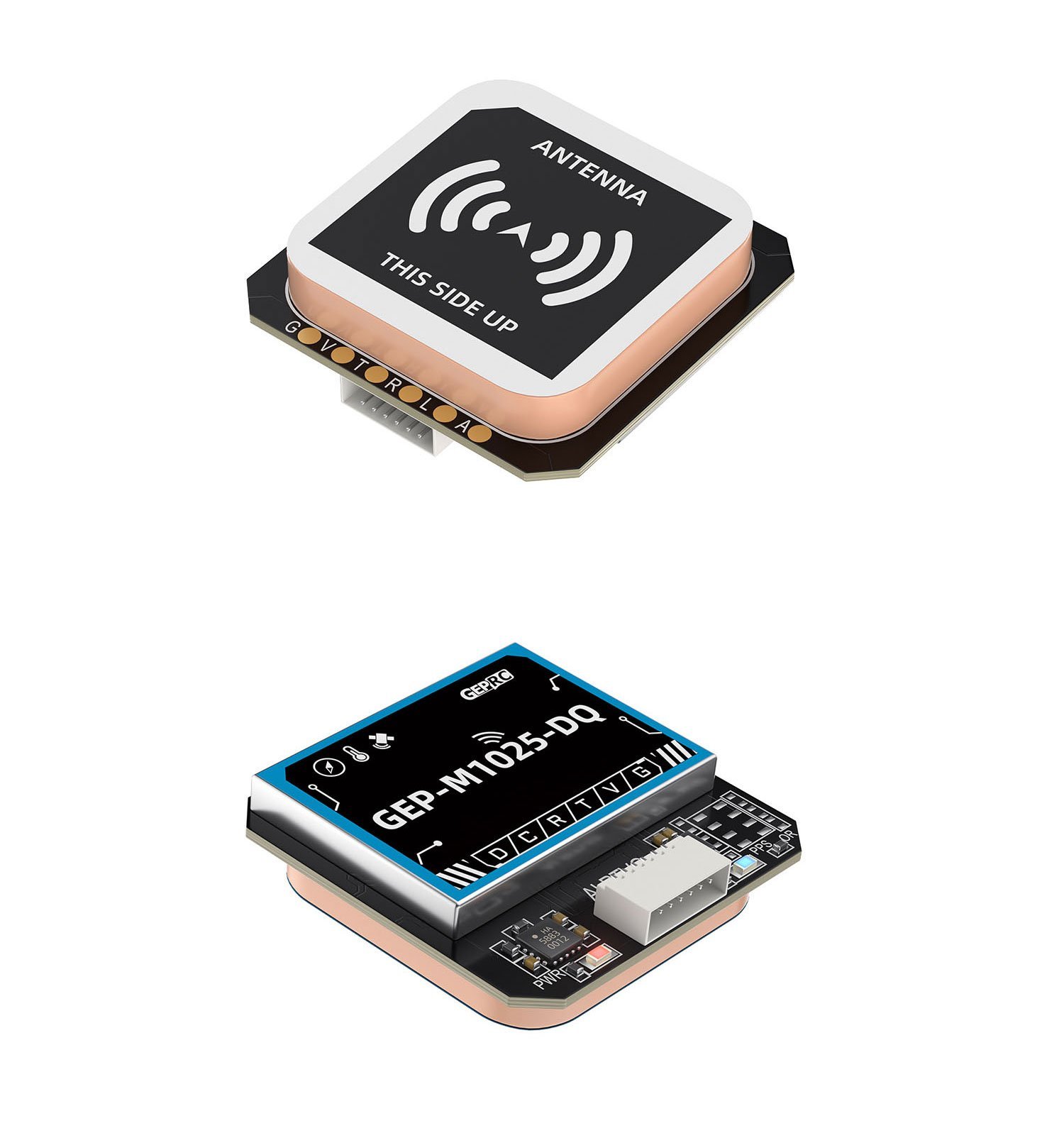

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched.

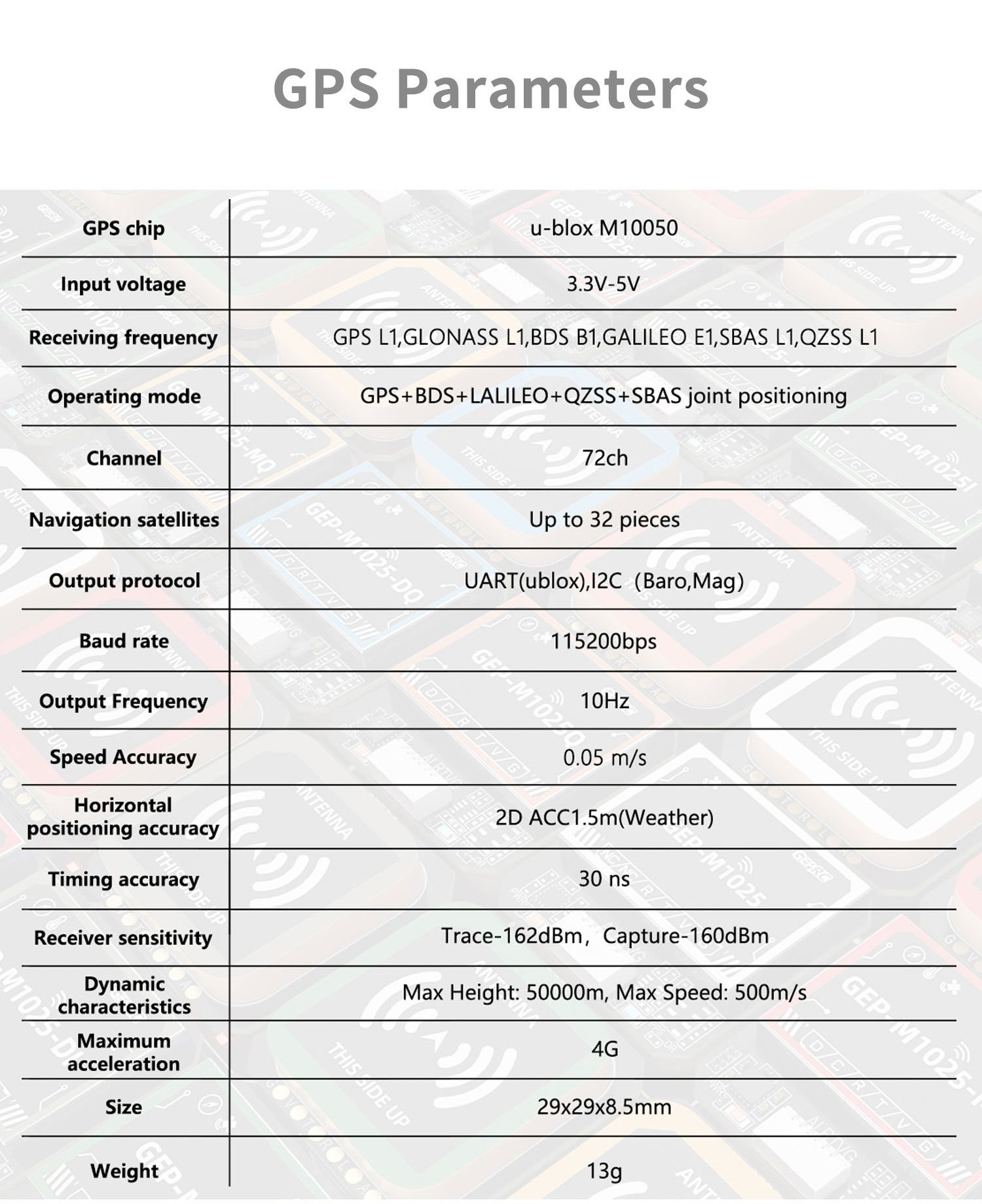

The GEP-M1025 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

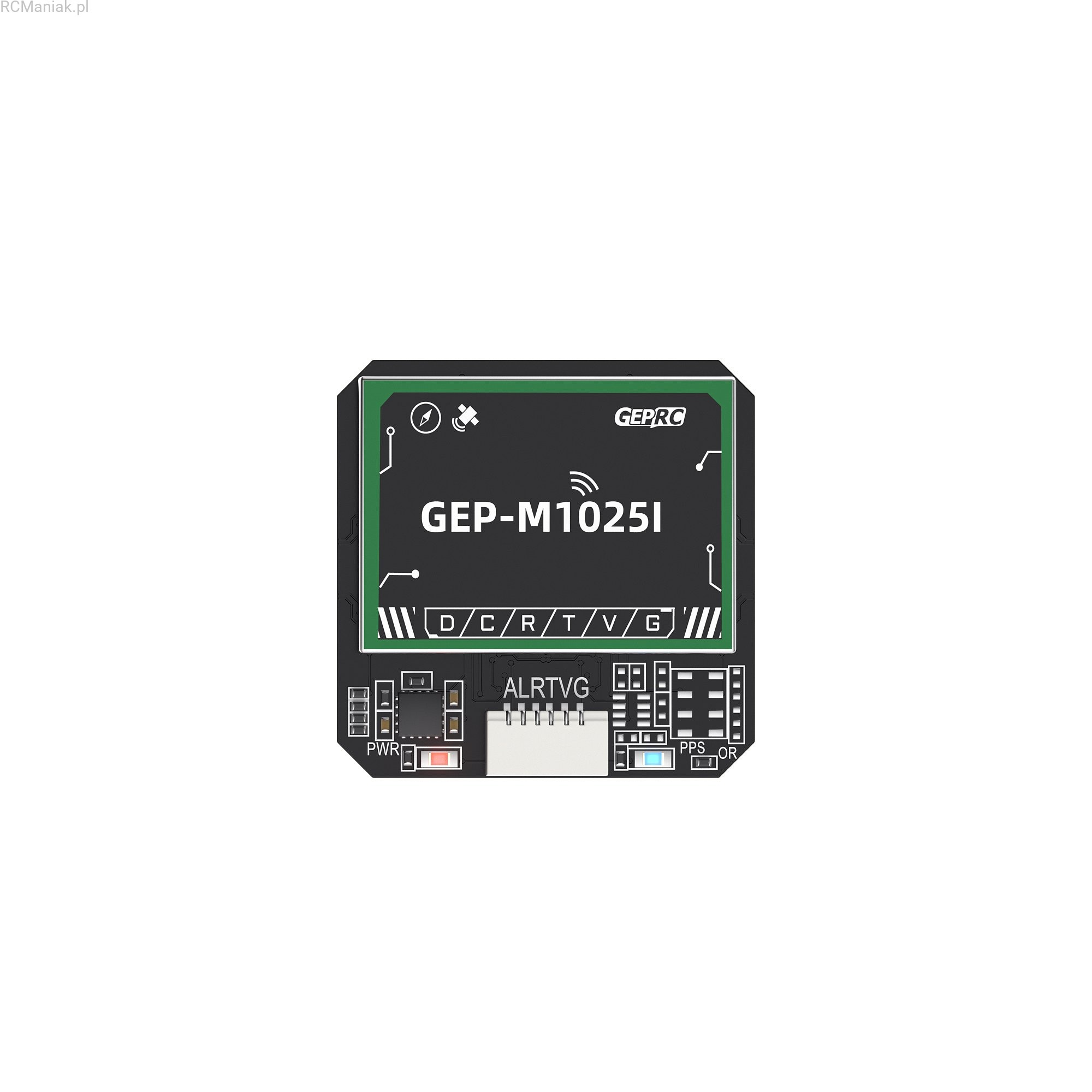

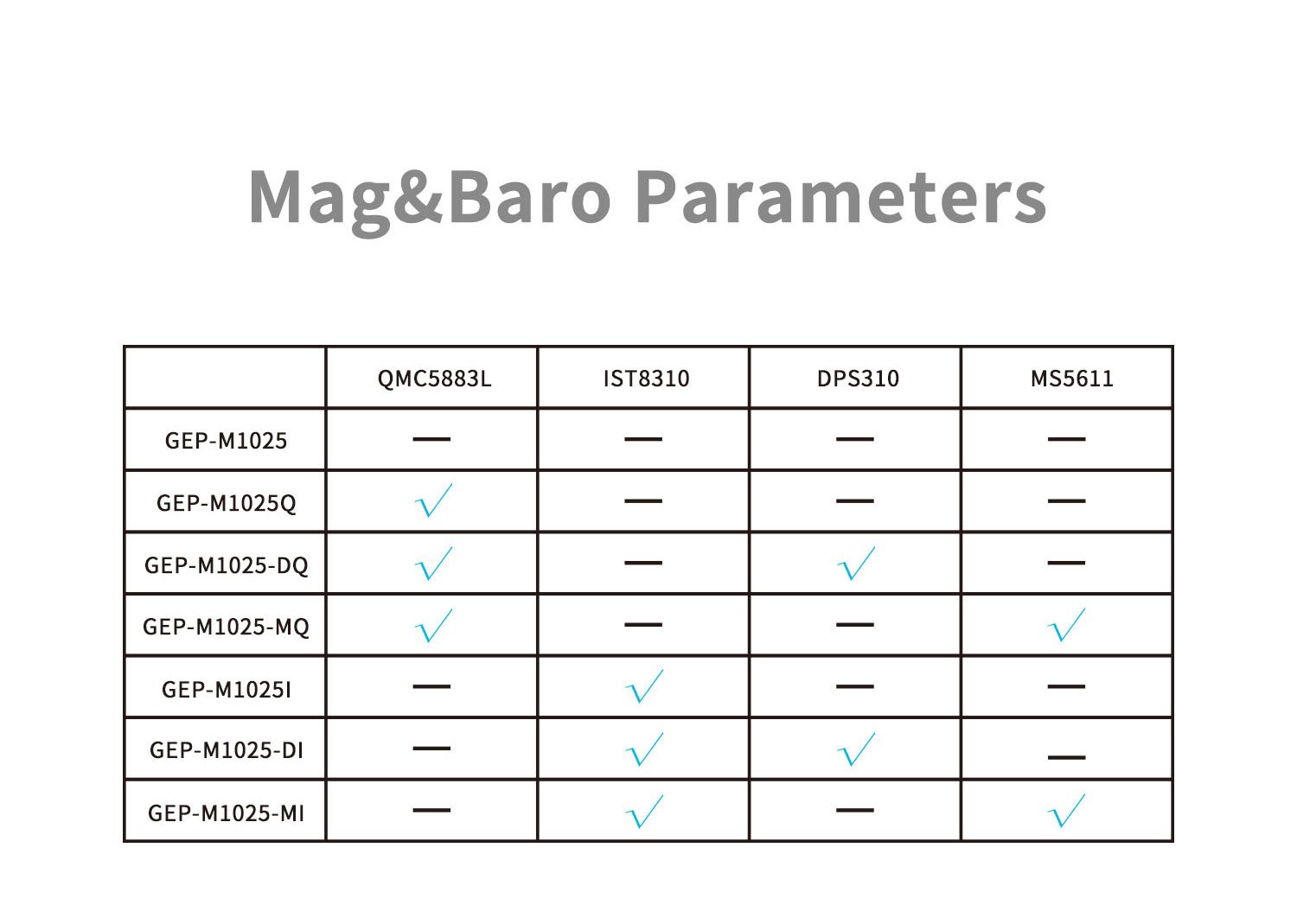

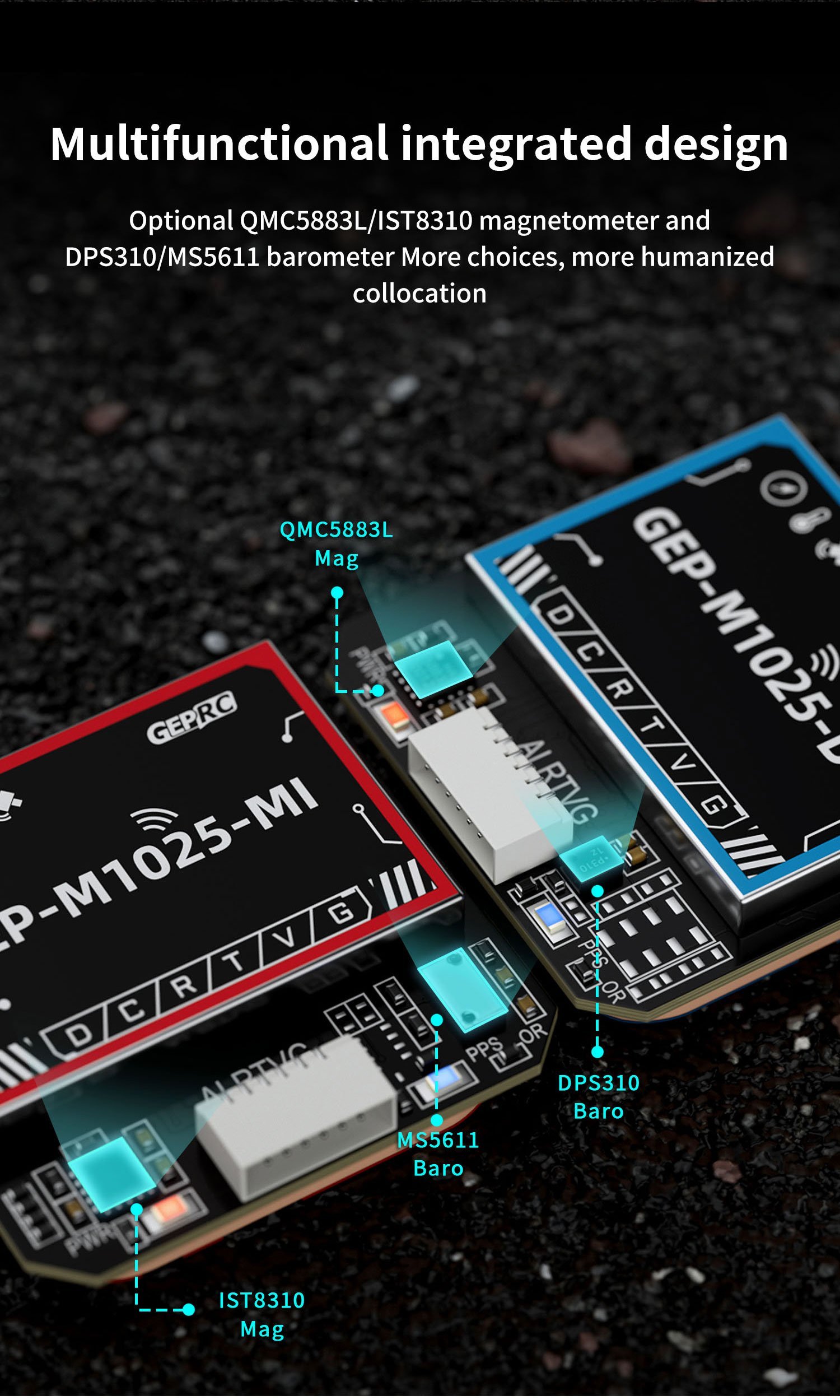

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.

Note: Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly.

Feature

1. u-blox M10 series chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality

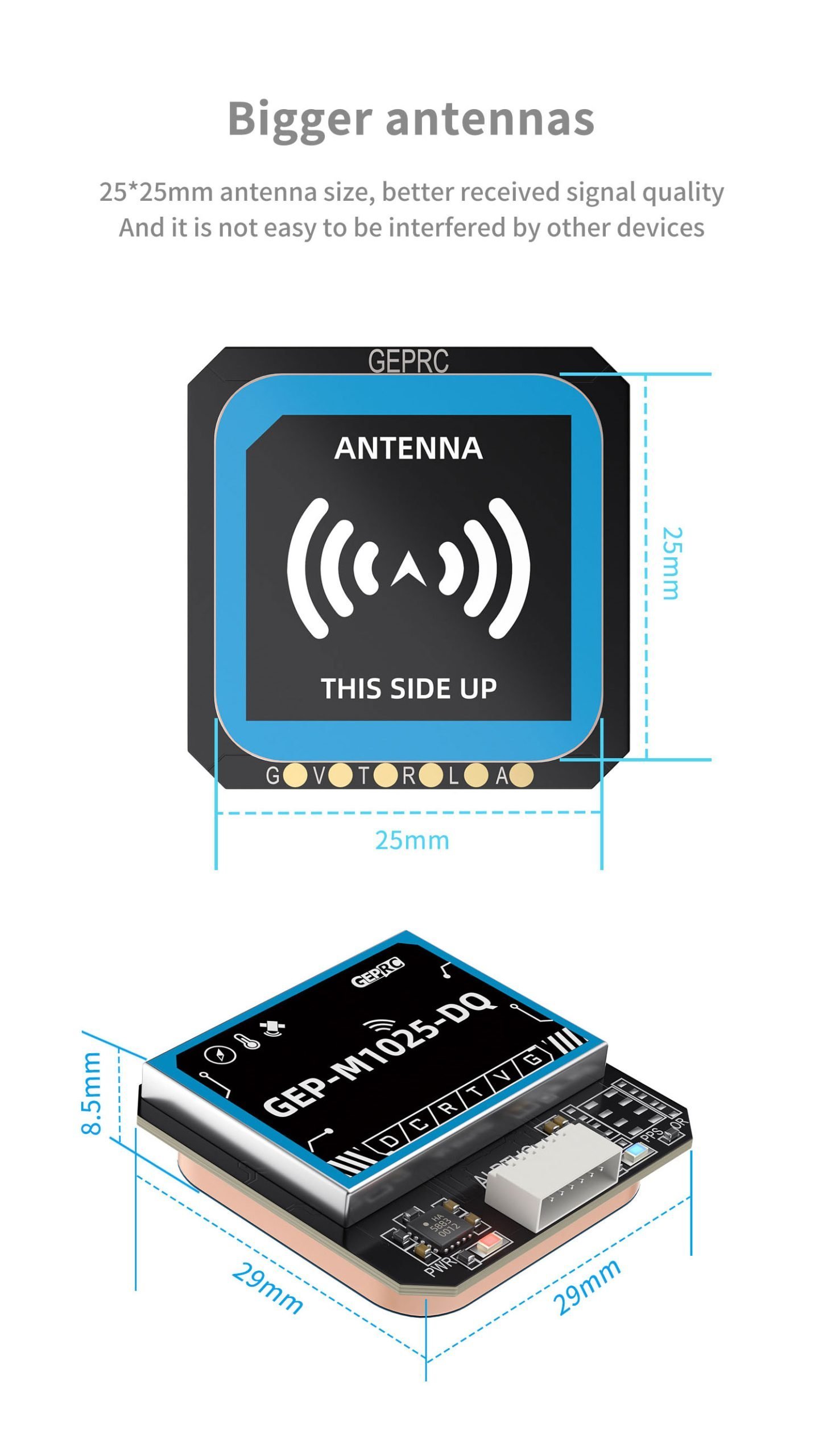

5. 25*25mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use

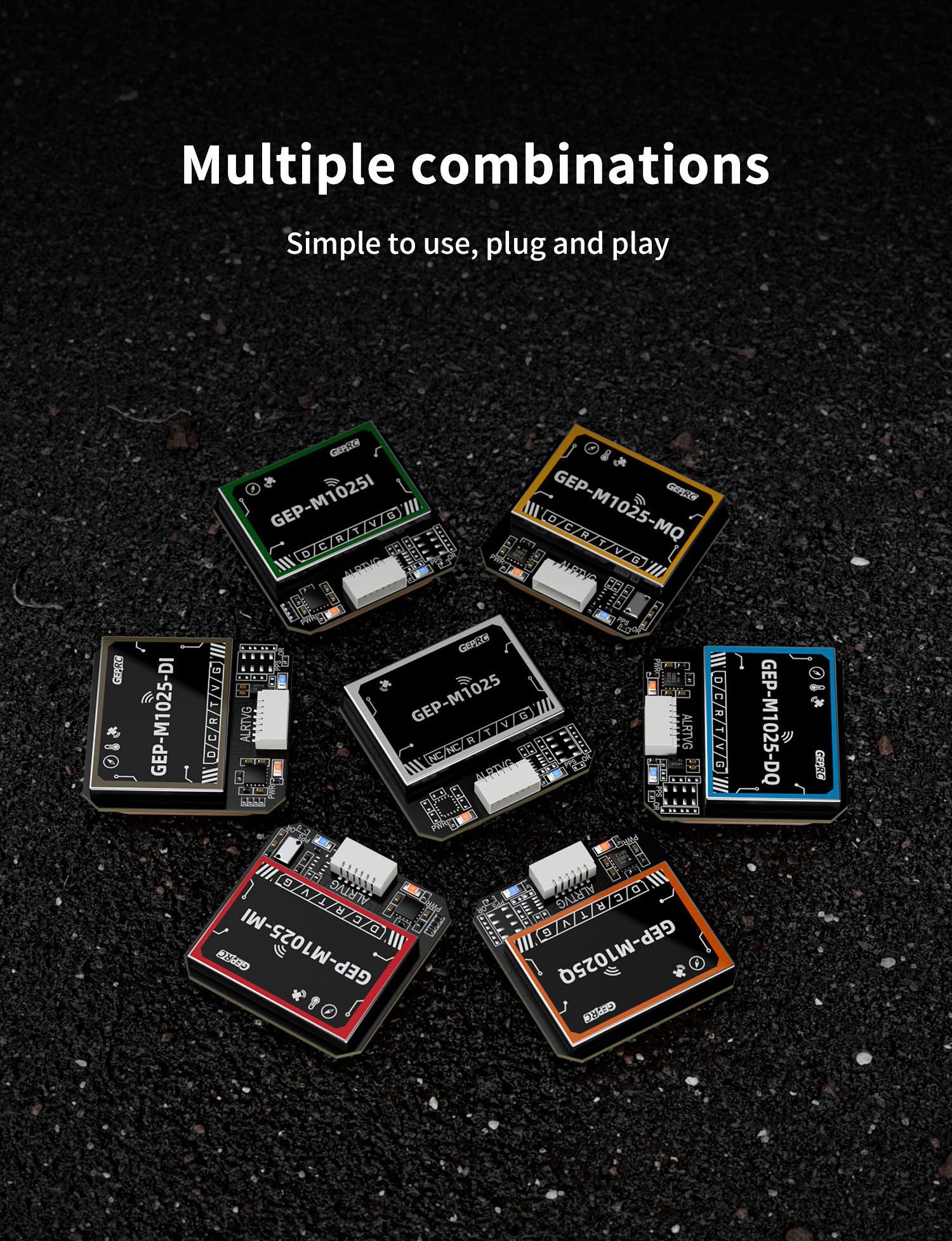

8. Optional integrated magnetometer+barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
