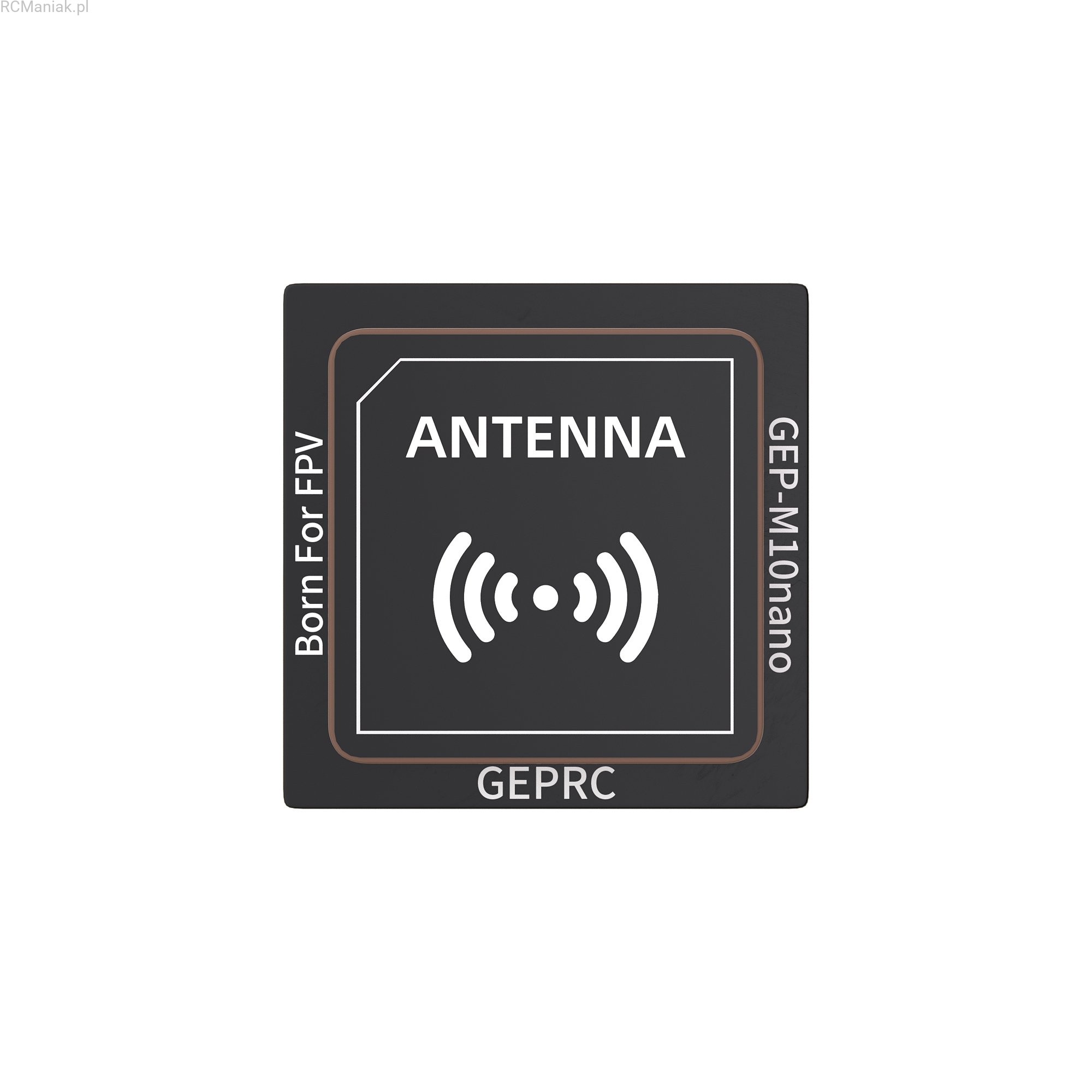

Moduł GPS GEPRC M10
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

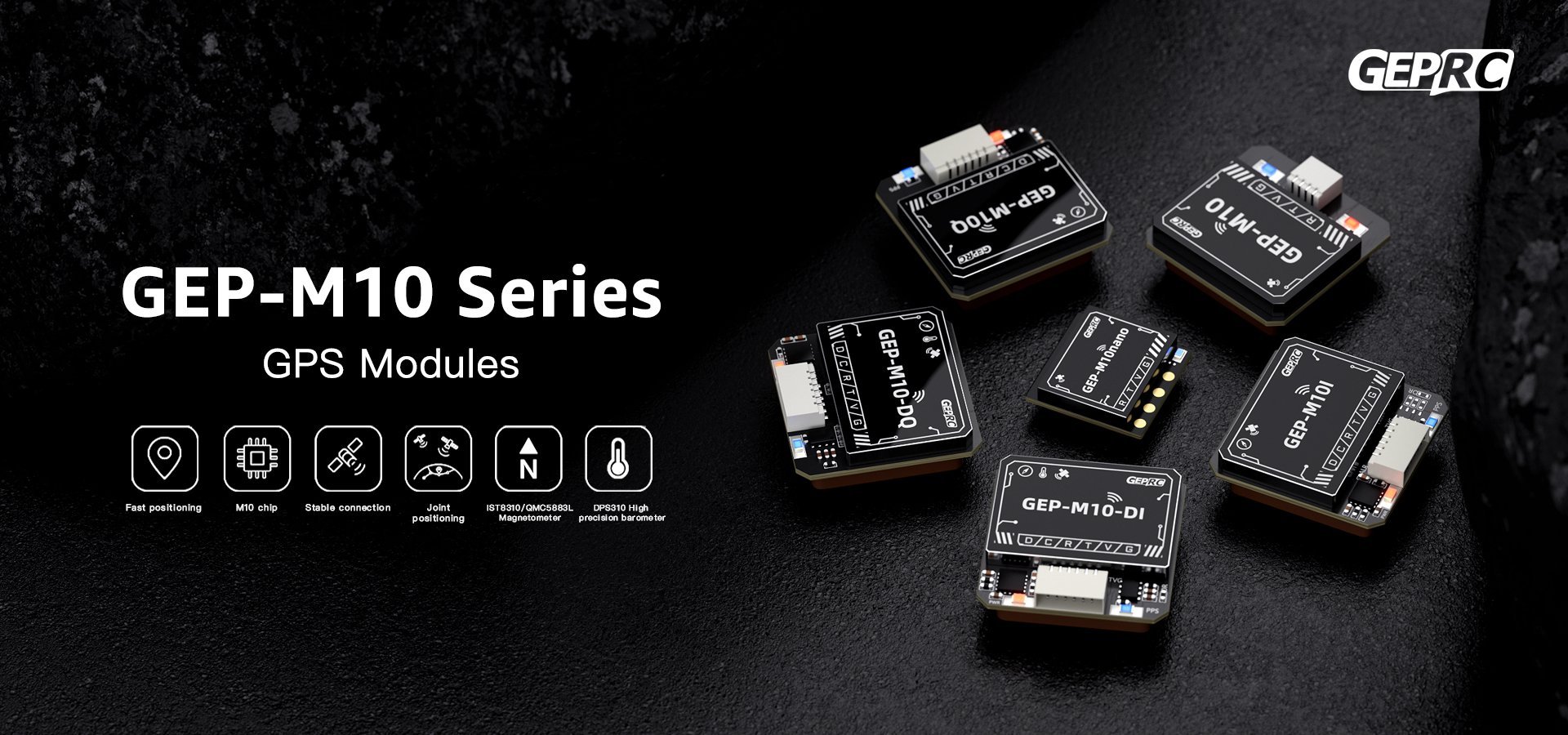

The GEPRC GPS series product line has been fully upgraded. The GEP-M10 series of GPS products based on u-blox M10050 chip are now launched.
The GEP-M10 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. There are 12*12mm and 18*18mm ceramic antenna versions, providing better receiving ability. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

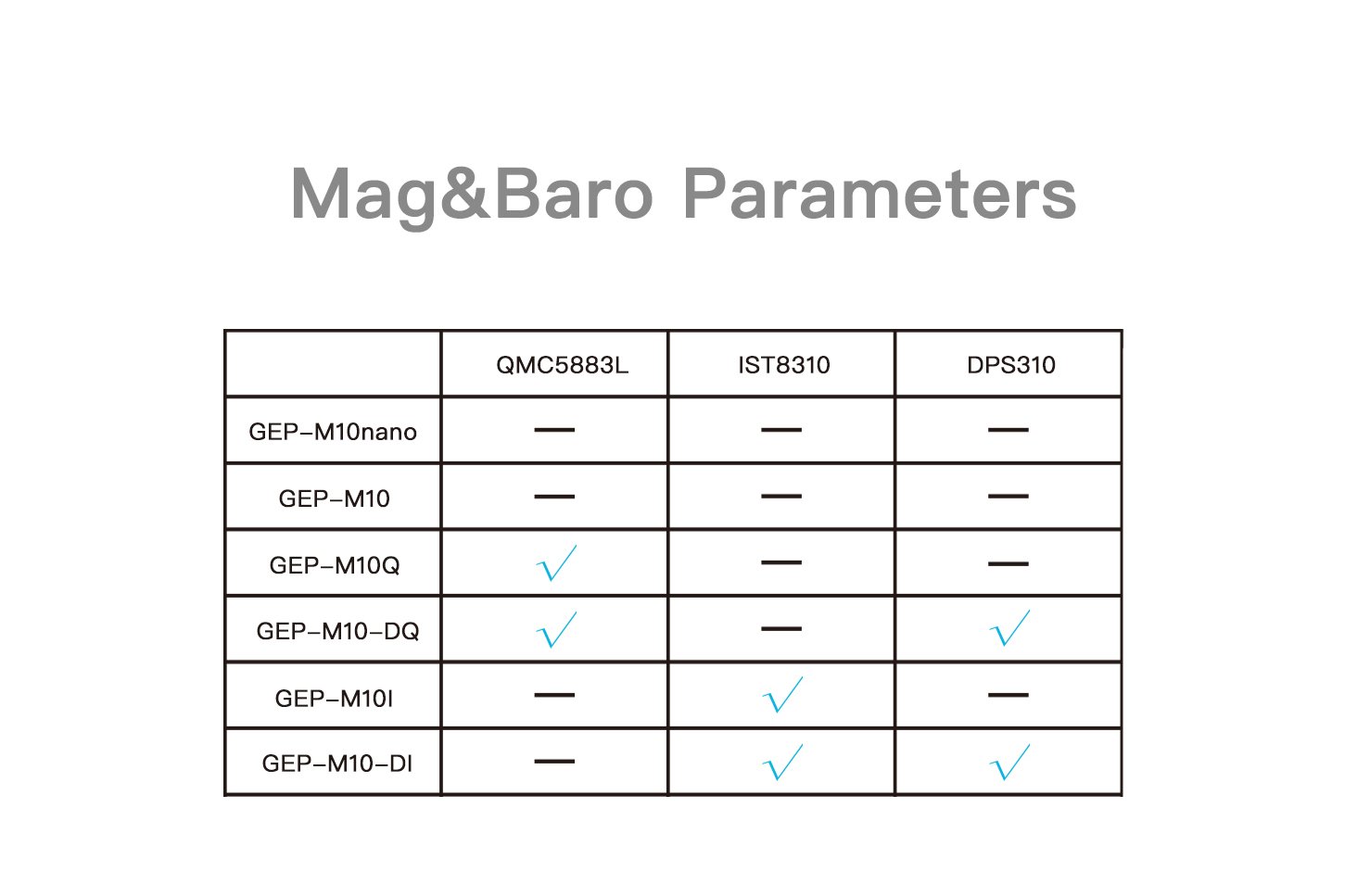

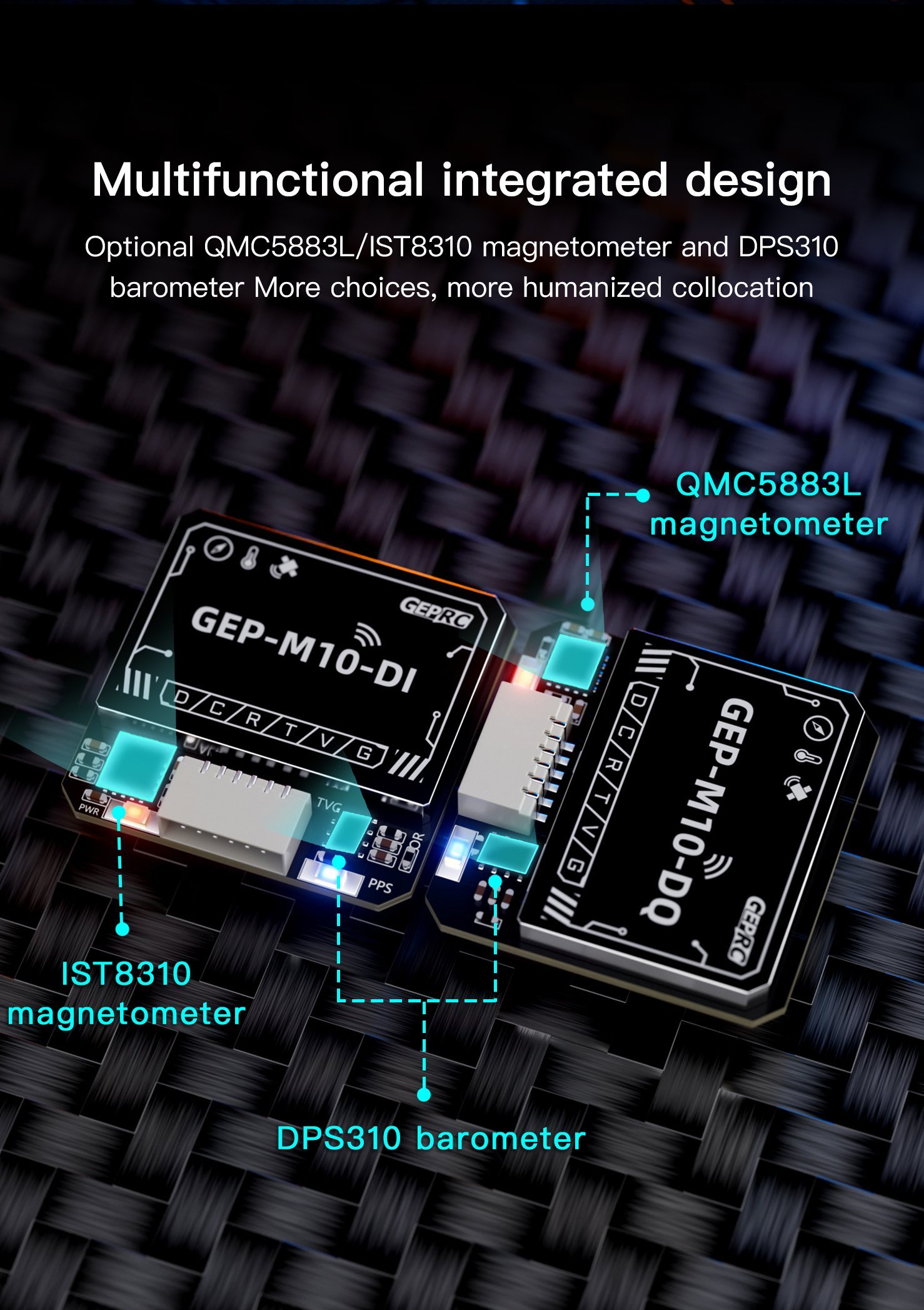

Optional QMC5883L/IST8310 magnetometer and DPS310 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.
Note: Due to the current out-of-stock status of the DPS310 barometer, might be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers.

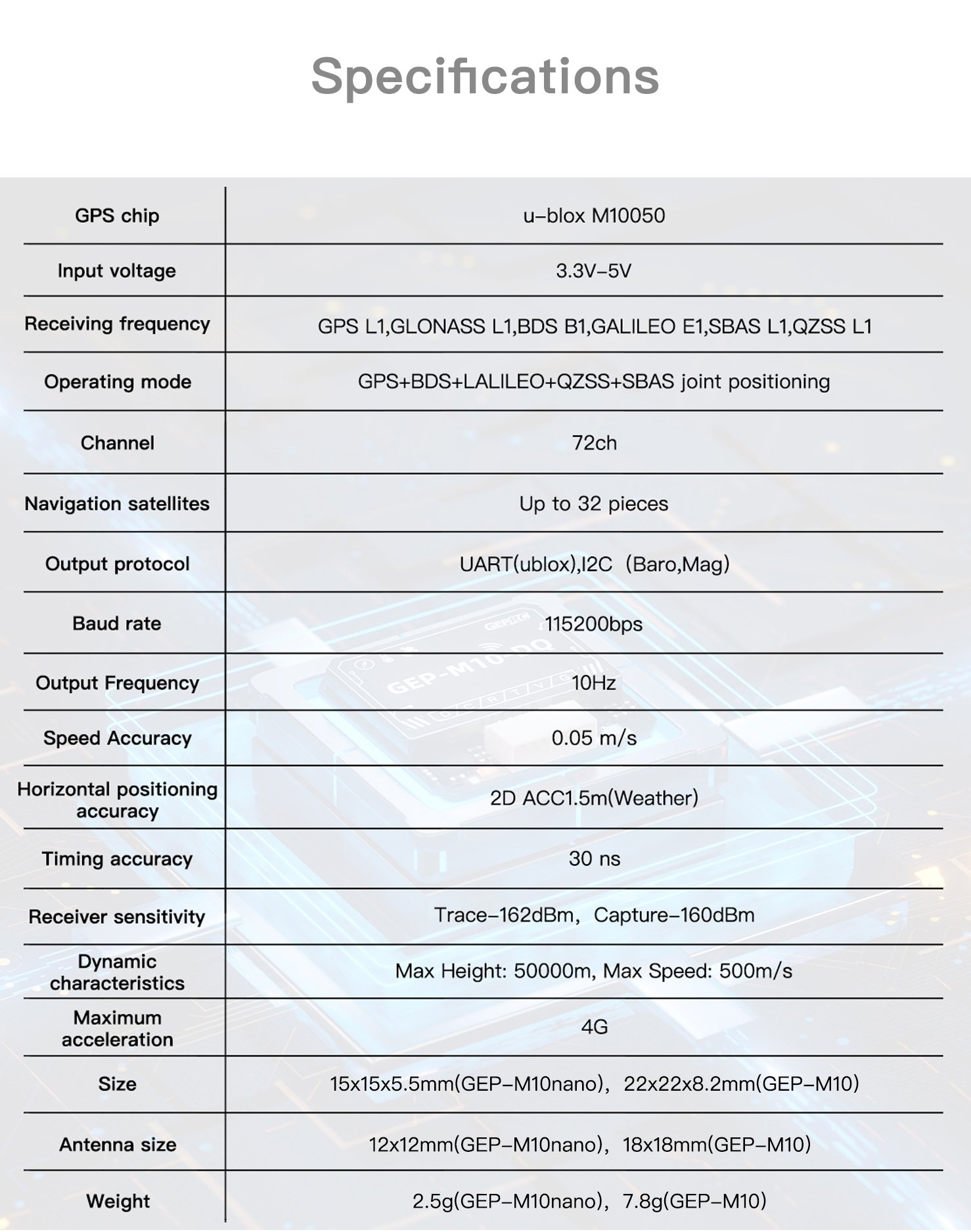

Specifications
- GPS chip: u-blox M10050
- Input voltage: 3.3V-5V
- Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
- Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
- Channel: 72ch
- Navigation satellites: Up to 32 pieces

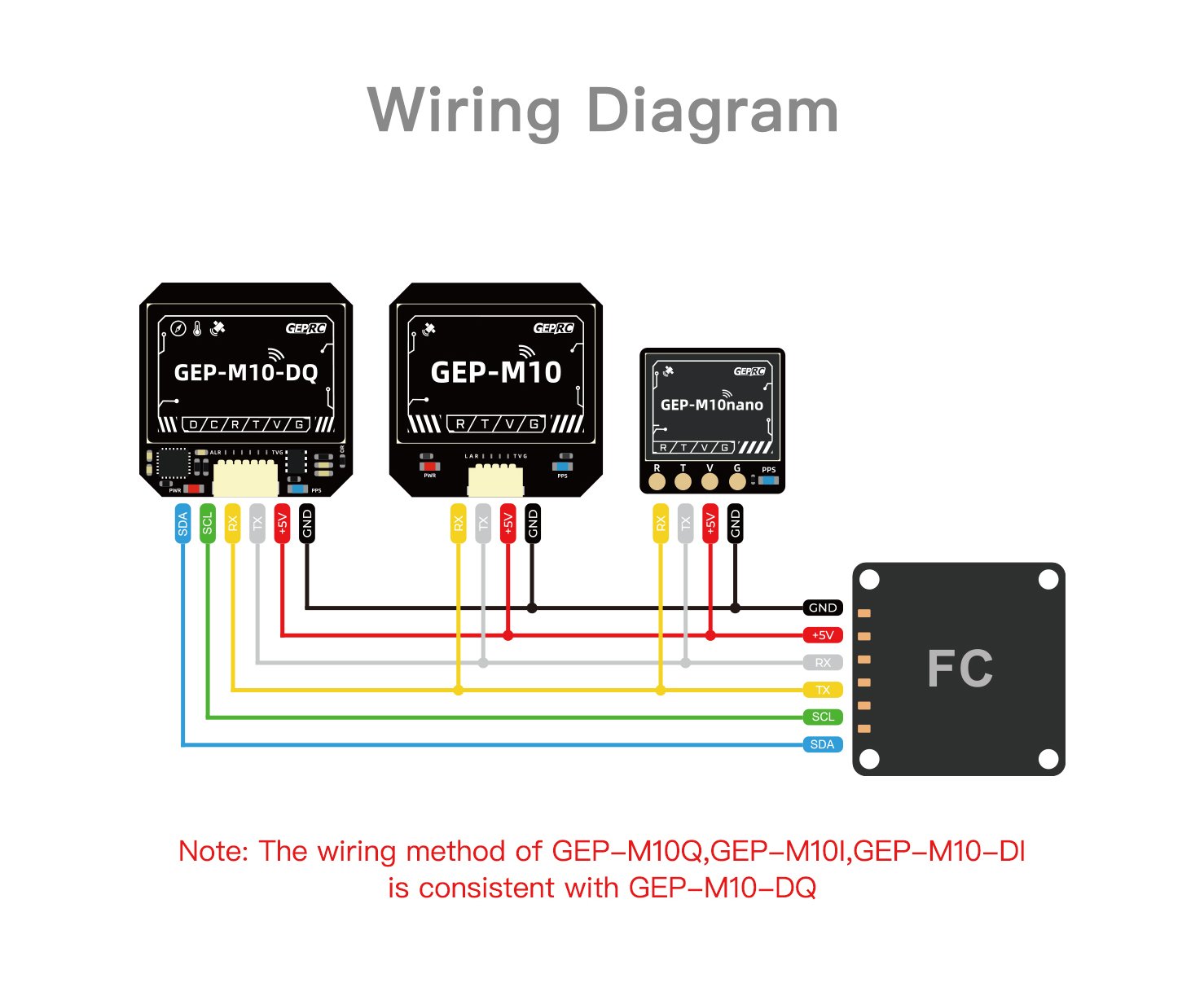

- Output protocol: UART(ublox), I2C(Baro,Mag) (Noted: Ublox output, you need to create the corresponding program yourself)
- Baud rate: 115200bps
- Output Frequency: 10Hz
- Speed Accuracy: 0.05 m/s
- Horizontal positioning accuracy: 2D ACC1.5m(Weather)
- Timing accuracy: 30 ns
- Receiver sensitivity: Trace-162dBm, Capture-160dBm
- Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
- Maximum acceleration: 4G
- Mag: QMC5883L,IST8310
- Baro: DPS310

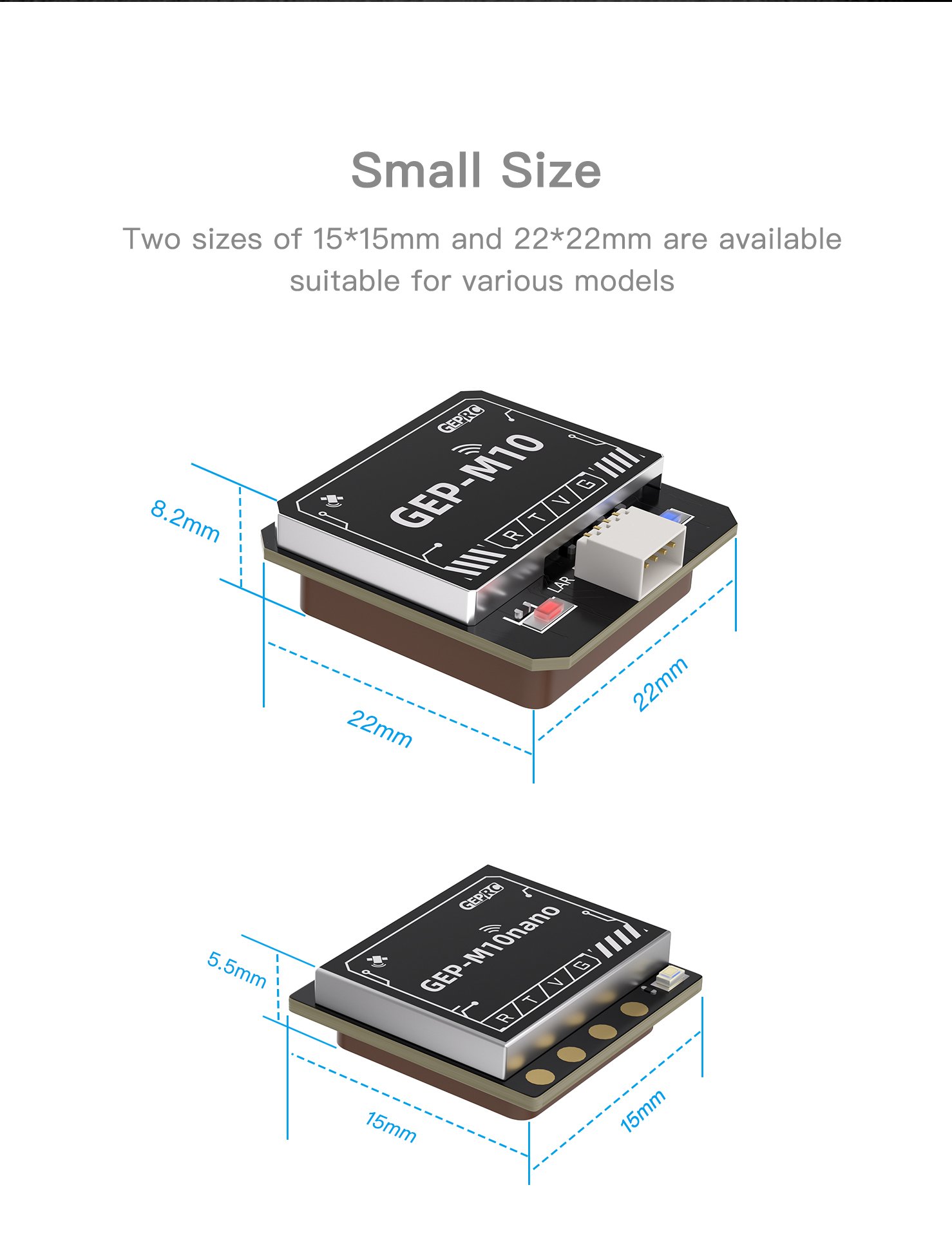

- Size:

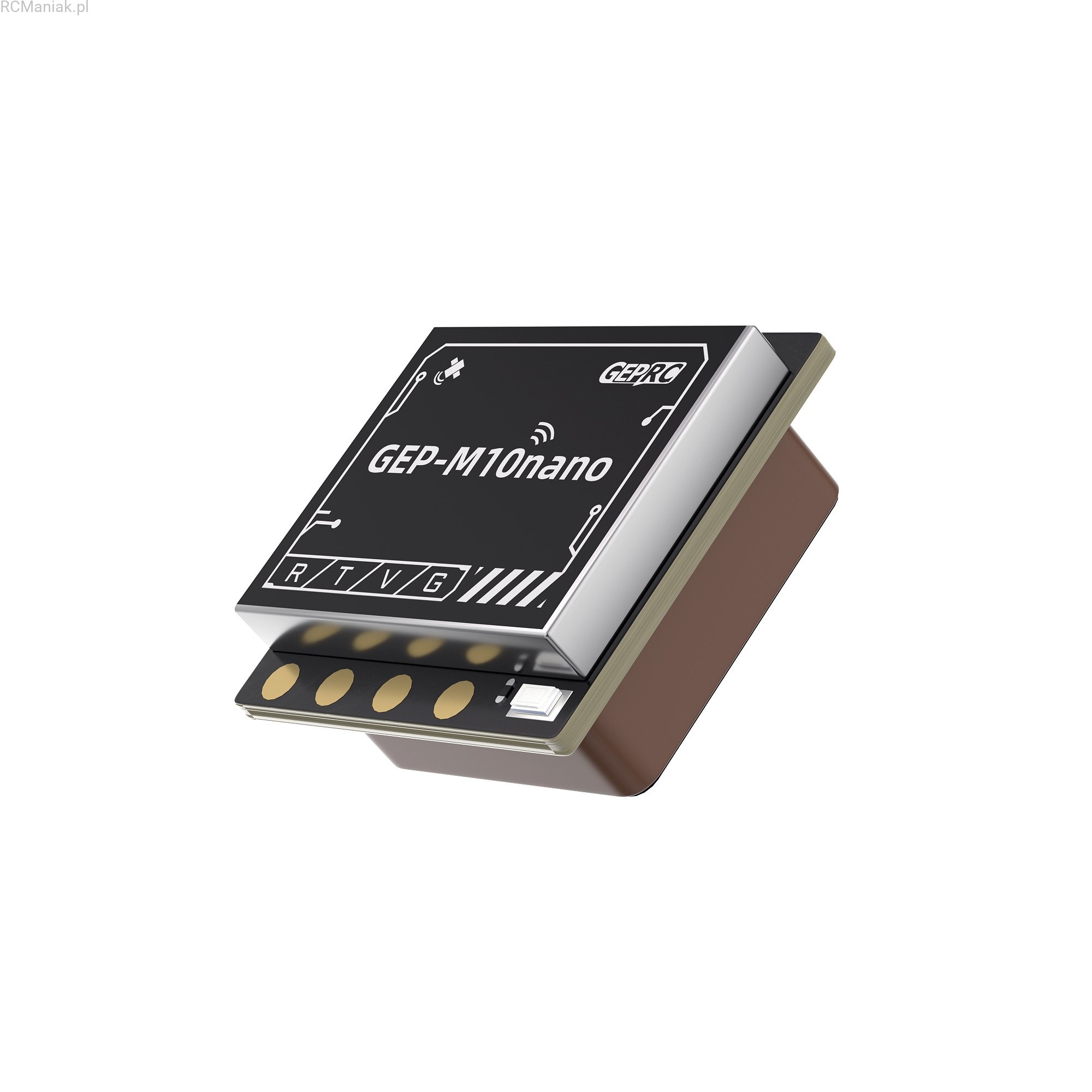

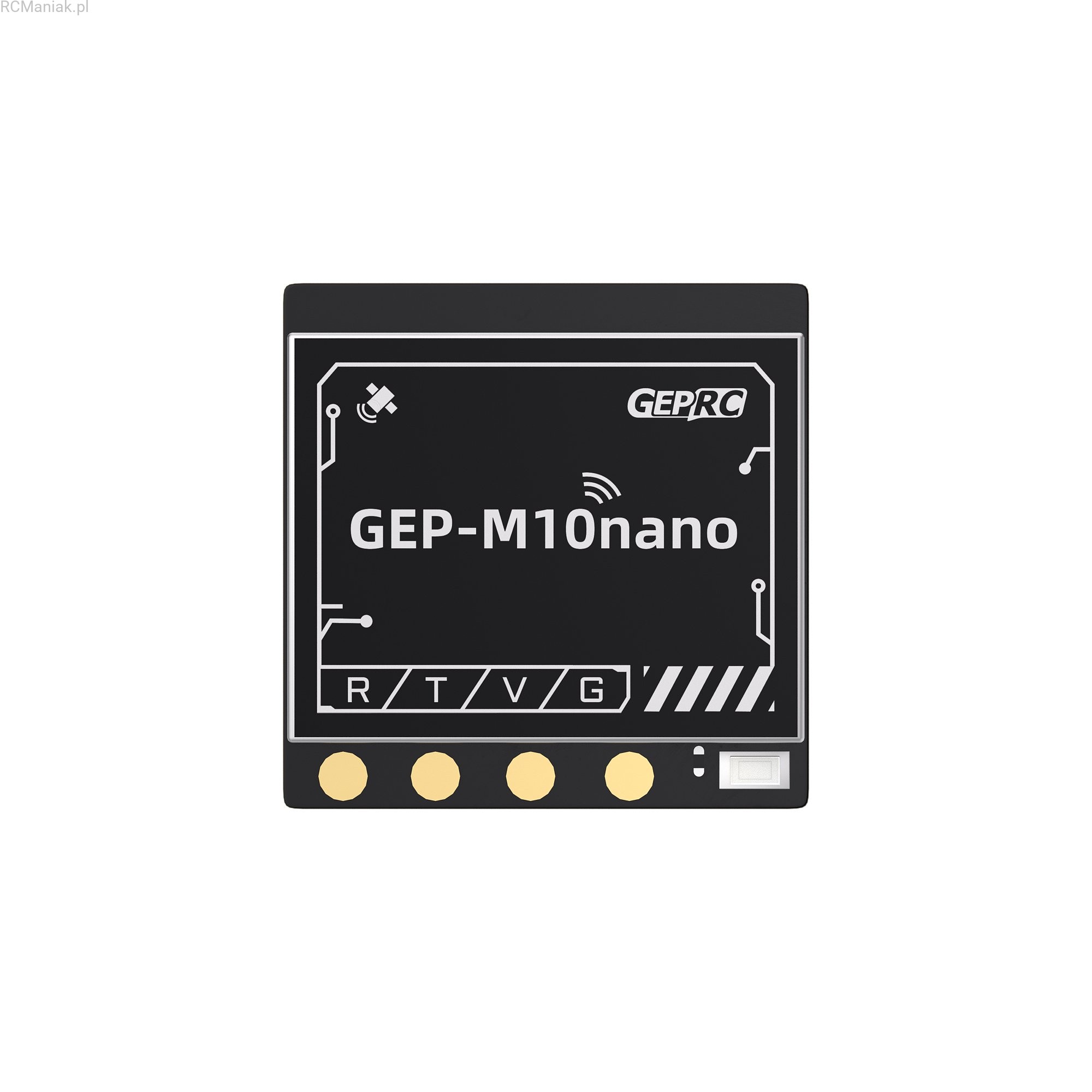

- 15x15x7.5mm (GEP-M10nano)

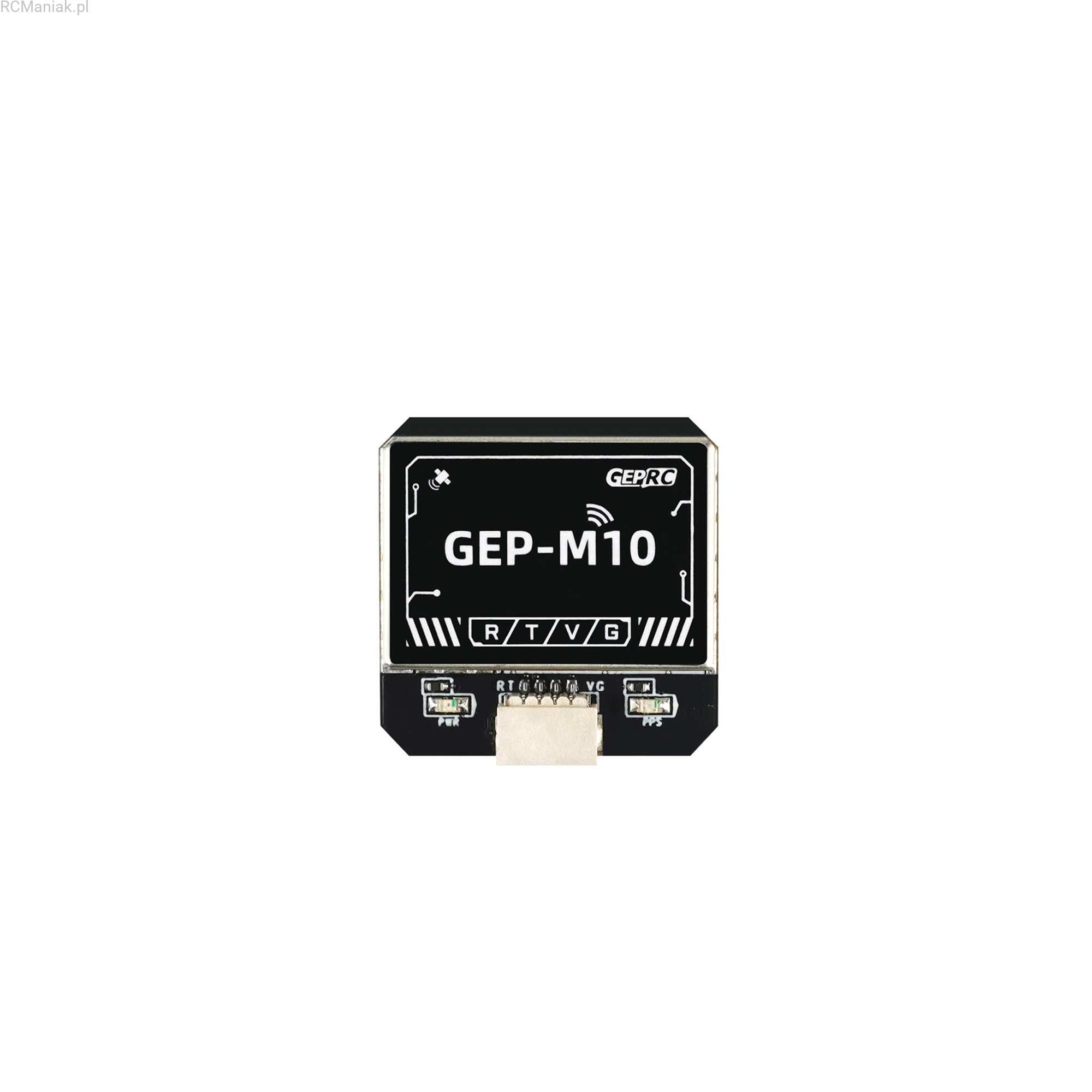

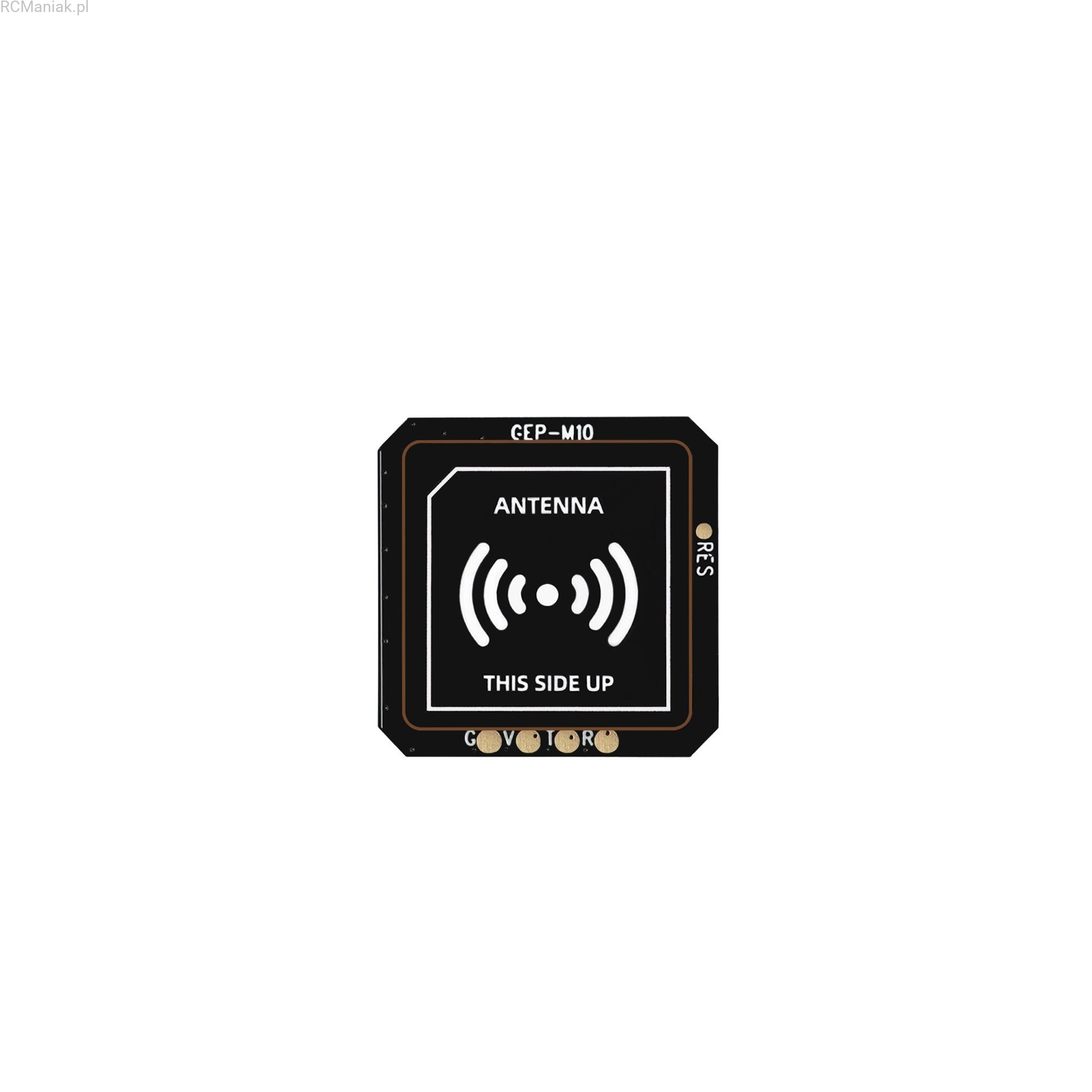

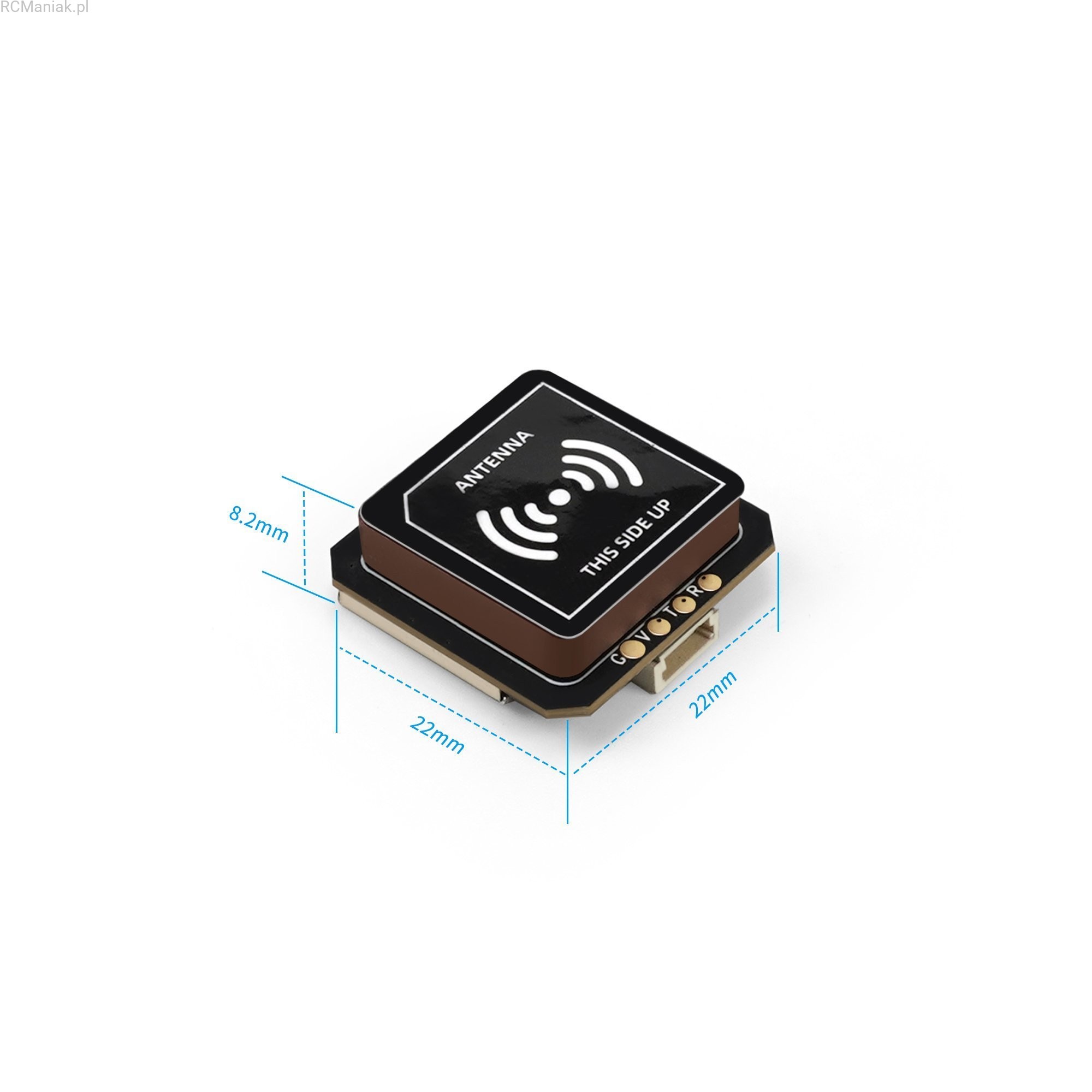

- 22x22x8.2mm (GEP-M10)
- Antenna size:
- 12x12mm (GEP-M10nano)

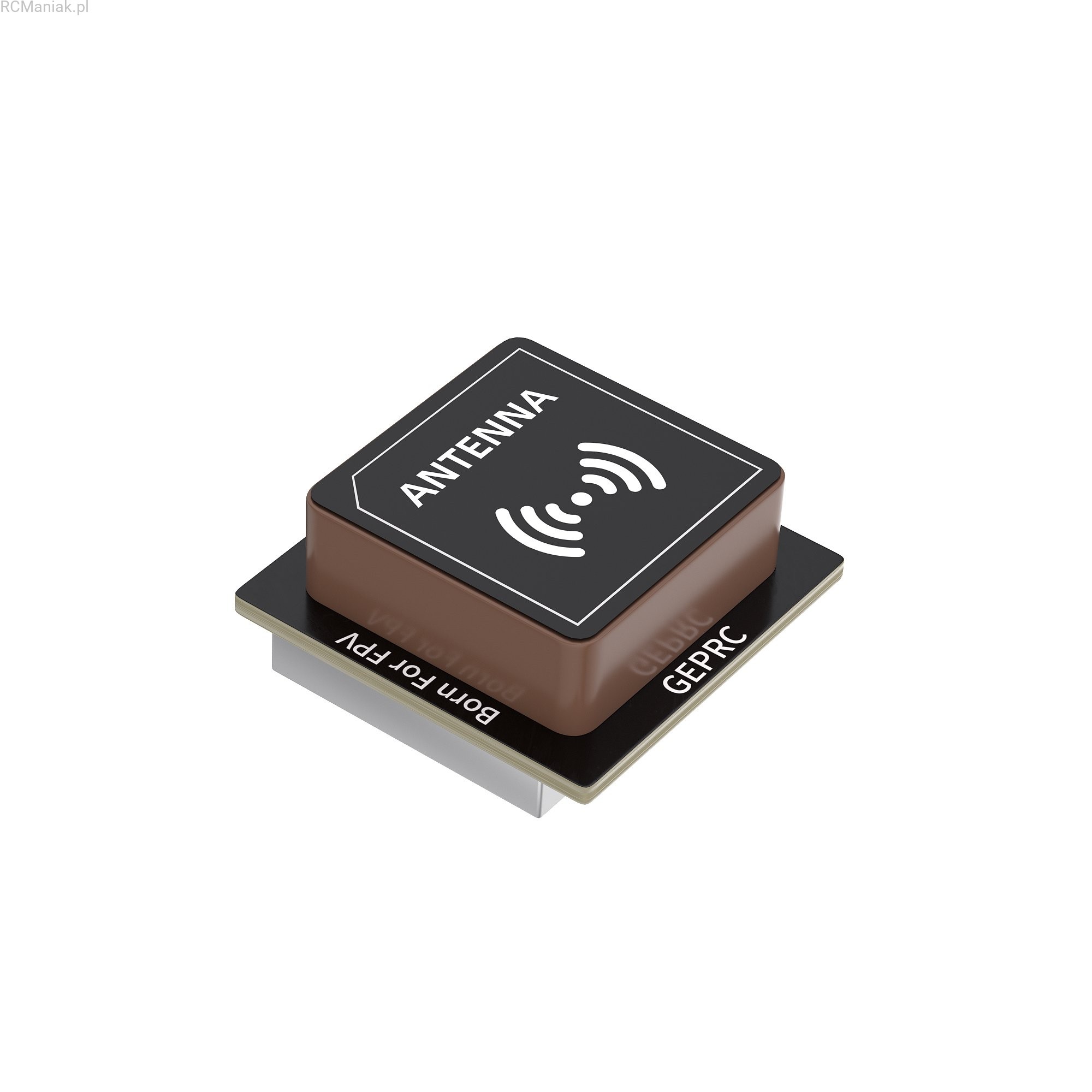

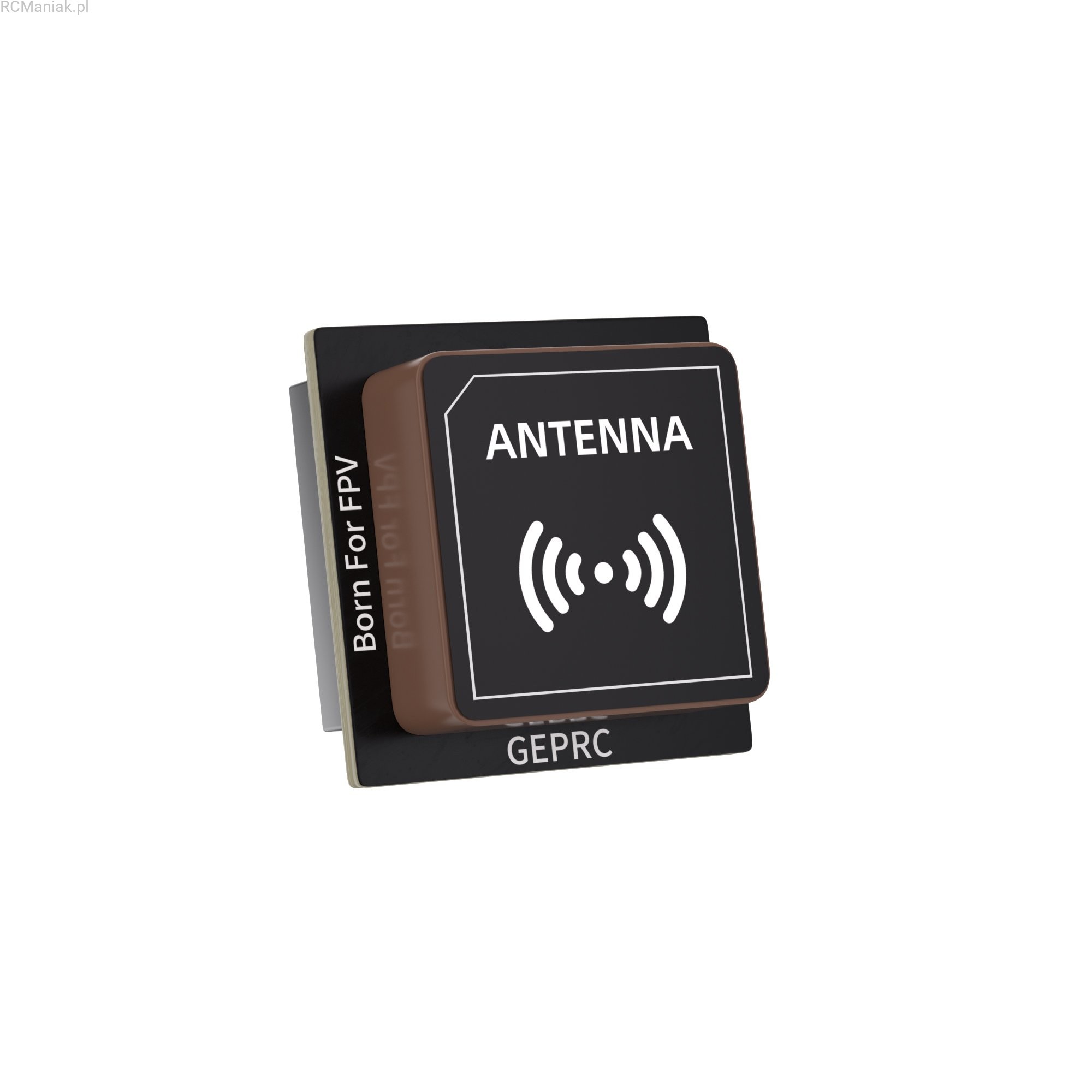

- 18x18mm (GEP-M10)
- Weight:
- 4.1g (GEP-M10nano)

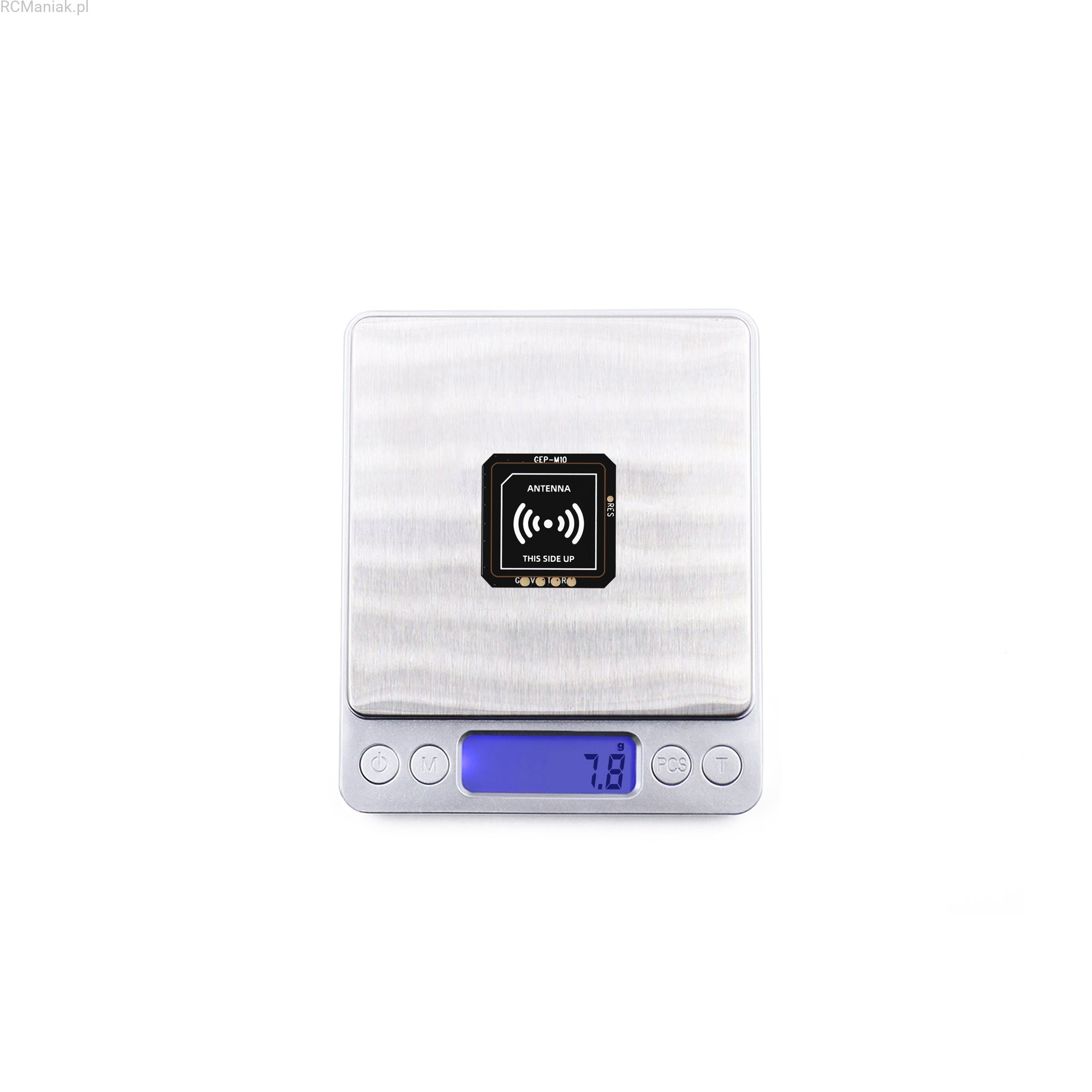

- 7.8g (GEP-M10)
Features
- u-blox M10050 chip
- GPS+BDS+Galileo+QZSS+SBAS joint positioning
- Fast positioning speed,Up to 32 satellites
- Stable connection quality

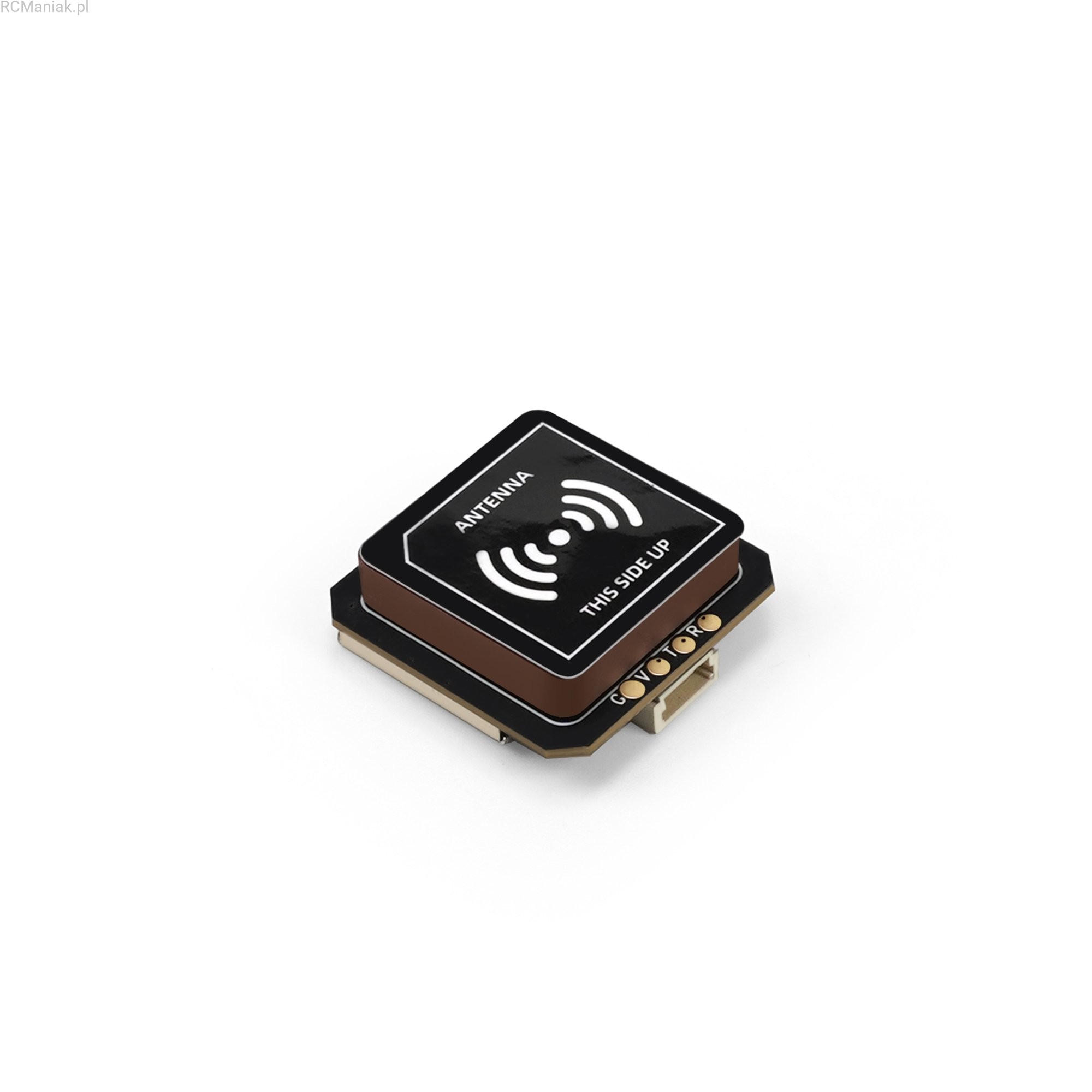

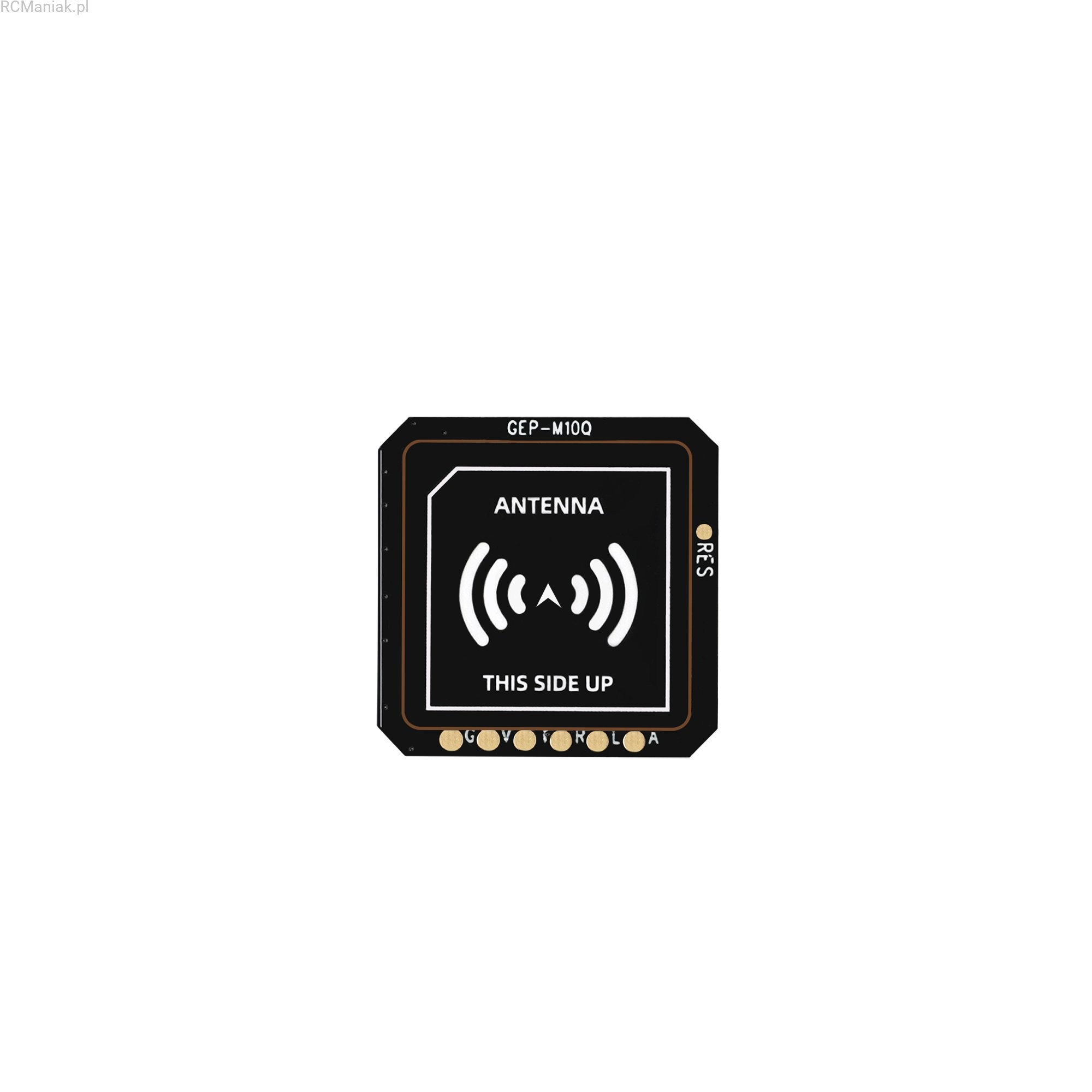

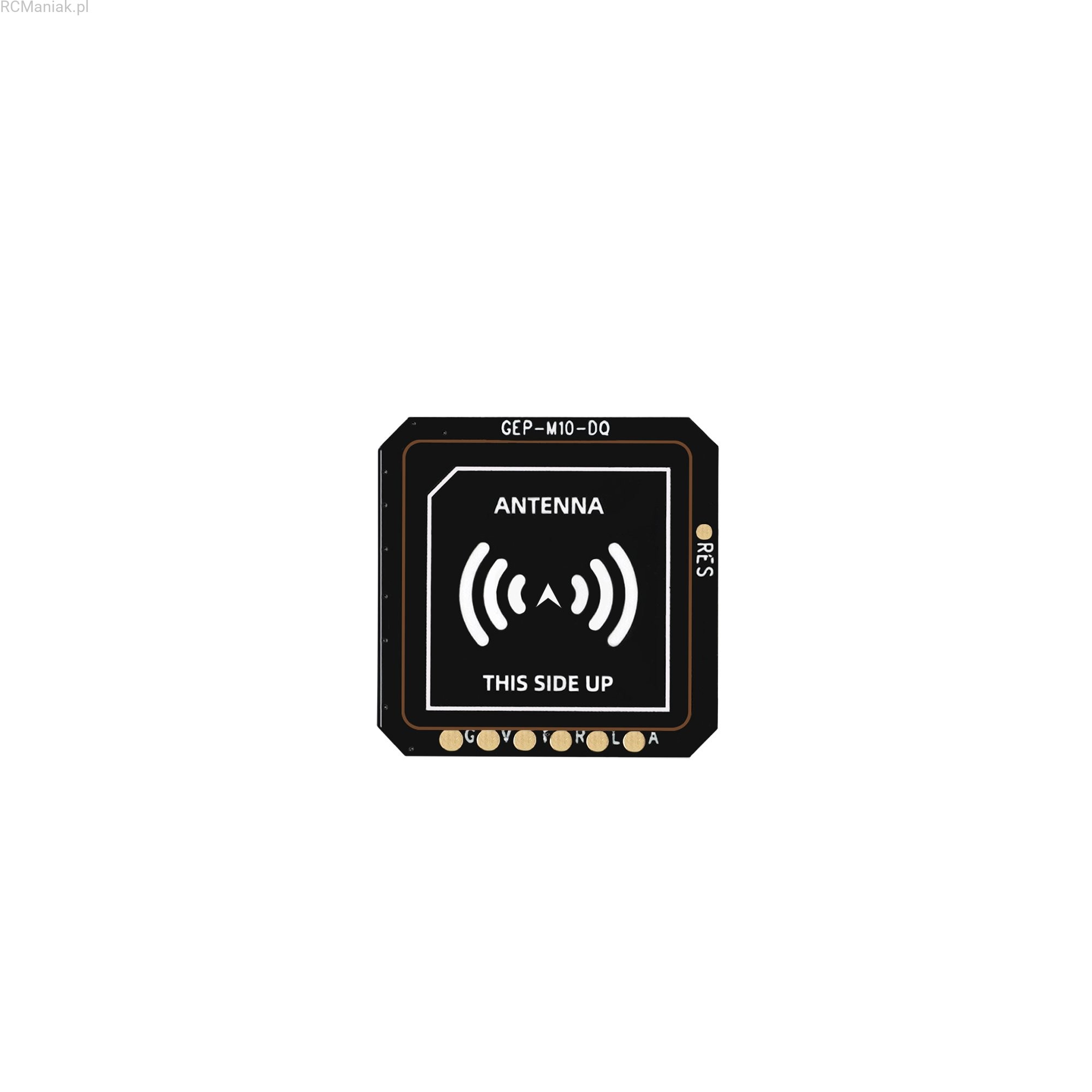

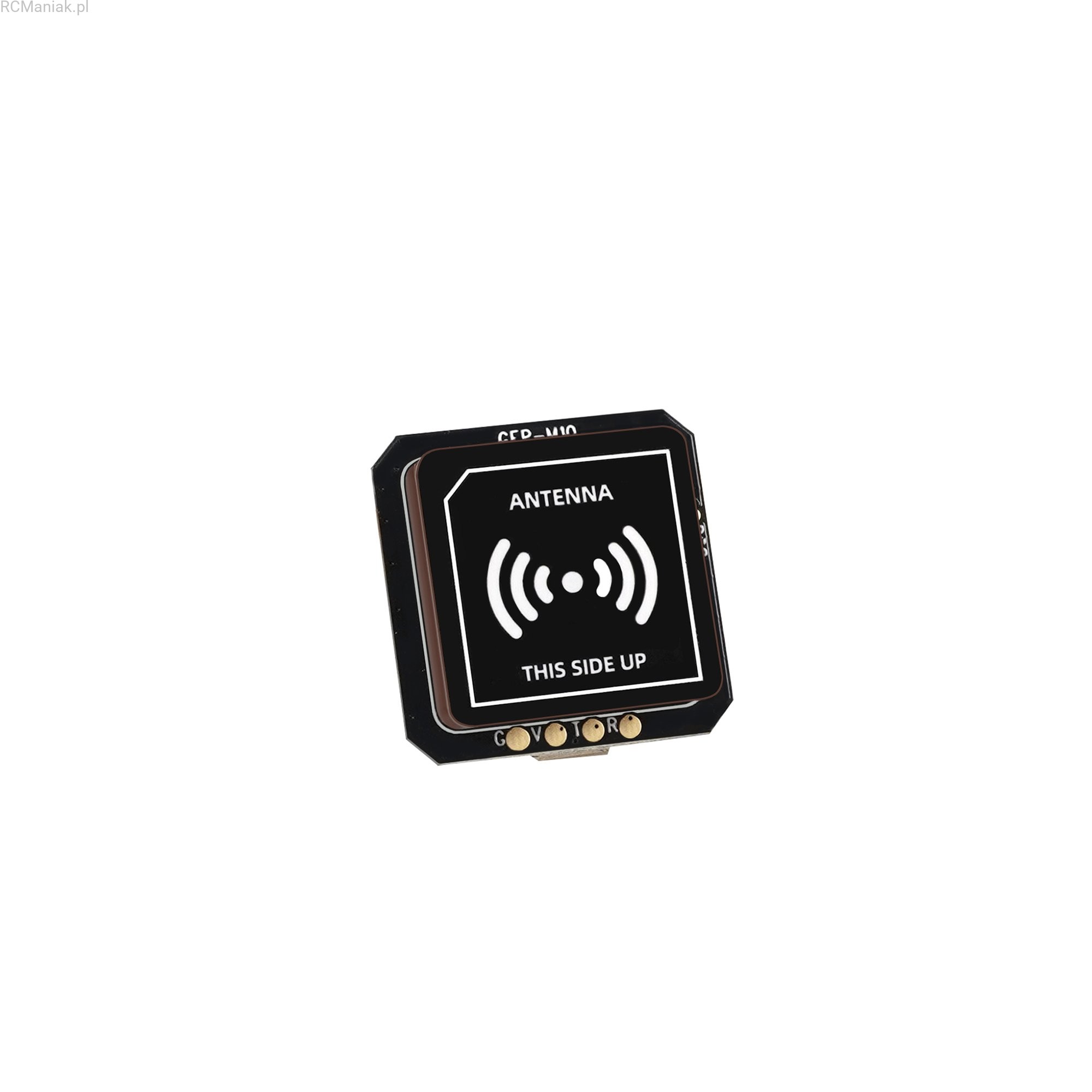

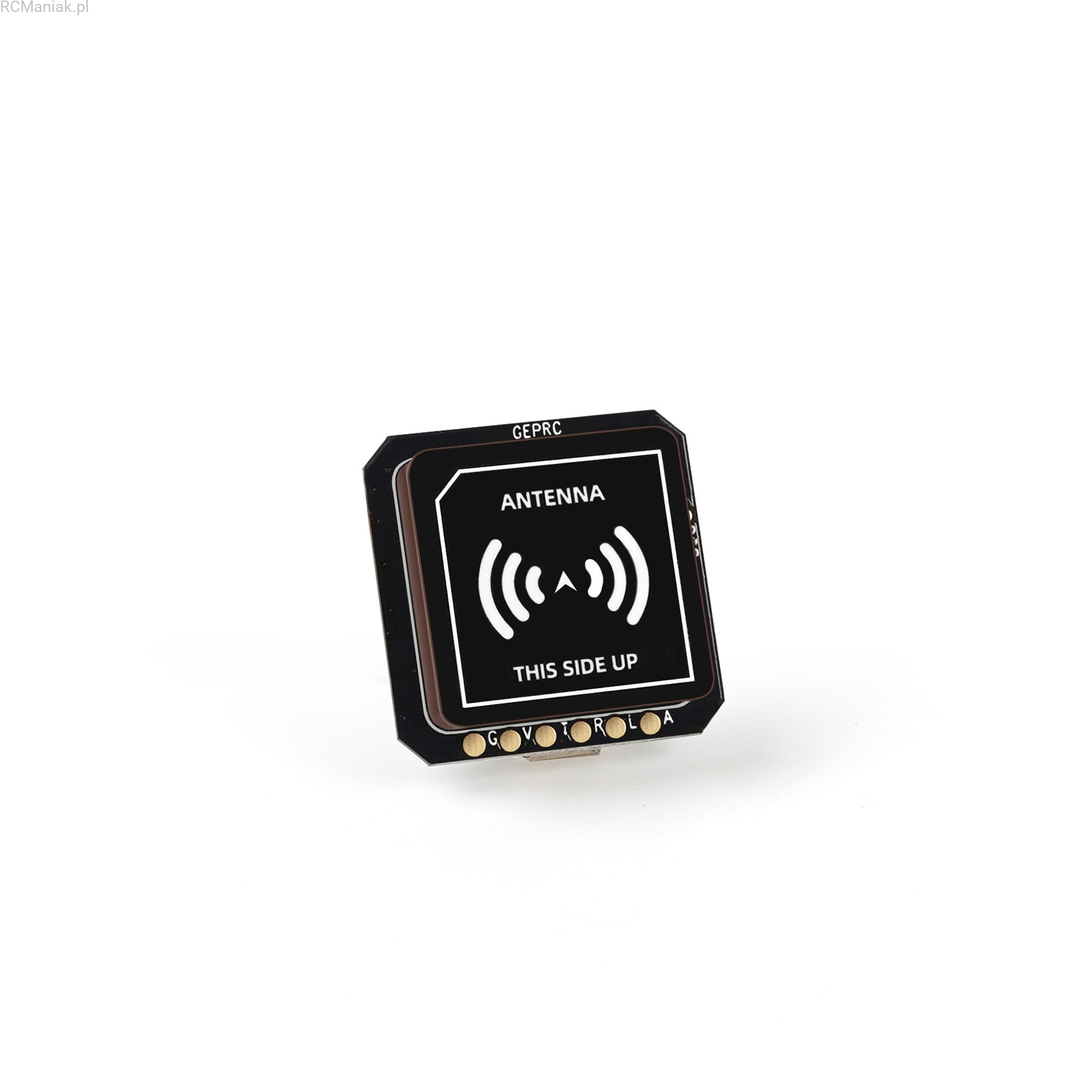

- 12x12mm or 18x18mm antenna size, better signal receiving performance
- Built-in Flash chip and Farad capacitor
- Onboard indicator light, easy to use

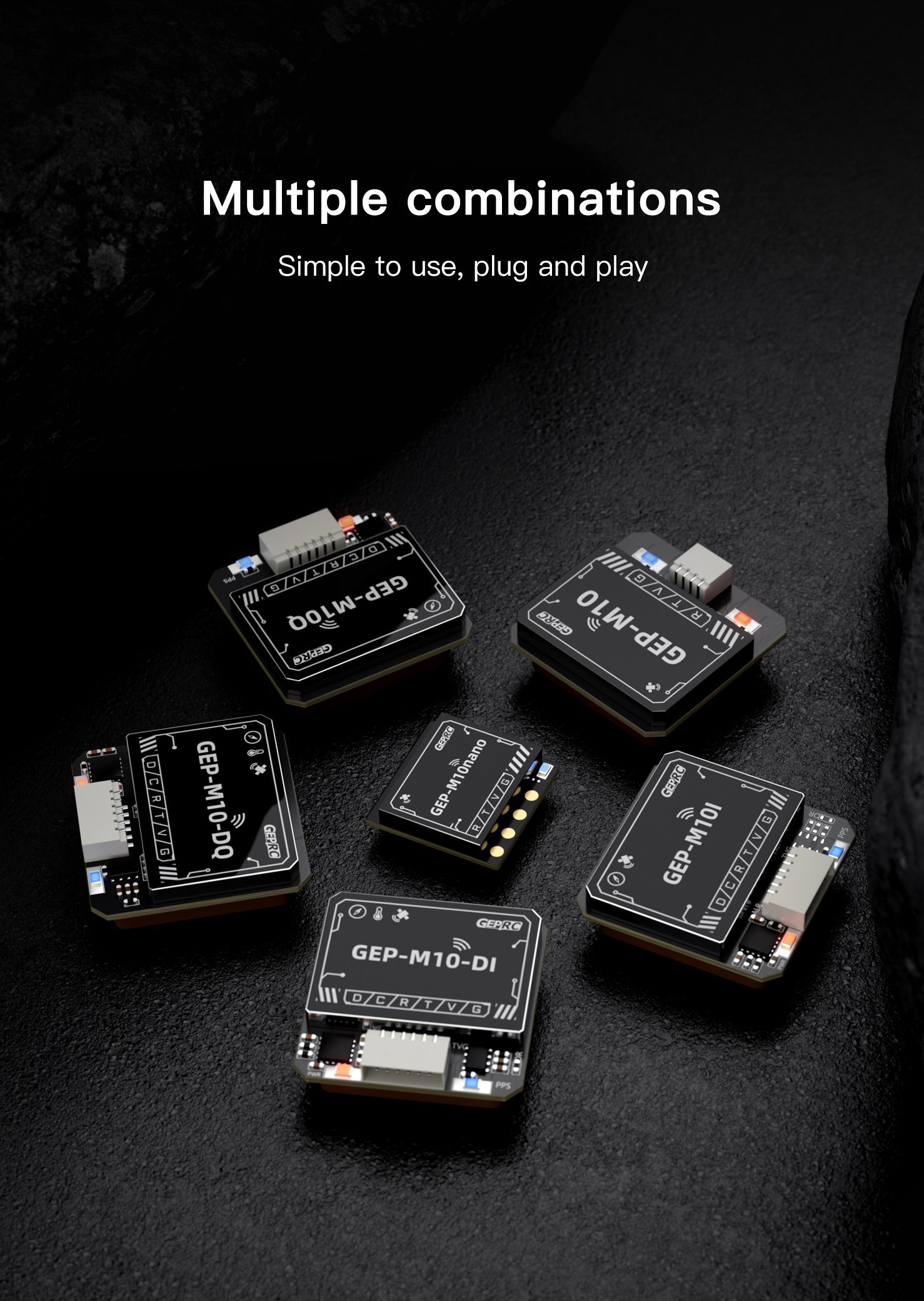

- Optional integrated magnetometer + barometer, more collocation scheme
Includes
1 x GPS module
1 x terminal wire
1 x GPS module instruction manual
1 x GEPRC sticker
1 x heat shrink tubing
