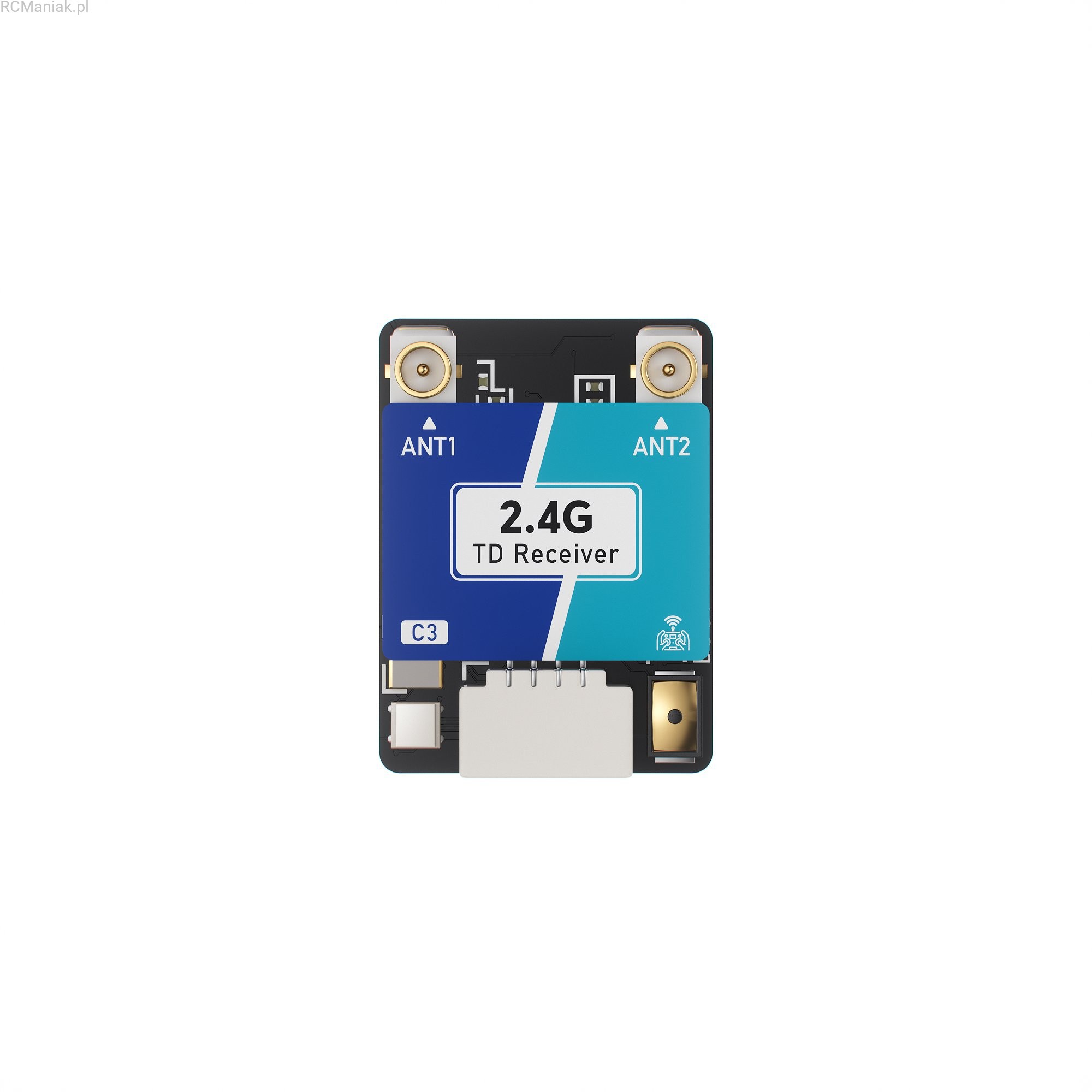

Odbiornik GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Summary
GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.
The ELRS Nano DUAL 2.4G True Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes.
Feature
- The size is small, weighing only 1.1g
- WIFI Upgrade firmware
- ELRS open source project, remote control
- Maximum refresh rate of 1000Hz
- Two independent RF receiving links, true diversity receiver
- The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance
- SX1281,ESP32-C3 High-performance Chip
Specifications
- Model: GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver
- Size: 17*13mm
- Weight: 1.1g (RX only)
- Chips:ESP32-C3，SX1281x2
- Crystal Oscillator: TCXO
- Frequency Band: 2.4GHz ISM
- Refresh Rate: 25Hz-1000Hz
- Input Voltage: 5V
- Antenna Connector: ipex1
- Indicator Light: RGB light
- TLM Power: 10mW
- Firmware: GEPRC Nano True Diversity 2.4GHz RX
Includes
1 x ELRS Nano DUAL 2.4G True Diversity Receiver

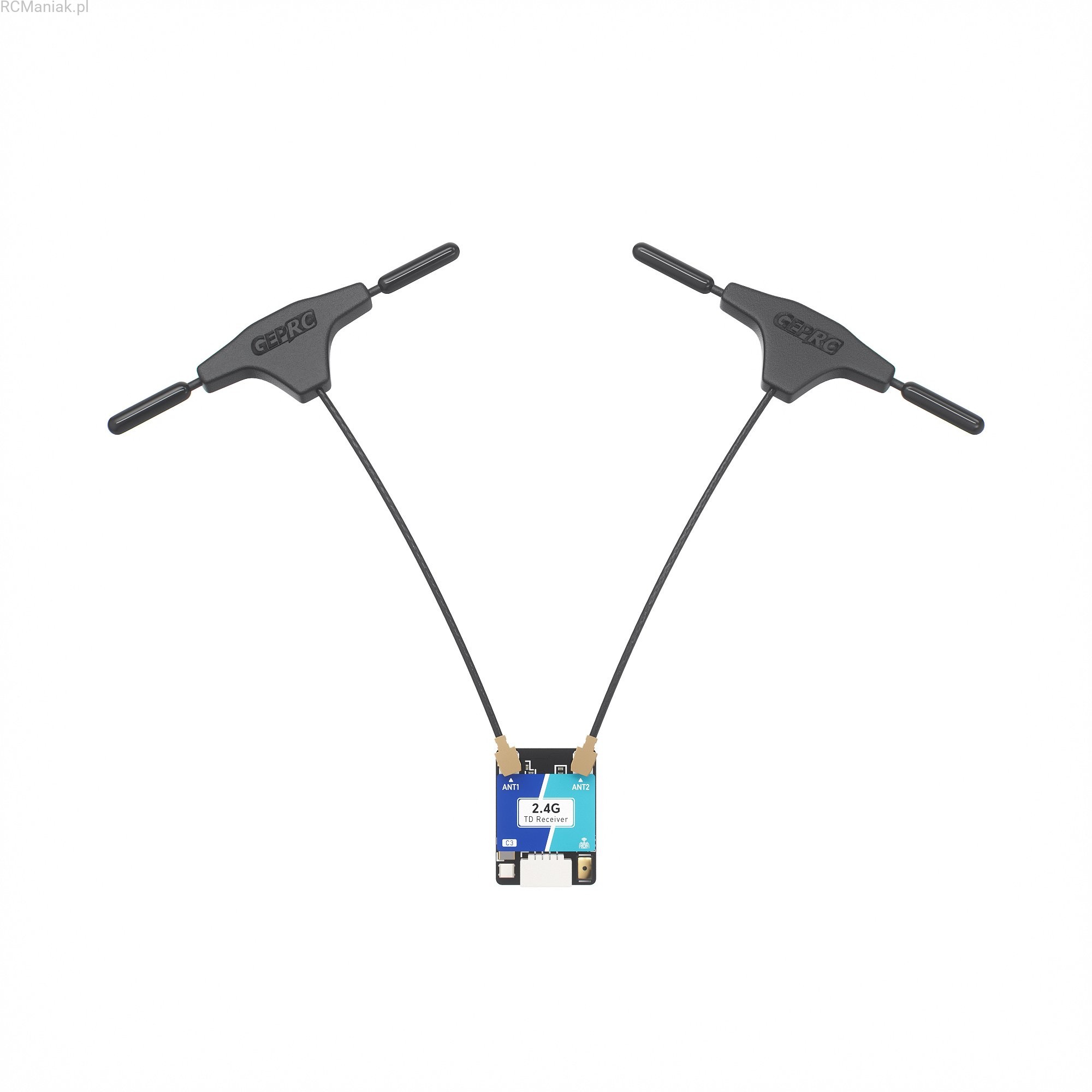

2 x 2.4G T-Antennas(ipex1 80mm)
1 x Receiver silicone cable(SH1.0 4pin 100mm)
1 x Heat shrink tube
1 x User manual
