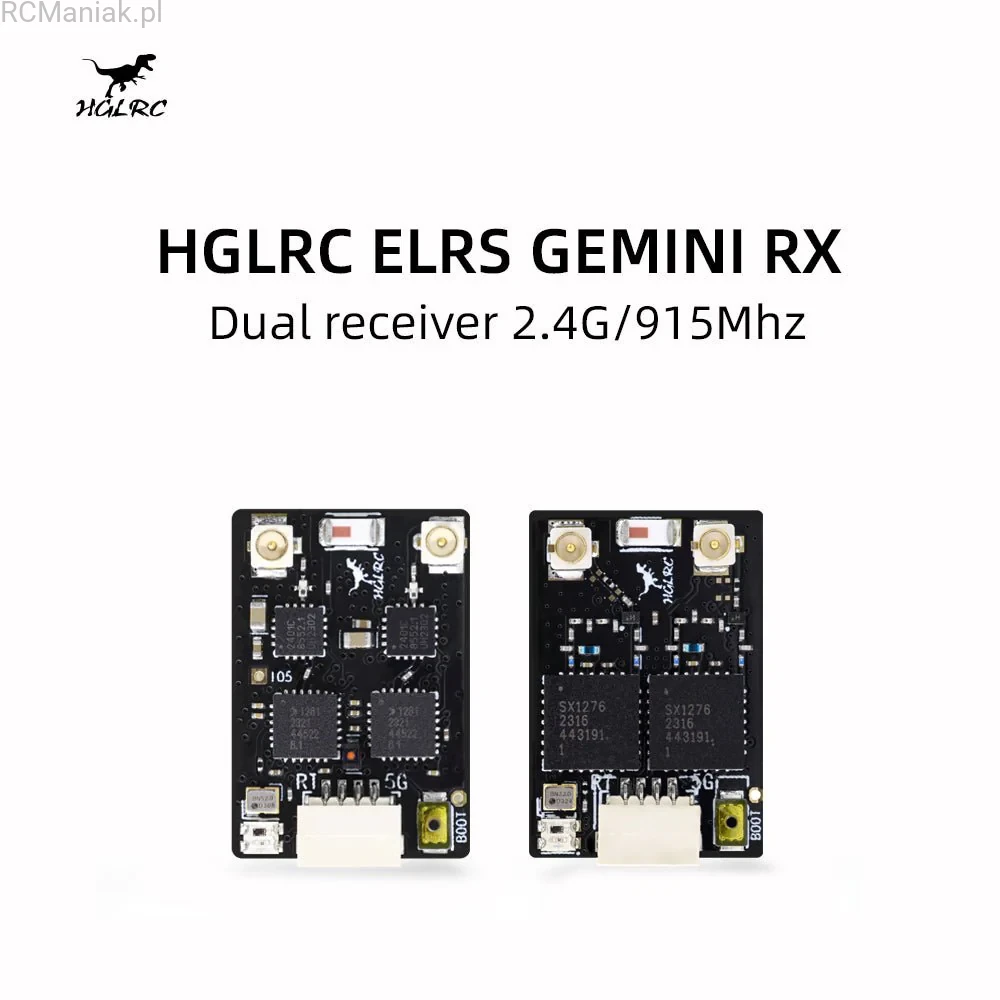

Odbiornik HGLRC ELRS 915Mhz GEMINI RX dual receiver

Features:
1. Dual communication link, the antennas work at different frequencies at the same time, with super anti-interference performance;
2. True diversity dual reception, integrating dual-channel SX1276 and dual-channel PA/LNA, dual-antenna omni-directional reception, stable signal;
3. Using TCXO temperature-compensated crystal oscillator, the frequency is more accurate and it is not afraid of high temperatures or severe cold, and it will not lose signals during long flights;
4. Direct plug-in connection, plug and play, eliminating the trouble of soldering and enabling quick replacement while retaining the pad design;
5. The return power of ELRS 915M version is up to 50mw
6.Elrs has the characteristics of long-distance remote control, low latency, and up to 200HZ refresh rate
7. It can use WiFi to upgrade firmware;

Parameters
Product name: HGLRC ELRS GEMINI RX dual receiver 915Mhz
Receiver firmware: HGLRC Gemini 900Mhz RX
refresh rate: 25hz-200hz

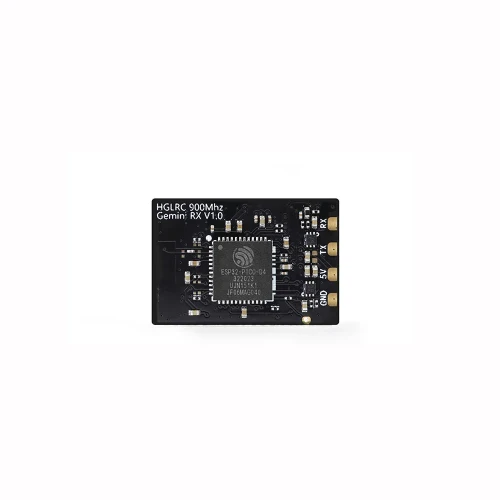

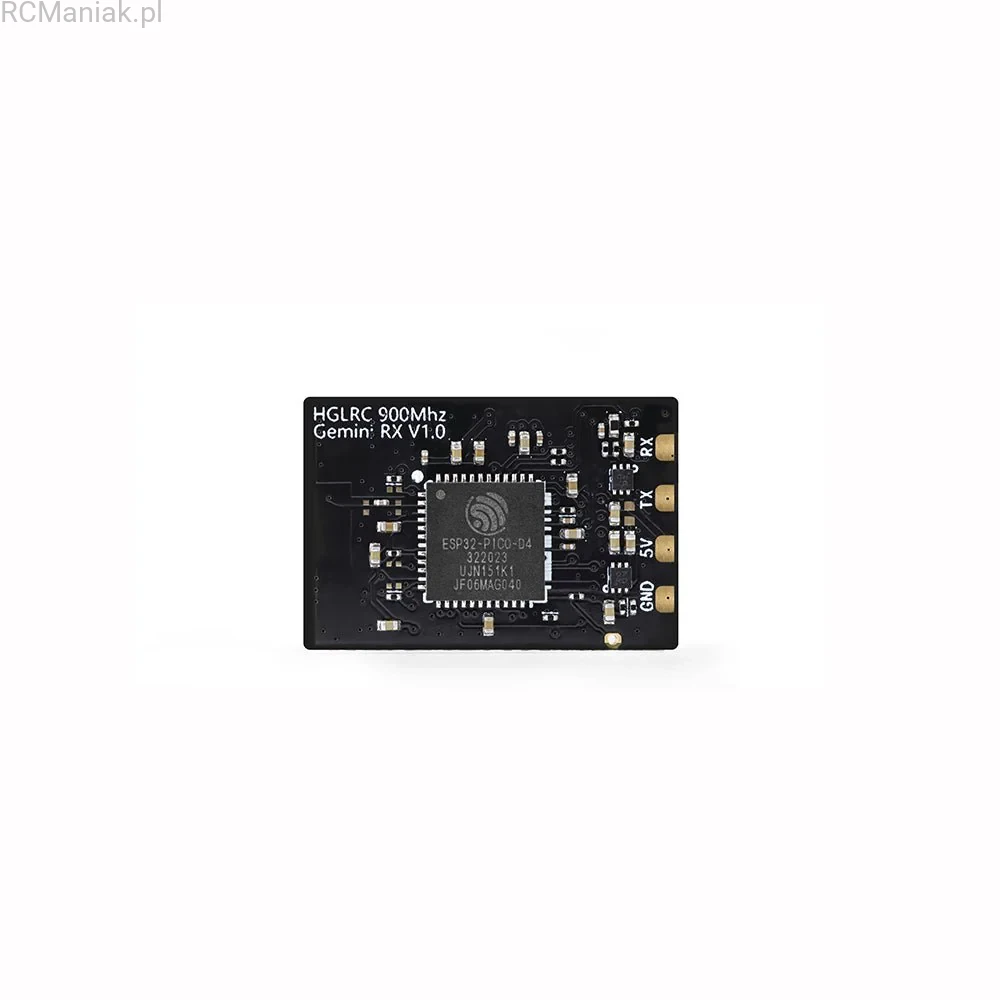

chip: 2*SX1276+ESP32-PICO-D4
Receiver dimensions (without antenna): 22mm*15.24mm
Weight (without antenna):1.5g
return power: 50mw
Antenna interface: ipex1 generation
Input voltage: 3.6V-5.5V
Indicator light: Color RGB light

Binding
The factory firmware version of HGLRC ELRS GEMINI RX dual receiver is 3.X or above. 3.X and 2.X firmware are not compatible, so the TX Module firmware needs to be upgraded to 3.X and above before binding;
1. The receiver is powered on and off 3 times continuously (power off after the light is on)
2. Observe the RGB light of the receiver. After starting from the rainbow gradient, it turns into an orange double flash state, indicating that the receiver has entered the binding state.
3. Use the ELRS remote control or TX Module to link to the receiver. If the RGB light of the receiver changes from double flashing to solid, it means the binding is successful.

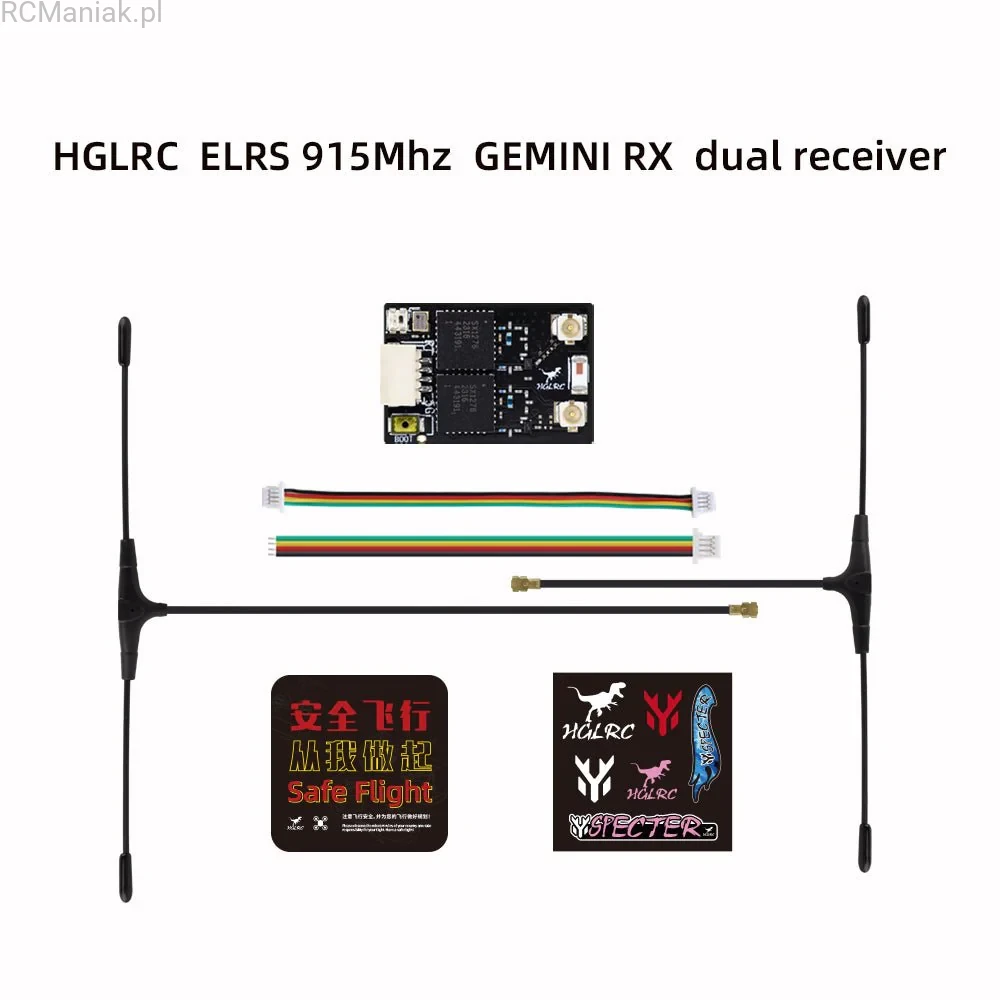

Product List
1*HGLRC ELRS GEMINI RX 915M dual reception
1*915M long antenna
1*915M short antenna
1*heat shrink tube
