Odbiornik R85C Receiver LBT

Odbiornik R85V 2.4ghz FCC

Dla zaawansowanych użytkowników, do obsługi wymagana jest znajomość obsługi oprogramowania open TX. Nie współpracuje z aparaturami FrSky, proszę weryfikować w sieci czy odbiornik będzie współpracował z posiadaną aparaturą.

Dedykowane do Aparatur Radiomaster z modułem CC2500 oraz MPM 4in1

Zasilanie: 4.5-8.4V

Wymiary: 31x19mm

Waga:6g

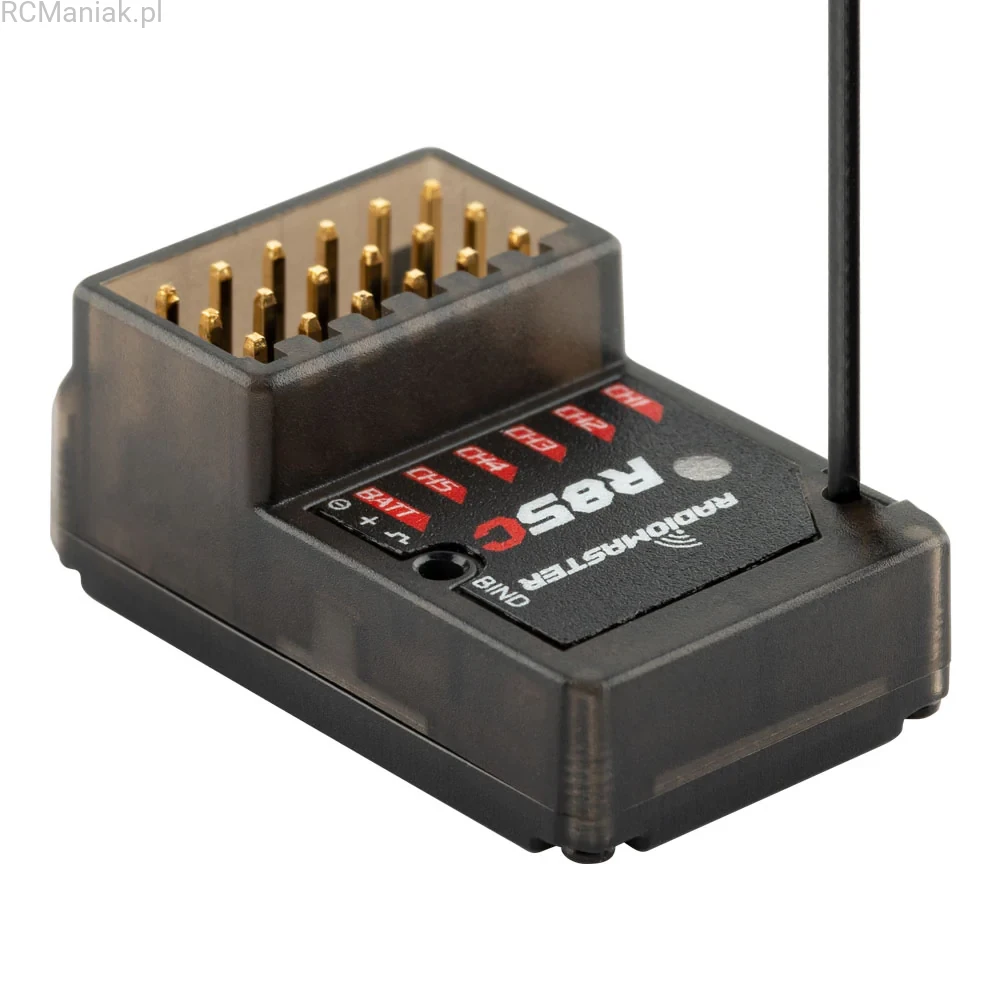

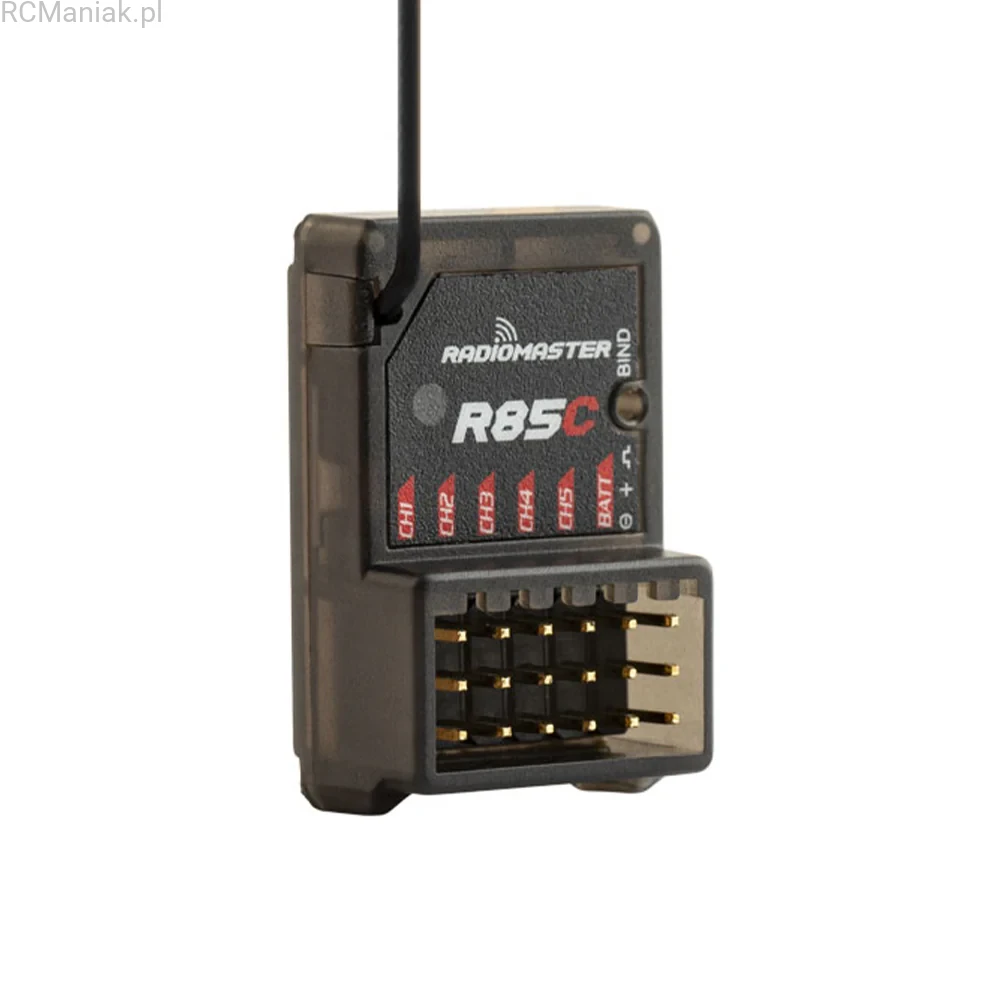

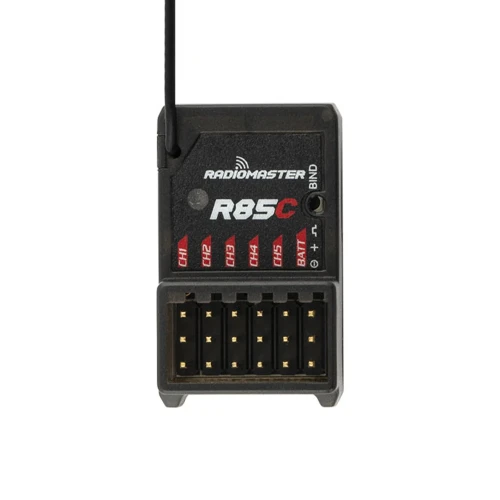

The R85C receiver is Frsky D8 / D16 and Futaba SFHSS compatible and offers a range suitable to many RC modelers. Built-in a TCXO (temperature compensated crystal oscillator), ensures high stability and accuracy in frequency control, compensating for temperature variations.

* Suitable only for Radiommaster Multi-Protocal radios with ability to fine tune protocols. Not compatible with FrSky radios.

Features

• Compatible with Frsky D8 / D16 and Futaba SFHSS

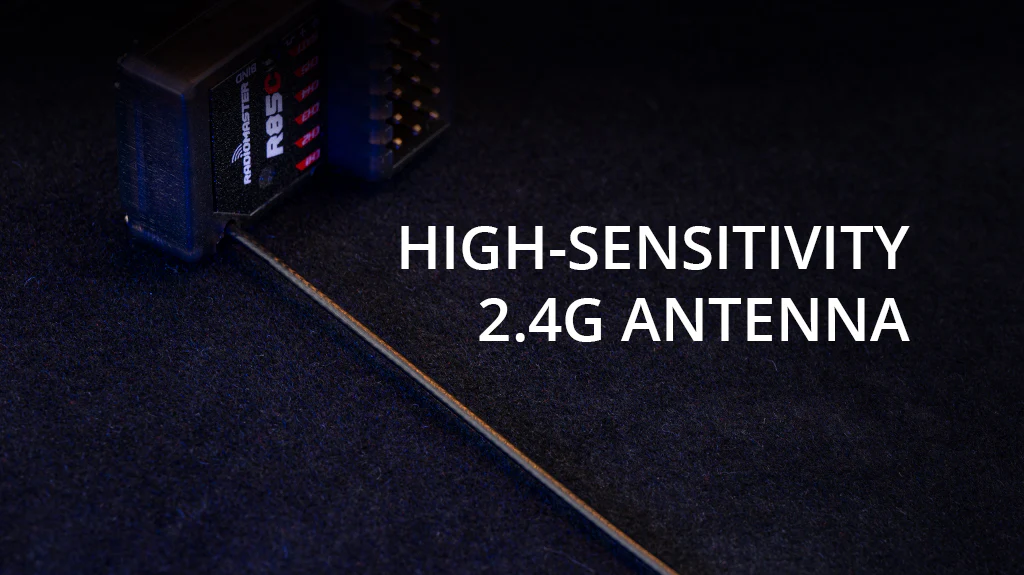

• High-sensitivity 2.4G Antenna
• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment

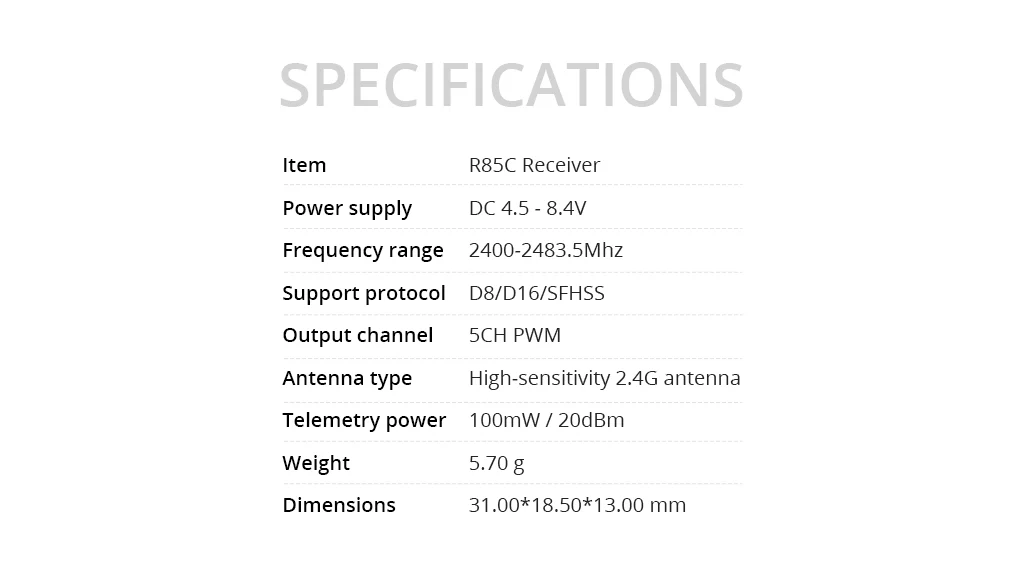

Specifications

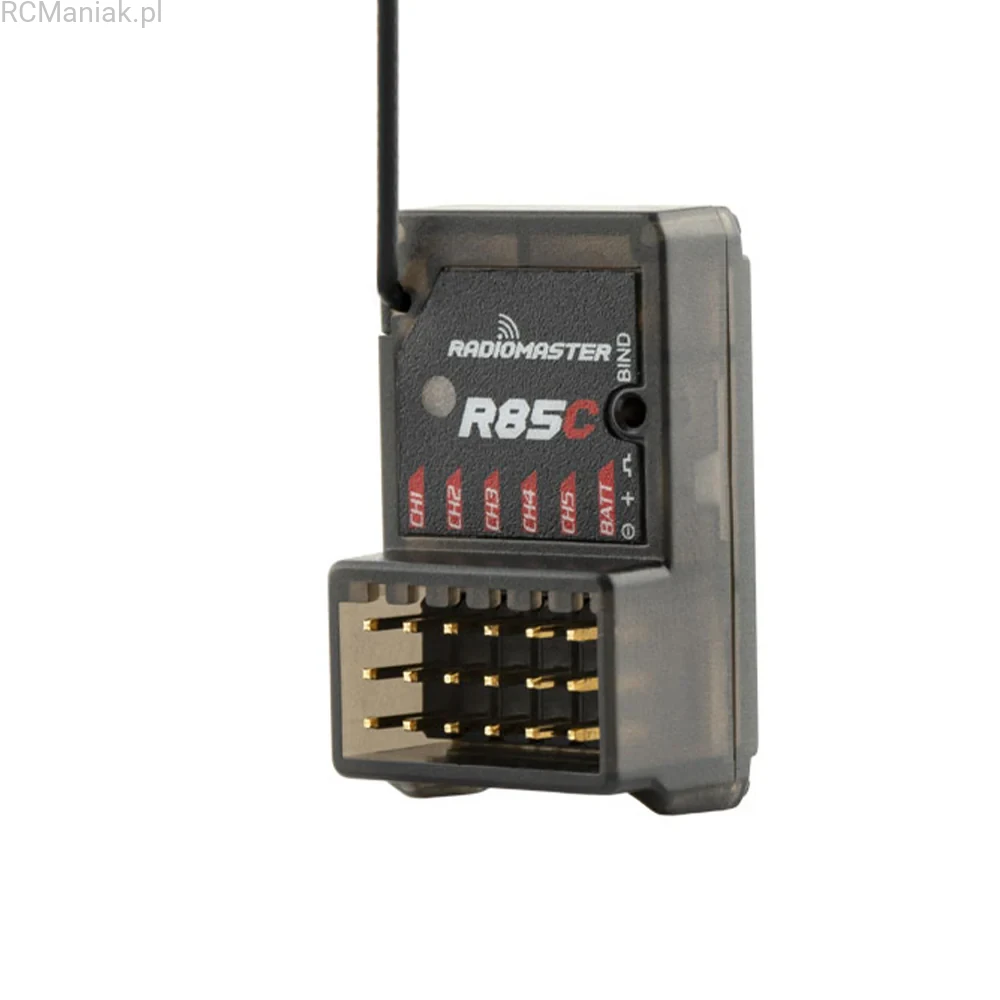

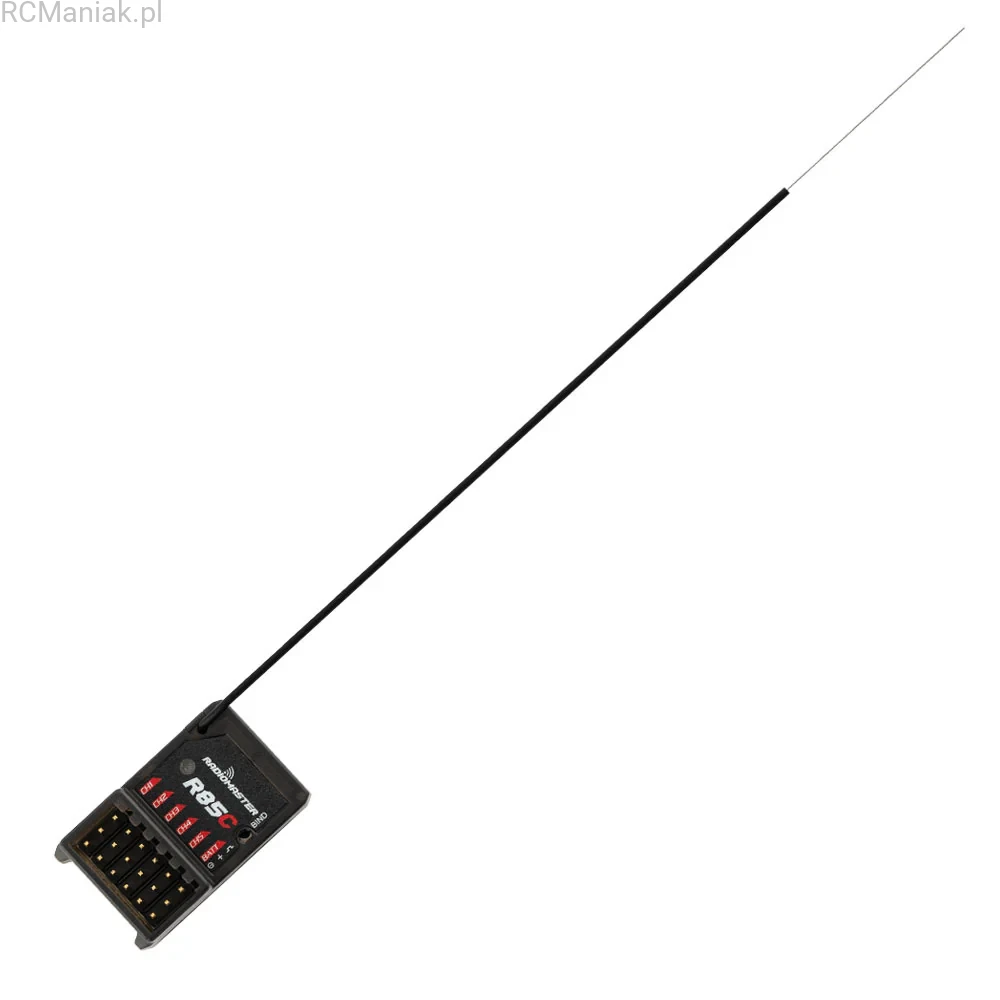

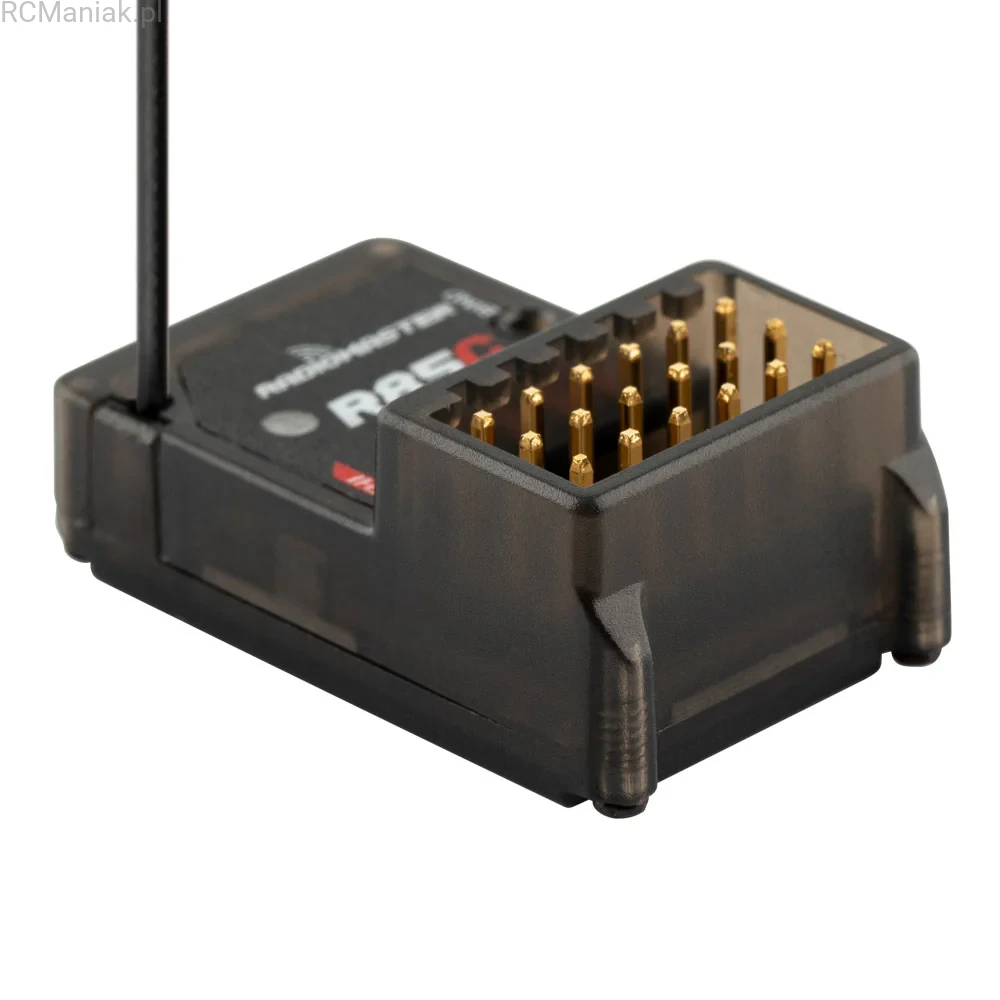

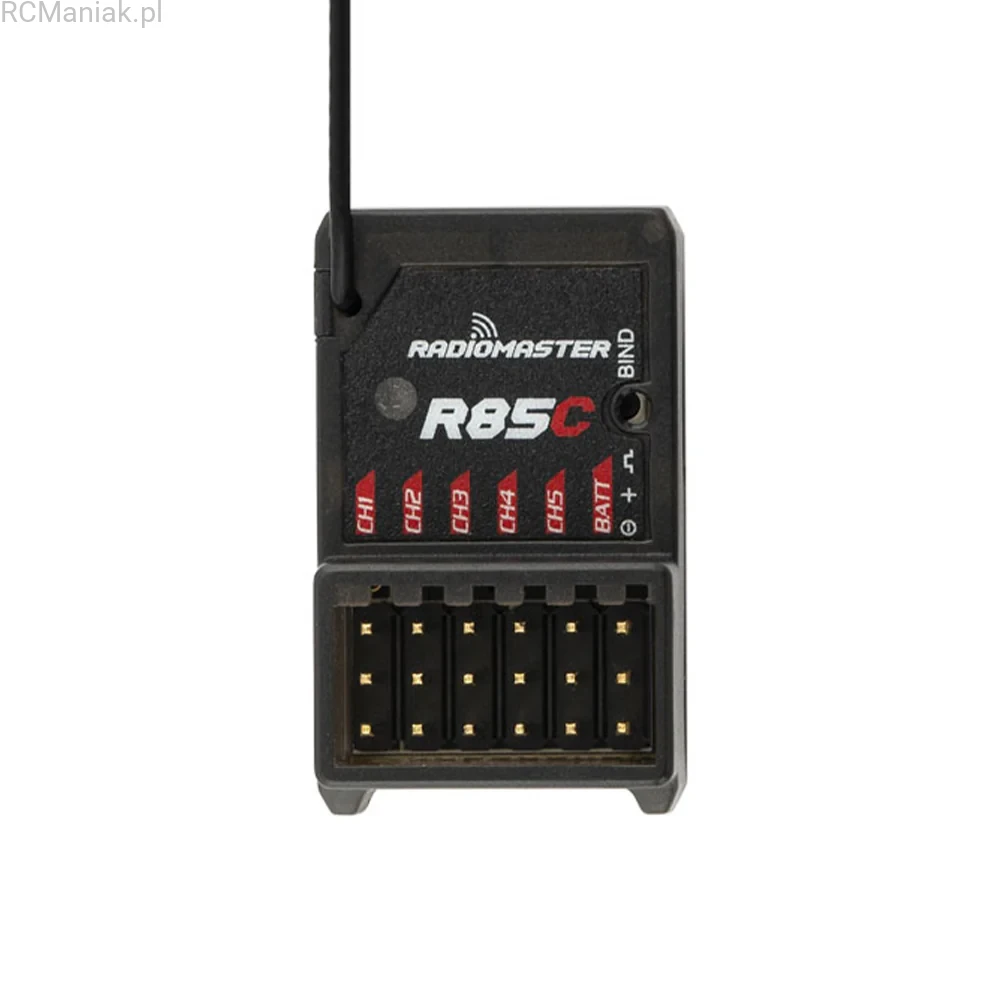

• Item: R85C Receiver
• Power supply: DC 4.5 - 8.4V
• Frequency range: 2400-2483.5Mhz
• Support protocol: D8/D16/SFHSS
• Output channel: 5CH PWM
• Antenna type: high-sensitivity 2.4G antenna
• Telemetry power: 100mW / 20dBm
• Weight: 5.55 grams

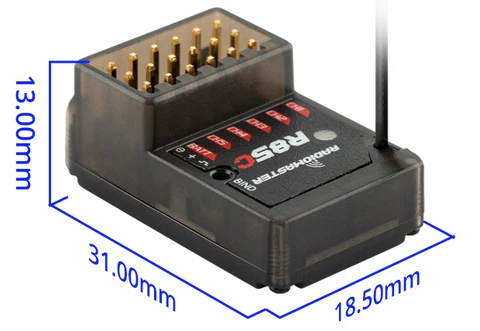

• Dimensions: 31.0*18.5*13.0 mm

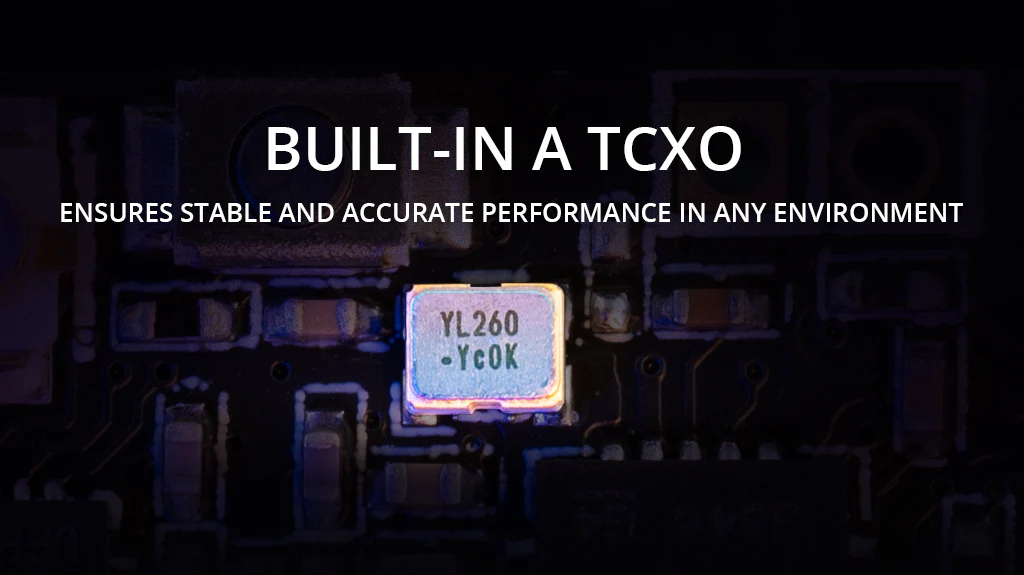

TCXO

The TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.
