Płytka iFlight Anti Spark Filter 18x16
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Układ zapobiegający iskrzeniu podczas podłączania baterii.

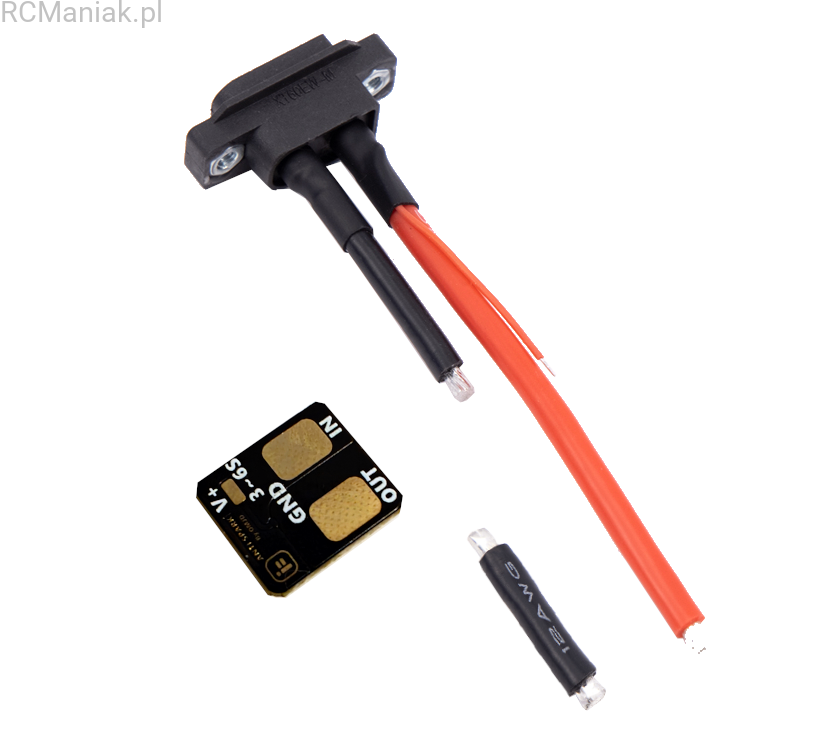

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Version 1
Size: 18*16mm
Compatible:Nazgul5 V3 Frame Kit
Specifications
Size: 16*18mm
Input voltage: 3-6S (9-26V)
Continuous overcurrent: 80A for 60 minutes
Weight: 2.4g

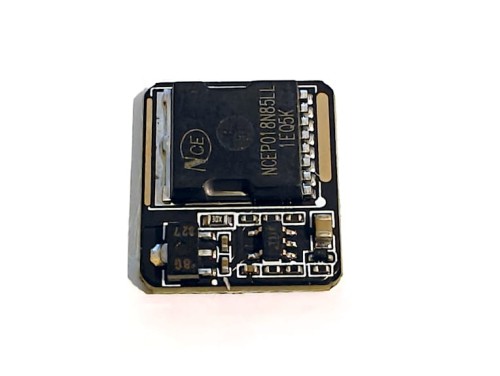

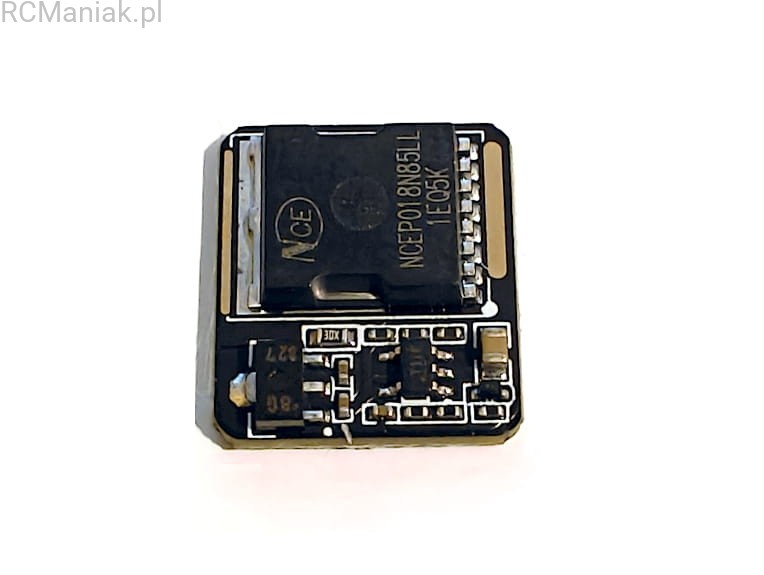

NCEP018N85LL General Features
VDS =85V, ID =320A
RDS(ON)=1.3mΩ typical @ VGS=10V
