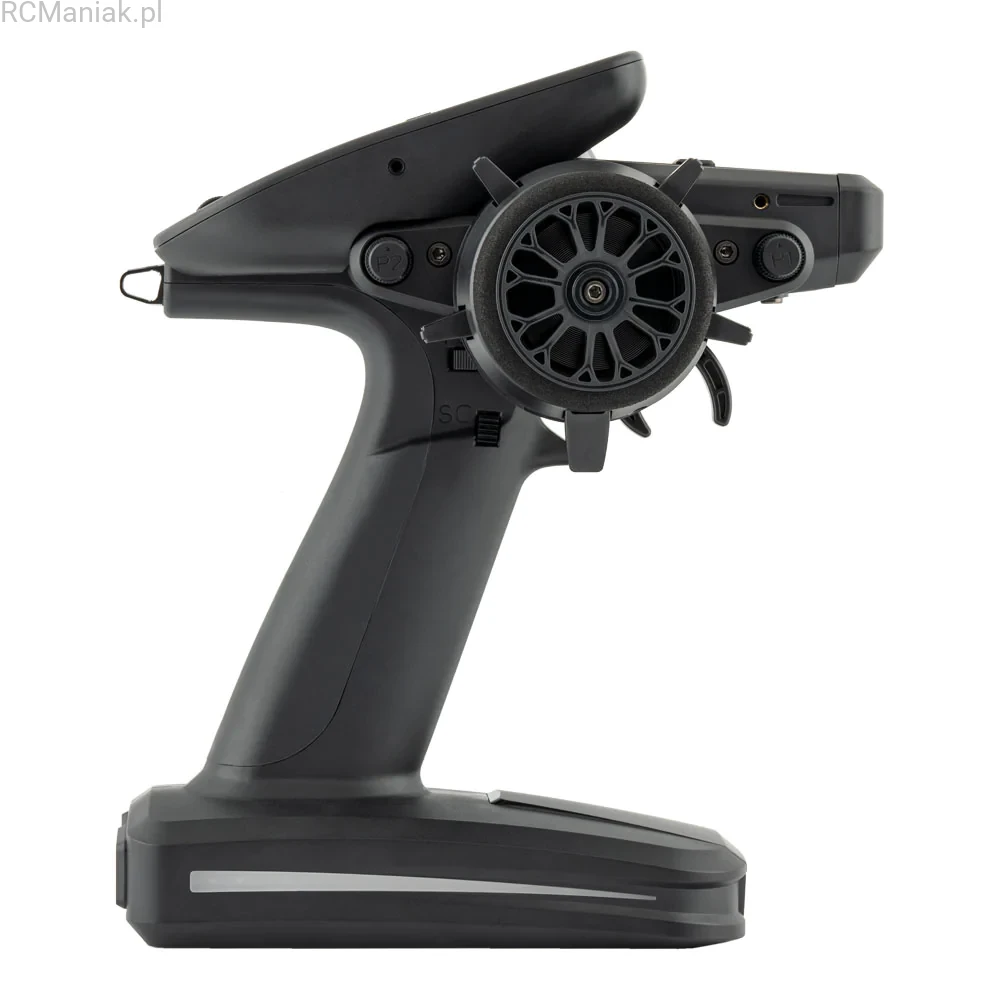

RadioMaster MT12 ExpresLRS Surface Radio Controller w ER3C-i Receiver

Aparatura do pojazdów lądowych RadioMaster MT12 ExpresLRS LBT z odbiornikiem ER3C-i

Zawartość: Aparatura MT12, Odbiornik ER3C-i, Pokrowiec, Smyczka na rękę, przewód USB-C, Gniazdo do zamocowania zewnętrznego moduł nadawczego w standardzie Nano, koszyk na 2x NCR18650, akcesoria.

Nie zawiera akumulatorów.

Polecane odbiorniki: Odbiornik PWM Radiomaster z serii ER

UWAGA: Nieprawidłowe włożenie akumulatorków Li-ion do koszyka może spowodować uszkodzenie aparatury.

Radio dla zaawansowanych użytkowników, do obsługi wymagana jest znajomość obsługi oprogramowania OpenTX oraz programowania odbiorników ELRS

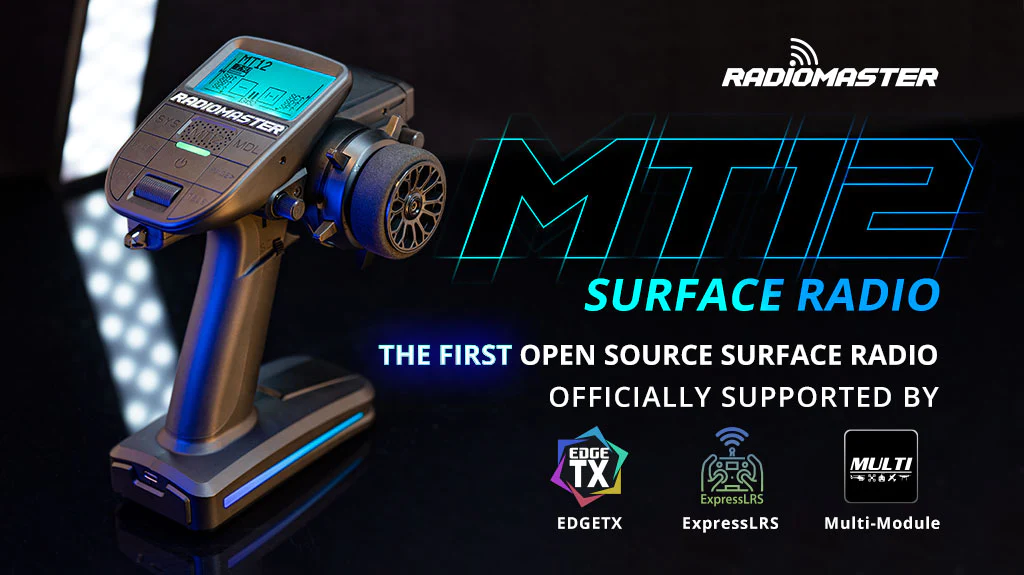

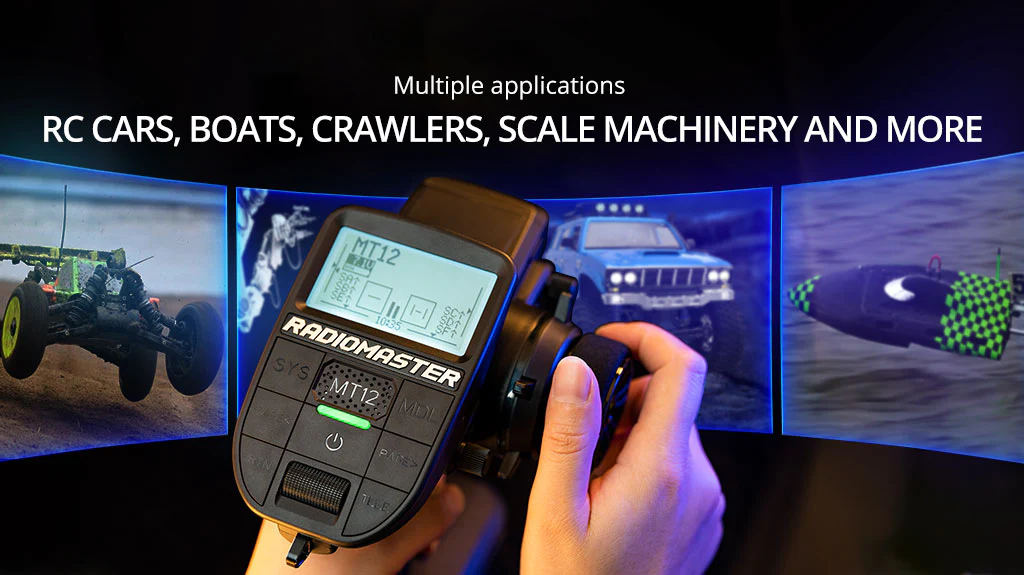

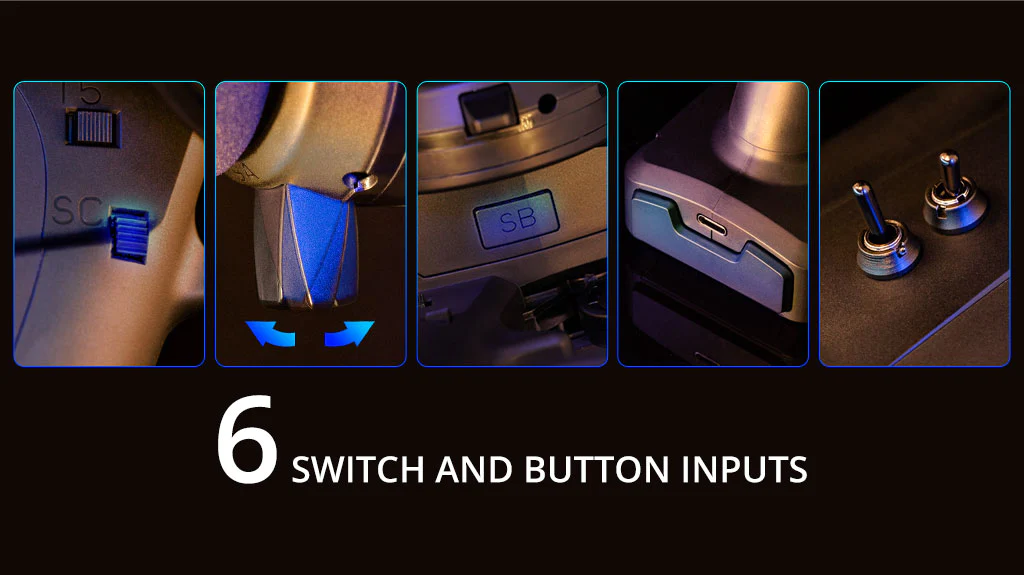

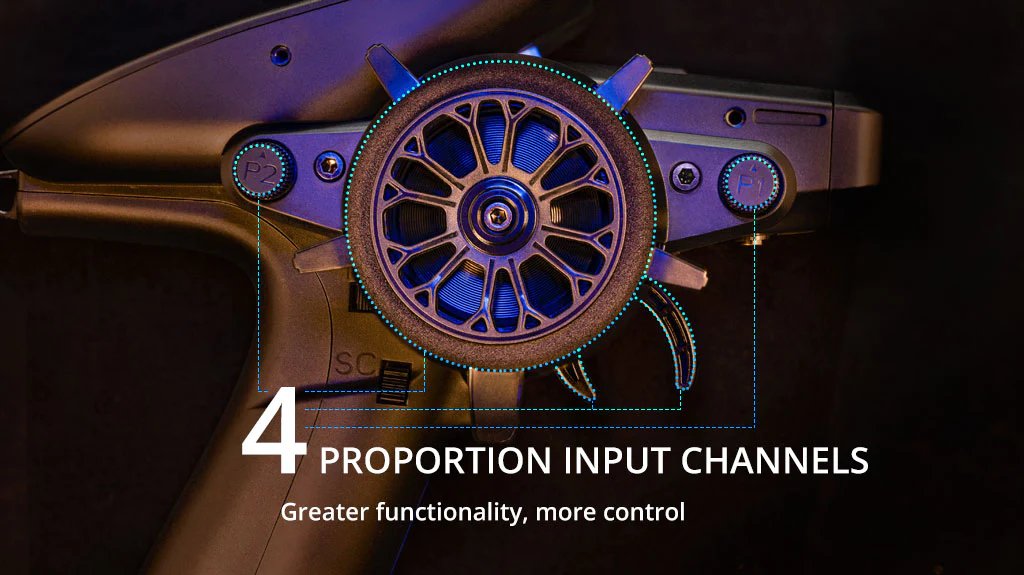

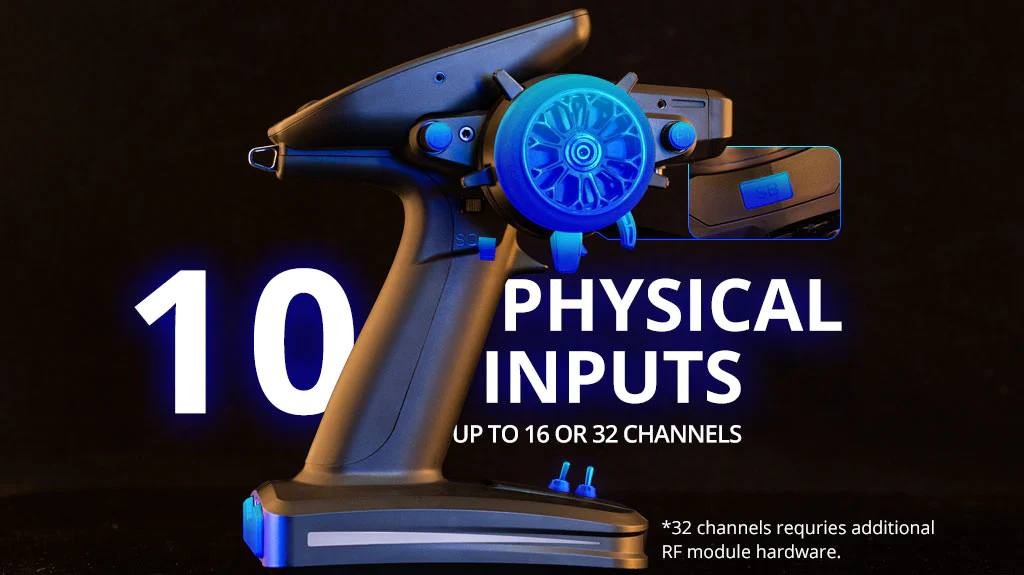

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario

Launch Video

Features

• Available with Built-in ExpressLRS Backpack or 4in1 MPM RF modules
• Featuring a powerful STM32F407VGT6 with 1MB Flash
• Preinstalled EdgeTX firmware

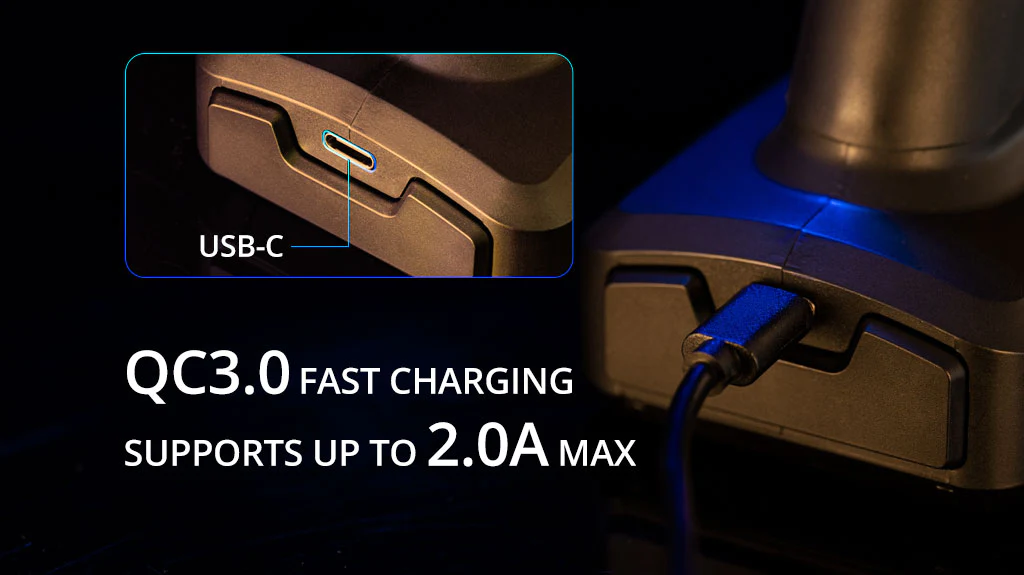

• QC3.0 fast charging supporting 2.0A MAX
• Compact design with excellent ergonomics

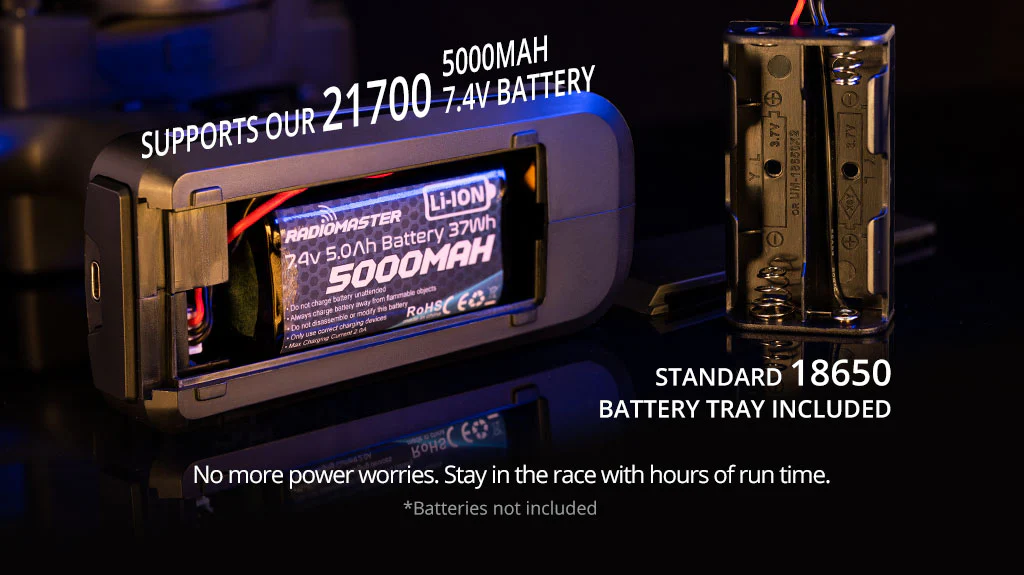

• Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
• Standard Nano module compartment

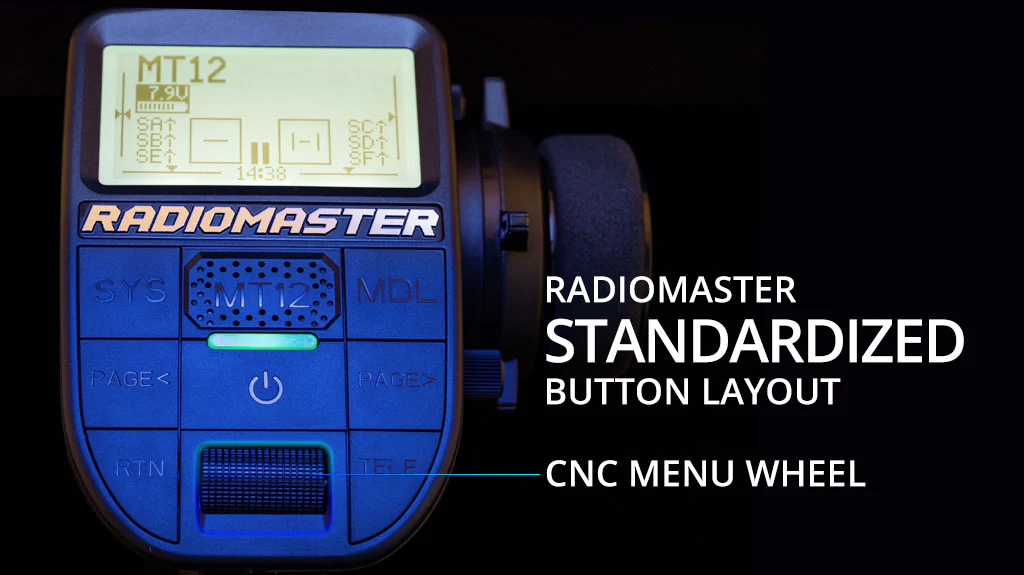

• RadioMaster standardized button layout

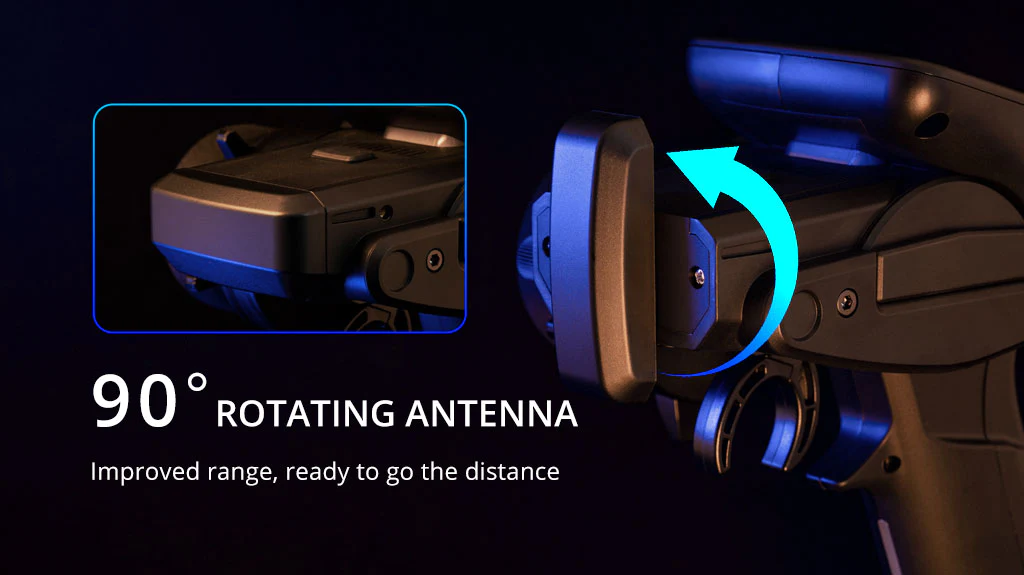

• Rotatable antenna

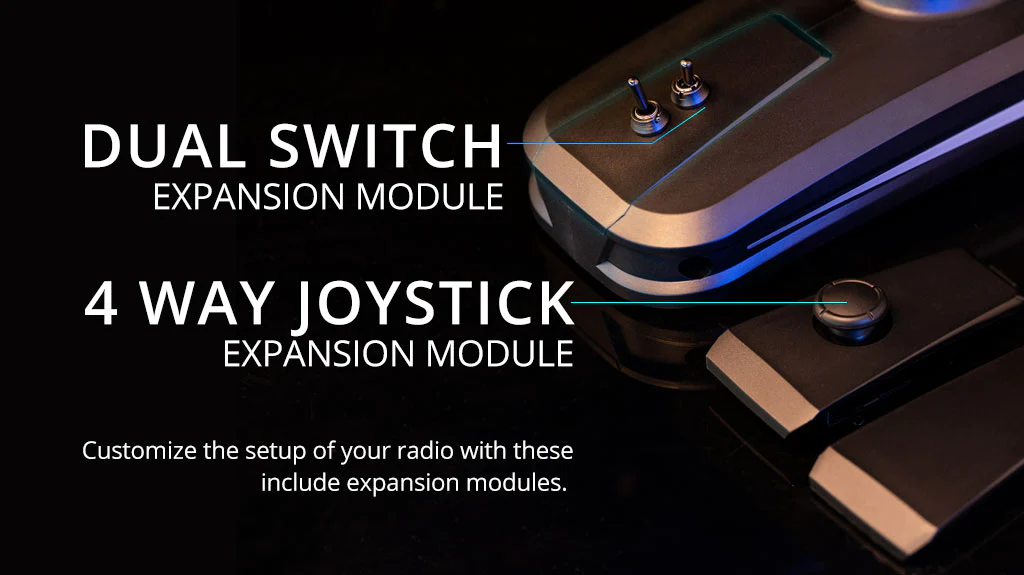

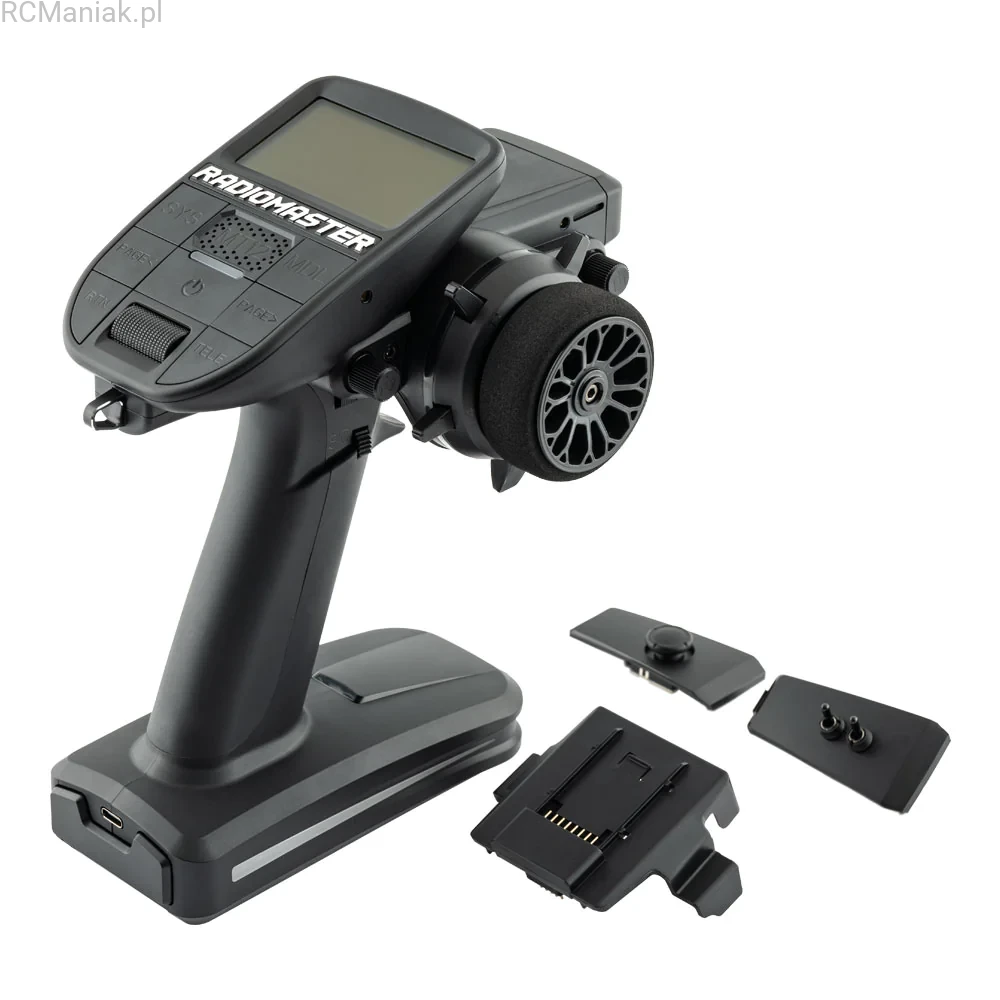

• Customizable base switches or 4 way joystick included

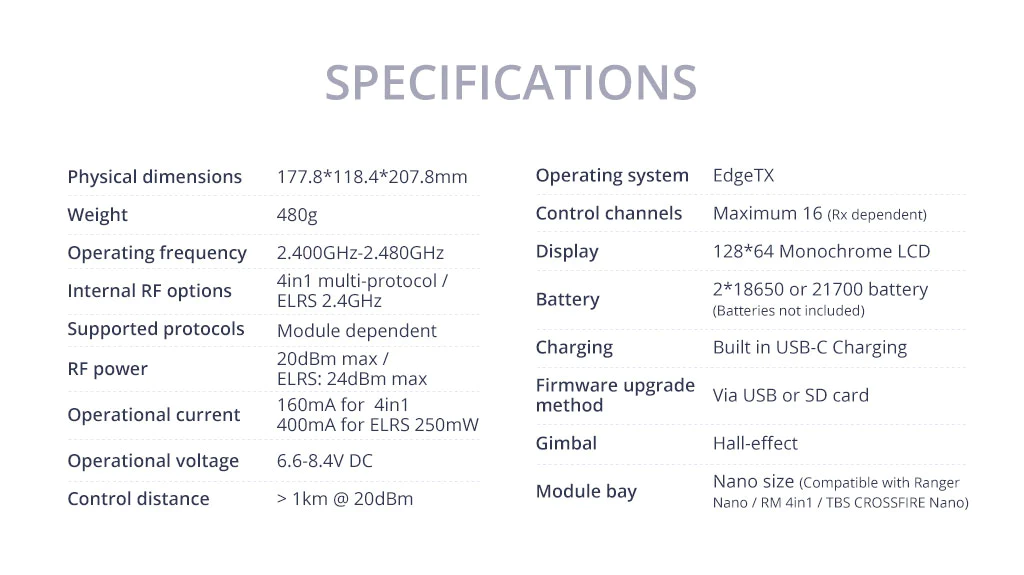

Specification MT12

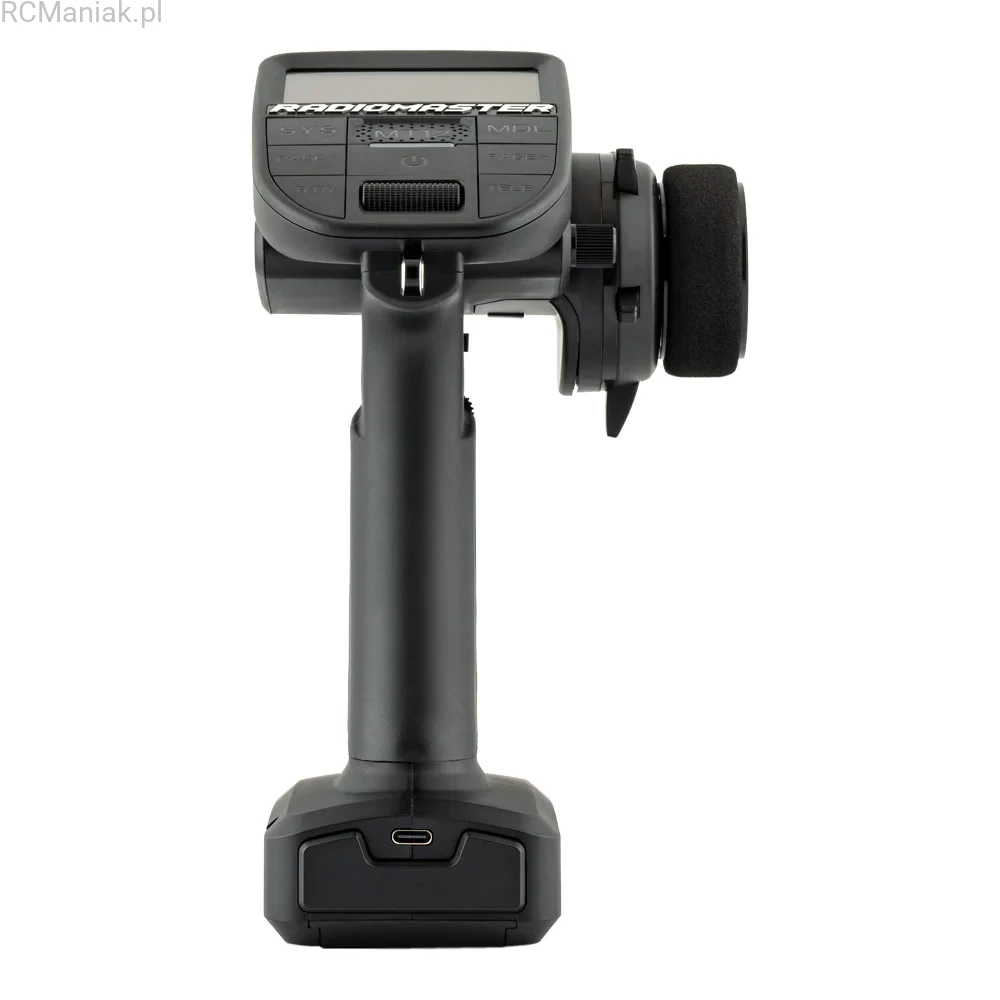

• Item: MT12 Surface Radio

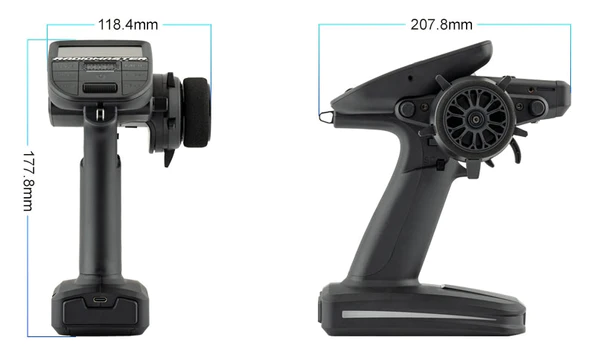

• Physical dimensions: 177.8*118.4*207.8mm
• Weight: 480 grams
• Operating frequency: 2.400GHz-2.480GHz
• Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
• Supported protocols: Module dependent
• Operational current: 160mA for 4in1 / 320mA for ELRS
• Operational voltage: DC 6.6-8.4V
• Operating system: EdgeTX
• Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
• Display: 128*64 Monochrome LCD
• Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
• Charging: Built in USB-C Charging
• Firmware Upgrade method: Via USB or SD card

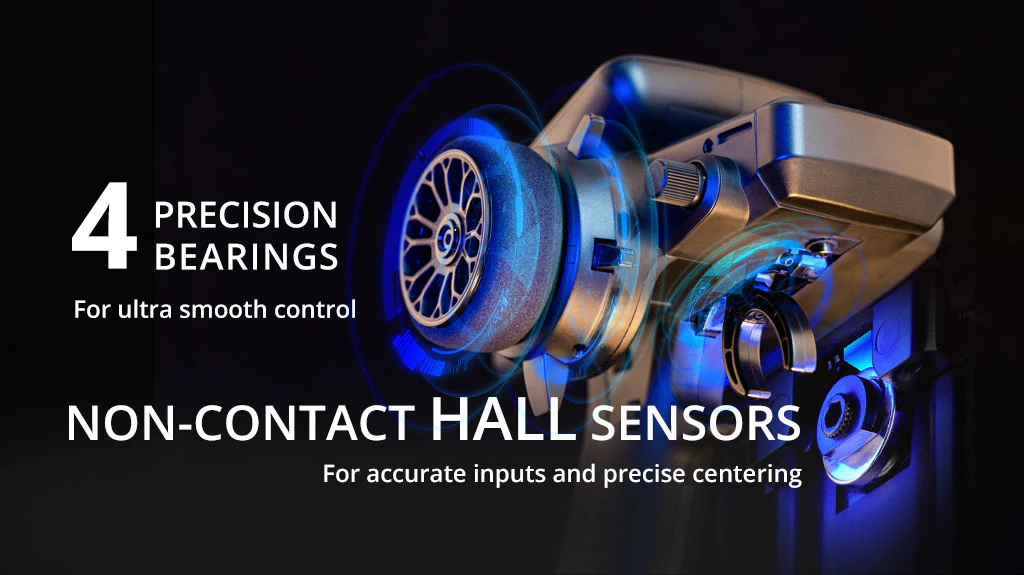

• Wheel and Trigger sensor: Hall-effect

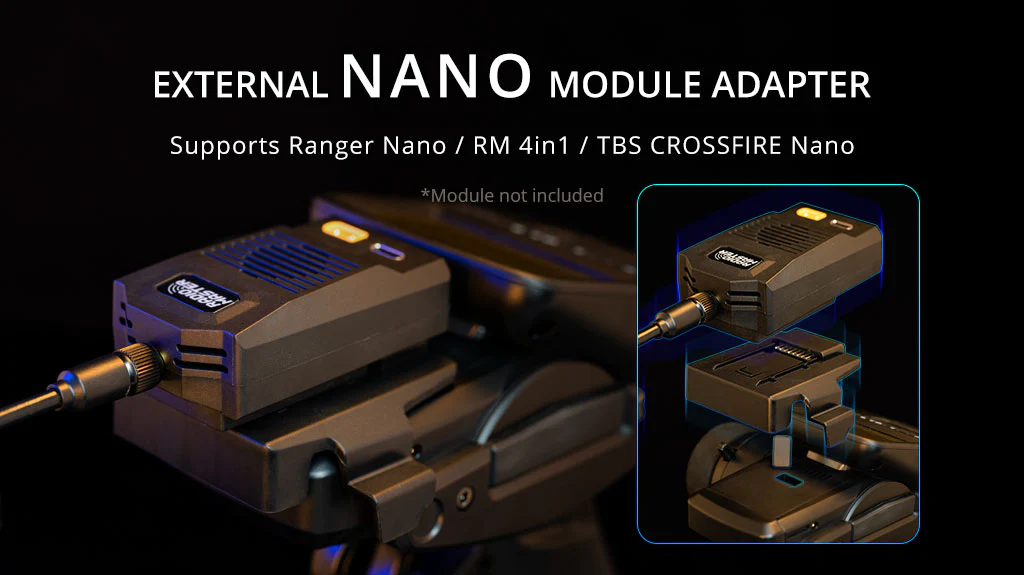

• Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

*32 channels requires a 4in1 radio and additional 4in1 RF module along with compatible receivers

Specification ER3C-i (Included with ExpressLRS version)

• Item: ER3C-i 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5 - 8.4V
• Antenna type: Built-in high-sensitivity ceramic antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 3CH PWM
• Telemetry power: 10mW
• Battery voltage detection range: DC 4.0 - 35V
• Weight: 4.2 grams
• Dimensions: 26.1*18.5*13.0 mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i

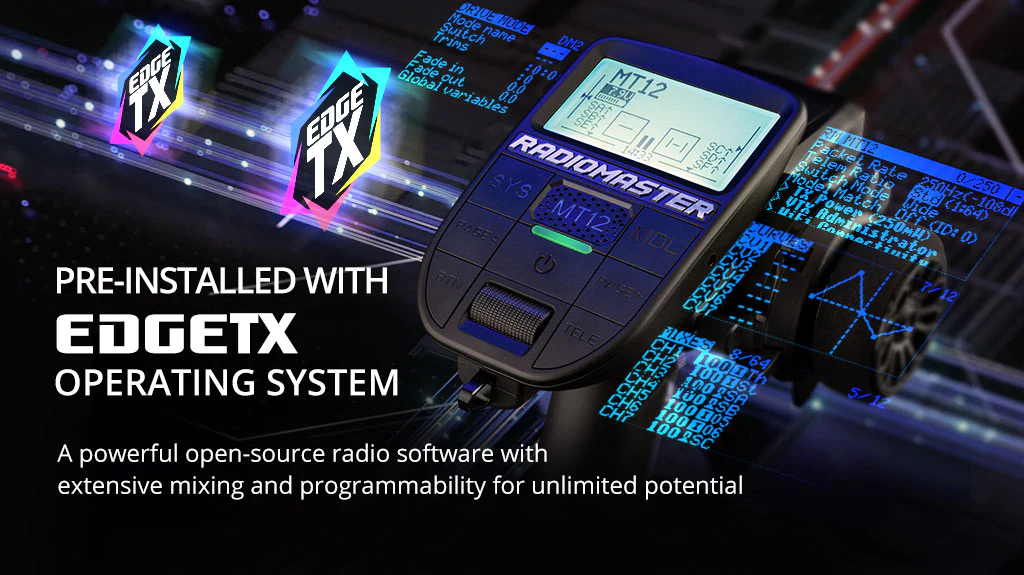

EdgeTX Operating System

Preinstalled with EdgeTX, the MT12 has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX team to develop new features and optimize the user experience for surface models. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.
For more information, please visit https://edgetx.org/

Available with ExpressLRS and 4in1 Version

In addition to the popular internal 4-in-1 Multi-module, the MT12 is also available with an internal 2.4GHz ExpressLRS (ELRS) module. Designed to provide reliable long-distance control, super low latency, and high refresh rates. ELRS is a revolutionary open-source protocol taking the R/C industry by storm

ExpressLRS VERSION
ExpressLRS supports ultra-fast response modes for seat of your pants racing or super long range modes for pushing the limits of your adventures.
For more information, please visit www.expresslrs.org

Instructional Videos

To enhance your experience with our MT12 radio, we offer a series of instructional videos on using the MT12 Surface Radio. Please click here to view more tutorial videos.

Download

• MT12 Quick Start Guide
• MT12 User Manual

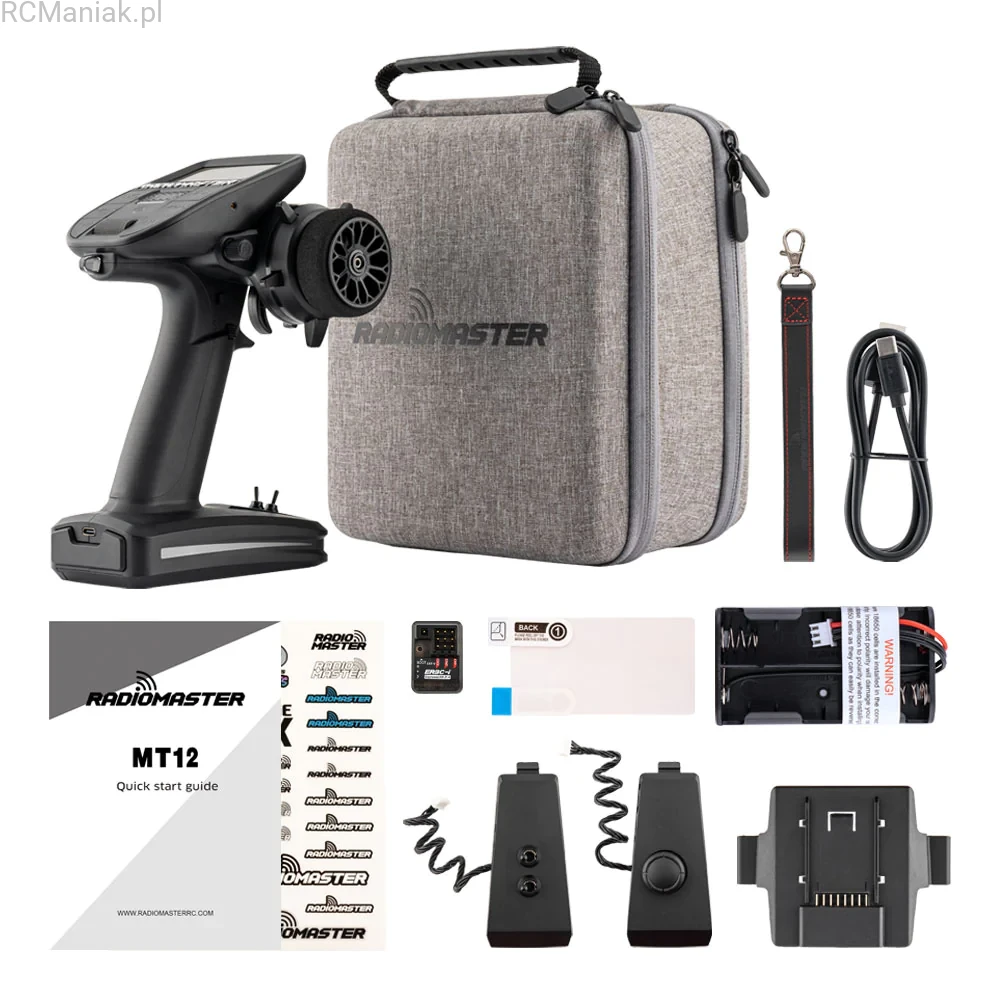

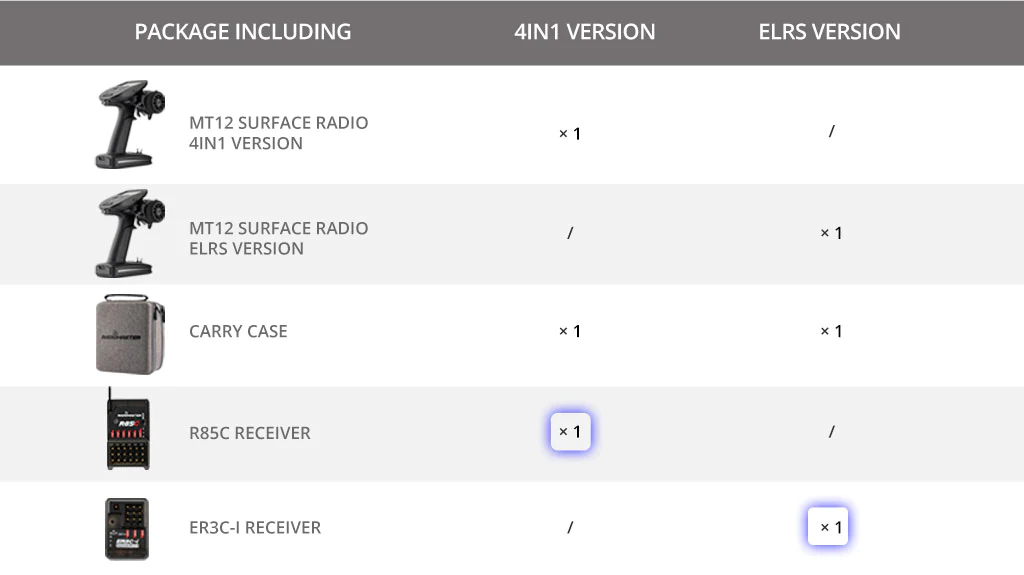

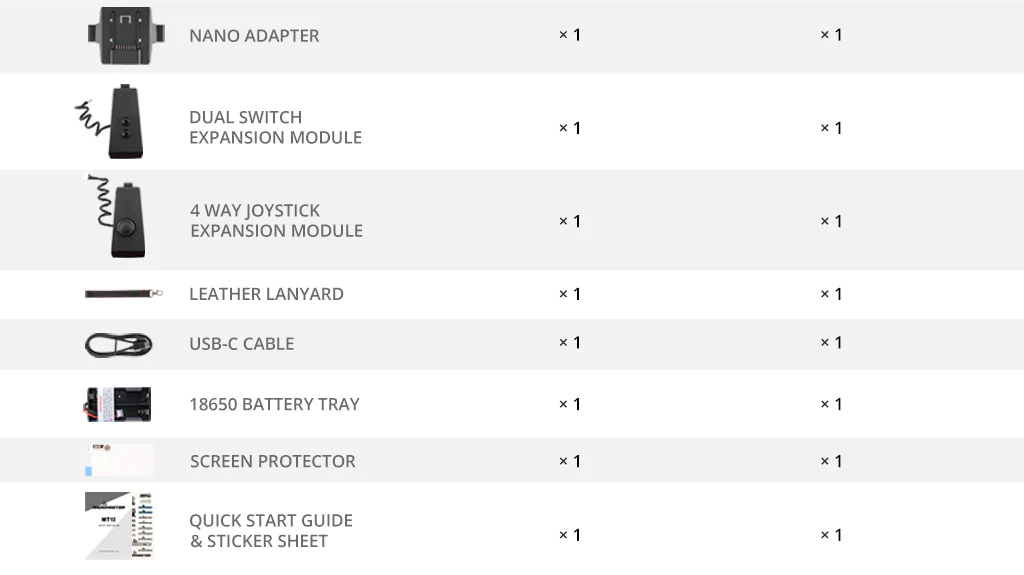

Package Includes

• 1 * MT12 Surface Radio ExpressLRS Version
• 1 * ER3C-i 2.4GHz ELRS PWM Receiver
• 1 * Dual Switch Expansion module
• 1 * 4 Way Joystick Expansion module
• 1 * Nano Adapter
• 1 * USB-C Cable

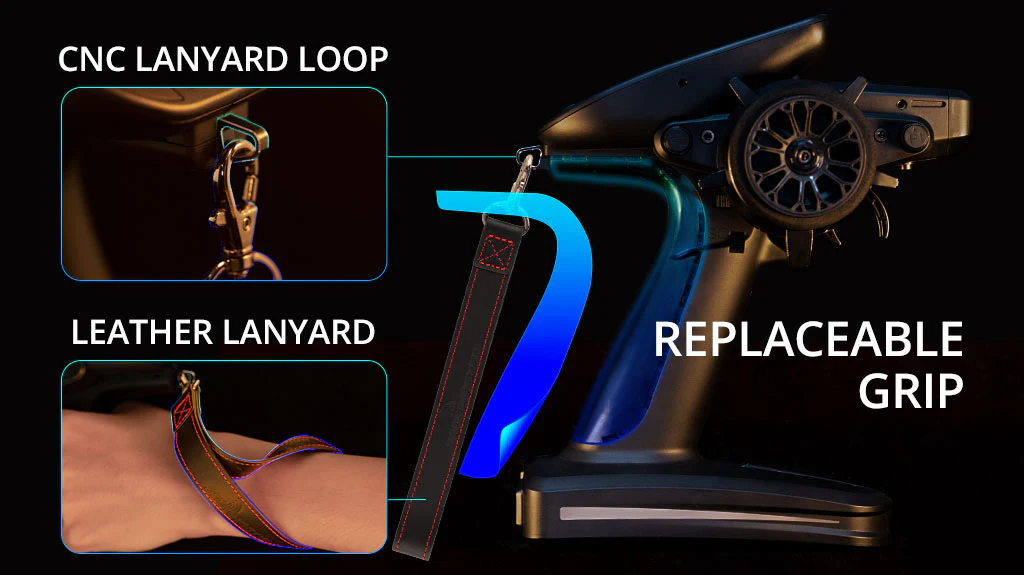

• 1 * Leather Lanyard
• 1 * Custom RadioMaster signature carry case
• 1 * 18650 Battery Tray
• 1 * Screen Protector
• 1 * Stickers
• 1 * Manual
