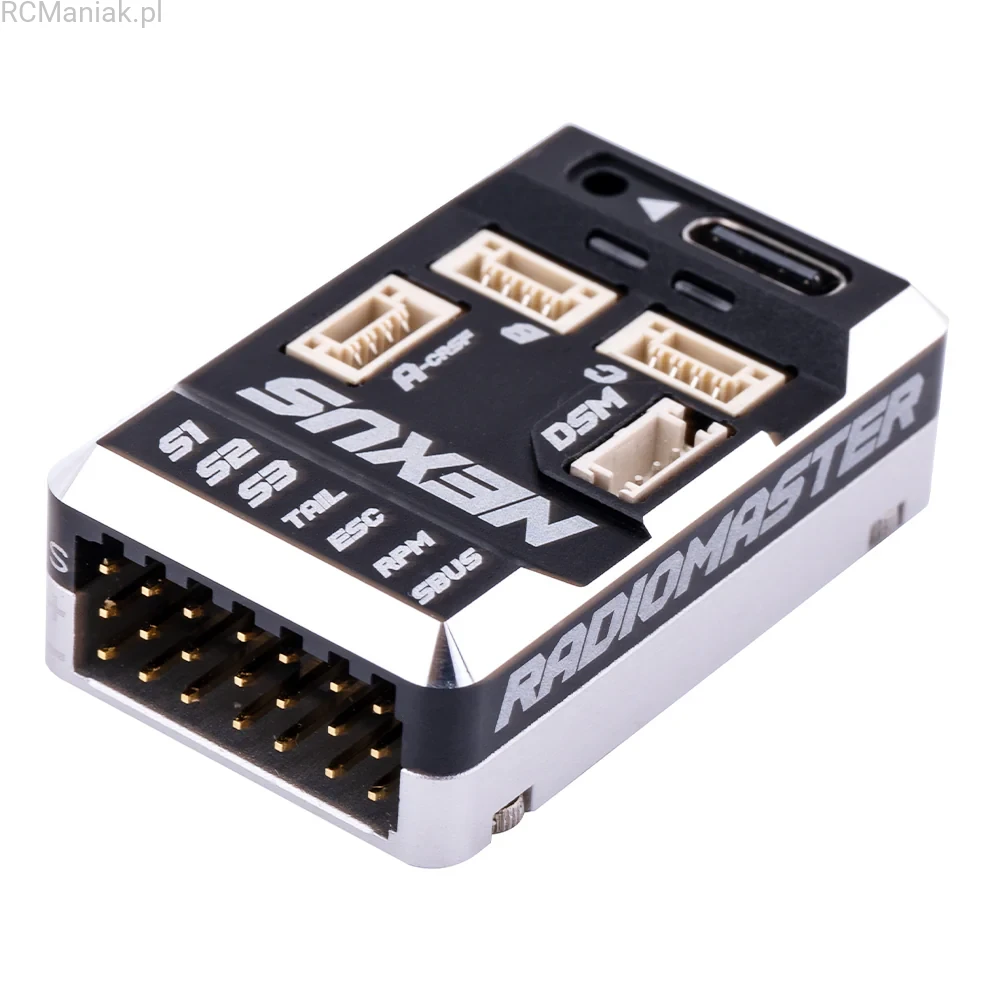

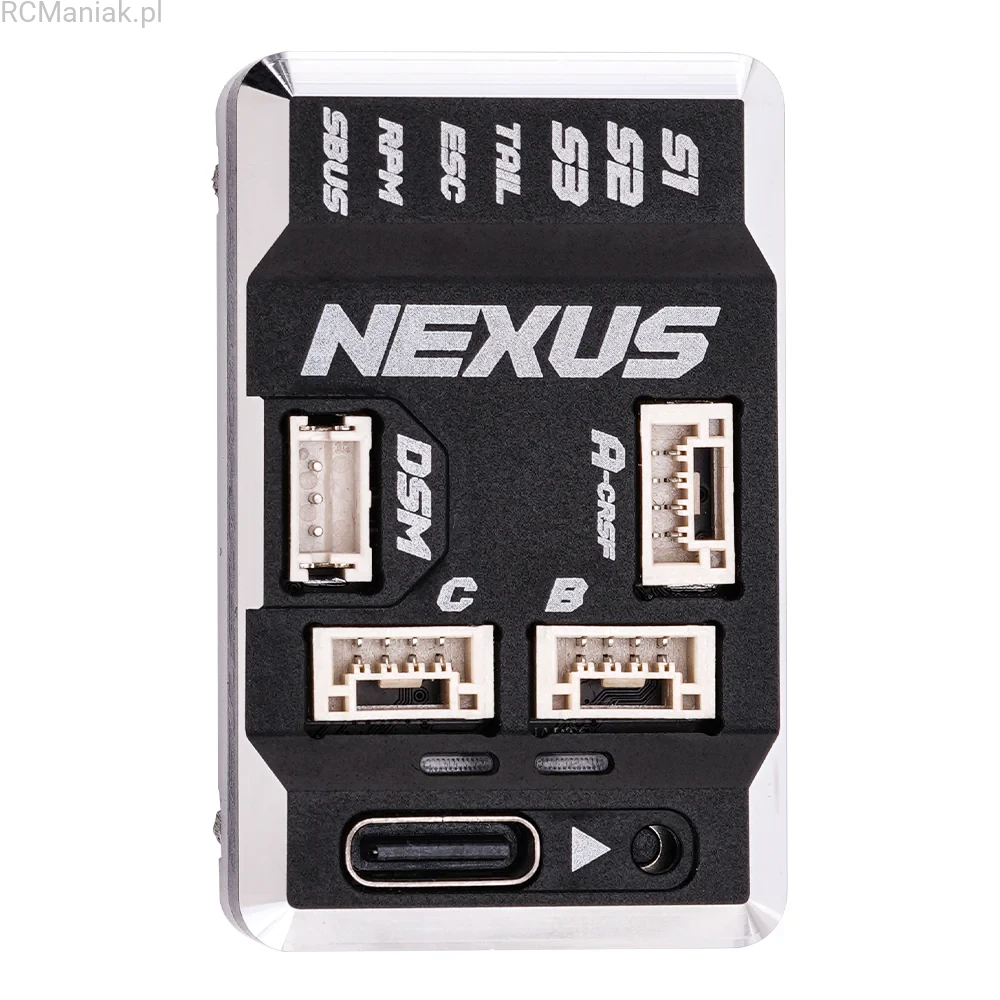

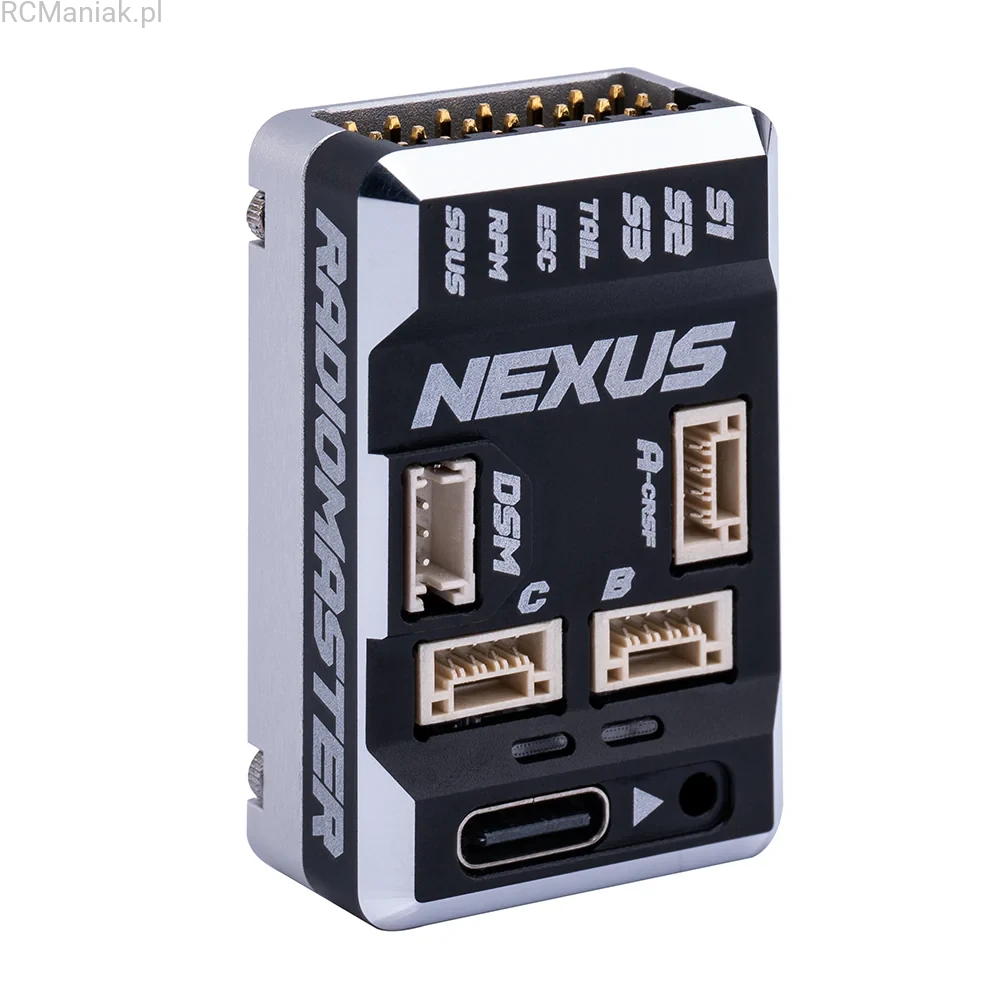

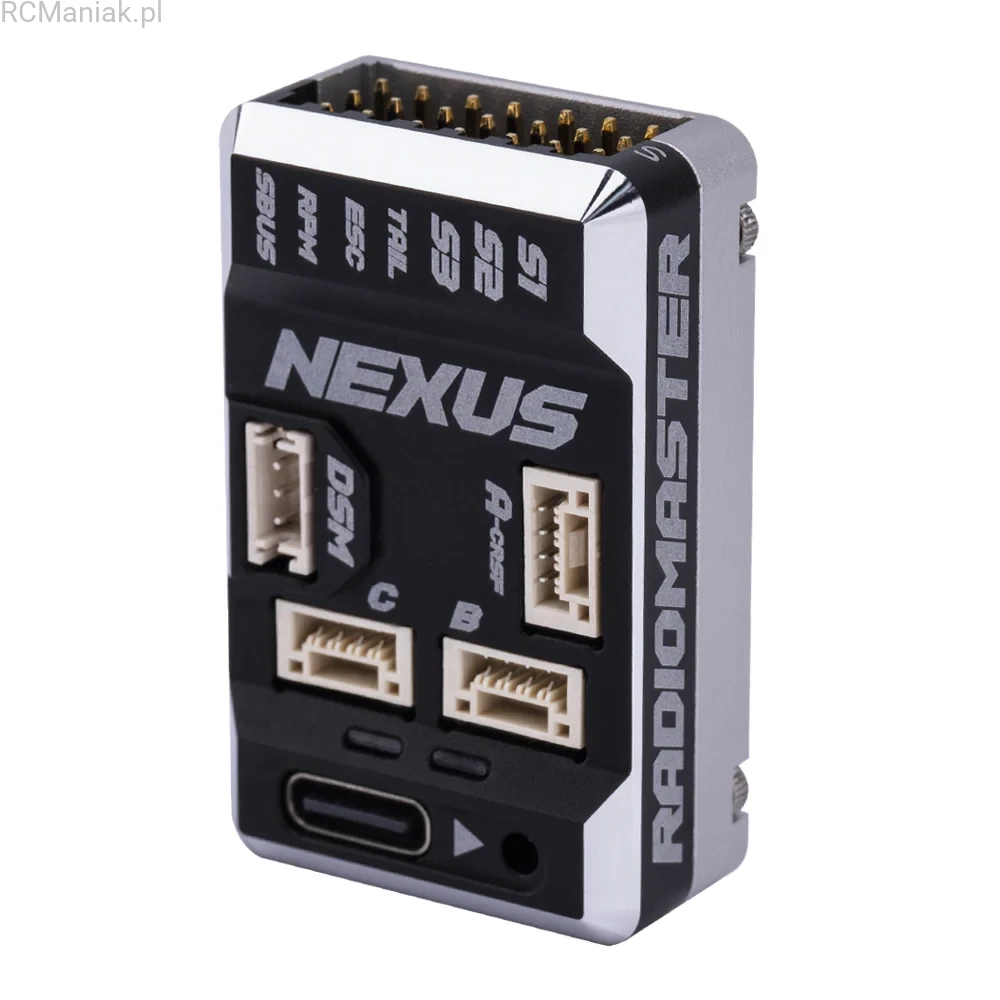

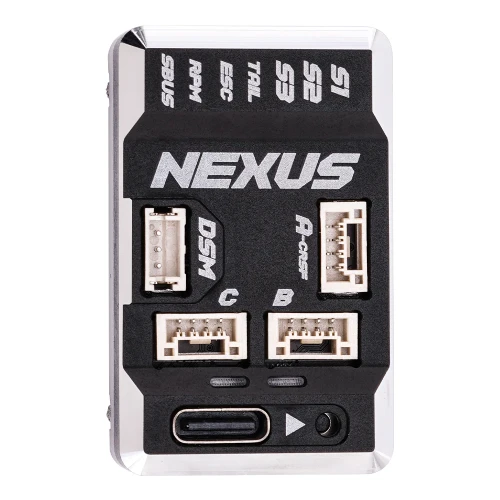

RadioMaster NEXUS Helicopter Flight Controller
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Dla zaawansowanych elektroników składających drony. Wymagana znajomość języka angielskiego, lutowania obwodów elektronicznych, czytania schematów, programowania układów jednoprocesorowych i konfigurowania dronów. Nieprawidłowe podłączenie, lub przekroczenie dozwolonych parametrów grozi uszkodzeniem lub nawet pożarem i nie jest objęte gwarancją.
Launch Video
Features
- The NEXUS Helicopter flight controller is designed from the ground up specifically for Rotorflight 2.0
- Equipped with an advanced STM32F722 MCU and TDK 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer
- Built-in Black Box: A large 128MB of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment
- Locking connector system compatible with our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included)
- Features multi-function ports (UART) for future expansion

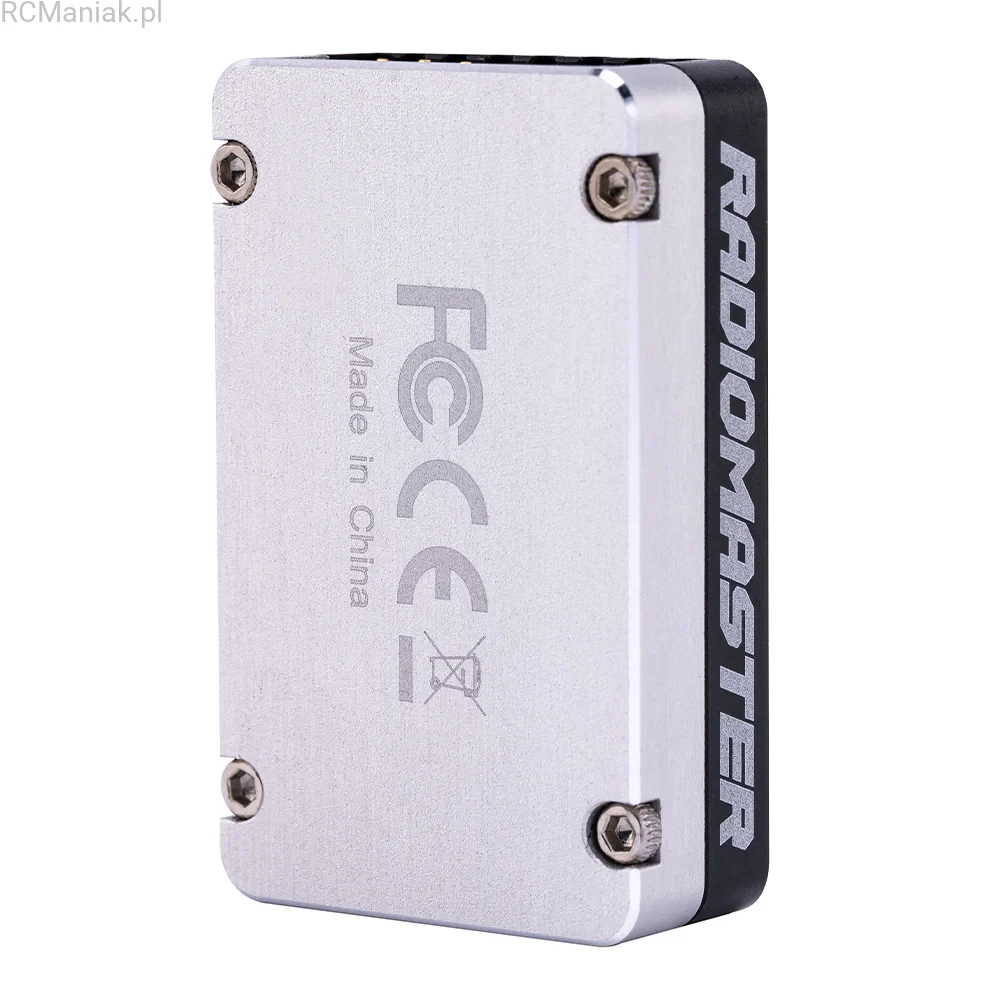

- The NEXUS flight controller is compact and rugged. The CNC case not only protects the internal components but acts as a heat sink to help keep the electronics cool
- The NEXUS measures just 41mm x 25mm and is only 13mm high, making it a perfect fit for any size heli build, including 250/450/500/550/600/700 helicopters
- The NEXUS flight controller supports a wide range of Tail Motors and Tail ESCs (760μs / 1520μs)
- A variety of receivers are supported, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT
- The device has multiple independent power supplies that minimize noise when reaching 1.8V. It includes 1.8V for Gyro, 3.3V for the MCU, and 5.0V for the external interface
- Ultra light-weight and flexible USB-C extender cable is included to help in situations where the USB-C port may not be easy to reach. Made as light as possible because every gram counts and uses flexible silicone wires to prevent vibration transfer to the control unit
- Rotorflight Rescue function as a standard
Specification
- Item: NEXUS Heli Flight Controller
- Firmware: Rotorflight 2.0
- MCU: STM32F722RET6
- Gyro (IMU): ICM-42688-P
- Flash Memory (Black Box. IC): 128MB (W25N01GVZEIG)
- Barometer: SPL06-001
- Uart: 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3]
- Servo: 4 - S1, S2, S3, TAIL
- Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
- Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX
- Voltage Supply(DC): 5 - 12.6V
- A-B-C Serial Port Power Output: 5V - 2.0A
- DSM Serial Port Power Output: 3.3V - 0.5A
- Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
- ESC: PWM, Oneshot, Multishot, Dshot
- Support Tail ESC: 760μs/1520μs Servo
- Support Tail Motor: Yes
- Demensions: 41.3 X 25.4 X 13.1mm

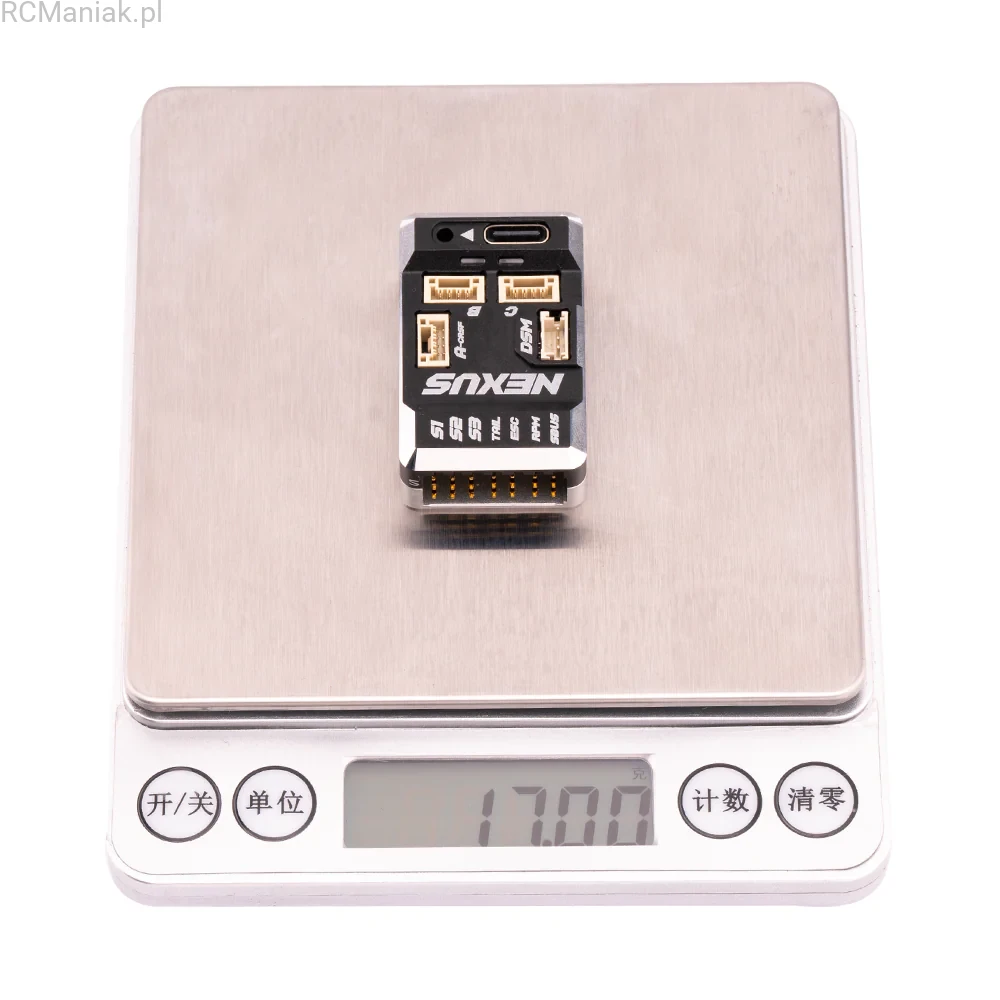

- Weight: 16.8g
Dimensions
Overview

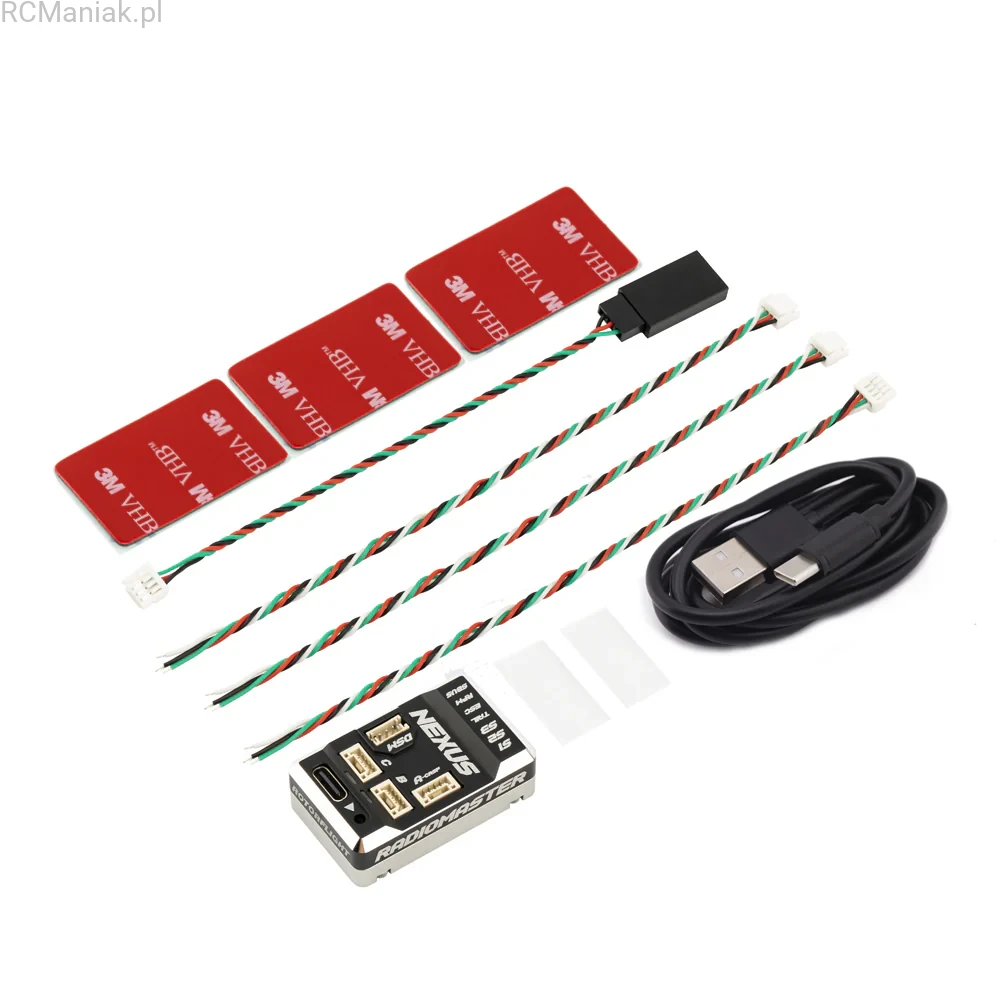

Package Includes
- 1 * NEXUS Helicopter Flight Controller
- 3 * JST-GH 4 Wire pigtail cables
- 1 * JST-GH to Servo Plug (dupont 3 pin connector)
- 1 * Ultra light-weight and flexible USB-C extender
- 1 * Type C extension cable
- 3 * 3M double-sided mounting tape
- 2 * Heat shrink tubing
