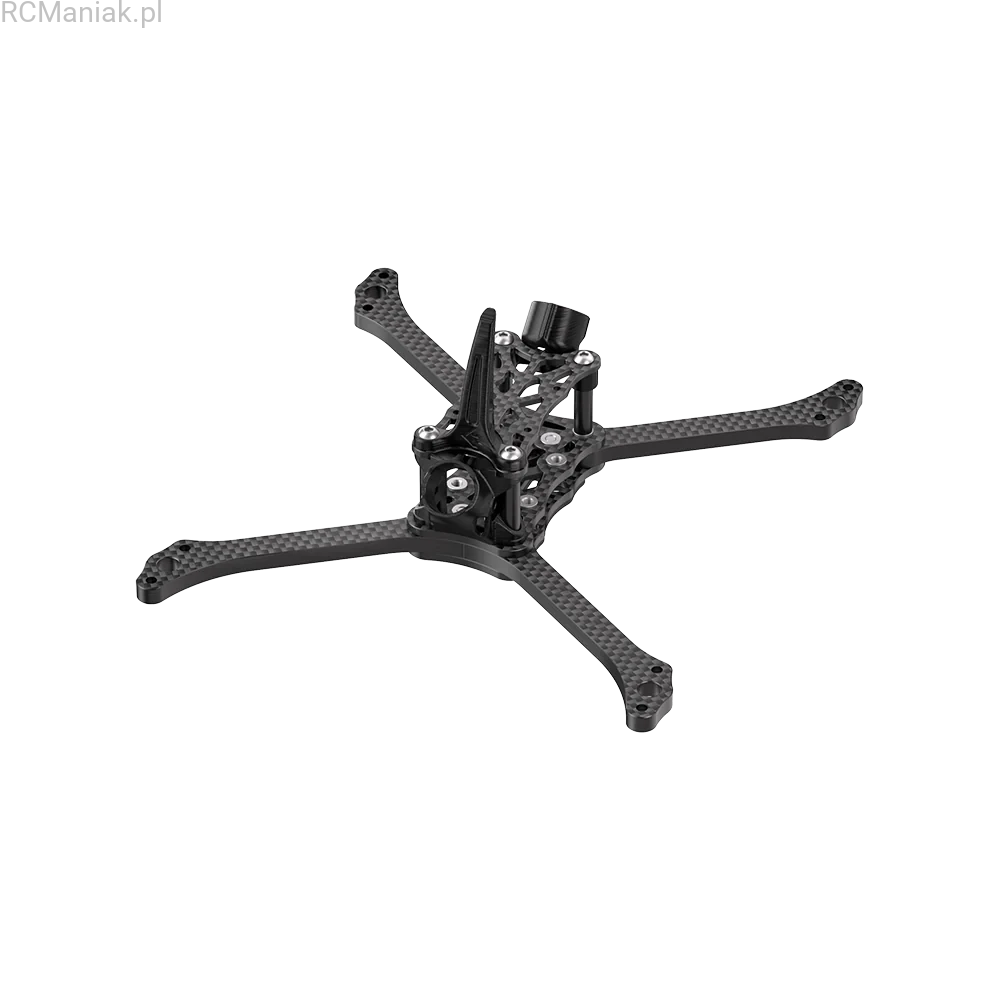

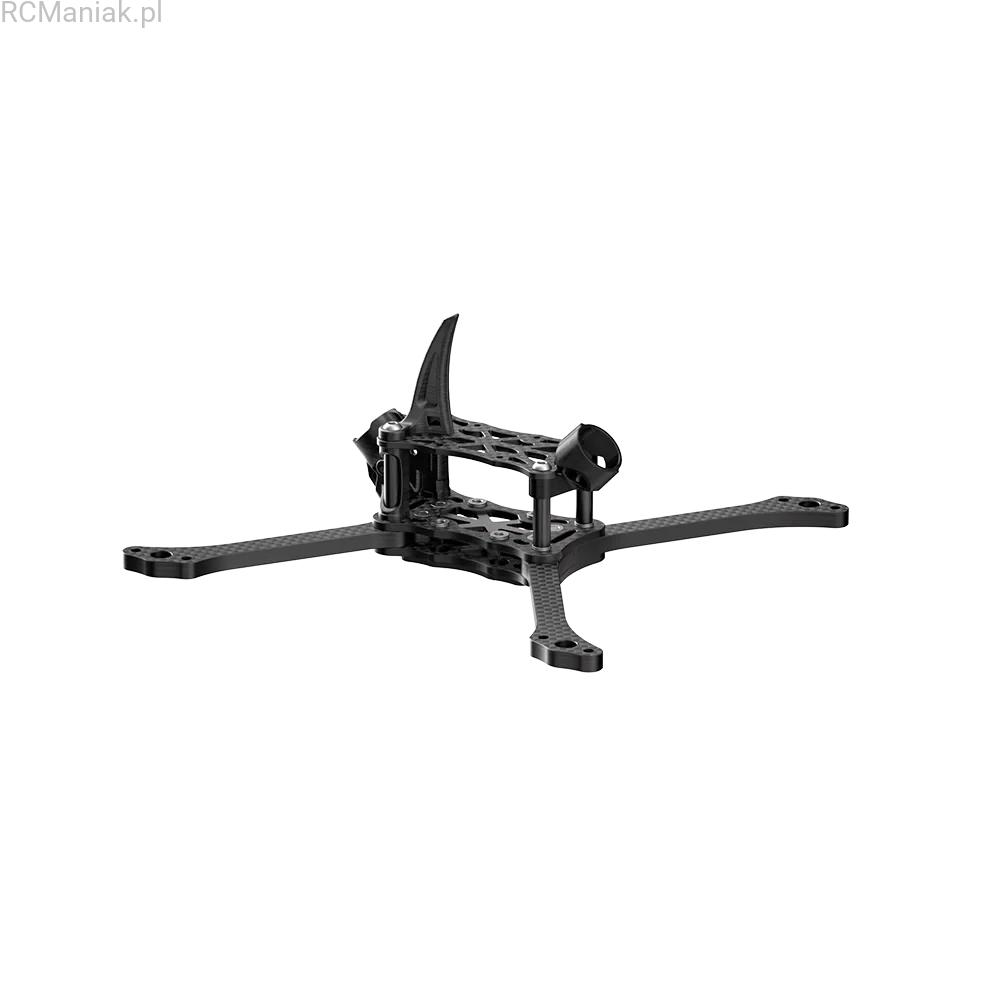

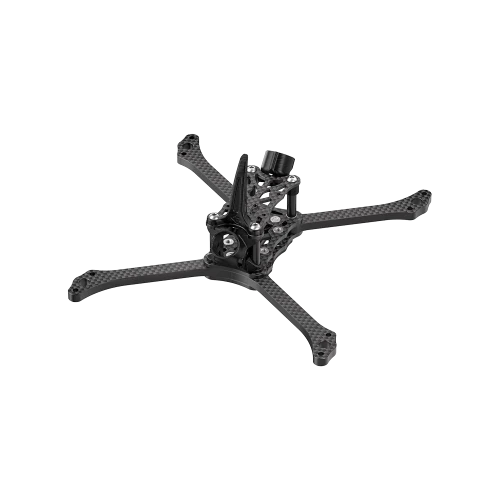

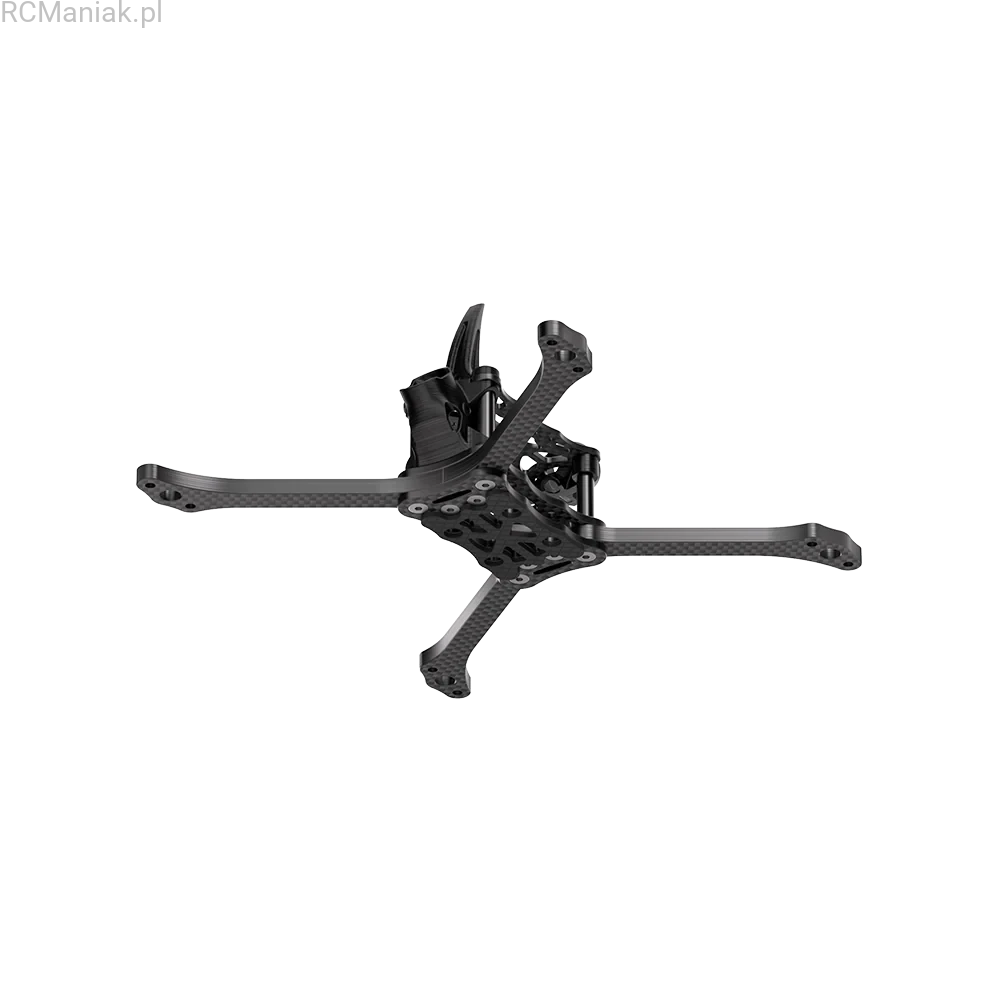

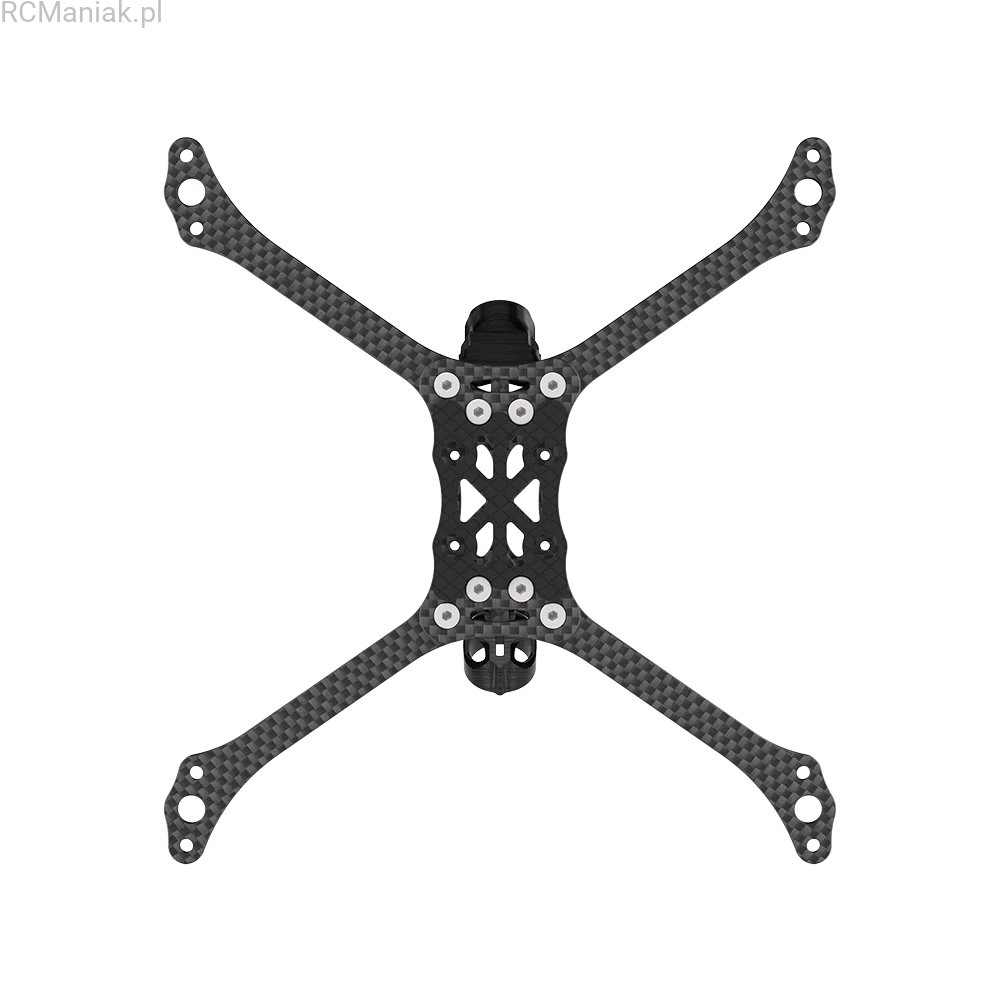

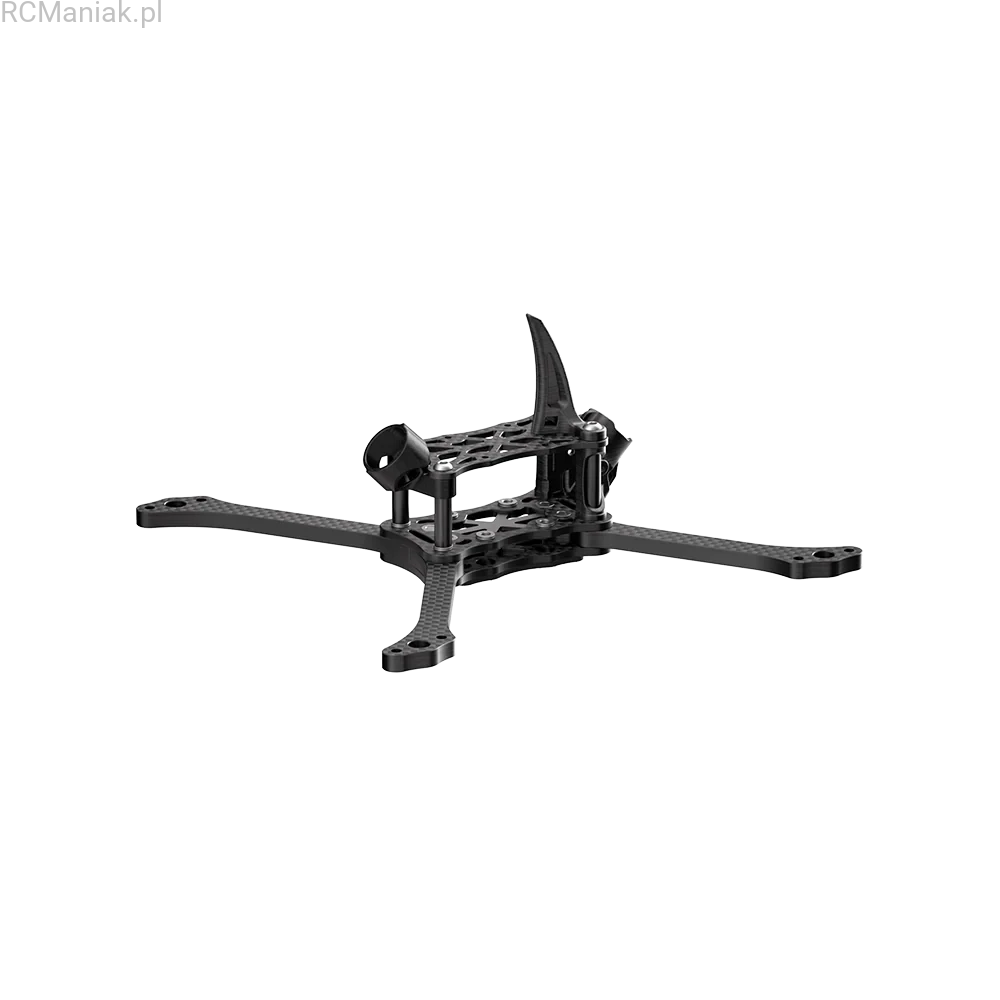

Rama Hunter 5 FPV Racing T700 Frame Kit

Rama zawiera 1 z 3 zestawów uchwytów do kamer wykonanych z TPU kompatybilnych z popularnymi kamerami FPV:

•     Wersja 1: Hunter5 HZN - HDZero Nano 90 V2
•     Wersja 2: Hunter5 FPN - Foxeer Predator Nano 90 V2
•     Wersja 3: Hunter5 RCN - RunCam Racer Nano 4

Custom Fit, Solid Protection
The frame includes three sets of TPU camera mounts in different specifications, compatible with mainstream FPV cameras (covering major brands such as Foxeer, HDZero, Runcam.). Each mount is precisely preset with three tilt angles: 45°, 51°, and 53°.    Pilots can flexibly adjust the camera's FOV based on track cornering angles, flight speed, and personal control preferences, ensuring an ideal field of view in all flight attitudes.

High-Strength Structure, Premium Materials
The main frame structure is crafted from high-strength T700 carbon fiber sheets. It delivers excellent strength and fatigue resistance, achieving structural lightweighting while effectively absorbing and dispersing instantaneous impact forces during    severe crashes. This ensures balanced stress distribution on the arms and center plate, significantly extending the frame's service life and providing reliable structural support for aggressive flight maneuvers.

Rapid Arm Replacement & Locking System
Addressing the common issue of arm damage in high-frequency racing scenarios, the frame features high-precision custom shoulder screws and an anti-vibration locking system. This design ensures tight fitting and balanced stress distribution during    assembly, effectively preventing frame loosening caused by high-frequency resonance. For maintenance, the frame adopts a minimalist modular design — only two key screws need to be removed to quickly replace a single arm, drastically reducing downtime    and improving training and racing efficiency.

Specifications
Arm Thickness: 5mm
Top Plate Thickness: 2mm
Mid Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Weight: 51g (excluding TPU prints)
Material: T700 Carbon Fiber
Frame Dimensions: 158*146*35.5mm
Propeller Size: 5.1 inch
FPV Camera Spacing: 14mm
Wheelbase: 190mm
Motor Mounting Pattern: 16×16mm (φ3mm)
Stack Mounting Pattern: 20mm*20mm (M3)
Stack Mounting Height: 22mm
Camera Angles: 45/51/53

Three Camera versions
Version 1: Hunter5 HZN — HDZero Nano 90 V2
Version 2: Hunter5 FPN — Foxeer Predator Nano 90 V2
Version 3: Hunter5 RCN — RunCam Racer Nano 4
Each version includes 3 camera mounts with different angles(45°/51°/53°), antenna mount TPU print, and 2 shark fins.

Package Contents:
Frame*1
Shark Fins*2 (carry handle + turtle mode)
Camera Mounts*3 (45°/51°/53°)
Antenna Mount TPU Print*1
