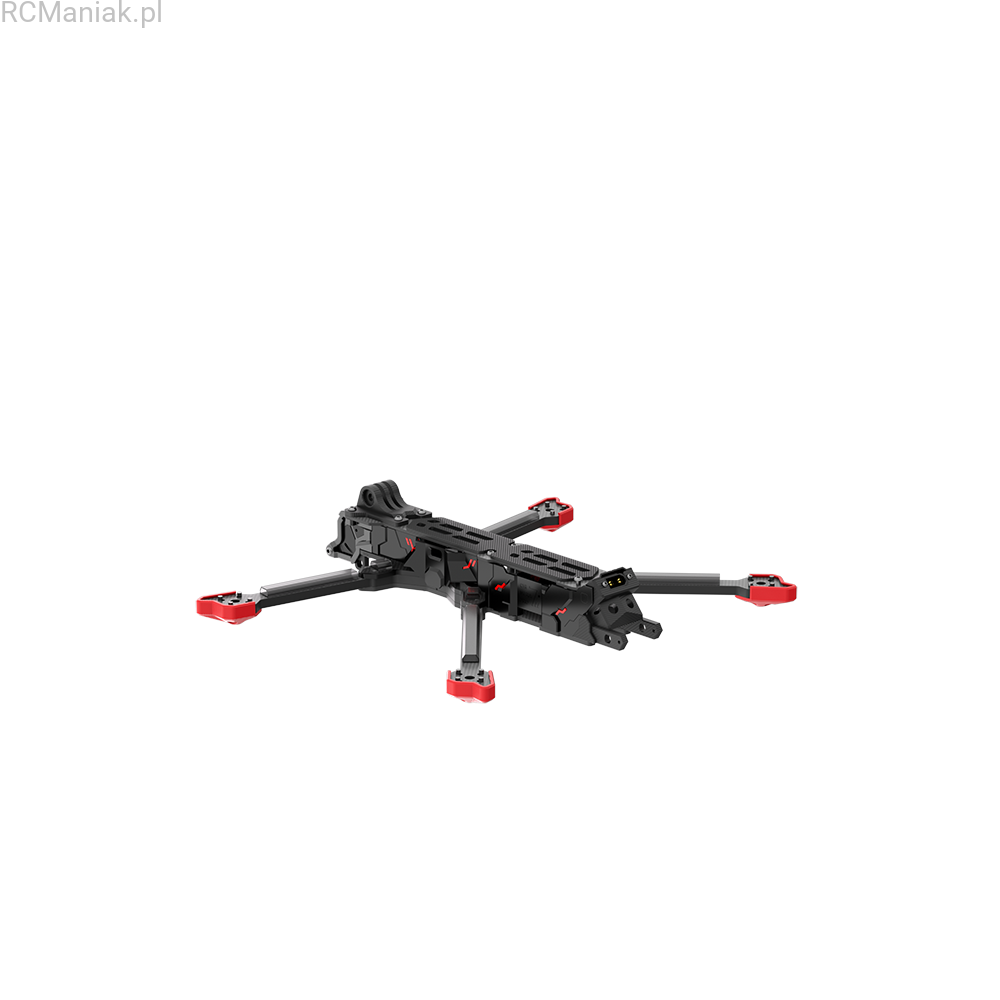

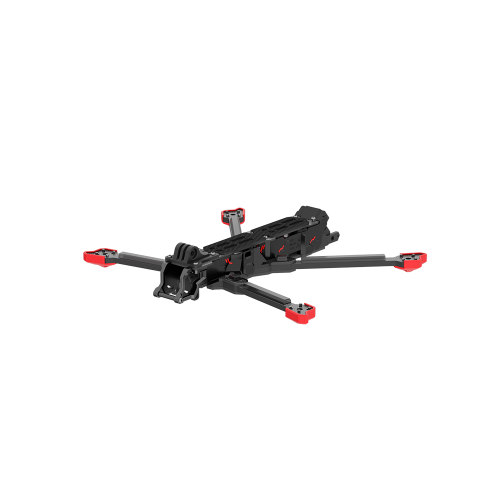

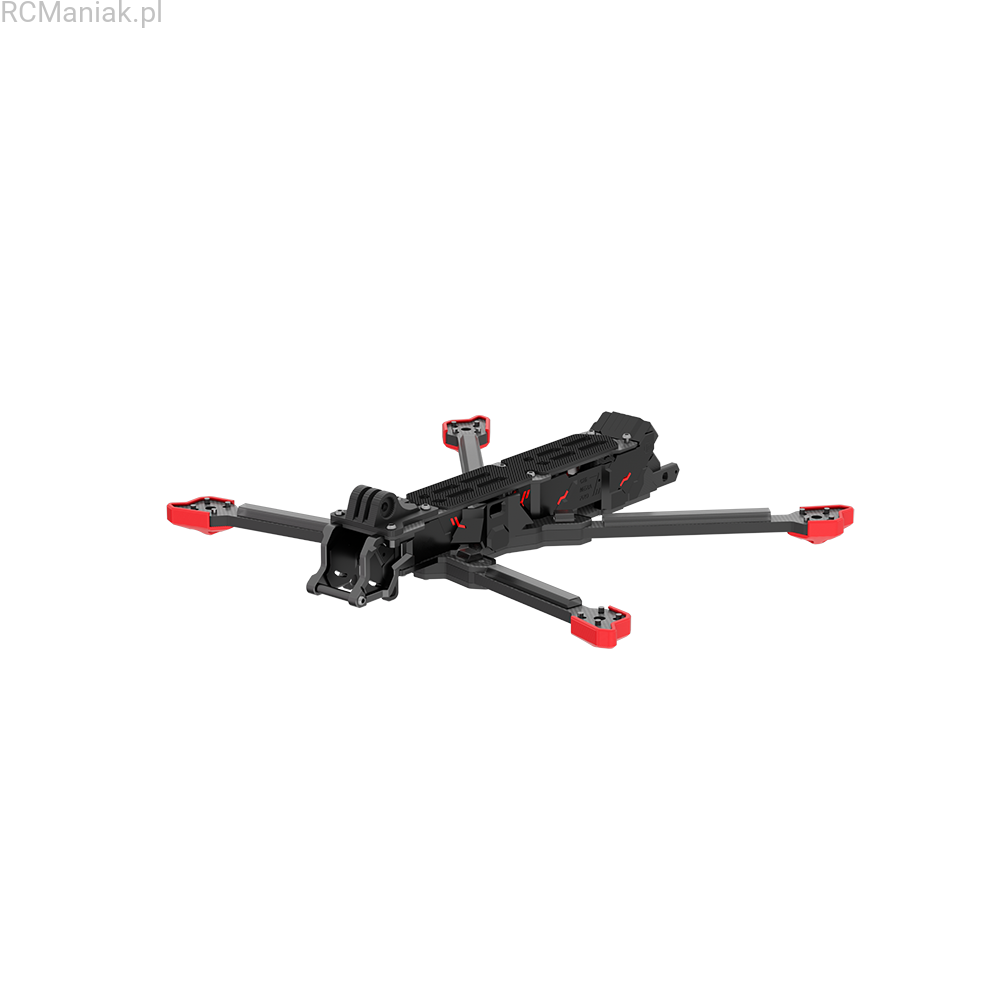

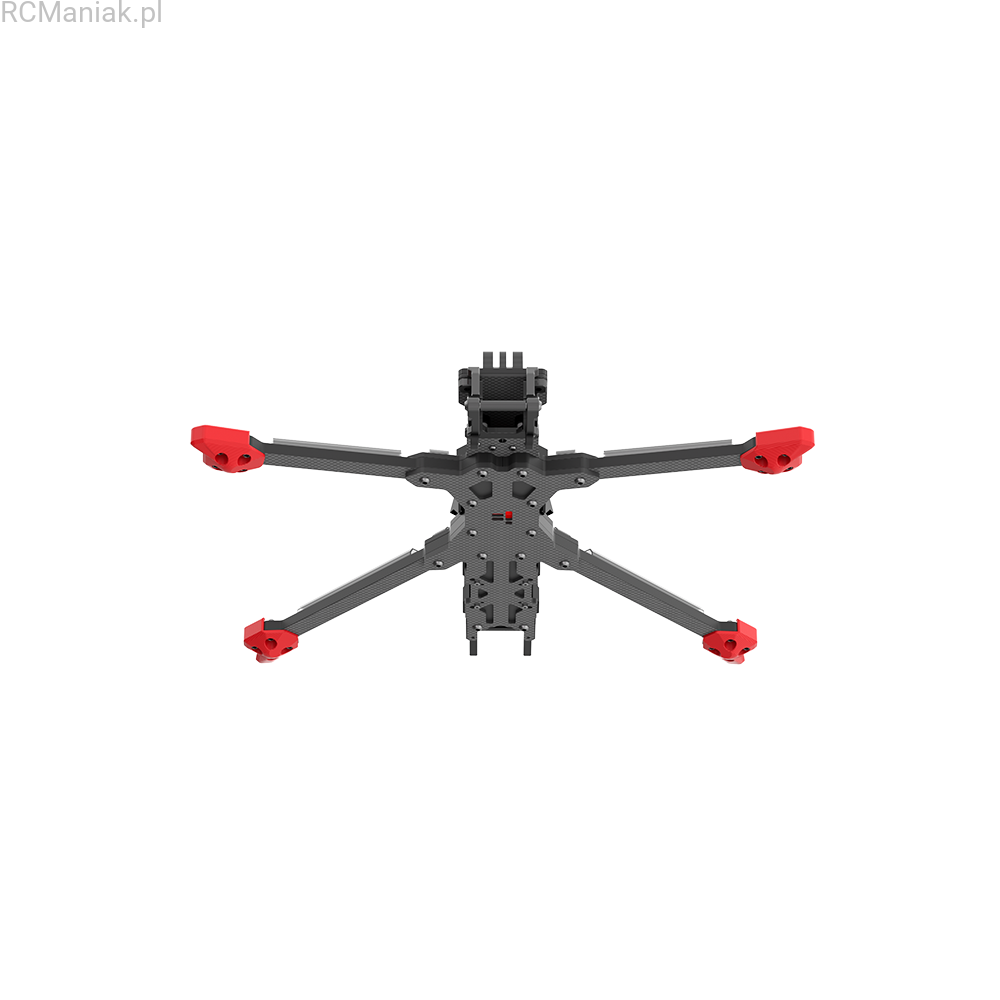

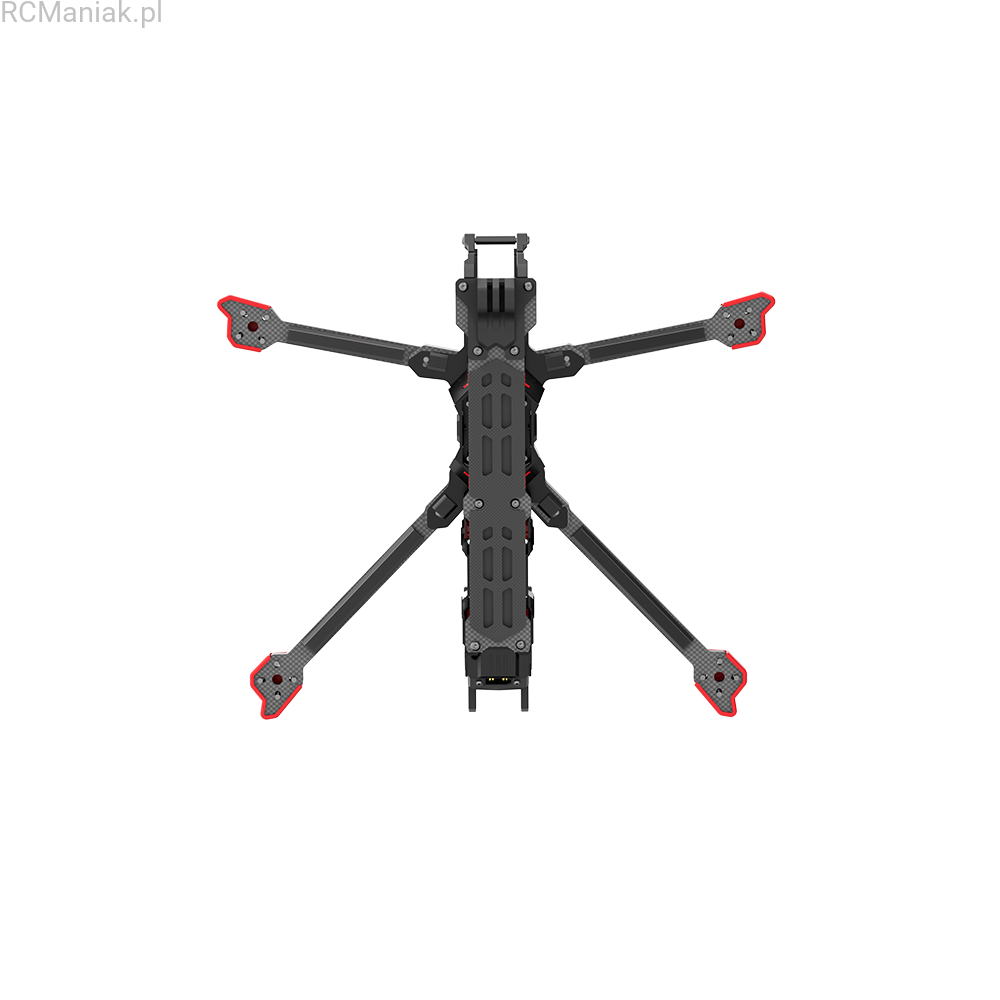

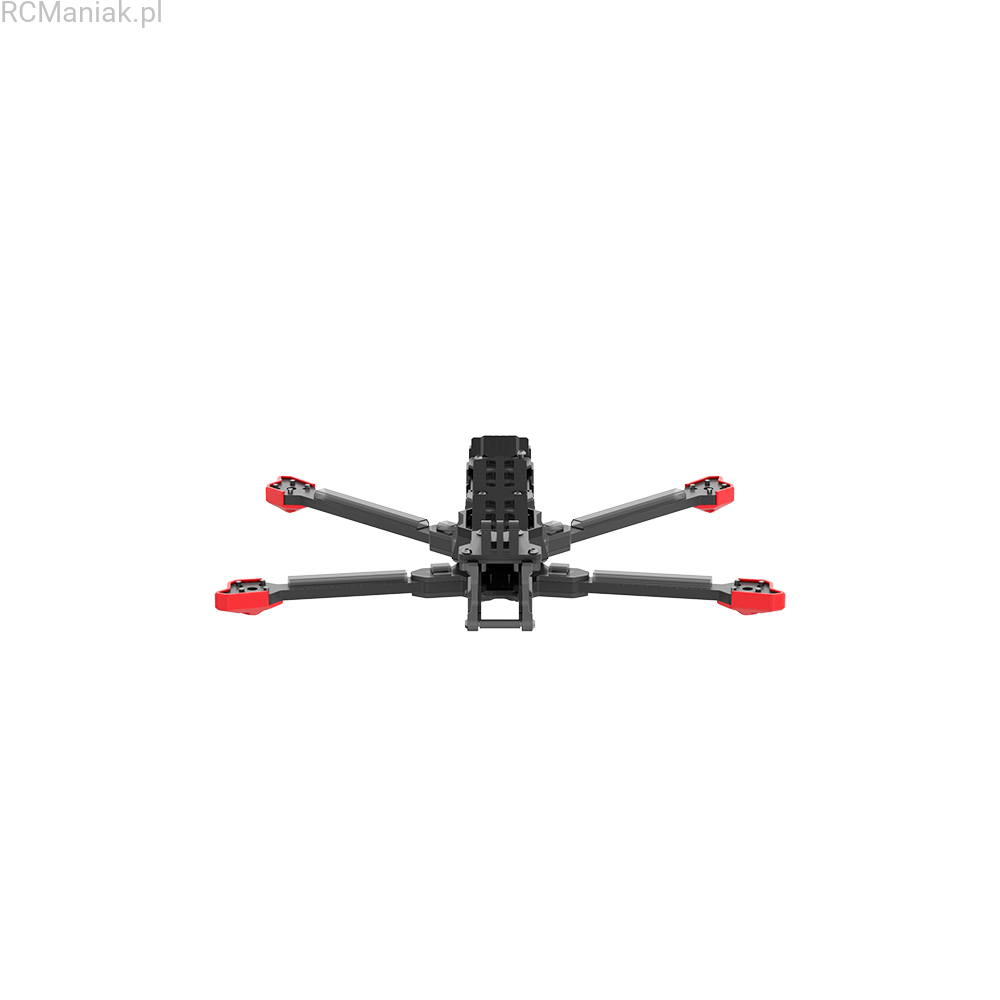

Rama iFlight Chimera7 Pro V2 o4 Frame Kit
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Description
iFlight's upgraded Chimera 7 Frame Kit, now compatible with the DJI O4 Pro Air Unit, delivers exceptional stability and longer flight times ideal for cinematic shooting. Built from super-stiff carbon to minimize resonance, it pairs best with 2809 motors for optimal 7.5" prop performance. Expect smooth and versatile flights, whether skimming over water or soaring through the Swiss Alps.
Features
O3 to O4 was upgraded for the DJI O4 Air Unit Pro:
- New Camera Mount for DJI O4 Air Unit Pro
- New Silicone side panels
- New DJI O4 Pro MIPI Video Cable
Specificaitons
| Product Name | Chimera7 Pro V2 O4 Frame Kit |
| Wheelbase | 327mm |
| Frame Dimension | L270*W199*H34 mm |
| Arm Thickness | 6mm |
| Bottom Plate Thickness | 3mm |
| Top Plate Thickness | 2mm |
| Upper Plate Thickness | 3mm |
| Camera Plate Thickness | 3mm |
| Max Flight Stack Height | 21mm |
| Max VTX Height | 30mm |
| Flight Stack Mounting | 30*30/Φ3mm |
| Motor Mounting | 16x16mm / 19*19mm Φ3mm |
| VTX Mounting | 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm |
| Weight | 355g±5g |
| Compatibility | DJI O4 Air Unit Pro/DJI O3 Air Unit |
Packing List
1 x Chimera7 Pro V2 O4 Frame Kit
1x 220mm O4 MIPI Digital Video Cable
2x O4 IPEX to RP-SMA Antenna Pigtails
1 x Dual Antenna TPU
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Arm guard
2 x Anti-Slip Battery Pad
2 x Battery Strap
Tolerance Note
Due to manufacturing processes, the thickness of iFlight's products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
