Regulator FETtec 4in1 ESC 35A

Regulatory
274
PLN
Regulator FETtec 4in1 ESC 35A
Regulator FETtec 4in1 ESC 35A
out_of_stock
Dostępność:
brak towaru
Cena: 274,00 zł
Cena netto: 222,76 zł
szt.
Kod produktu:

FETTEC4X35

Producent:
Fettec

Regulator FETtec 4in1 ESC 35A

Wymiary 45x41mm

Rozstaw otworów montażowych 20mm

Zasilanie : do 6s Lipo





Product information "FETtec 4in1 ESC 35A"

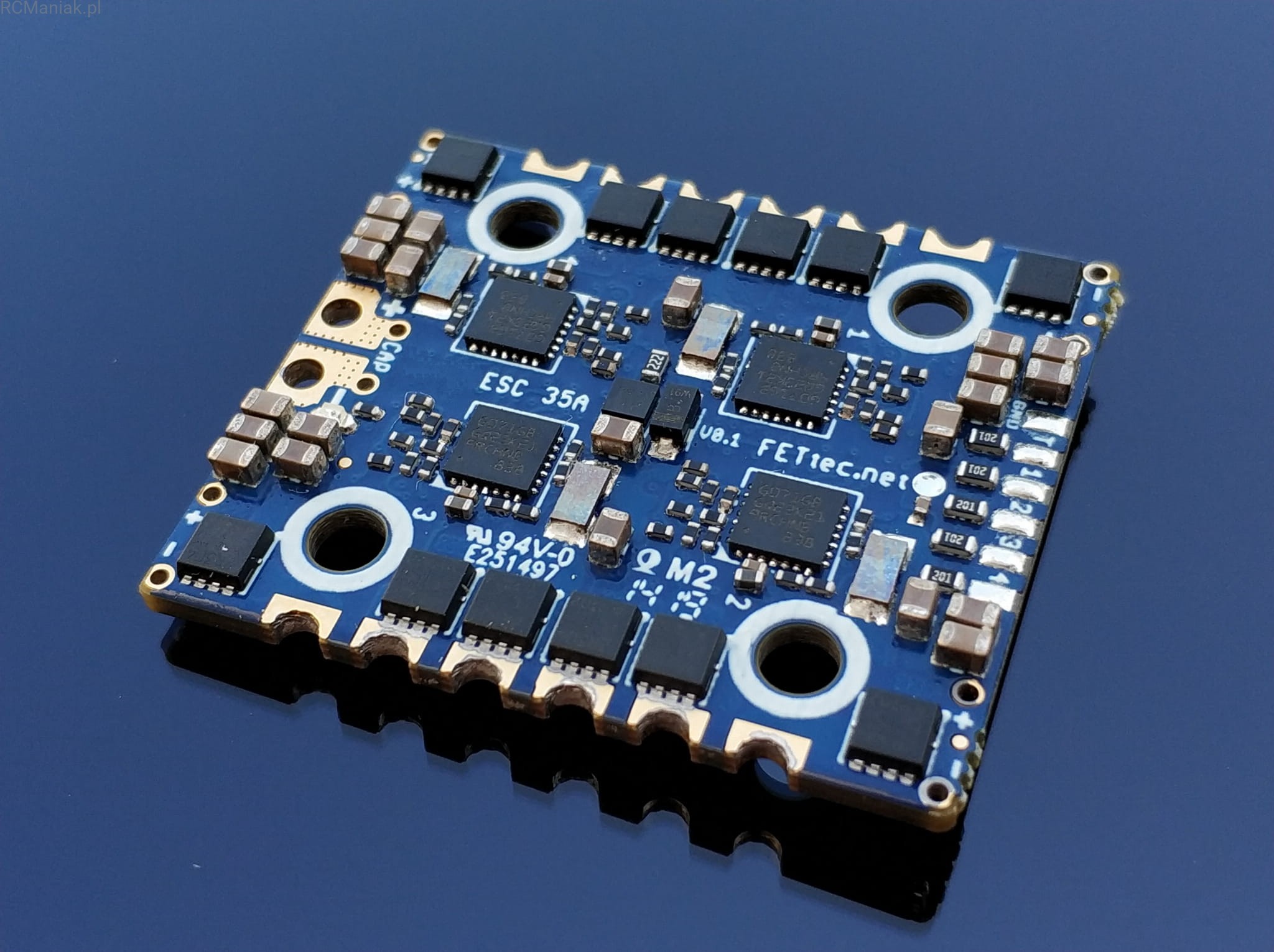

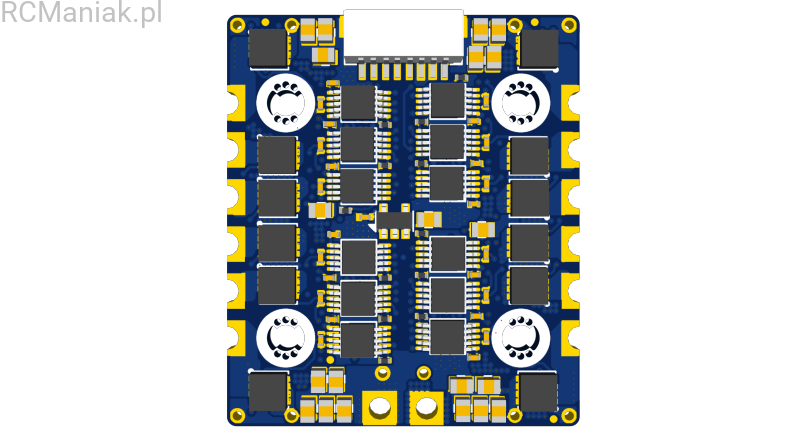

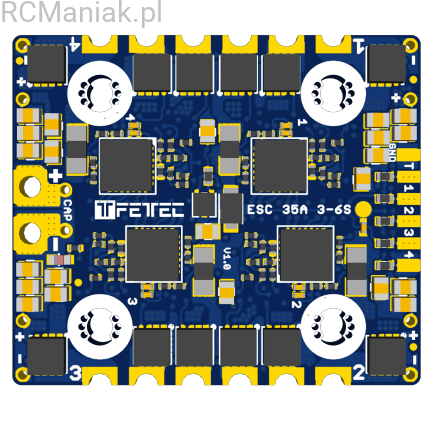

FETtec ESC 4in1 4 - 6S 35A

Features:

  • Active current limiting @ 35A
  • Input voltage: 3S-6S
  • High quality 40V MOSFETs
  • STM32G071 @ 64MHz
  • 128 kHz Motor PWM
  • Full sine wave control
  • Soldering holes for up to 5 additional capacitors
  • KISS FC Passthrough
  • Betaflight Passthrough (available in 4.1)
  • Automatic input signal detection:
    • Dshot 300-2400
    • PWM
    • OneShot42/125

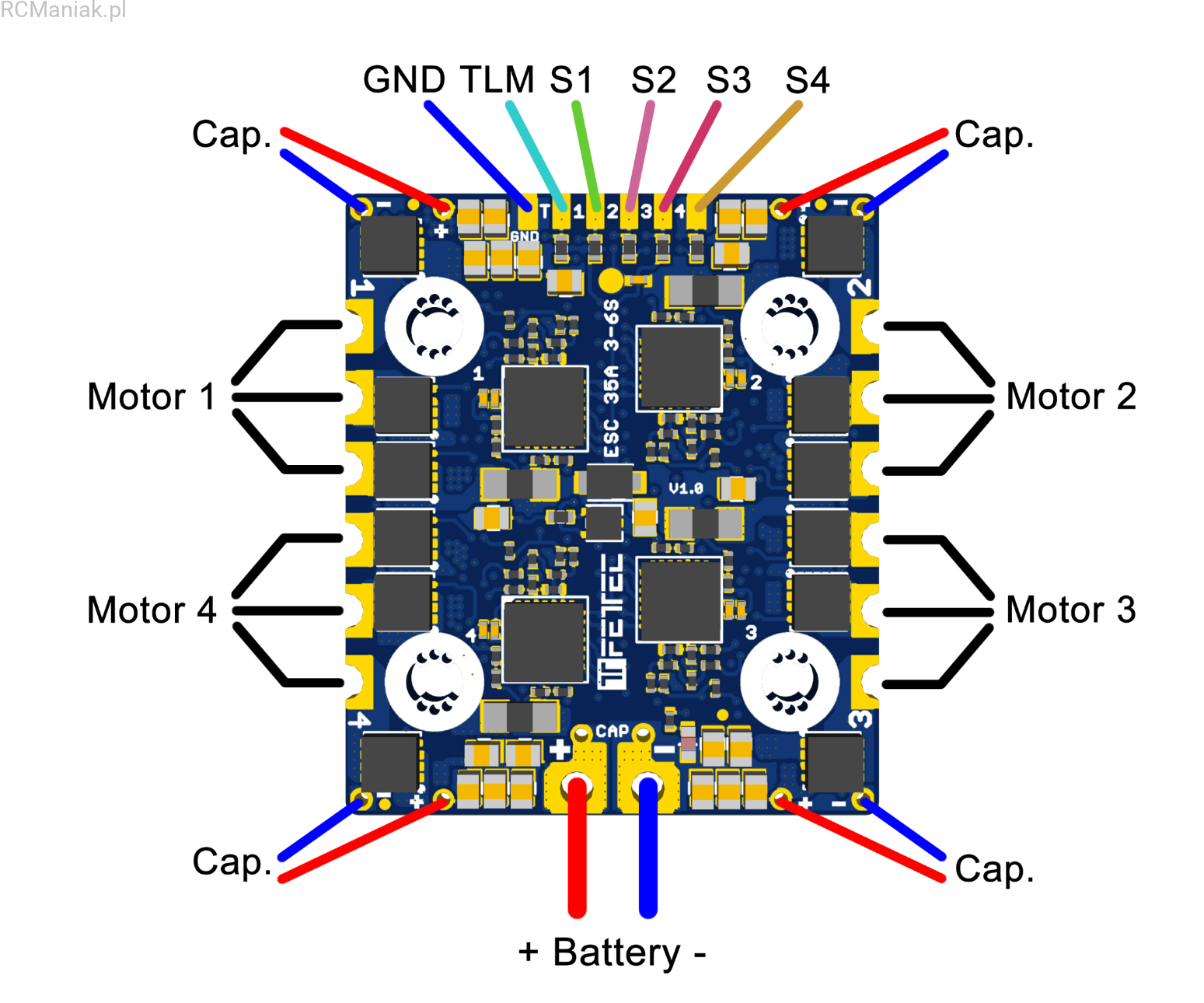

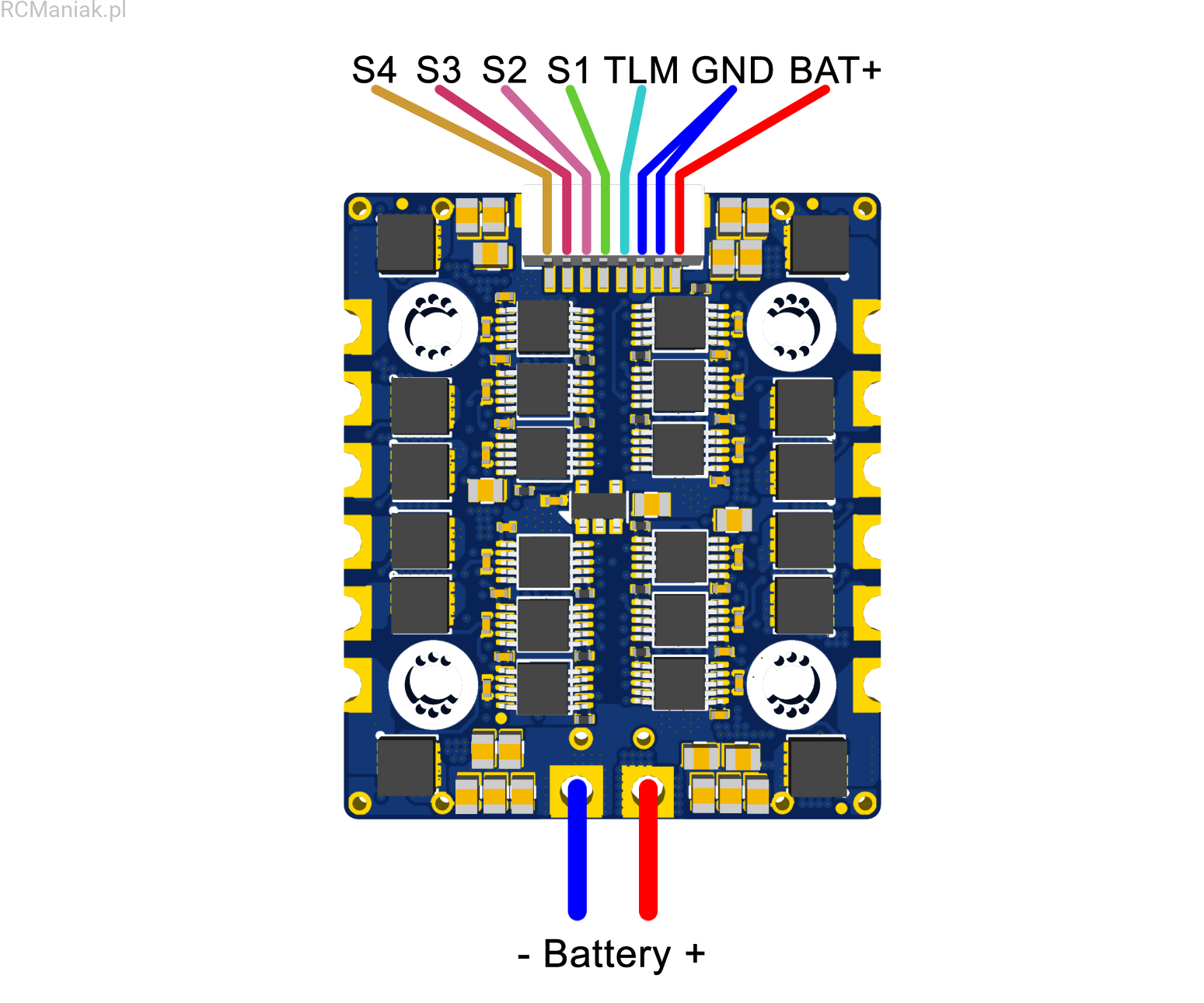

    • OneWire BUS with up to 8kHz looptime (one cable for all Motorsignals and Telemetry)
    • in development: Crossfire, Sbus, Graupner HoTT

Dimensions:


  • 30mm wide x 35mm long
  • Mounting hole: 20mm x 20mm, M2 expandable to M3

Firmware:

  • New FETtec Firmware
  • FETtec Configurator for updated, configuration and telemetry. Standalone for MacOS, Windows 32 & 64 bit and Chrome Plugin

Scope of Delivery:

  • FETtec ESC 4in1 - 6S 35A
  • Capacitor 50V, ESC < 1ohm (337CKE050M)
  • JST-SH 8 Pin Cable
  • JST-SH 6 Pin Plug

Recommandation:

For 6S batteries we recommand to use a FETtec Spike Absorber



Related links to "FETtec 4in1 ESC 35A"
Available downloads:
