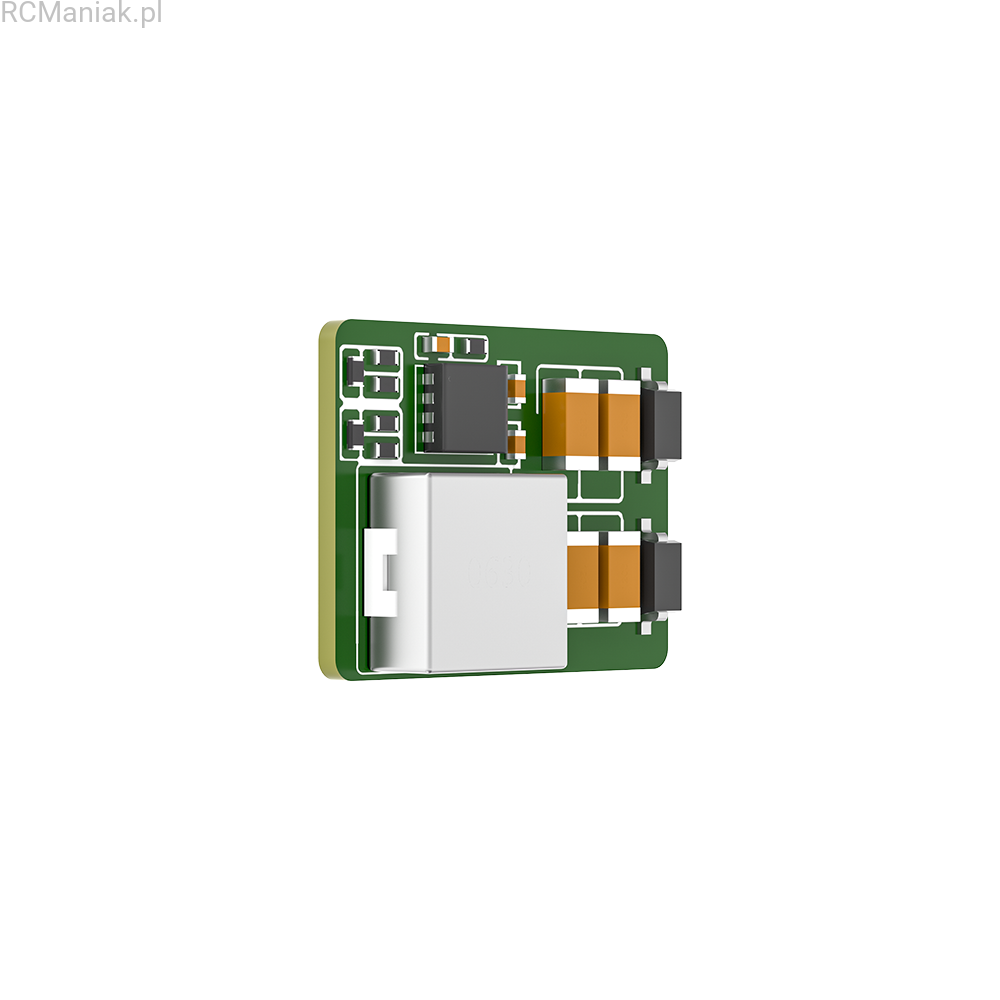

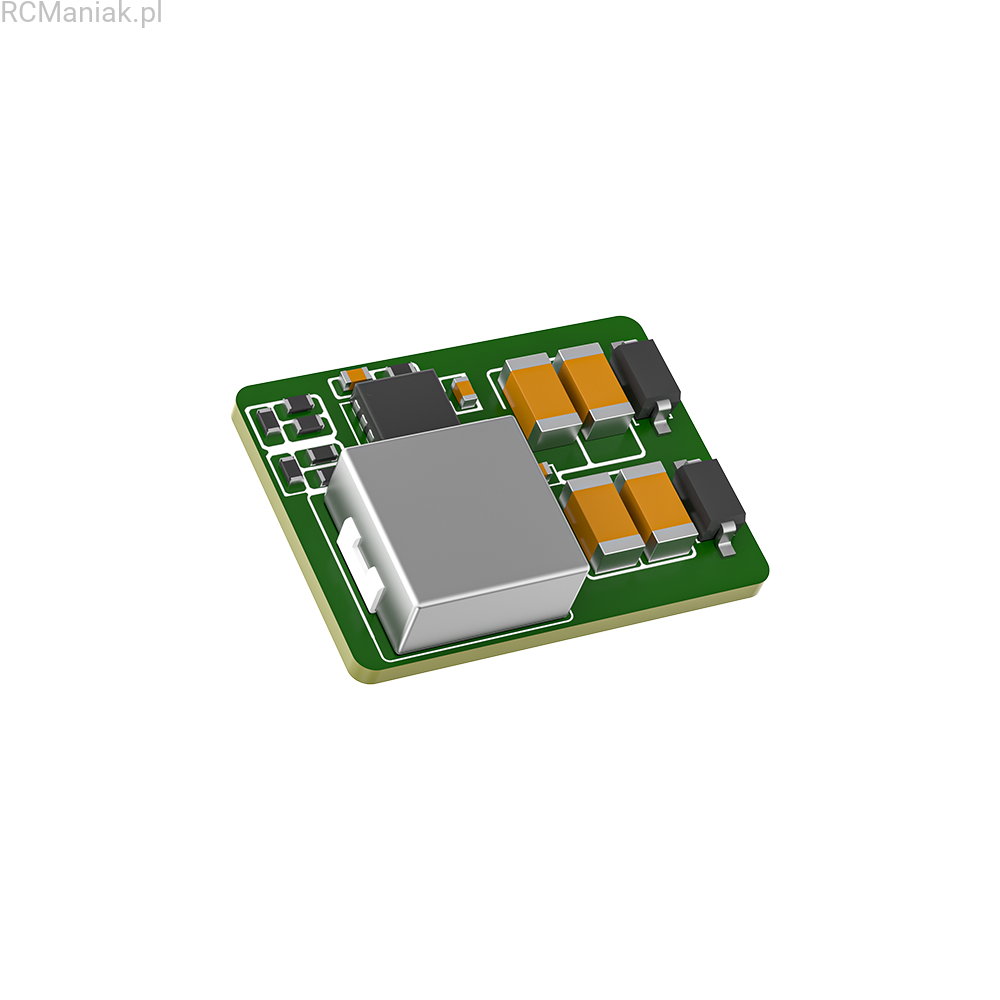

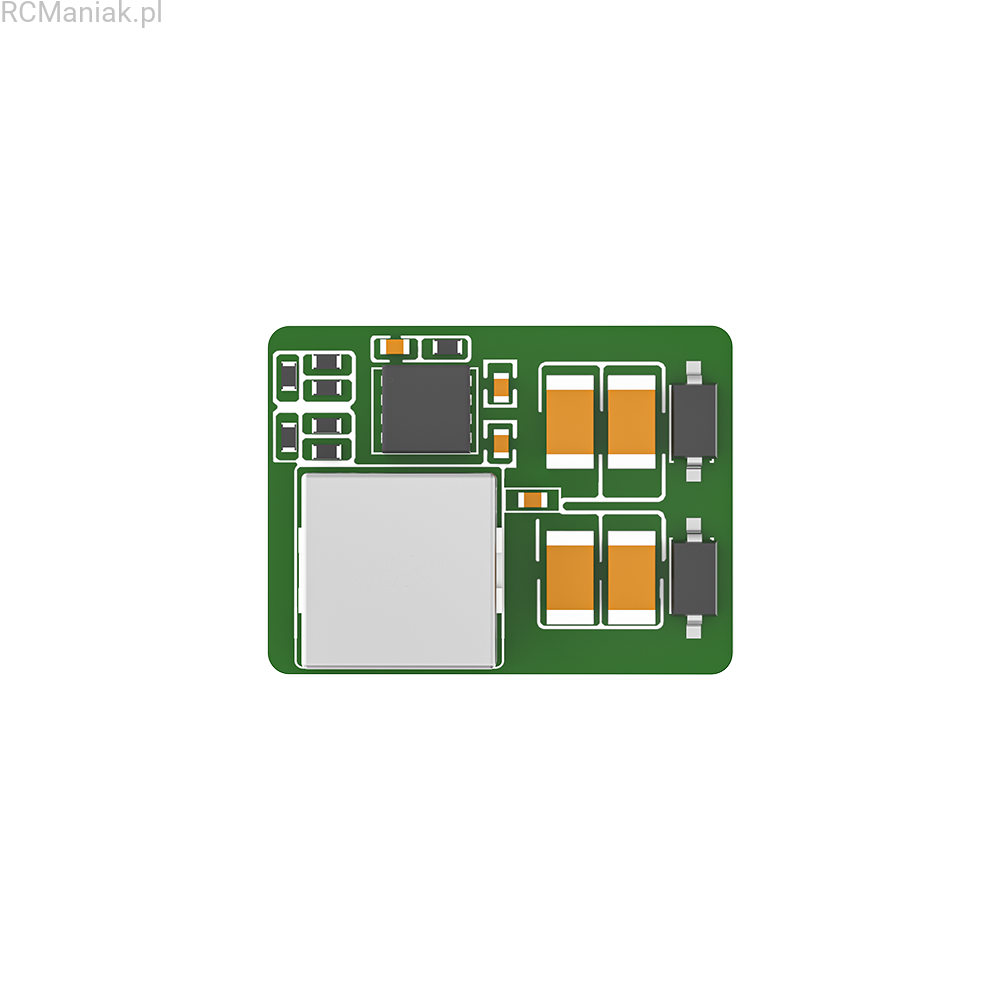

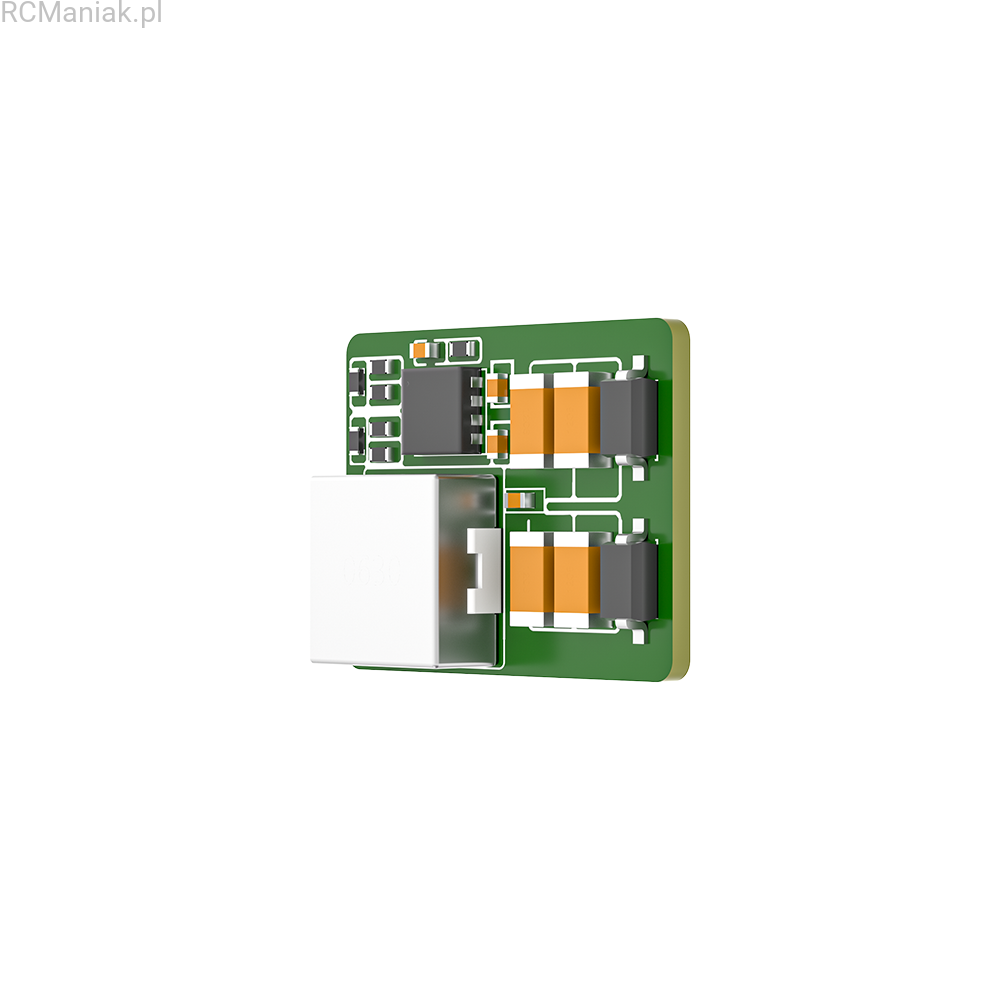

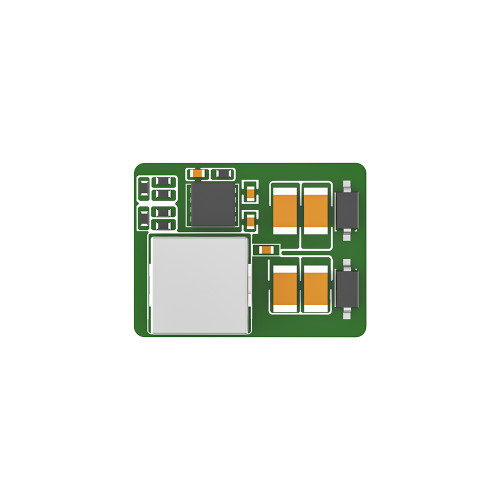

SBEC Stepdown 5V / 12V BLITZ V1.1 BEC Module
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Voltage Regulator Stepdown Step Down UBEC SBEC BEC 5V/12V 2A przełączalny.
Zasilanie 6.0V~26V (Nie podbija napięcia)
16x12mm 1.8g
The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 26V to a low output stable voltage, which makes it ideal for step-down voltage applications.
It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (6 to 26V).
November 25, 2024: Size changed from 12*14mm to 12*16mm.
Step-down switch mode
High-efficiency synchronous
Wide 6V to 26V Input voltage range
The voltage output can be 5V or 12V adjustable. (default 5V)

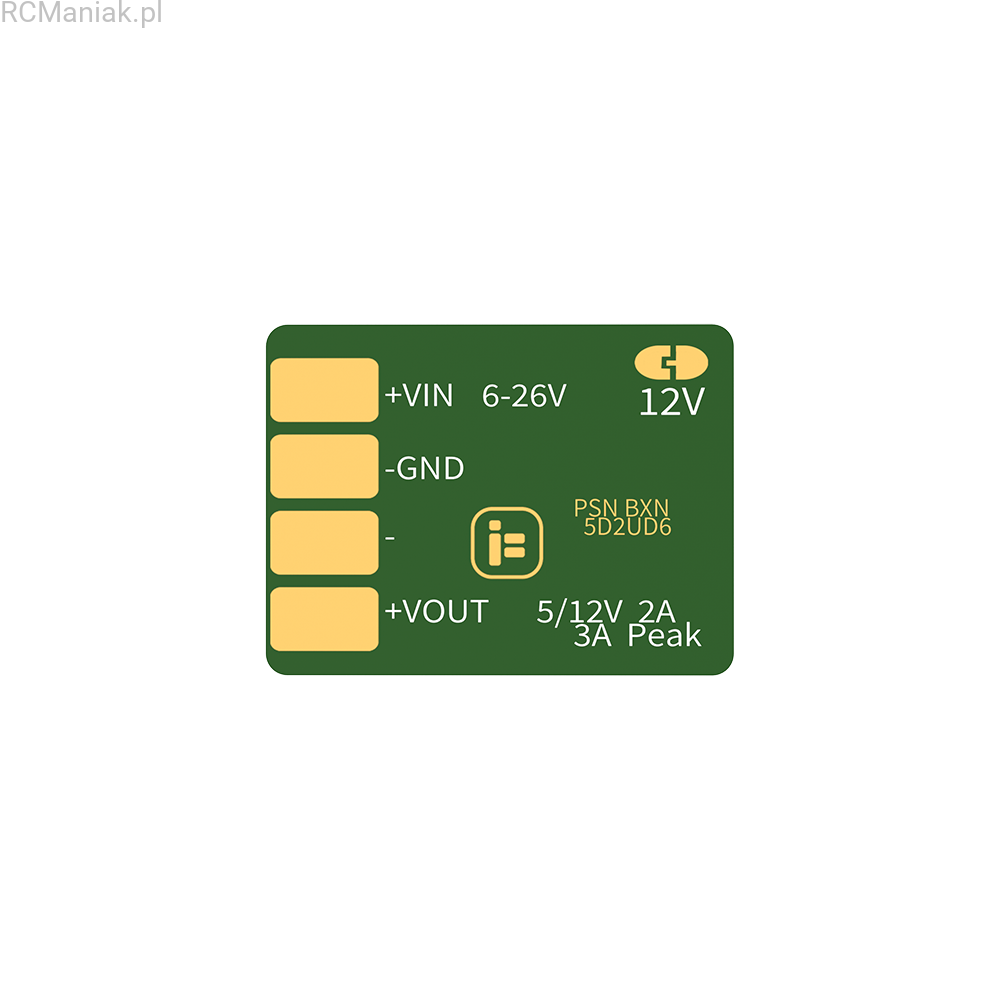

Input voltage: 6-26V
Output voltage/current: 5V or 12V. Average 2A / Peak 3A
Conversion efficiency: the average efficiency of output 12V is above 92%, and the average efficiency of output 5V is above 88%.
Size: 16*12*4.5mm
Pins distance: 2.55mm
Weight: 1.8g±0.1g
