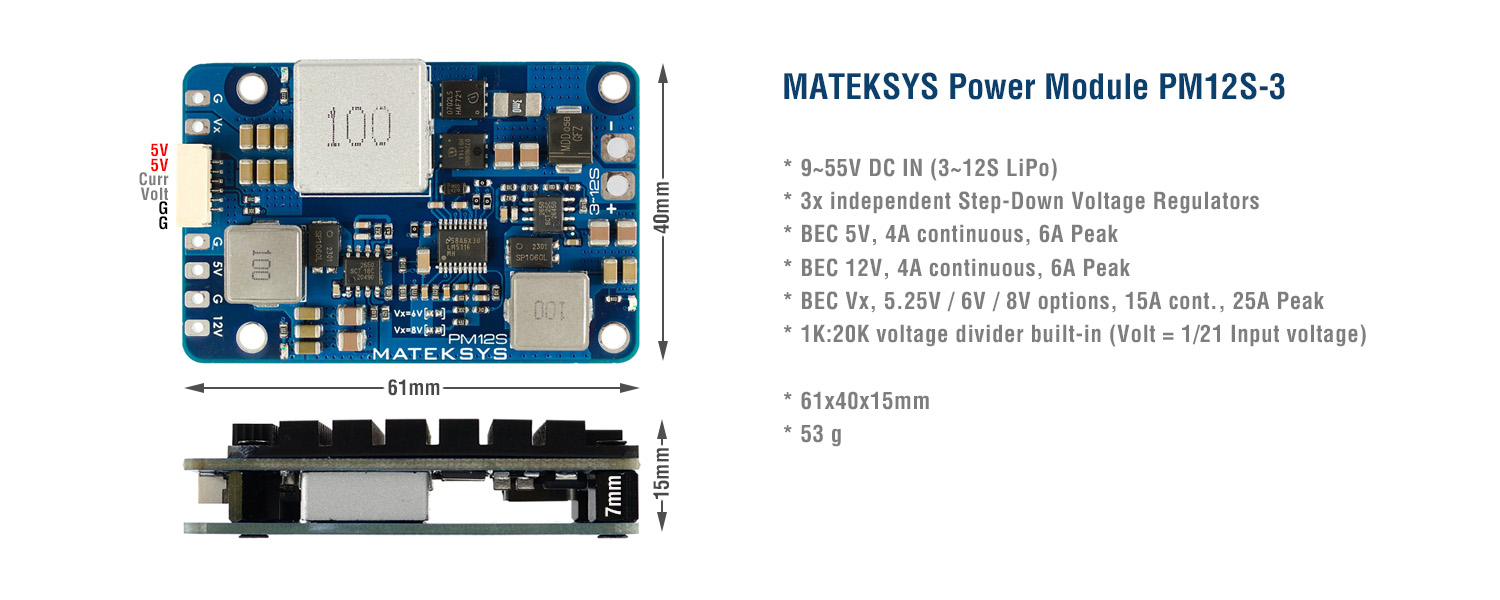

SBEC Stepdown Matek Power Module PM12S-3
Opis
SPEC
- Wide 9V to 55V Operating Input Range with TVS protection
- 3x independent Step-Down Voltage Regulators
- BEC Vx, 5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.
- BEC 5V (Fixed), 4A continuous
- BEC 12V (Fixed), 4A continuous

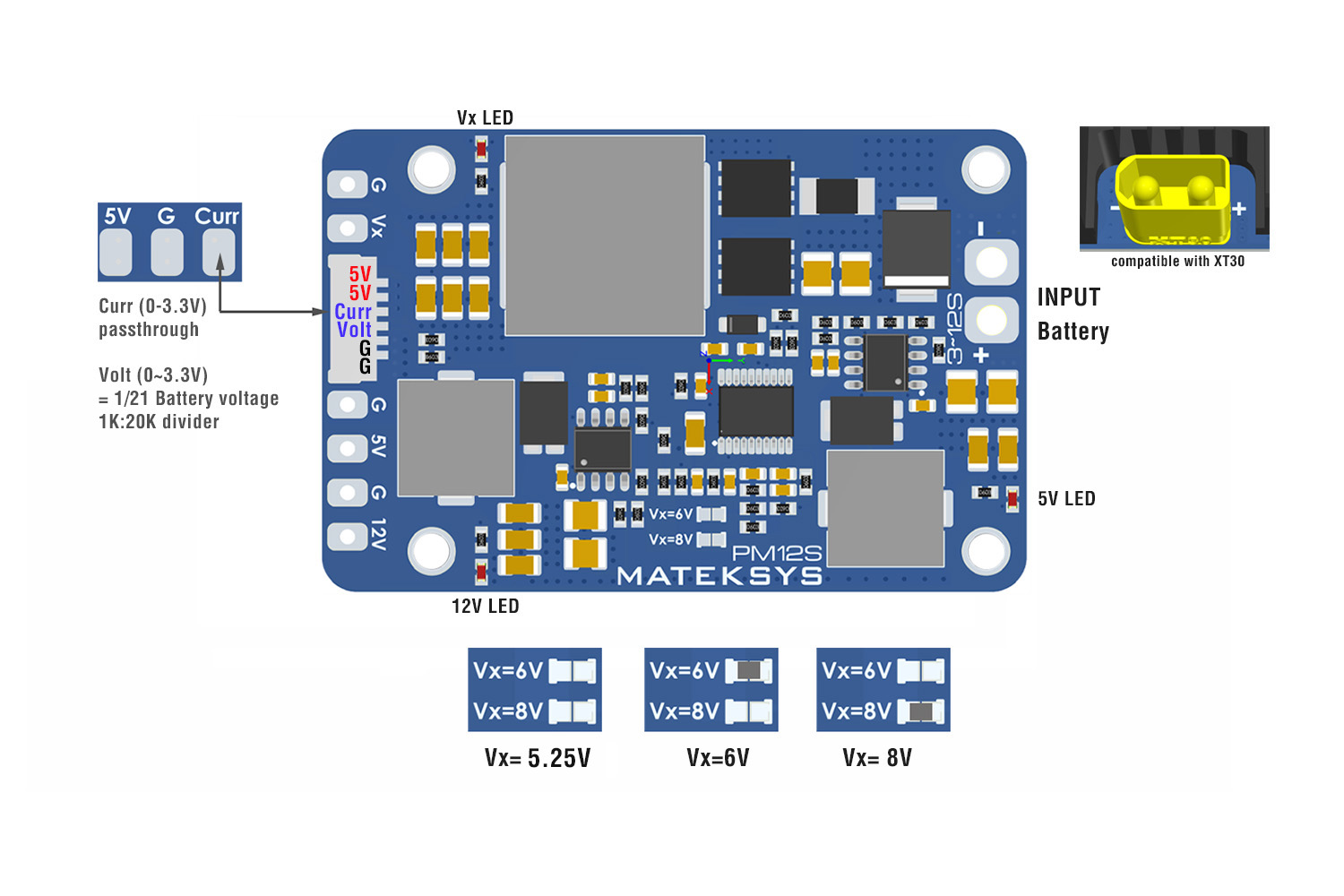

- 1K:20K voltage divider built-in (Volt = 1/21 Input voltage)
- Current sensor signal passthrough pad

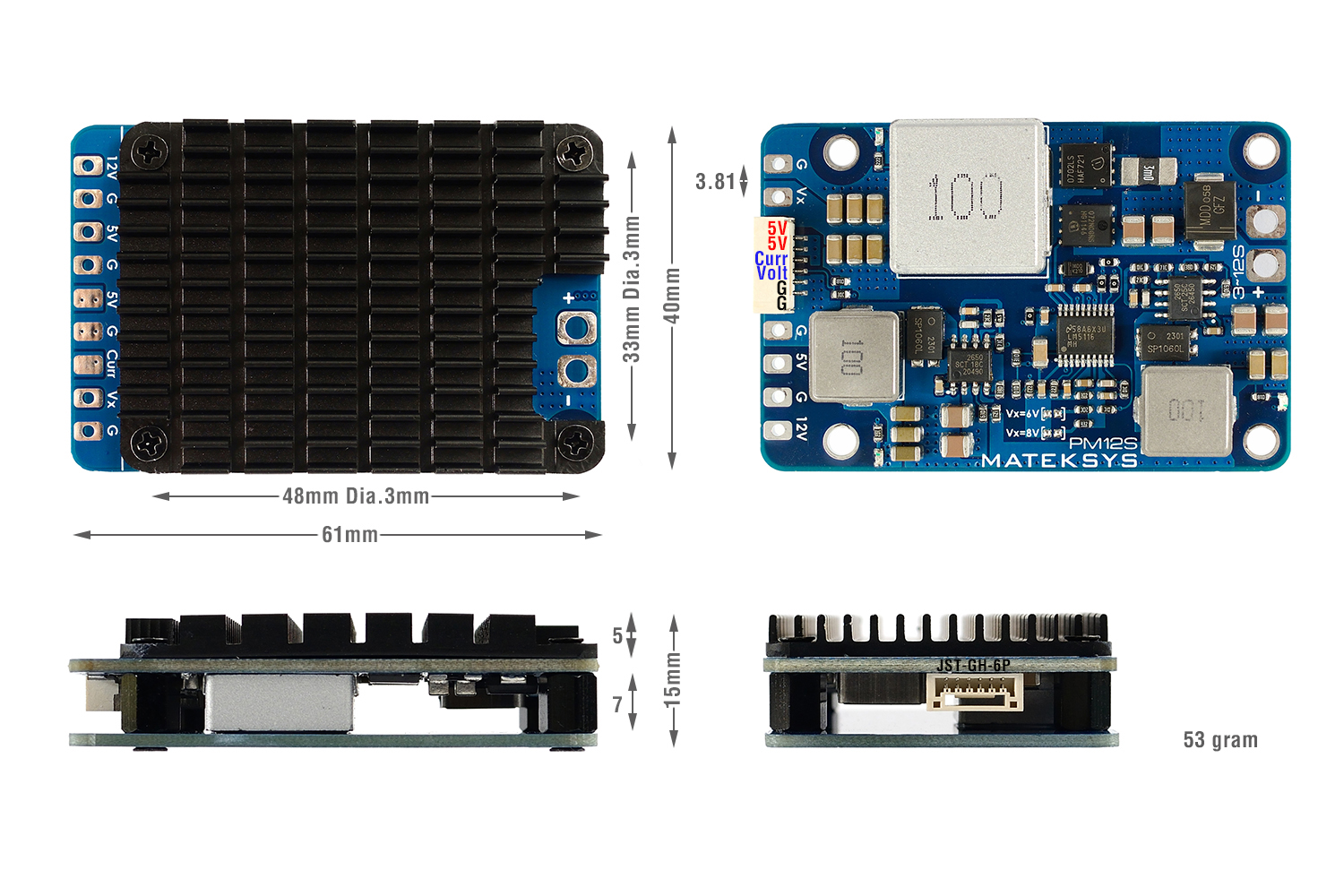

- Size & Weight: 61x40x15mm, 53g
BEC Vx
- Output voltage 5.25V / 6V / 8V options.
- Output voltage tolerance 1.5%
- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 25A.
- Output ripple 32mV (VIN=50V, Output 5.25V @ 15A), 43mV (VIN=50V, Output @ 5A)
- Standby current: 10~20mA
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
BEC 5V
- Output voltage 5.2V, tolerance 1.5%
- Supports continuous output current of up to 4A, Peak current of 6A
- Output ripple 20mV (VIN=24V, Output @ 5A), 50mV (VIN=50V, Output @ 5A)
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
BEC 12V
- Output voltage 12V, tolerance 1.5%
- Supports continuous output current of up to 4A, Peak current of 6A
- Output ripple 18mV (VIN=24V, Output @ 5A), 32mV (VIN=50V, Output @ 5A)
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 13V is required for stable 12V output
Packing
- 1x PM12S-3
- 1x Low ESR capacitor ZLJ 63v 390uf
- Tips: If the input voltage is noisy, capacitor is required to be soldered to the input pads
BEC Vx Testing
| Input Volt |
Input Amp |
Vx output Volt |
Vx output Amp |
efficiency % |
Ripple mV |
| 12 | 2.3 | 5.26 | 5 | 95.3 | 13 |
| 12 | 4.69 | 10 | 93.4 | 19 | |
| 24 | 1.16 | 5 | 94.5 | 18 | |
| 24 | 2.34 | 10 | 93.7 | 20 | |
| 24 | 3.56 | 15 | 92.3 | 22 | |
| 50 | 0.57 | 5 | 92.3 | 23 | |
| 50 | 1.14 | 10 | 92.3 | 24 | |
| 50 | 1.73 | 15 | 91.2 | 32 | |
| 12 | 2.62 | 6.02 | 5 | 95.7 | 14 |
| 12 | 5.35 | 10 | 93.8 | 15 | |
| 24 | 1.33 | 5 | 94.3 | 20 | |
| 24 | 2.67 | 10 | 93.9 | 20 | |
| 24 | 4.06 | 15 | 92.7 | 24 | |
| 50 | 0.65 | 5 | 92.6 | 24 | |
| 50 | 1.3 | 10 | 92.6 | 26 | |
| 50 | 1.97 | 15 | 91.7 | 33 | |
| 12 | 3.5 | 8.07 | 5 | 96 | 53 |
| 24 | 1.76 | 5 | 95.5 | 30 | |
| 24 | 3.54 | 10 | 95 | 30 | |
| 24 | 5.37 | 15 | 93.9 | 30 | |
| 50 | 0.87 | 5 | 92.8 | 37 | |
| 50 | 1.72 | 10 | 93.8 | 40 | |
| 50 | 2.6 | 15 | 93.1 | 43 |
