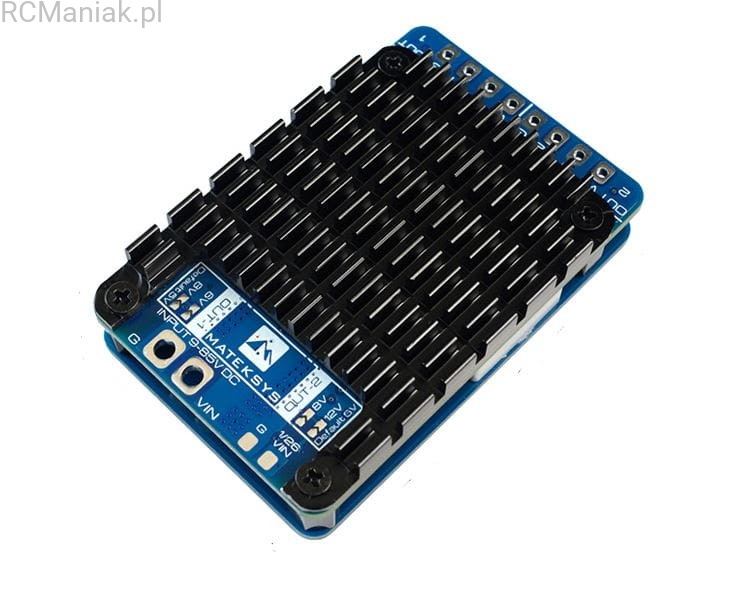

SBEC Stepdown Matek Power Module PM20S-2
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
- PM20S-2 is made with 100V DC components.
- Support 9V to 85V DC operating Input voltage with 85V TVS protection
- 2x independent Step-Down Voltage Regulators
- Regulator 1 , 5.3V / 6.1V / 8.1V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Regulator 2 , 5.3V / 8.1V / 12.2V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
- 1K:25K voltage divider built-in for 3.3V based voltage ADC
- Size & Weight: 61x40x15mm, 63g
- 3D step file PM20S-2.zip
Regulator 1
- Output voltage 5.3V / 6.1V / 8.1V options.
- Output voltage tolerance 1.5%
- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Output ripple 25mV (VIN=42V, Output 5.3V @ 5A), 35mV (VIN=58V, Output 5.3V @ 15A)
- Standby current: 10~30mA
- Reverse Input voltage protection: No
- Thermal Shutdown 150C
- Output Short-circuit tolerant (1 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
Regulator 2
- Output voltage 5.3V / 8.1V/12.2V options.
- Output voltage tolerance 1.5%
- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Output ripple 58mV (VIN=58V, Output 12V @ 5A)
- Standby current: 10~30mA
- Reverse Input voltage protection: No
- Thermal Shutdown 150C
- Output Short-circuit tolerant (1 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
| 4~8S Input | 9-10S Input | 11-14S Input | 15~20S Input | |
| Output | Single BEC continuous output. After continuous running for 5 minutes, the board temperature stabilized at 80~90℃.
No Thermal shutdown @ Room Temperature 20℃. |
|||
| 5.3v | 15A | 15A | 15A | 13A |
| 6.1V | 15A | 15A | 15A | 12A |
| 8.1V | 15A | 15A | 13A | 12A |
| 12.2V | 15A | 13A | 10A | 10A |
| Peak output current 22A.
Peak current usually makes sense for servos. Servos do not always run at continuous high loads. |
||||
| Input(V) | Input(A) | Output(V) | Output(A) | efficiency | Power loss(W) | Vpp(mV) |
| 25.00 | 1.12 | 5.31 | 5 | 94.82% | 1.37 | 20 |
| 25.00 | 2.25 | 5.31 | 10 | 94.40% | 2.97 | 23 |
| 25.00 | 3.43 | 5.31 | 15 | 92.89% | 5.67 | 27 |
| 42.00 | 0.70 | 5.32 | 5 | 90.48% | 2.53 | 25 |
| 42.00 | 1.36 | 5.31 | 10 | 92.96% | 3.74 | 30 |
| 42.00 | 2.05 | 5.31 | 15 | 92.51% | 5.97 | 33 |
| 58.00 | 0.51 | 5.32 | 5 | 89.93% | 2.68 | 30 |
| 58.00 | 1.01 | 5.31 | 10 | 90.65% | 4.97 | 32 |
| 58.00 | 1.51 | 5.31 | 15 | 90.95% | 7.21 | 35 |
| 75.00 | 0.41 | 5.32 | 5 | 86.50% | 3.59 | |
| 75.00 | 0.79 | 5.31 | 10 | 89.62% | 5.51 | |
| 75.00 | 1.19 | 5.31 | 15 | 89.24% | 8.57 | |
| 85.00 | 0.36 | 5.32 | 5 | 86.93% | 3.48 | |
| 85.00 | 0.70 | 5.31 | 10 | 89.24% | 5.71 | |
| 85.00 | 1.05 | 5.31 | 15 | 89.24% | 8.57 | |
| Input(V) | Input(A) | Output(V) | Output(A) | efficiency | Power loss(W) | Vpp(mV) |
| 25.00 | 1.29 | 6.12 | 5 | 94.88% | 1.57 | 25 |
| 25.00 | 2.58 | 6.12 | 10 | 94.88% | 3.13 | 35 |
| 25.00 | 3.92 | 6.12 | 15 | 93.67% | 5.81 | |
| 42.00 | 0.80 | 6.12 | 5 | 91.07% | 2.73 | 28 |
| 42.00 | 1.55 | 6.12 | 10 | 94.01% | 3.67 | 39 |
| 42.00 | 2.34 | 6.12 | 15 | 93.41% | 6.05 | |
| 58.00 | 0.58 | 6.12 | 5 | 90.96% | 2.77 | 29 |
| 58.00 | 1.15 | 6.12 | 10 | 91.75% | 5.05 | 40 |
| 58.00 | 1.73 | 6.12 | 15 | 91.49% | 7.81 | |
| 75.00 | 0.46 | 6.12 | 5 | 88.70% | 3.46 | |
| 75.00 | 0.90 | 6.12 | 10 | 90.67% | 5.71 | |
| 75.00 | 1.35 | 6.12 | 15 | 90.67% | 8.57 | |
| 85.00 | 0.42 | 6.12 | 5 | 85.71% | 4.37 | |
| 85.00 | 0.80 | 6.12 | 10 | 90.00% | 6.12 | |
| 85.00 | 1.20 | 6.12 | 15 | 90.00% | 9.18 | |
| Input(V) | Input(A) | Output(V) | Output(A) | efficiency | Power loss(W) | Vpp(mV) |
| 25.00 | 1.71 | 8.16 | 5 | 95.44% | 1.86 | 26 |
| 25.00 | 3.42 | 8.16 | 10 | 95.44% | 3.72 | 38 |
| 25.00 | 5.18 | 8.16 | 15 | 94.52% | 6.71 | |
| 42.00 | 1.03 | 8.16 | 5 | 94.31% | 2.32 | 43 |
| 42.00 | 2.03 | 8.16 | 10 | 95.71% | 3.50 | 50 |
| 42.00 | 3.07 | 8.16 | 15 | 94.93% | 6.21 | |
| 58.00 | 0.76 | 8.16 | 5 | 92.56% | 3.04 | 50 |
| 58.00 | 1.49 | 8.16 | 10 | 94.42% | 4.55 | 56 |
| 58.00 | 2.25 | 8.16 | 15 | 93.79% | 7.60 | |
| 75.00 | 0.60 | 8.16 | 5 | 90.67% | 3.81 | |
| 75.00 | 1.17 | 8.16 | 10 | 92.99% | 5.72 | |
| 75.00 | 1.75 | 8.16 | 15 | 93.26% | 8.25 | |
| 85.00 | 0.53 | 8.16 | 5 | 90.57% | 3.85 | |
| 85.00 | 1.03 | 8.16 | 10 | 93.20% | 5.55 | |
| 85.00 | 1.55 | 8.16 | 15 | 92.90% | 8.69 | |
| Input(V) | Input(A) | Output(V) | Output(A) | efficiency | Power loss(W) | Vpp(mV) |
| 25.00 | 2.54 | 12.24 | 5 | 96.38% | 2.22 | 40 |
| 25.00 | 5.08 | 12.24 | 10 | 96.38% | 4.43 | 45 |
| 25.00 | 7.65 | 12.24 | 15 | 96.00% | 7.34 | |
| 42.00 | 1.53 | 12.24 | 5 | 95.24% | 2.91 | 50 |
| 42.00 | 3.03 | 12.24 | 10 | 96.18% | 4.67 | 56 |
| 42.00 | 4.57 | 12.24 | 15 | 95.65% | 7.98 | |
| 58.00 | 1.14 | 12.24 | 5 | 92.56% | 4.55 | 58 |
| 58.00 | 2.23 | 12.24 | 10 | 94.63% | 6.57 | 62 |
| 58.00 | 3.34 | 12.24 | 15 | 94.78% | 9.59 | |
| 75.00 | 0.88 | 12.20 | 5 | 92.42% | 4.62 | |
| 75.00 | 1.72 | 12.20 | 10 | 94.57% | 6.62 | |
| 75.00 | 2.58 | 12.20 | 15 | 94.57% | 9.93 | |
| 85.00 | 0.78 | 12.20 | 5 | 92.01% | 4.88 | |
| 85.00 | 1.53 | 12.20 | 10 | 93.81% | 7.55 | |
| 85.00 | 2.29 | 12.20 | 15 | 94.01% | 10.95 |
