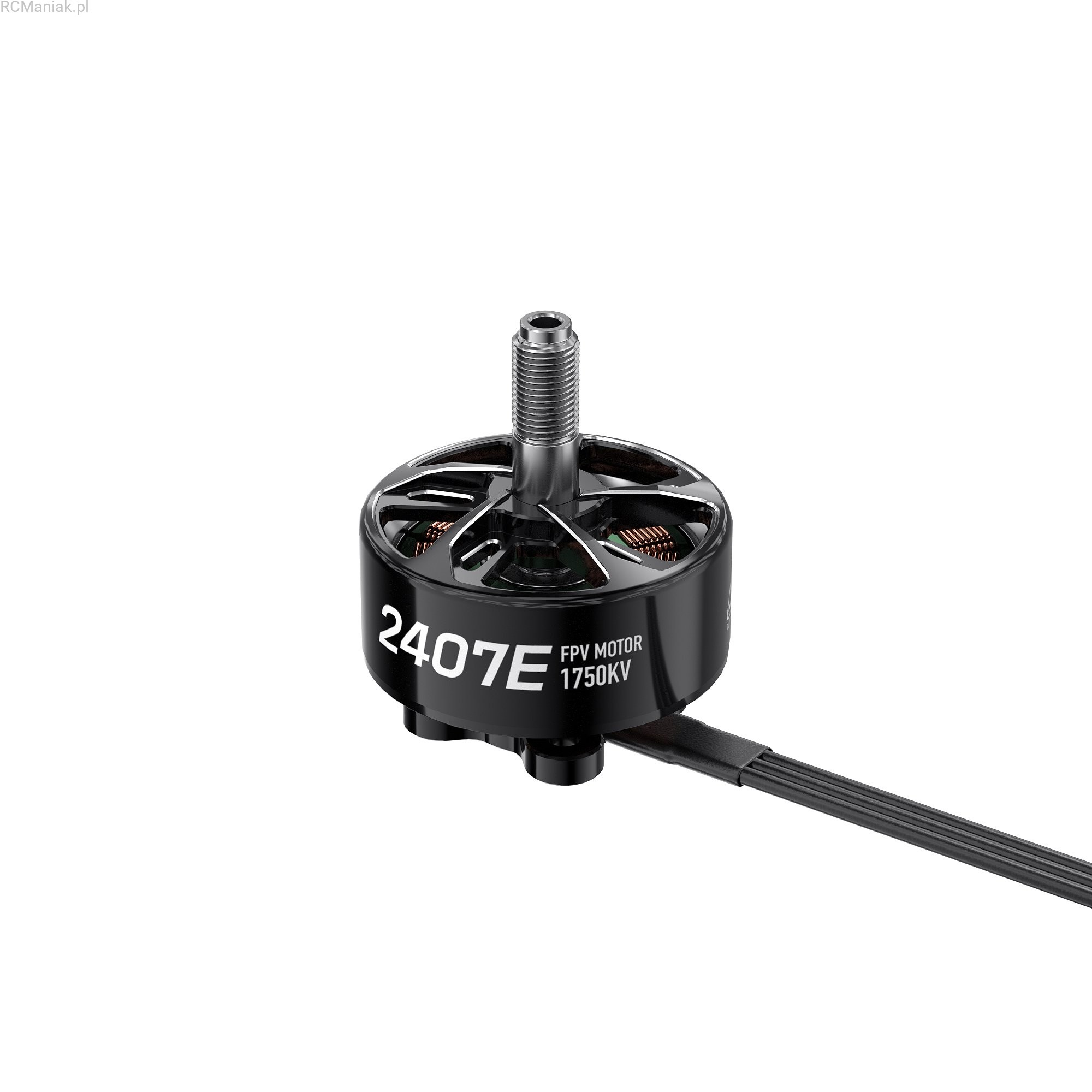

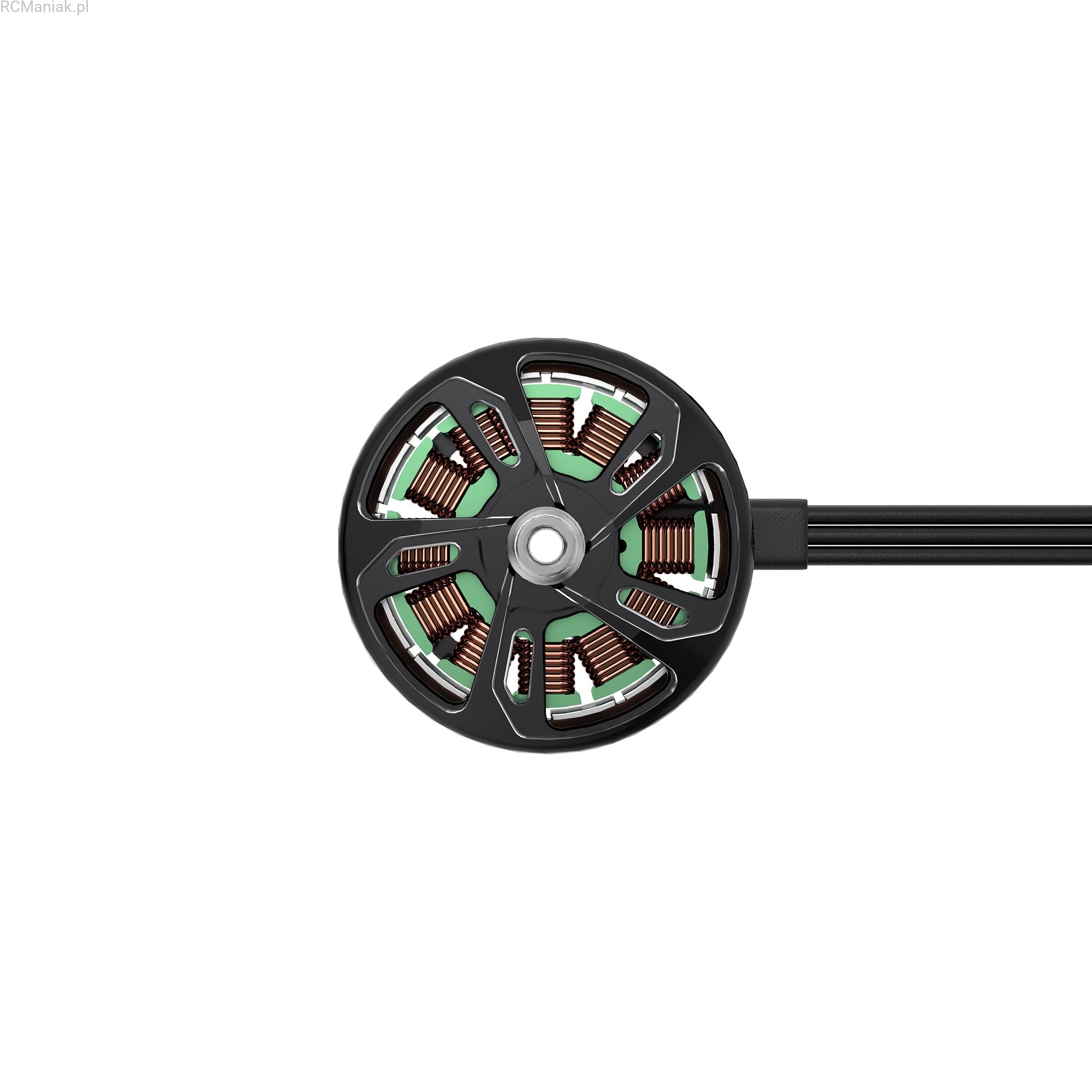

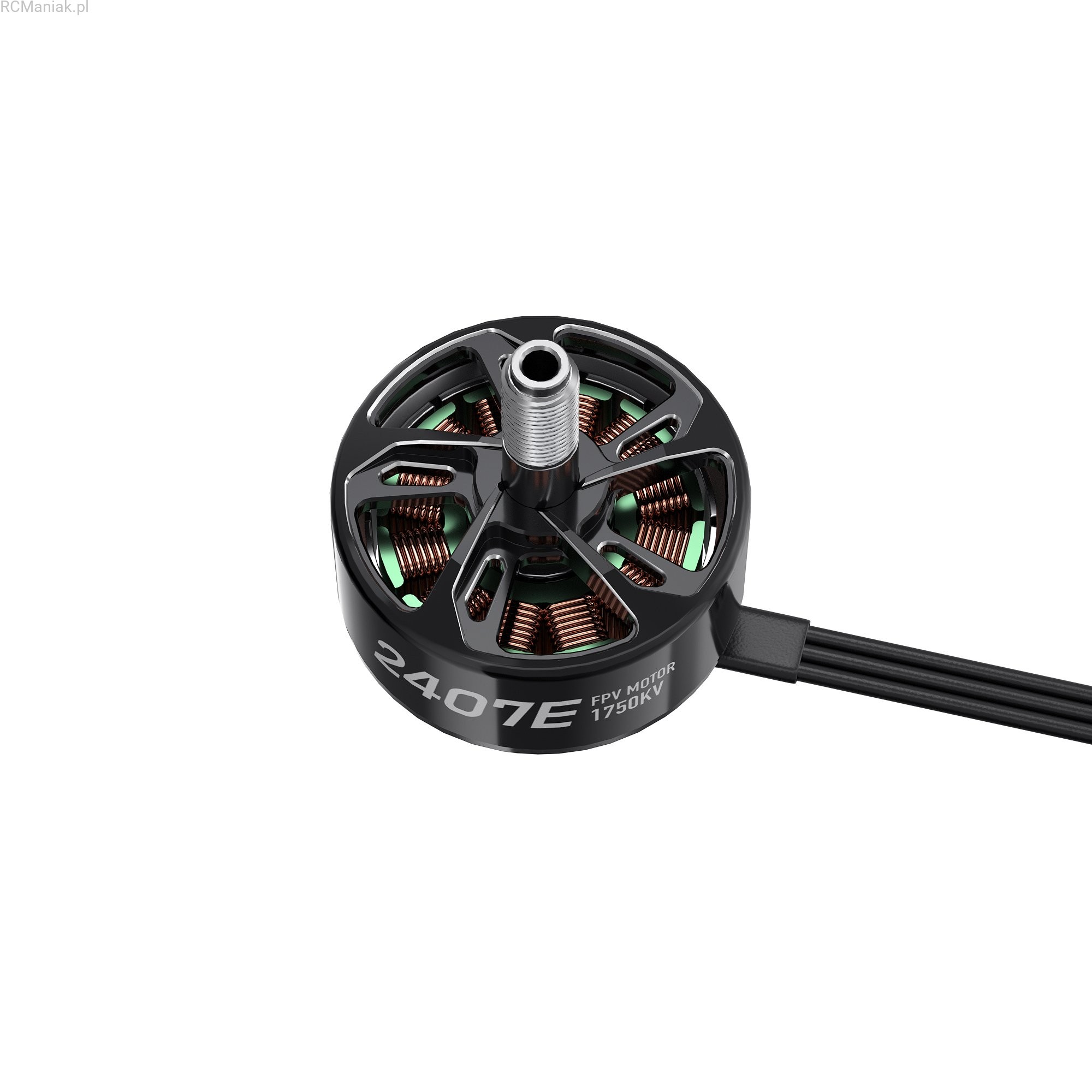

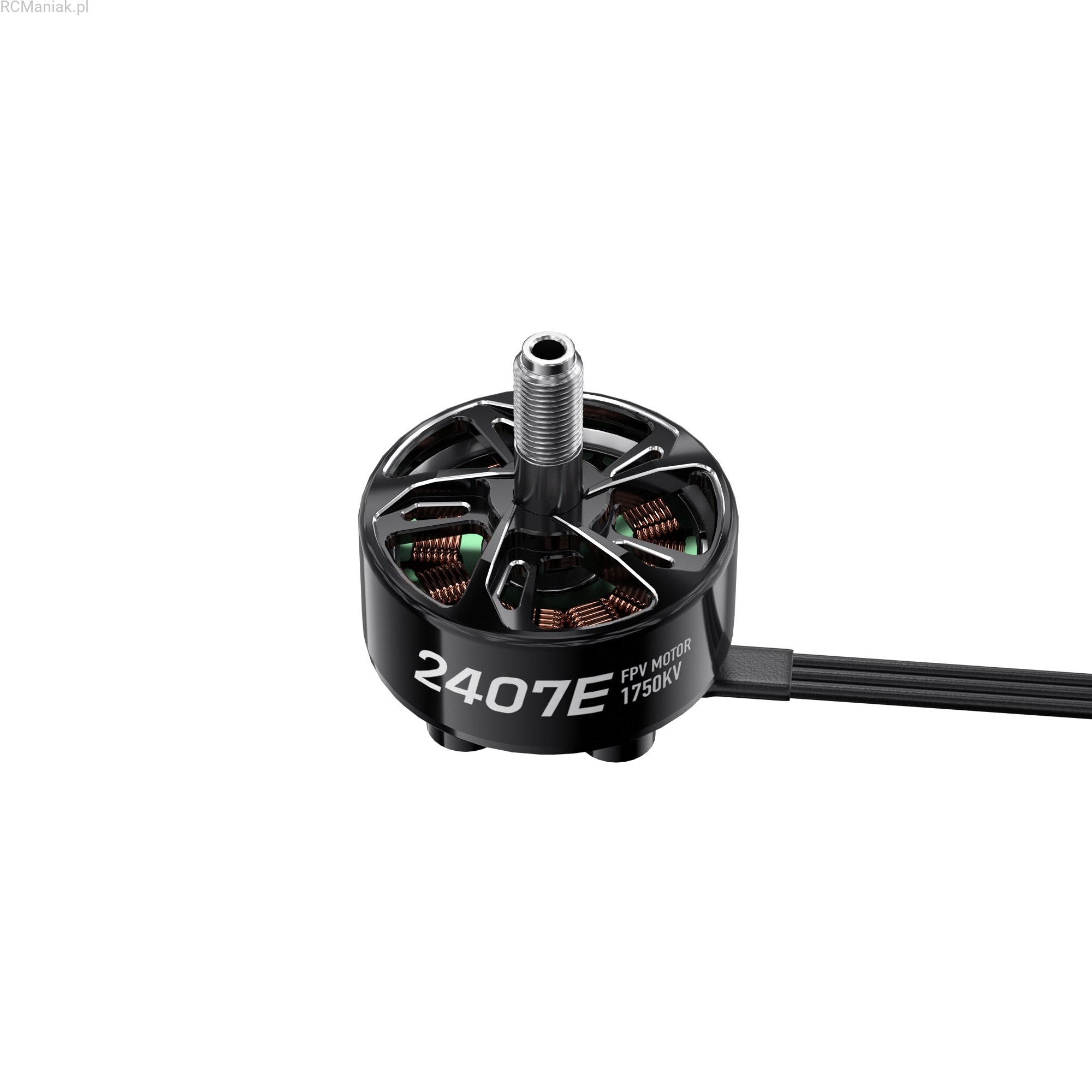

Silnik GEPRC SPEEDX2 2407E 1750KV Motor
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Summary
The SPEEDX2 2407E motor is tailored for quick responsiveness in advanced flight applications, featuring an optimized rotor and stator gap. Its all-black design and extensive cut-out structure enhance heat dissipation. Constructed from aviation-grade aluminum alloy using precision CNC molding, this motor is lightweight and durable.
Feature
- Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
- The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
- Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.
Specifications
Model: SPEEDX2 2407E Motor
KV: 1750
Max Watt: 972.7W
Peak Current: 49A
Interphase Resistance: 38mΩ
Propeller: 5-6inch
Magnet: N52H
Bearing: NMB/NSK
Stator Configuration: 12N14P
Dimension: ф34*30mm
Shaft Diameter：ф5mm
Shaft Length：13.5mm
Mounting Hole Size：16*16mm
Wire Specification: 20AWG/150mm
Compatible ESC: 60A/6S
Input Voltage：6S
Winding: Single-strand copper winding
Color: Black
Weight: 39g (including wire)
Compatible Models: Suitable for 5inch-6inch racing FPV quads
