Zestaw odbiorników nano 2x RP1 i 1x RP2 ExpressLRS 2.4ghz (Starter Set)

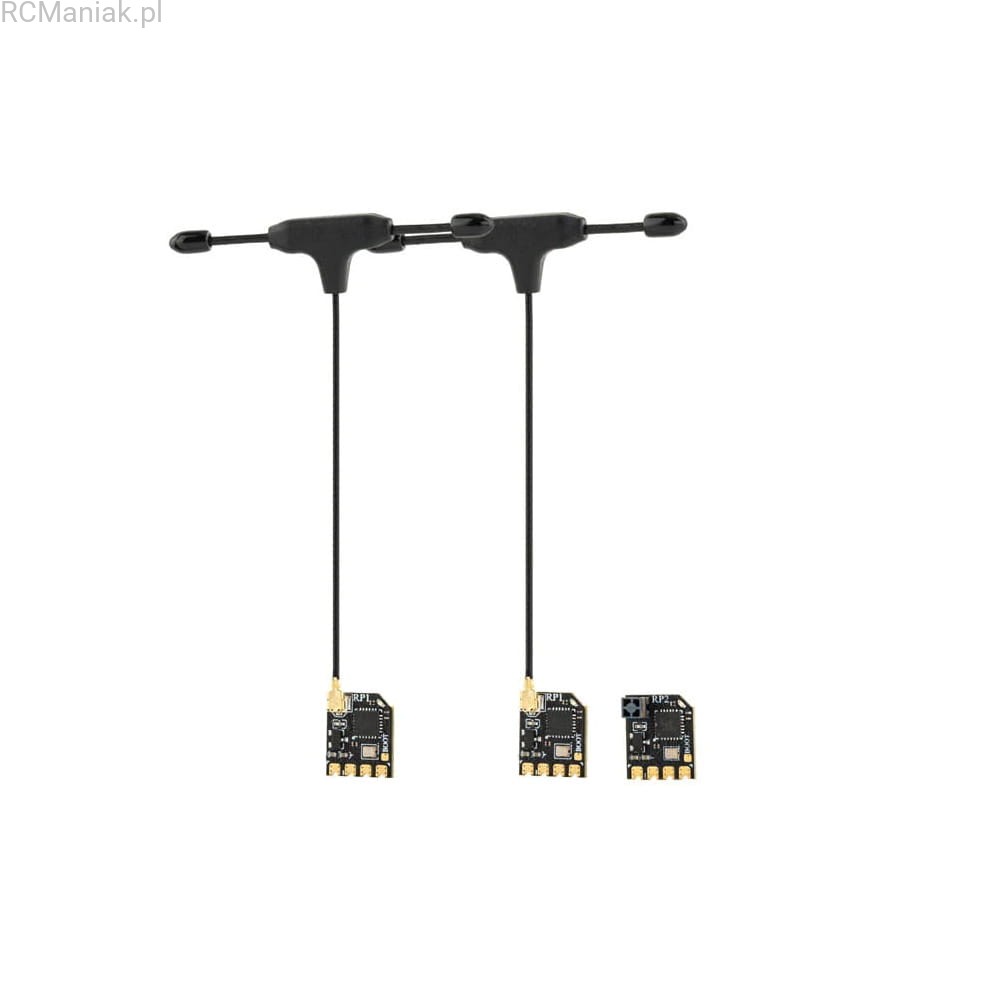

Zestaw trzech odbiorników ELRS: 2szt RP1, 1szt RP2

Dla zaawansowanych użytkowników, do obsługi wymagana jest znajomość obsługi oprogramowania OpenLRS oraz programowania odbiorników ELRS

Zasilanie: 5V

RP1:

Wymiary: 13x11x3mm

Waga:2.2g z anteną

RP2:

Wymiary: 13x11x7mm

Waga:0,55g z anteną

Set of ELRS receivers. 2pcs RP1 and 1pcs RP2

The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS.

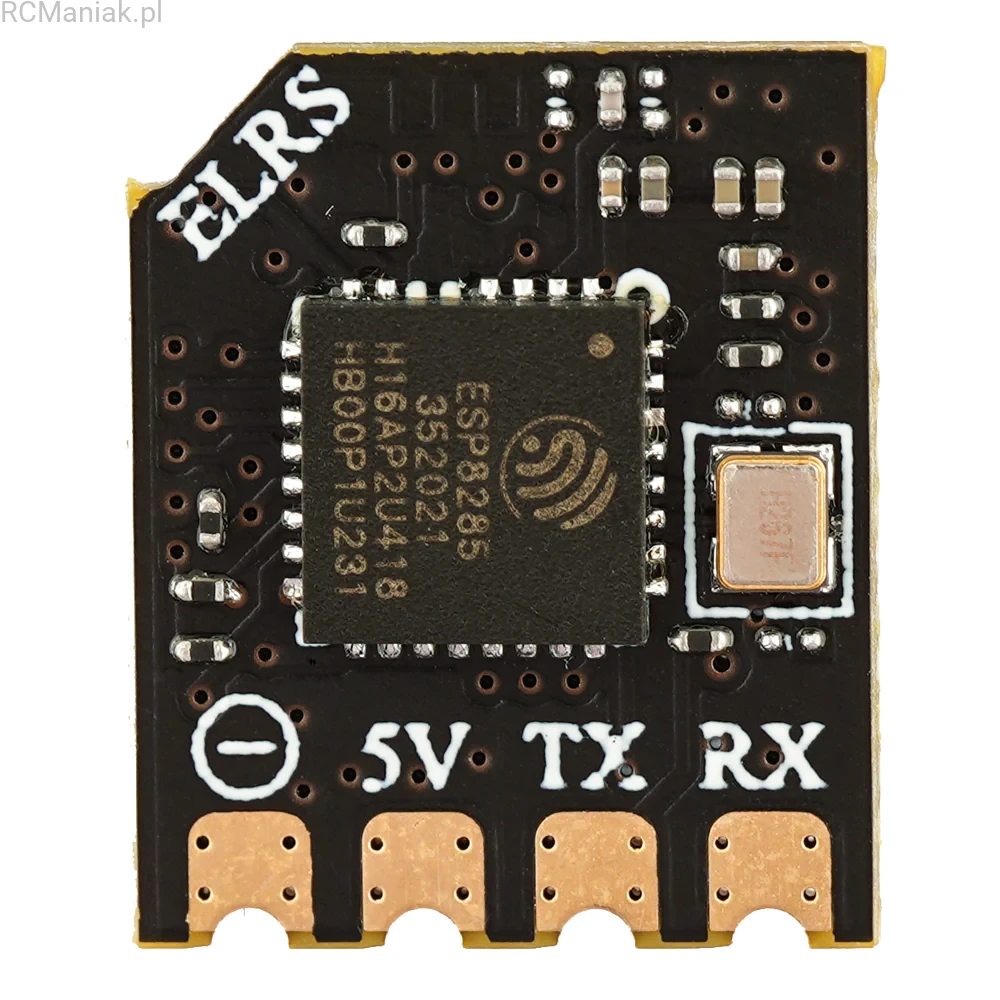

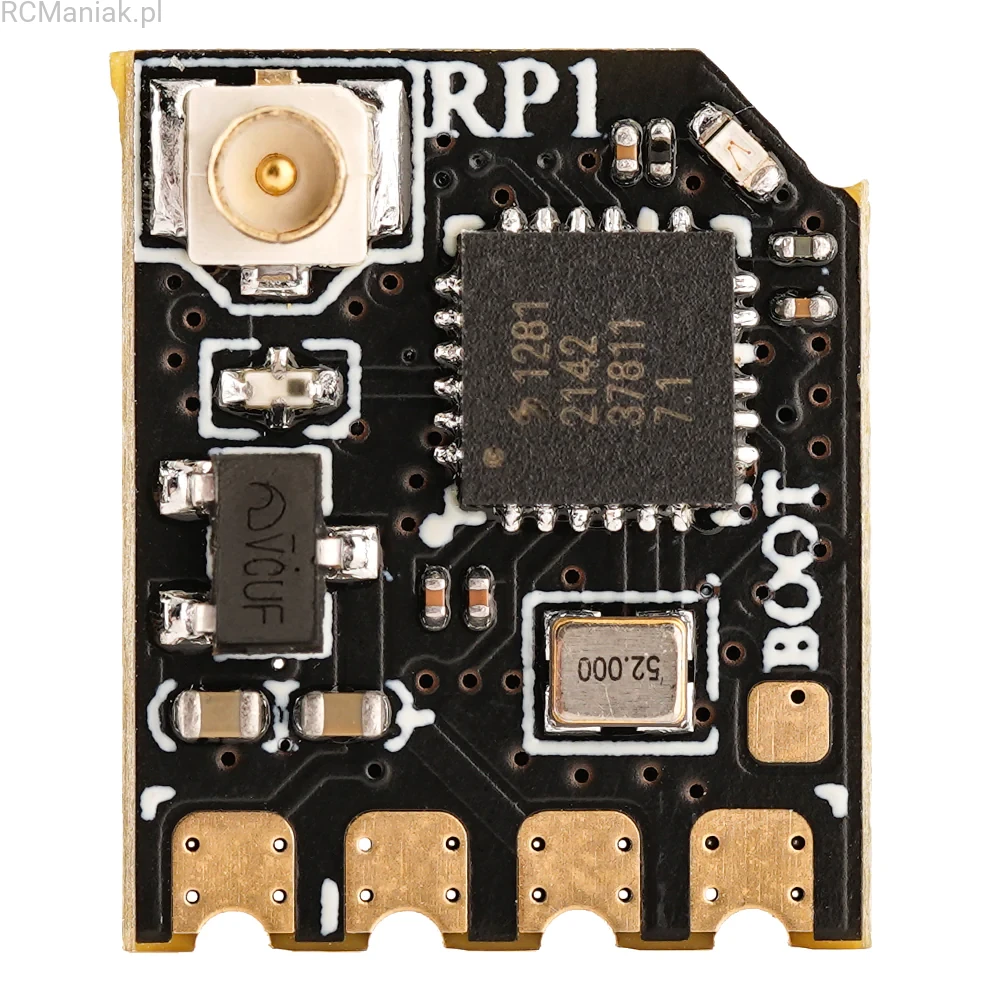

The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.

The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!

Visit https://www.expresslrs.org/ to learn more.

Bullet Point

• Improved PCB design is better for heat dissipation.
• Upgraded rigid antenna with greater durability and performance.
• LED on the top side of PCB.
• Solder pads are improved and easier to solder to.

RP1 Specification

• Item: RP1 Nano ExpressLRS 2.4ghz Receiver
• Type: ISM
• Antenna: 65mm 2.4ghz T Antenna
• Maximum receive refresh rate: 500Hz / F1000Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 2.2g (Including antenna)
• Dimension: 13mm*11mm*3mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• FW Target: RadioMaster RP1/2 2400 RX
• Bus interface: CRSF

RP2 Specification

• Item: RP2 Nano ExpressLRS 2.4ghz Receiver
• Type: ISM
• Antenna: On Board SMT Antenna
• Maximum receive refresh rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz Working voltage: 5v
• Weight: 0.55g (On Board antenna)
• Dimension: 13mm*11mm*7mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• FW Target: RadioMaster RP1/2 2400 RX
• Bus interface: CRSF
