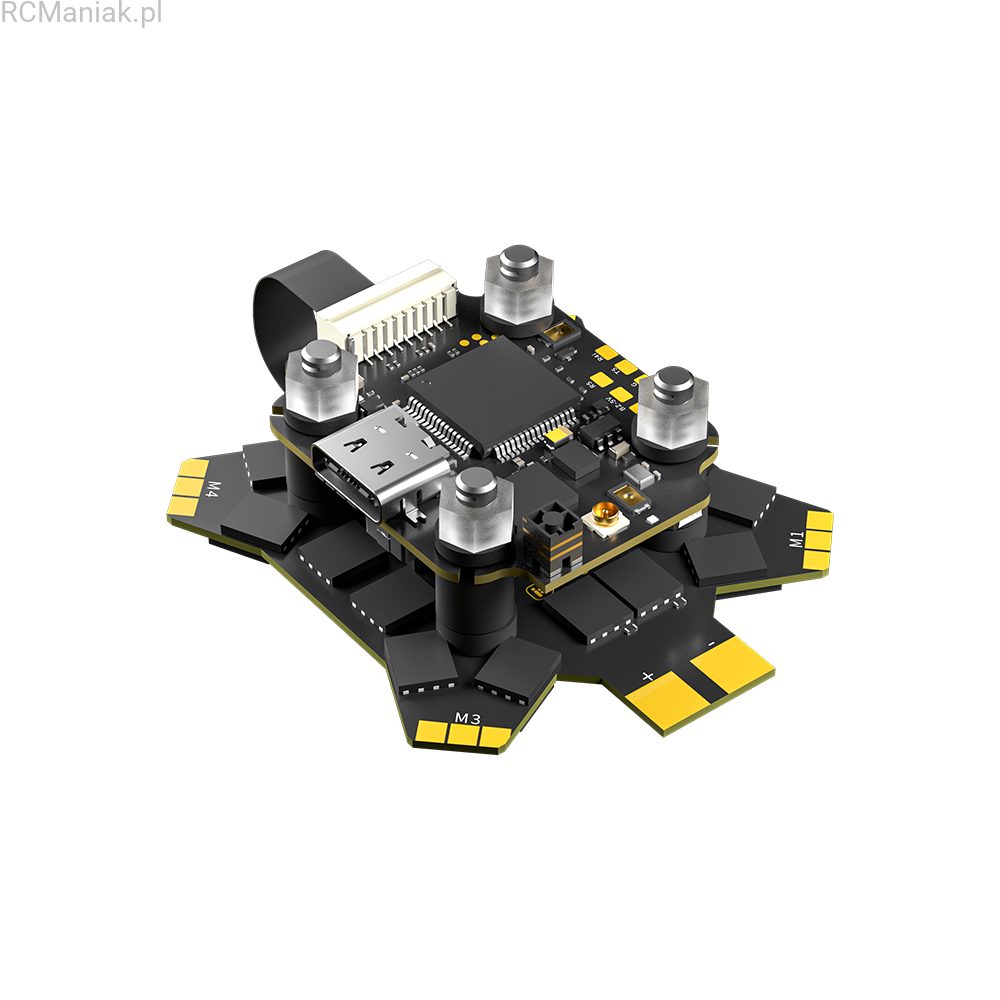

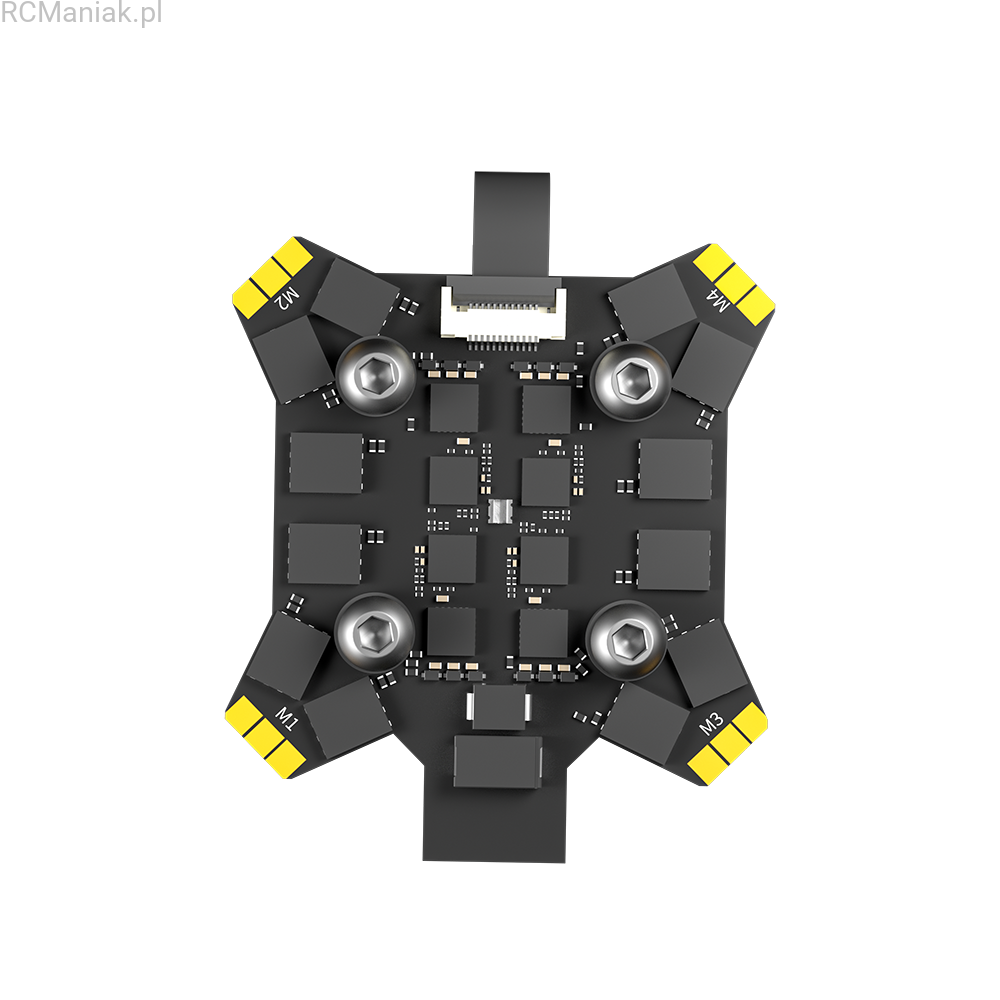

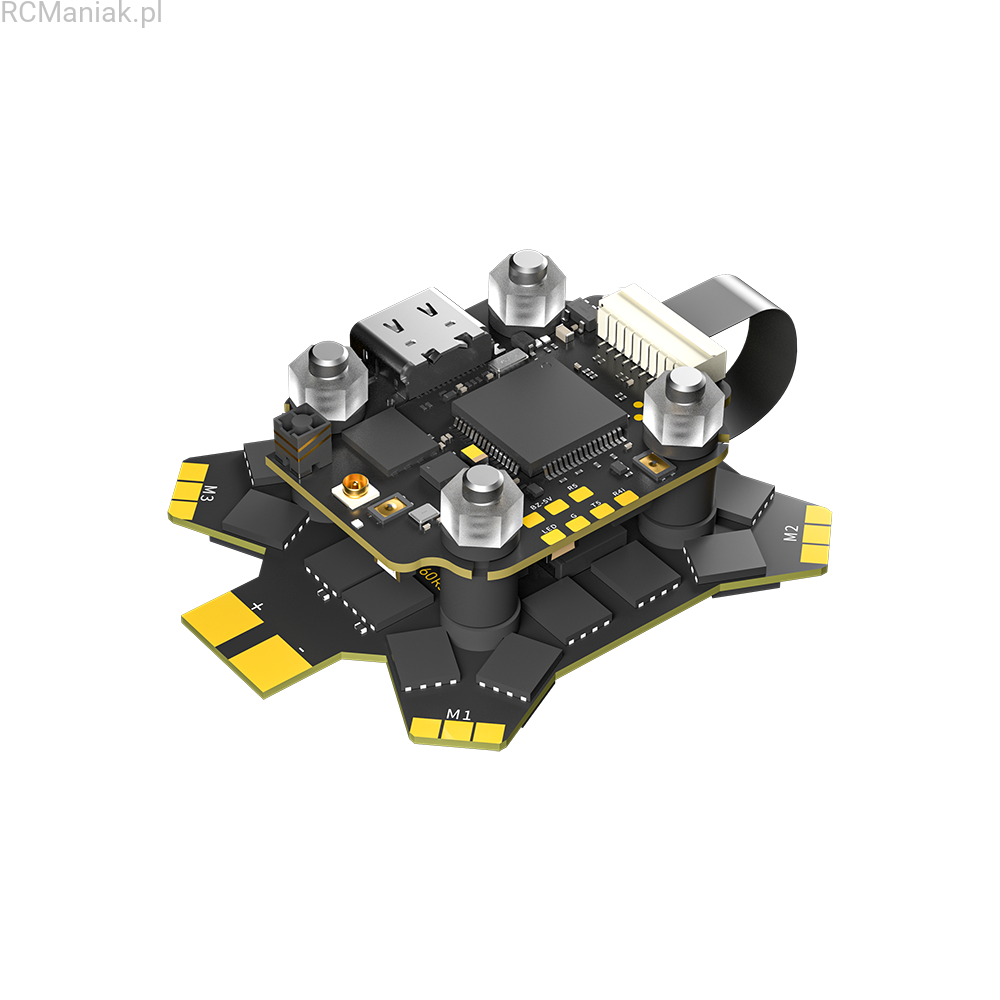

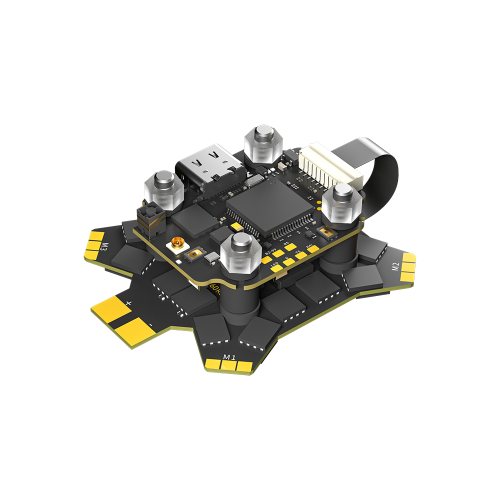

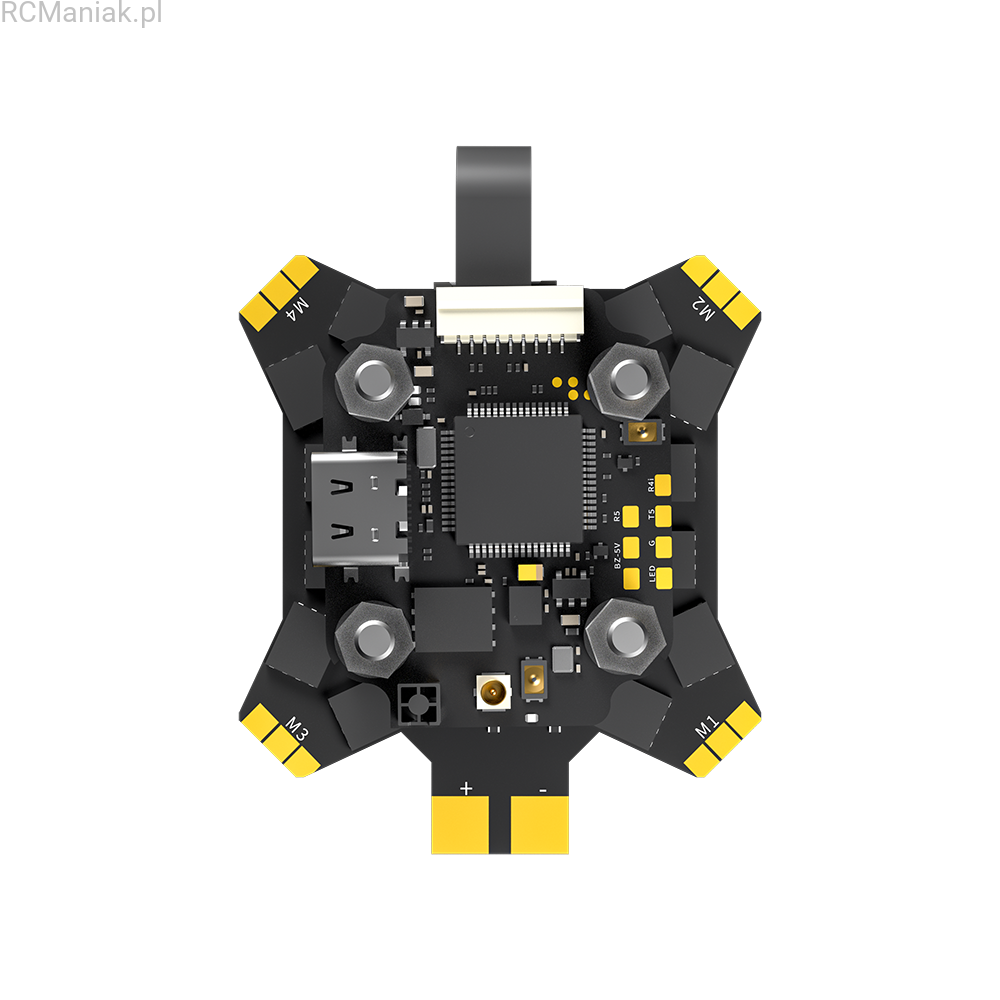

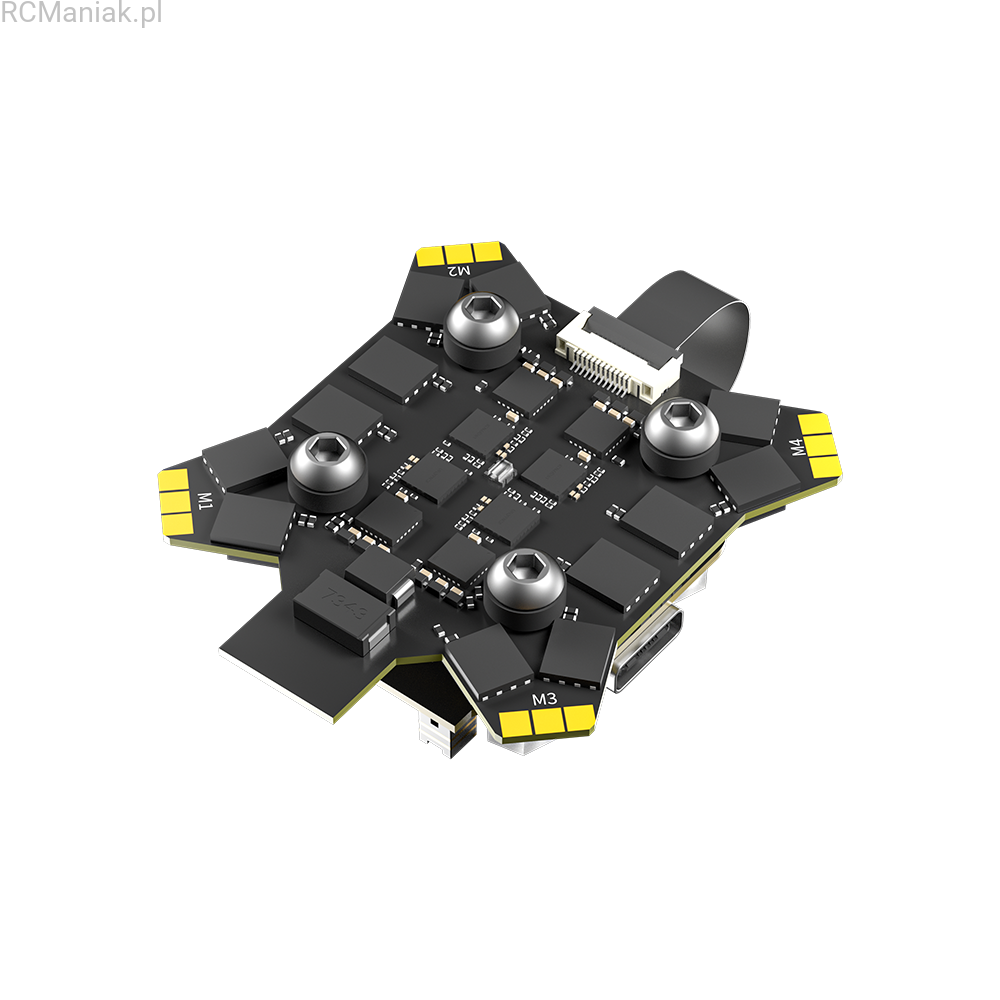

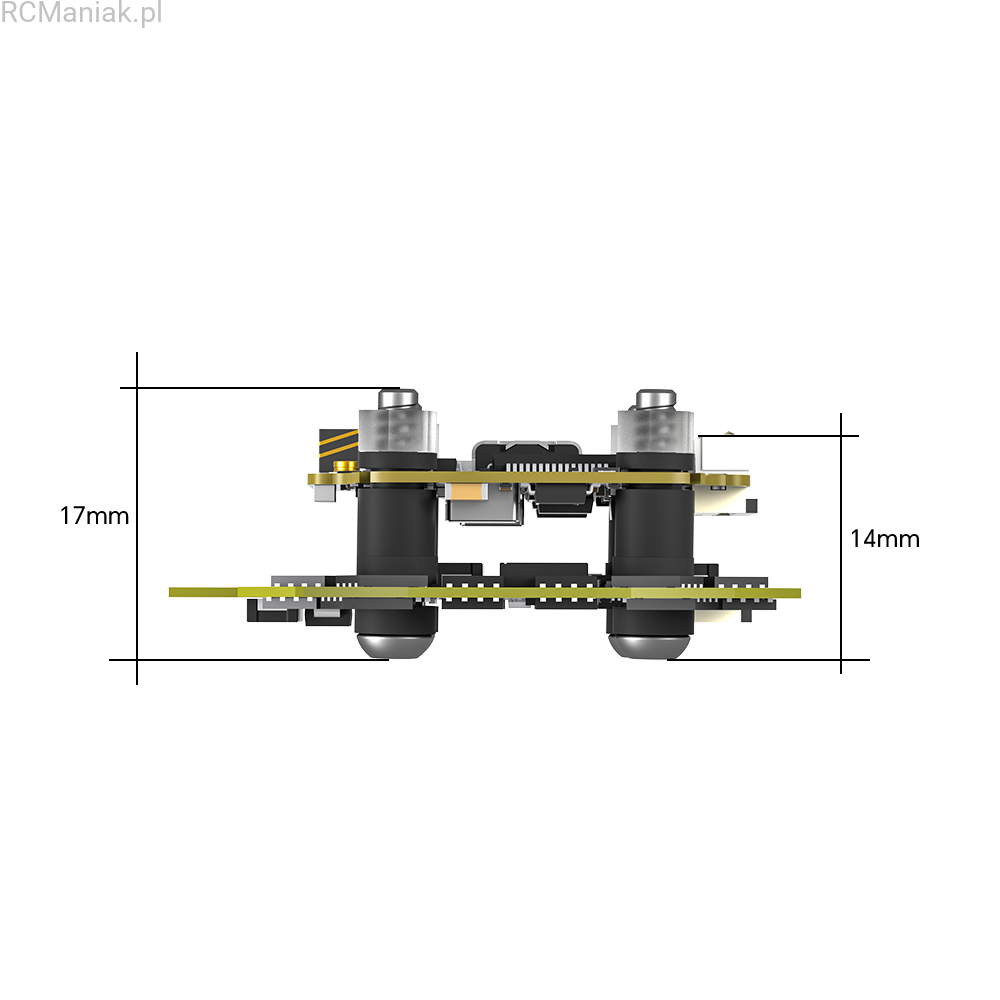

iFlight Borg 5S RX Stack Mini 60R 60A ELRS
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Dla zaawansowanych elektroników składających drony. Wymagana znajomość języka angielskiego, lutowania obwodów elektronicznych, czytania schematów, programowania układów jednoprocesorowych i konfigurowania dronów. Nieprawidłowe podłączenie, lub przekroczenie dozwolonych parametrów grozi uszkodzeniem lub nawet pożarem i nie jest objęte gwarancją.
Kontroler Borg 5S RX Flight Controller (BE17428)
Procesor AT32F435RGT7
Gyro : ICM42688
Odbiornik: ELRS 2.4GHz
BEC 5V , 12V
4x UART
Blackbox 16M
Zasilanie 4-8s LiPo
Polecane oprogramowanie: IFLIGHT_BLITZ_ATF435 (Betaflight)
Regulator obrotów Borg 60R ESC (BE17423)
ESC 4x60A Mini BL32 (32bit ESC)
Regulator 4in1
Montaż 20x20mm
45*52mm±1, 14.5g±1
Zasilanie 4-8s LiPo
Introducing the All-New Borg Series – Power Meets Precision!
The Borg 5S RX FC Flight Controller is specifically designed for racing fpv, providing unmatched performance. This innovative controller features a built-in ELRS 2.4GHz receiver and an integrated antenna, ensuring a reliable connection and enhanced control during your flights.
Additionally, the Borg 5S RX FC offers the flexibility to support external receivers, allowing you to customize your setup to meet your individual racing needs. Elevate your racing experience with the cutting-edge technology of the Borg Series!
Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.
Supports 4S to 8S battery inputs, offering versatility for various racing setups.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Input voltage: 4-8S; Support LIHV battery
MCU: AT32F435RGT7
Gyro: ICM42688
Barometer: N/A
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 4
Motor outputs: 4
I2C serial: Non support
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)
Mount pattern: 20*20φ4
Dimensions: 34*28.5mm±1
Weight: 6.8g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
UART 1 for VTX HD / Analog
UART 2 for ESC Telemet
UART 4 for Built-in ELRS receiver/SBUS input
UART 5 for GPS or other sensors that require a serial port

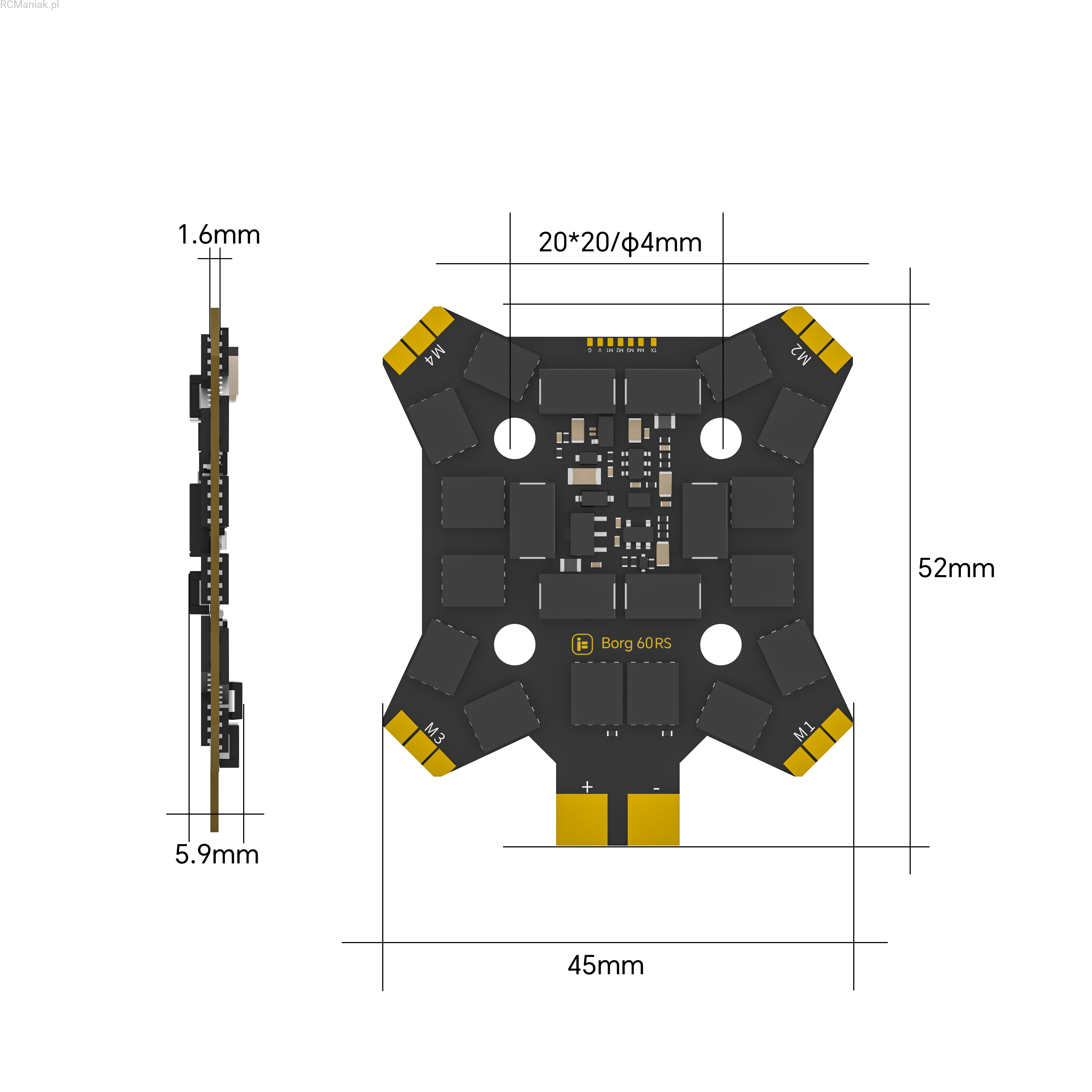

Product Name: Borg 60R ESC
Input Voltage: 3-8S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: No
BEC: No
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 45*52mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Weight: 14.5g±1
Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
