It's finally here, the iFlight ELRS System! Extreme range and markets highest packet rate for lowest delay. Failsafes are a thing of the past.
ExpressLRS RX Nano modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.
Checkout the official ExpressLRS website: https://www.expresslrs.org/
Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
Remember this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating: https://opencollective.com/expresslrs
Improved circuit design
Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
High-performance at 900MHz (900 / 868 bands available)
Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
Flash the latest firmware and follow the ELRS Community for updates, tutorials or contributions.
Use iFlight ELRS receivers coupled with our transmitter for maximum performance! We've probably achieved market's best crystal frequency stability at a very low frequency deviation. Please checkout this article for further information https://github.com/ExpressLRS/ExpressLRS/wiki/Crystal-Oscillator-(XO)-Frequency-Error
The 900MHz band have outstanding performance and long range capabilities. If you're not sure what to get, please checkout the official ELRS Long Range Competition to see what has been achieved. https://www.expresslrs.org/2.0/info/long-range/
What can you expect? Due to local regulations, the 900MHz FCC region seems to have a better performance than the 868MHz EU region.
Antenna connector: IPEX(868MHz/900MHz)
Firmware: ExpressLRS iFlight 900MHz Nano RX(868MHz/900MHz)
Frequency bands: 868MHz EU/900MHz FCC
Telemetry Power: 17dbm (50mW 868/900MHz)
Dimension: 10*13mm

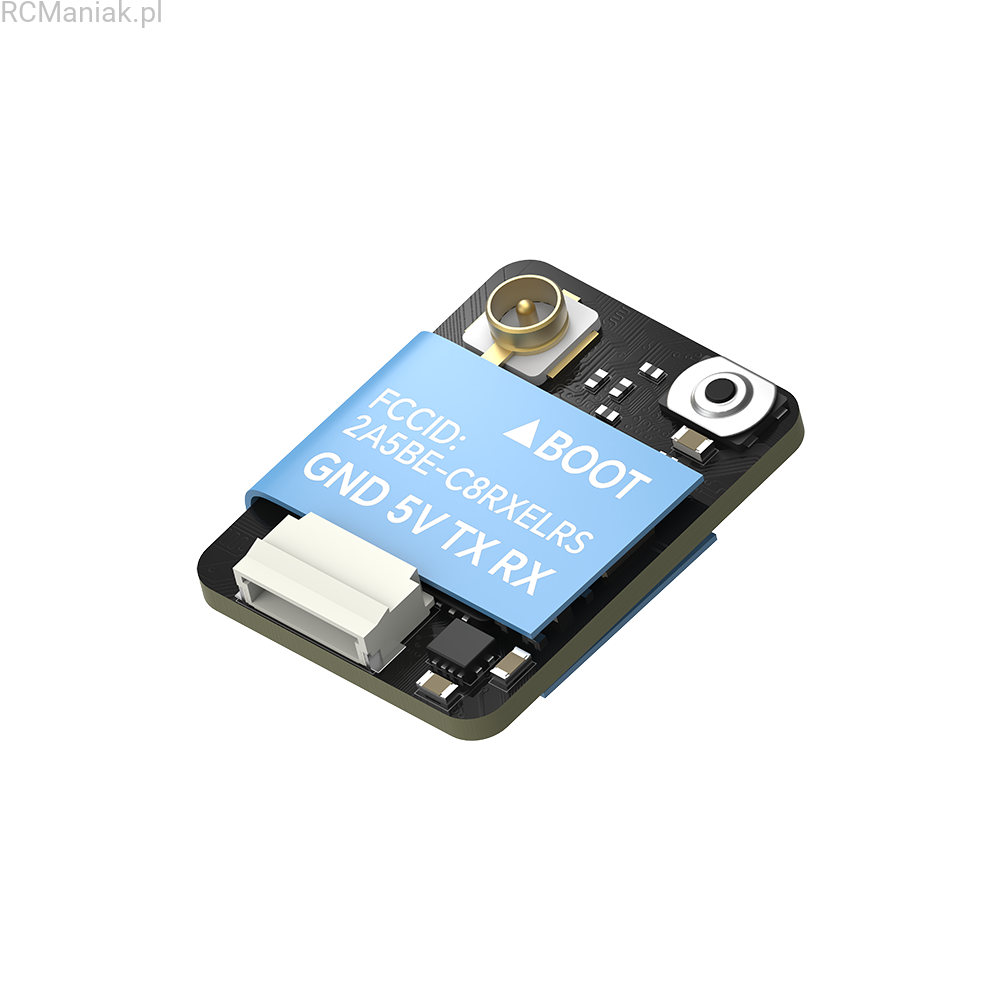

Connector: SUR0.8 Connector

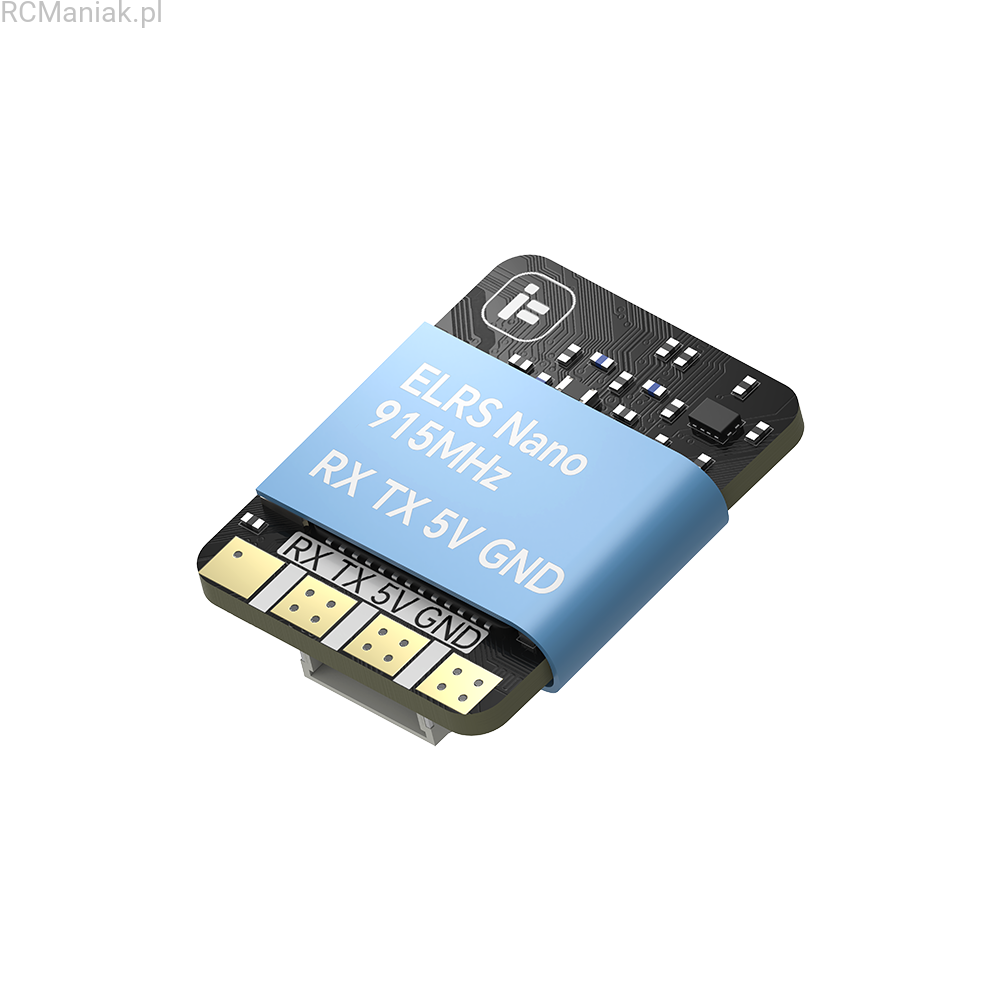

Interface: RX TX 5V GND
Input voltage: 5V
Protocol: CRSF
Weight: 0.5g
1 x ExpressLRS Nano Receiver

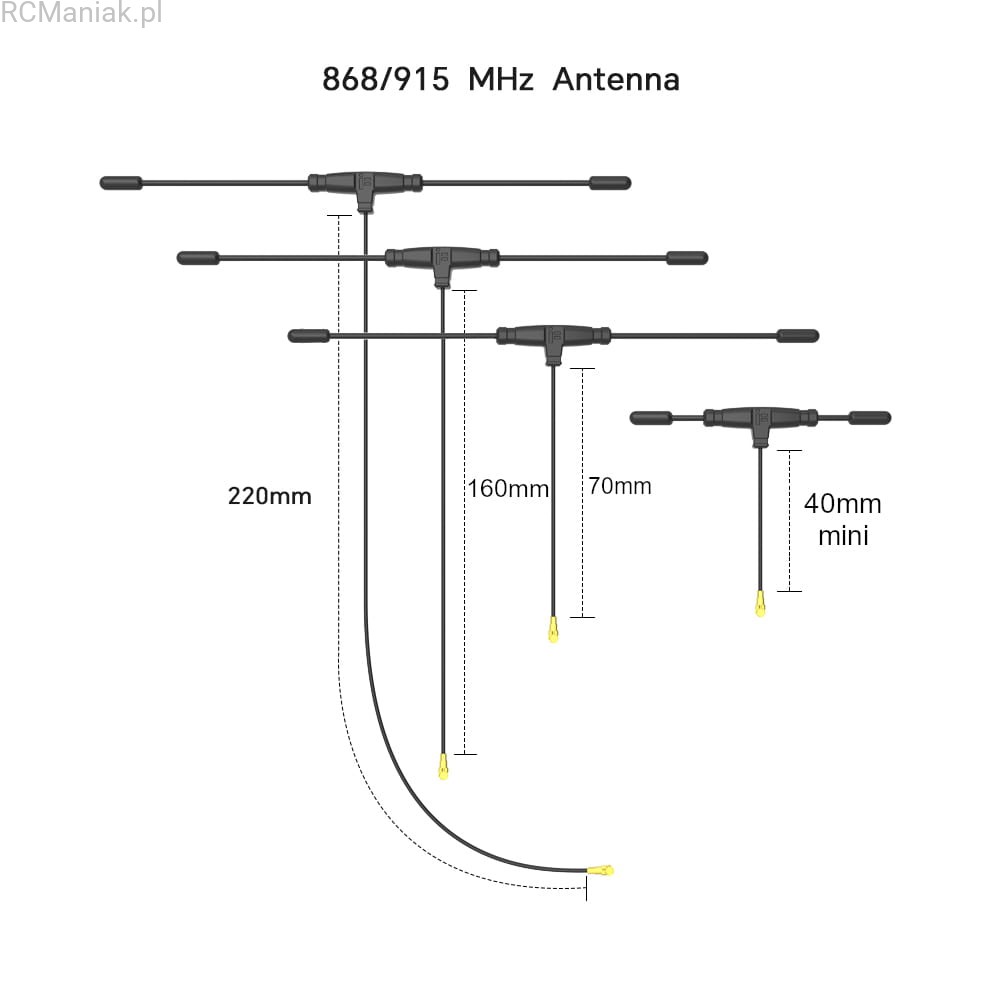

1 x Antenna 160mm
