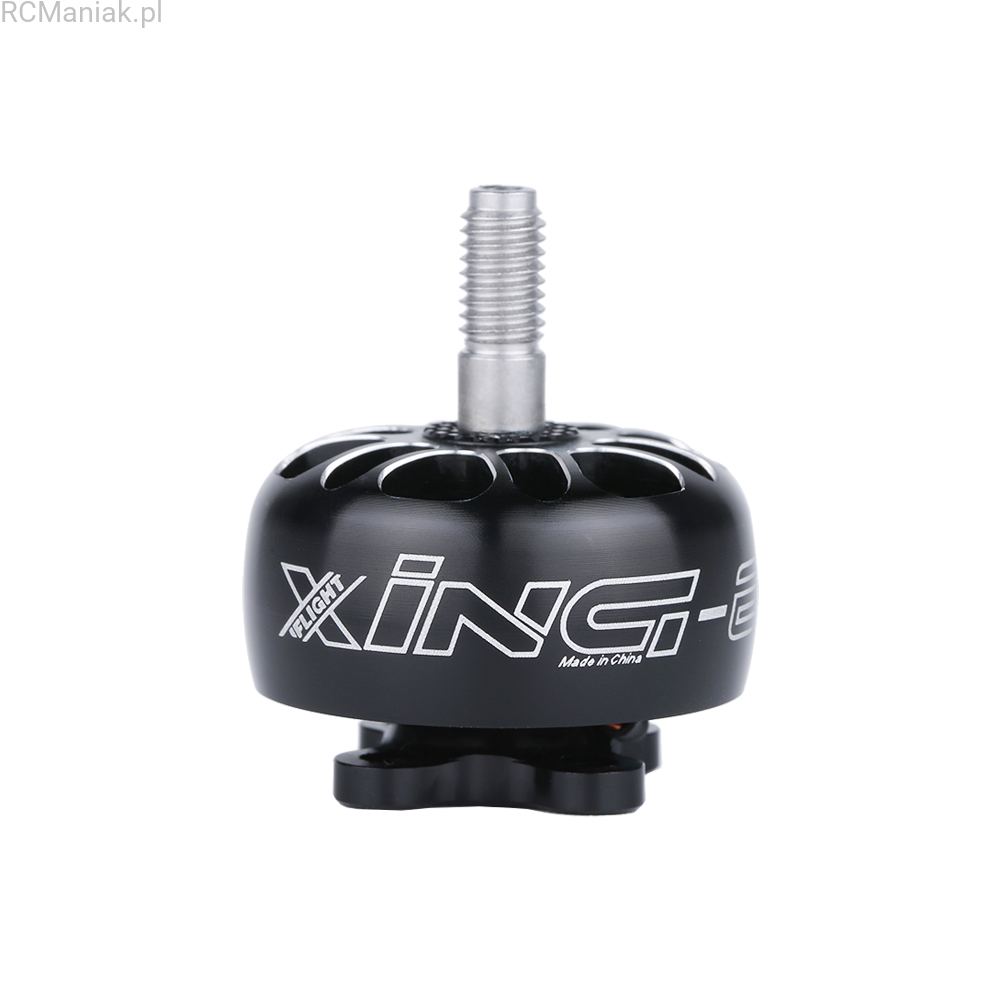

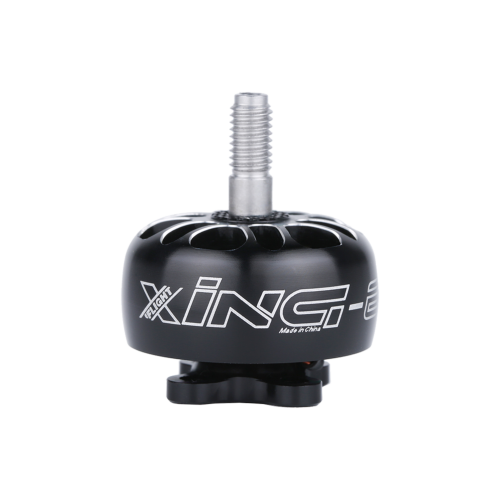

XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable. This 2208 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
High-strength 4mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw
Model: XING-E Pro 2208 Motor
KV: 2450KV
Weight(included wire): 38.3g
Dimension: φ29*20.7mm
Interphase Resistance: 74.23mΩ
Input Volts: 16.8V
Peak Current: 40.22A
Max Watt: 658W
Mounting Holes: 16*16 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 4mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding
1 x XING-E Pro 2208 motor
4 x M3*8 Screws
1 x M5 Flange Nut
