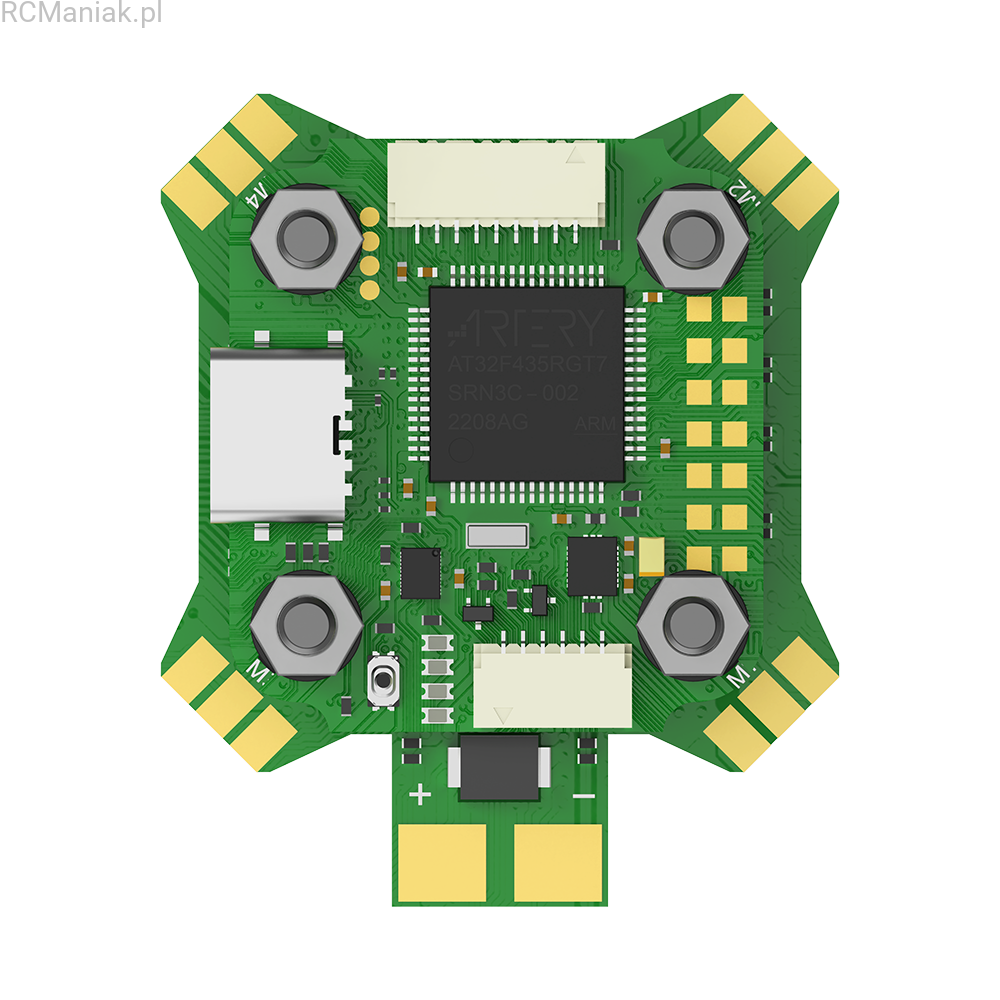

FC Specifications
MCU: AT32F435RGT7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27mm
Weight: 5g
BEC: 5V 2.5A

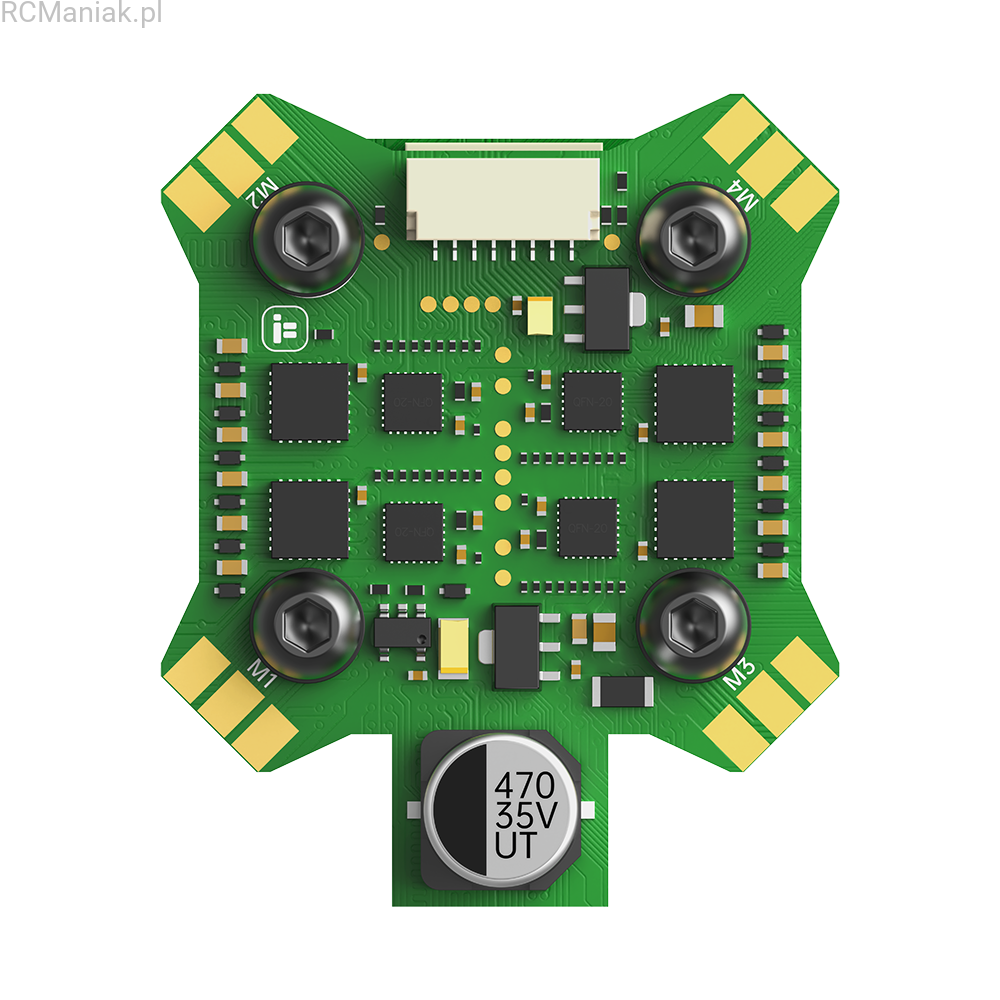

ESC Specifications
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Telemetry Output: No
Current sensor: Yes
Current rate: 200
BEC: No
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Packing List
1 x BLITZ Mini ATF435 Flight Controller
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
